Component Parts Location

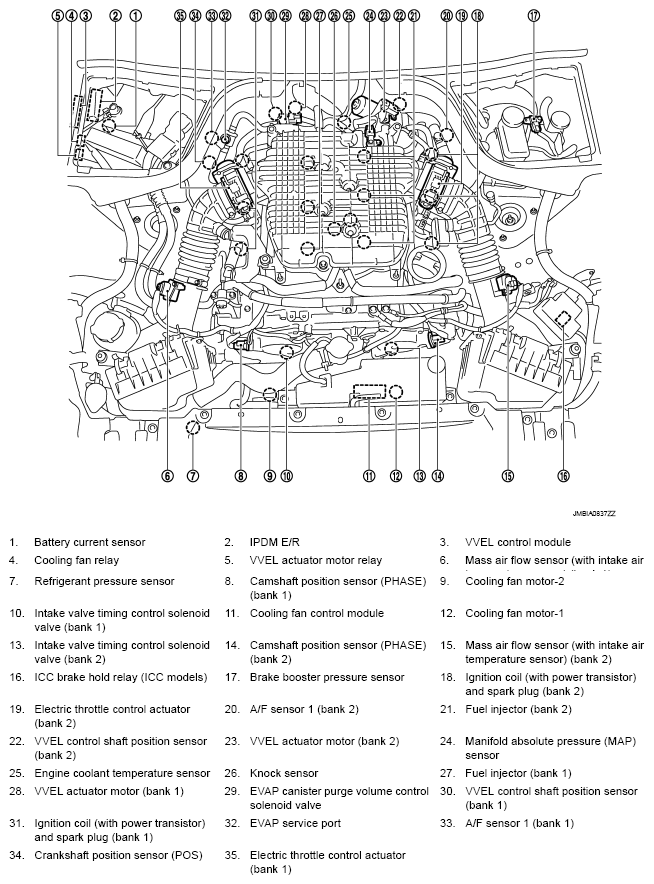

Fig 1: Identifying Engine Control System Component Location (1 Of 21)

G05733163

Courtesy of NISSAN MOTOR CO., U.S.A.

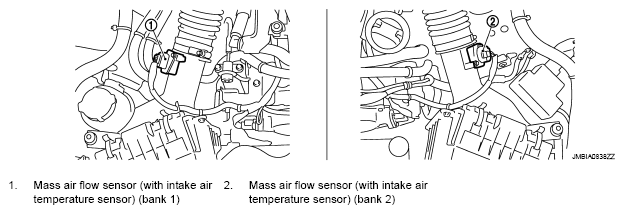

Fig 2: Identifying Engine Control System Component Location (2 Of 21)

G05733164

Courtesy of NISSAN MOTOR CO., U.S.A.

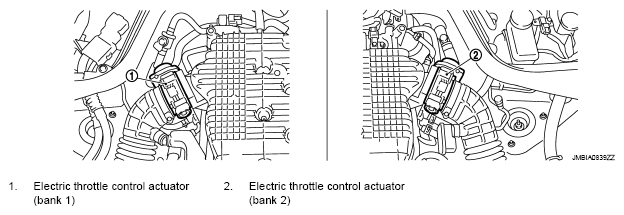

Fig 3: Identifying Engine Control System Component Location (3 Of 21)

G05733165

Courtesy of NISSAN MOTOR CO., U.S.A.

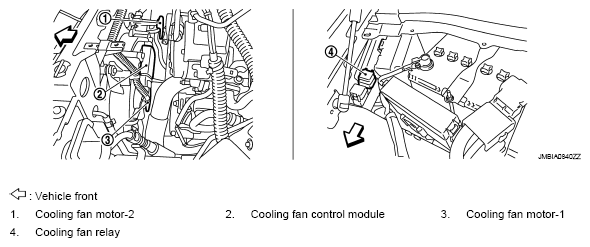

Fig 4: Identifying Engine Control System Component Location (4 Of 21)

G05733166

Courtesy of NISSAN MOTOR CO., U.S.A.

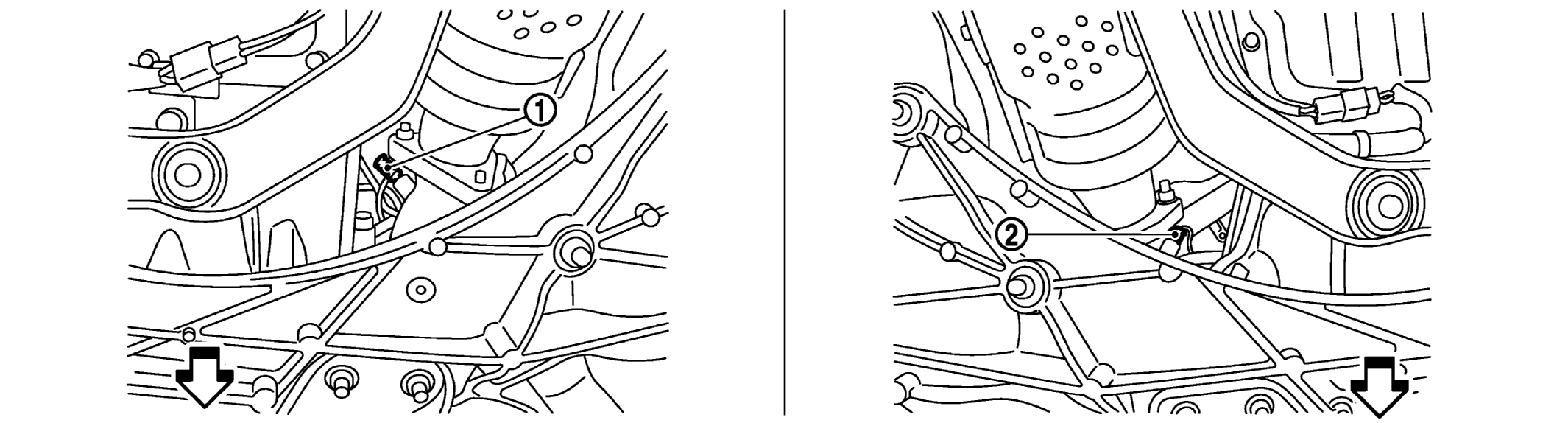

Fig 5: Identifying Engine Control System Component Location (5 Of 21)

G05733167

Courtesy of NISSAN MOTOR CO., U.S.A.

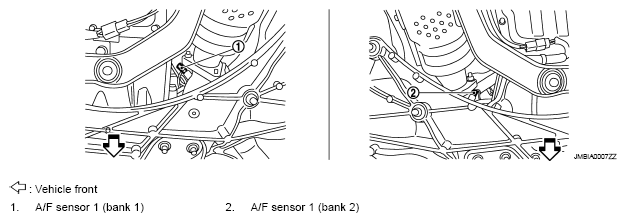

Fig 6: Identifying Engine Control System Component Location (6 Of 21)

G05733168

Courtesy of NISSAN MOTOR CO., U.S.A.

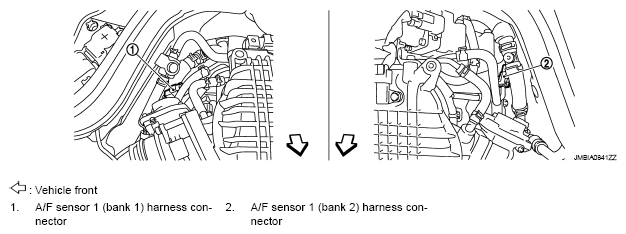

Fig 7: Identifying Engine Control System Component Location (7 Of 21)

G05733169

Courtesy of NISSAN MOTOR CO., U.S.A.

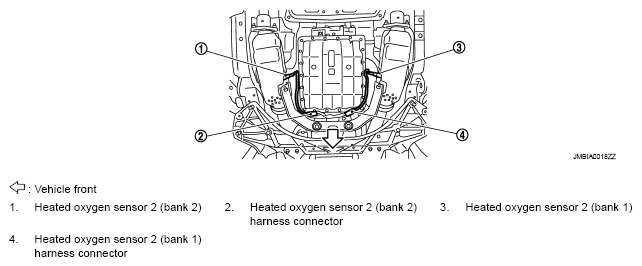

Fig 8: Identifying Engine Control System Component Location (8 Of 21)

G05733170

Courtesy of NISSAN MOTOR CO., U.S.A.

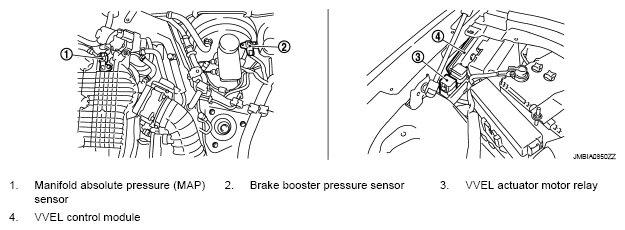

Fig 9: Identifying Engine Control System Component Location (9 Of 21)

G05733171

Courtesy of NISSAN MOTOR CO., U.S.A.

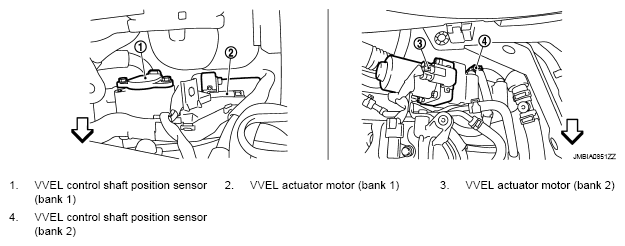

Fig 10: Identifying Engine Control System Component Location (10 Of 21)

G05733172

Courtesy of NISSAN MOTOR CO., U.S.A.

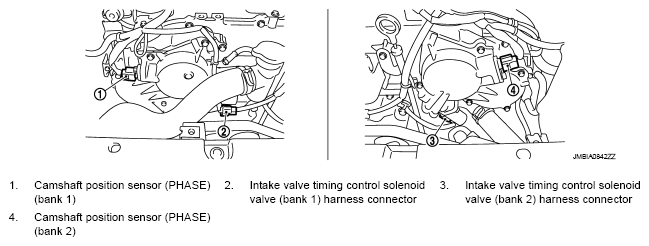

Fig 11: Identifying Engine Control System Component Location (11 Of 21)

G05733173

Courtesy of NISSAN MOTOR CO., U.S.A.

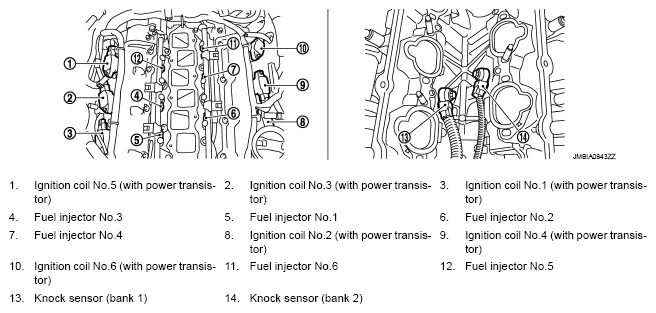

Fig 12: Identifying Engine Control System Component Location (12 Of 21)

G05733174

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Control System Component Location (13 Of 21)

G05733175

Courtesy of NISSAN MOTOR CO., U.S.A.

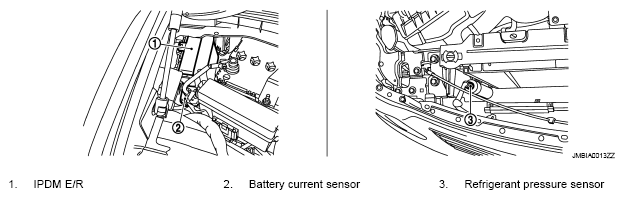

Fig 14: Identifying Engine Control System Component Location (14 Of 21)

G05733176

Courtesy of NISSAN MOTOR CO., U.S.A.

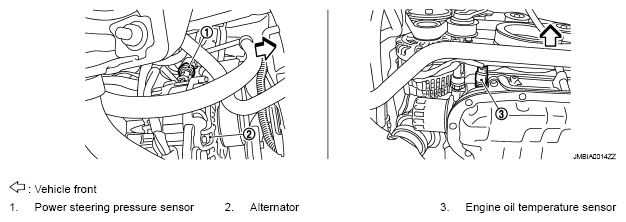

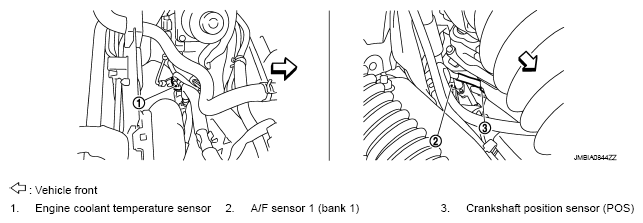

Fig 15: Identifying Engine Control System Component Location (15 Of 21)

G05733177

Courtesy of NISSAN MOTOR CO., U.S.A.

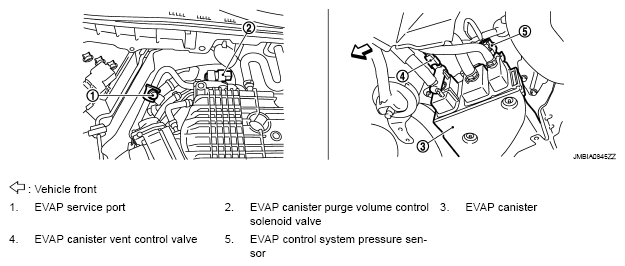

Fig 16: Identifying Engine Control System Component Location (16 Of 21)

G05733178

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Component Location (17 Of 21)

G05733179

Courtesy of NISSAN MOTOR CO., U.S.A.

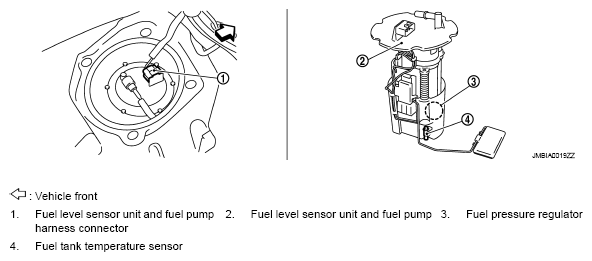

Fig 18: Identifying Engine Control System Component Location (18 Of 21)

G05733180

Courtesy of NISSAN MOTOR CO., U.S.A.

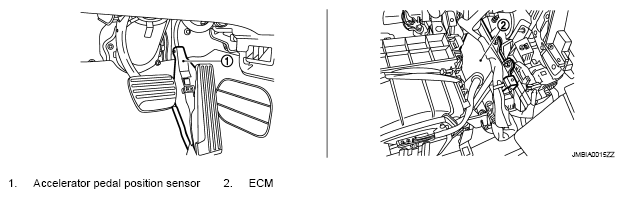

Fig 19: Identifying Engine Control System Component Location (19 Of 21)

G05733181

Courtesy of NISSAN MOTOR CO., U.S.A.

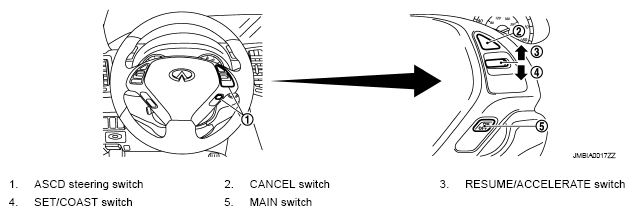

Fig 20: Identifying Engine Control System Component Location (20 Of 21)

G05733182

Courtesy of NISSAN MOTOR CO., U.S.A.

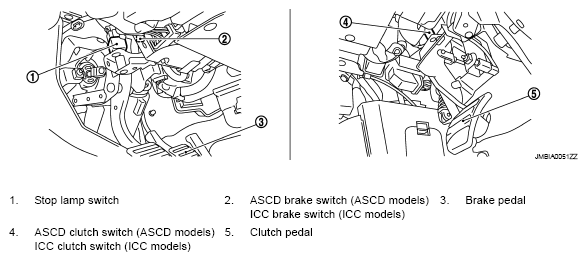

Fig 21: Identifying Engine Control System Component Location (21 Of 21)

G05733183

Courtesy of NISSAN MOTOR CO., U.S.A.
