Component Parts Location

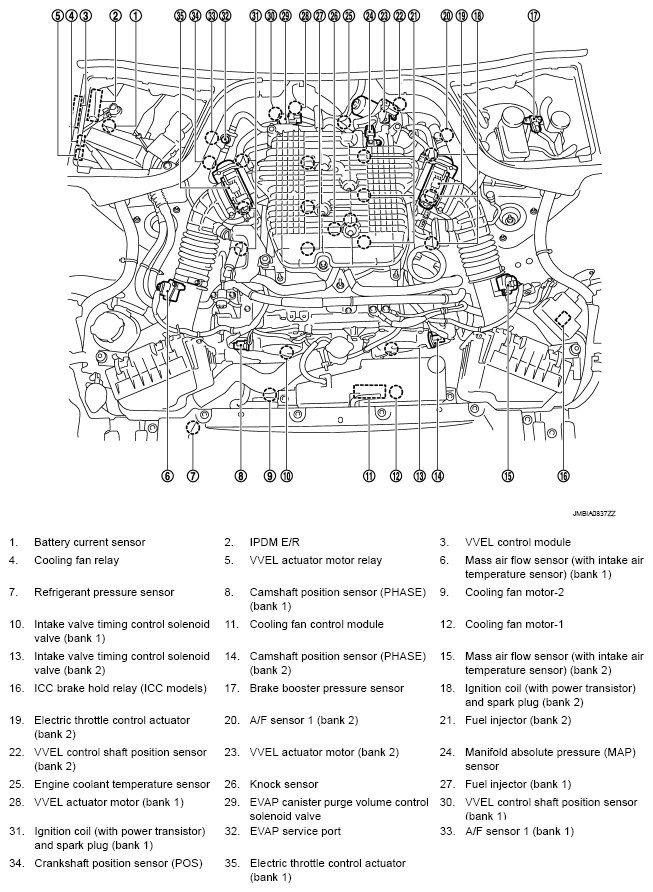

Fig 1: Identifying Evaporative Emission System Component Location (1 Of 21)

G05733299

Courtesy of NISSAN MOTOR CO., U.S.A.

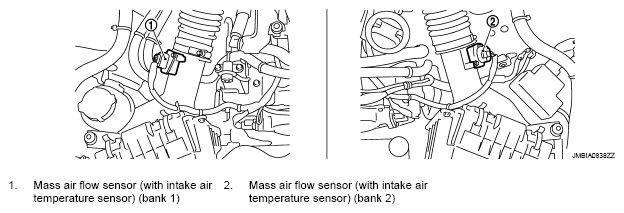

Fig 2: Identifying Evaporative Emission System Component Location (2 Of 21)

G05733300

Courtesy of NISSAN MOTOR CO., U.S.A.

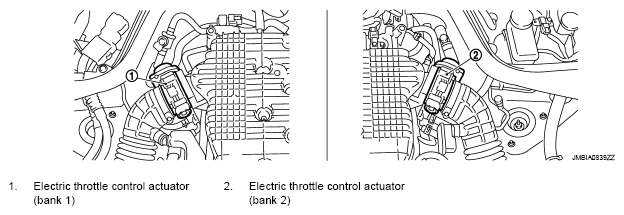

Fig 3: Identifying Evaporative Emission System Component Location (3 Of 21)

G05733301

Courtesy of NISSAN MOTOR CO., U.S.A.

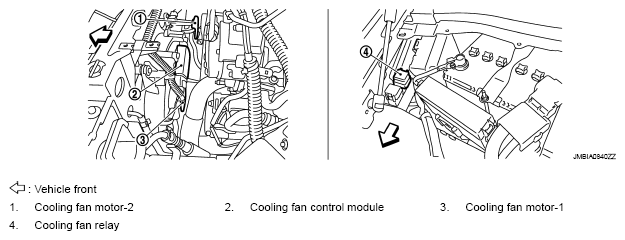

Fig 4: Identifying Evaporative Emission System Component Location (4 Of 21)

G05733302

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Evaporative Emission System Component Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

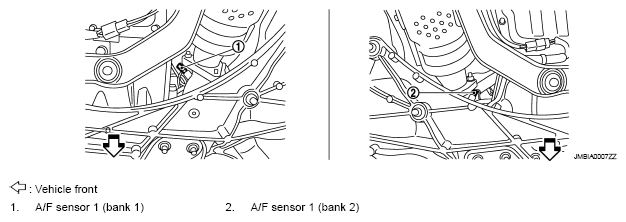

Fig 6: Identifying Evaporative Emission System Component Location (6 Of 21)

G05733304

Courtesy of NISSAN MOTOR CO., U.S.A.

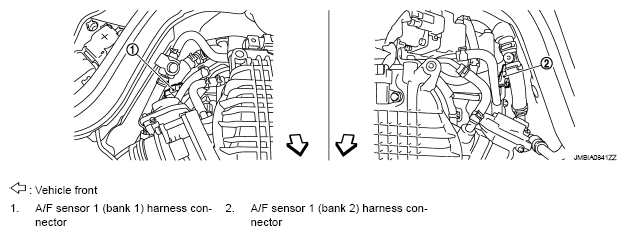

Fig 7: Identifying Evaporative Emission System Component Location (7 Of 21)

G05733305

Courtesy of NISSAN MOTOR CO., U.S.A.

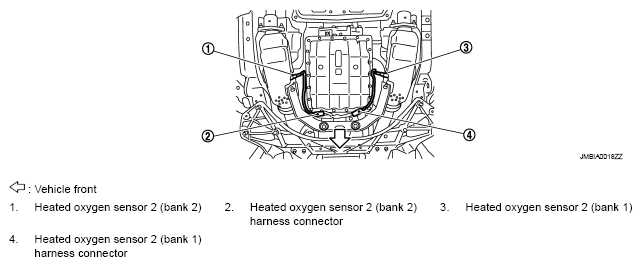

Fig 8: Identifying Evaporative Emission System Component Location (8 Of 21)

G05733306

Courtesy of NISSAN MOTOR CO., U.S.A.

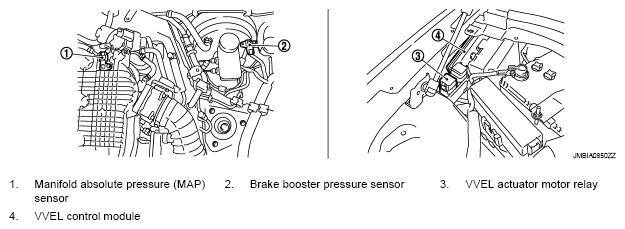

Fig 9: Identifying Evaporative Emission System Component Location (9 Of 21)

G05733307

Courtesy of NISSAN MOTOR CO., U.S.A.

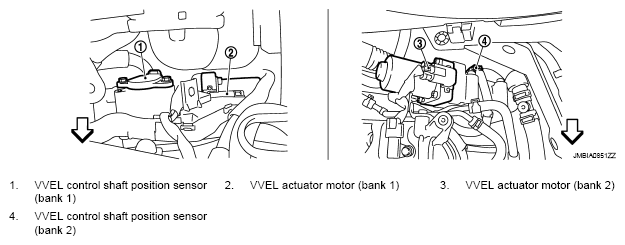

Fig 10: Identifying Evaporative Emission System Component Location (10 Of 21)

G05733308

Courtesy of NISSAN MOTOR CO., U.S.A.

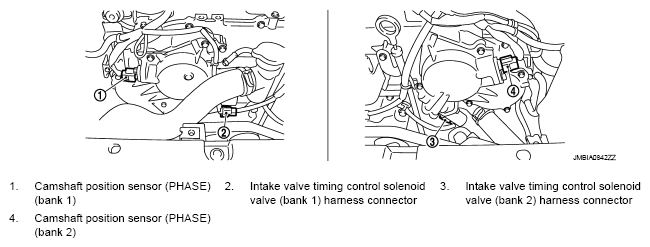

Fig 11: Identifying Evaporative Emission System Component Location (11 Of 21)

G05733309

Courtesy of NISSAN MOTOR CO., U.S.A.

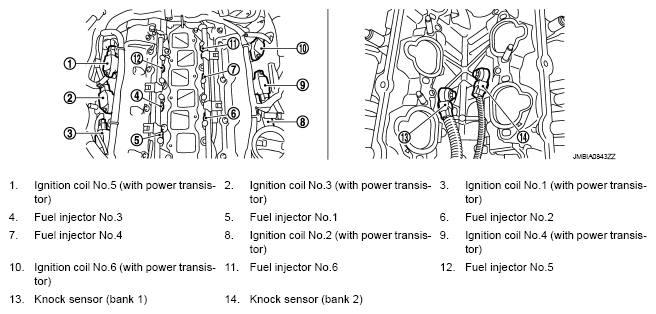

Fig 12: Identifying Evaporative Emission System Component Location (12 Of 21)

G05733310

Courtesy of NISSAN MOTOR CO., U.S.A.

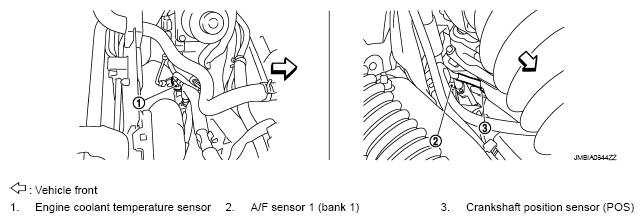

Fig 13: Identifying Evaporative Emission System Component Location (13 Of 21)

G05733311

Courtesy of NISSAN MOTOR CO., U.S.A.

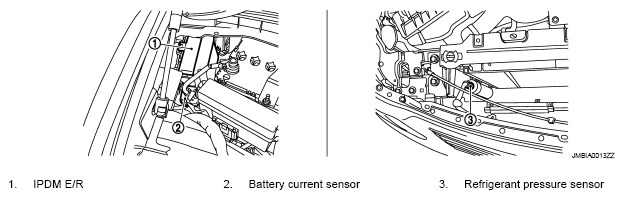

Fig 14: Identifying Evaporative Emission System Component Location (14 Of 21)

G05733312

Courtesy of NISSAN MOTOR CO., U.S.A.

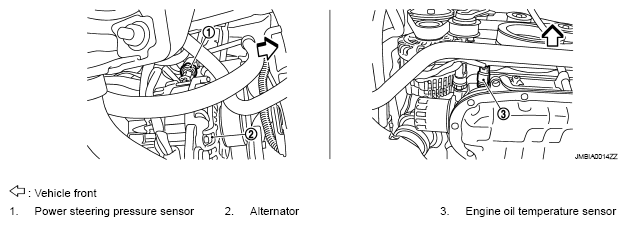

Fig 15: Identifying Evaporative Emission System Component Location (15 Of 21)

G05733313

Courtesy of NISSAN MOTOR CO., U.S.A.

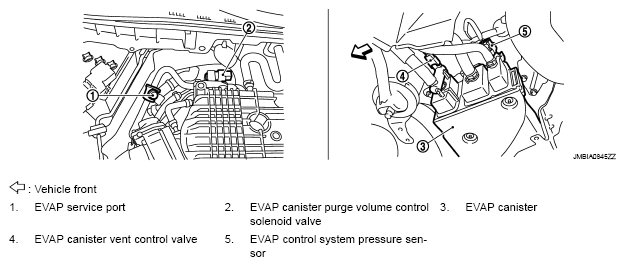

Fig 16: Identifying Evaporative Emission System Component Location (16 Of 21)

G05733314

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Evaporative Emission System Component Location (17 Of 21)

G05733315

Courtesy of NISSAN MOTOR CO., U.S.A.

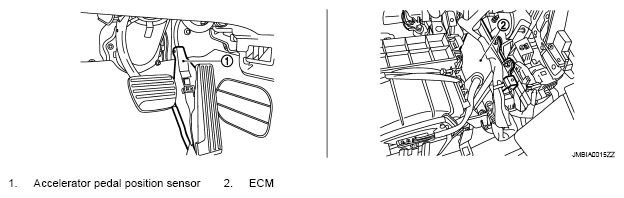

Fig 18: Identifying Evaporative Emission System Component Location (18 Of 21)

G05733316

Courtesy of NISSAN MOTOR CO., U.S.A.

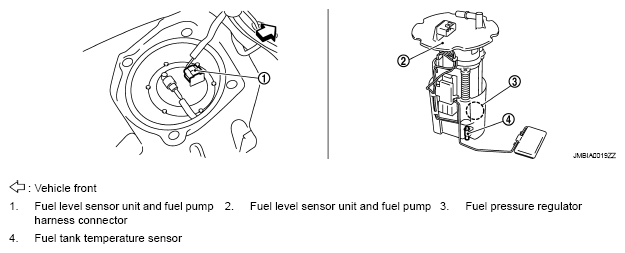

Fig 19: Identifying Evaporative Emission System Component Location (19 Of 21)

G05733317

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Evaporative Emission System Component Location (20 Of 21)

G05733318

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Evaporative Emission System Component Location (21 Of 21)

G05733319

Courtesy of NISSAN MOTOR CO., U.S.A.
