Component Parts Location

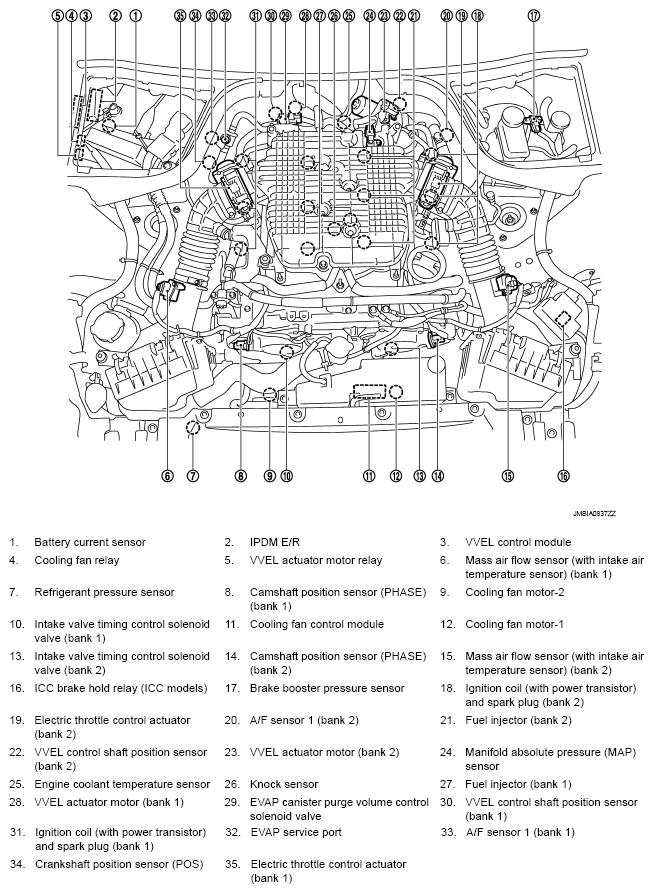

Fig 1: Identifying Intake Valve Timing Control System Component Location (1 Of 21)

G05733321

Courtesy of NISSAN MOTOR CO., U.S.A.

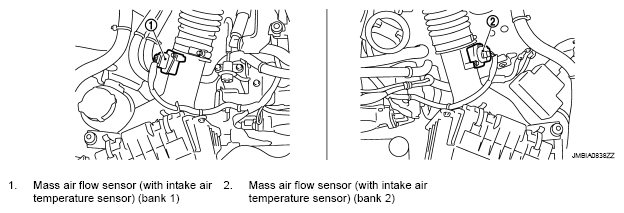

Fig 2: Identifying Intake Valve Timing Control System Component Location (2 Of 21)

G05733322

Courtesy of NISSAN MOTOR CO., U.S.A.

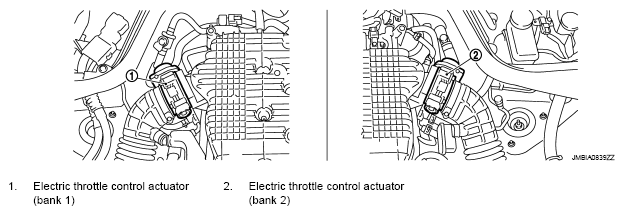

Fig 3: Identifying Intake Valve Timing Control System Component Location (3 Of 21)

G05733323

Courtesy of NISSAN MOTOR CO., U.S.A.

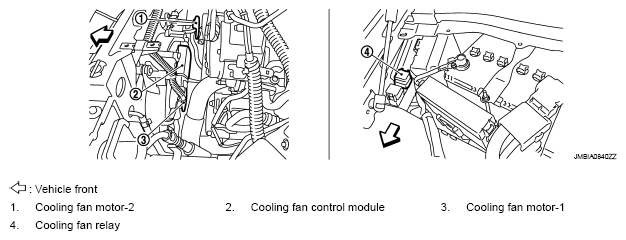

Fig 4: Identifying Intake Valve Timing Control System Component Location (4 Of 21)

G05733324

Courtesy of NISSAN MOTOR CO., U.S.A.

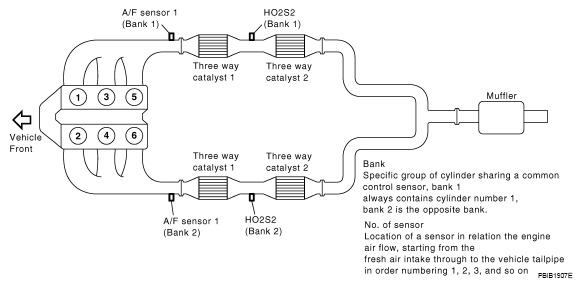

Fig 5: Identifying Intake Valve Timing Control System Component Location (5 Of 21)

G05733325

Courtesy of NISSAN MOTOR CO., U.S.A.

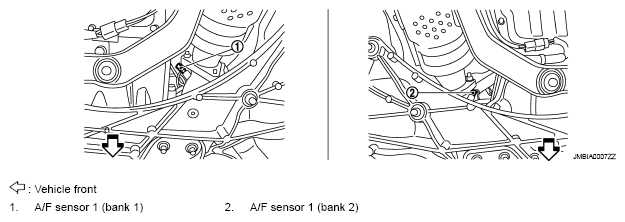

Fig 6: Identifying Intake Valve Timing Control System Component Location (6 Of 21)

G05733326

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control System Component Location (7 Of 21)

G05733327

Courtesy of NISSAN MOTOR CO., U.S.A.

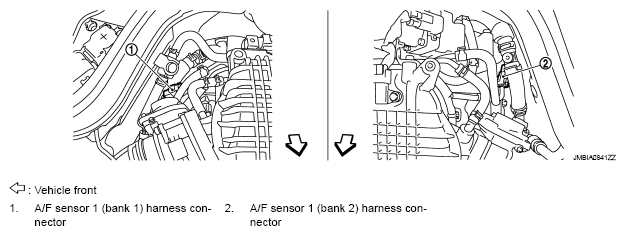

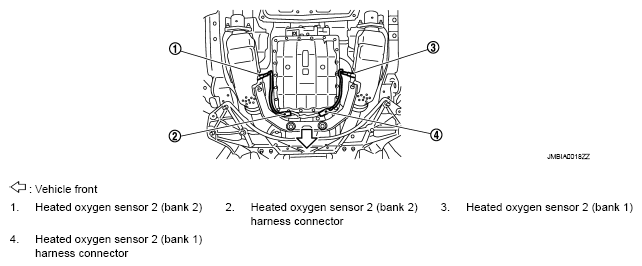

Fig 8: Identifying Intake Valve Timing Control System Component Location (8 Of 21)

G05733328

Courtesy of NISSAN MOTOR CO., U.S.A.

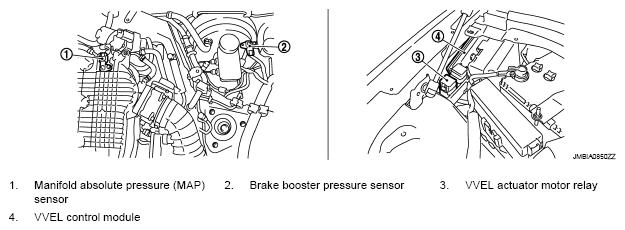

Fig 9: Identifying Intake Valve Timing Control System Component Location (9 Of 21)

G05733329

Courtesy of NISSAN MOTOR CO., U.S.A.

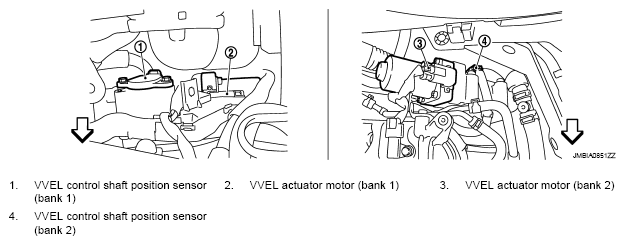

Fig 10: Identifying Intake Valve Timing Control System Component Location (10 Of 21)

G05733330

Courtesy of NISSAN MOTOR CO., U.S.A.

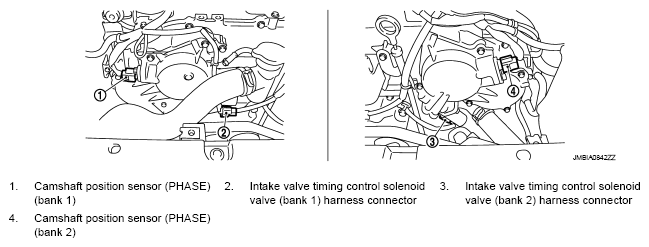

Fig 11: Identifying Intake Valve Timing Control System Component Location (11 Of 21)

G05733331

Courtesy of NISSAN MOTOR CO., U.S.A.

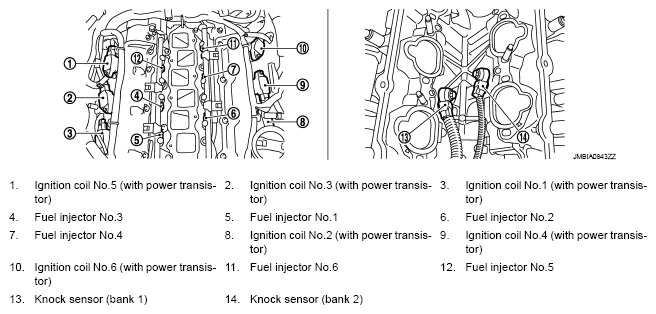

Fig 12: Identifying Intake Valve Timing Control System Component Location (12 Of 21)

G05733332

Courtesy of NISSAN MOTOR CO., U.S.A.

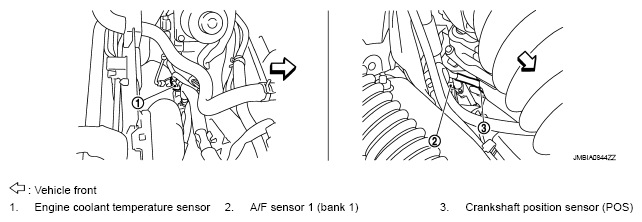

Fig 13: Identifying Intake Valve Timing Control System Component Location (13 Of 21)

G05733333

Courtesy of NISSAN MOTOR CO., U.S.A.

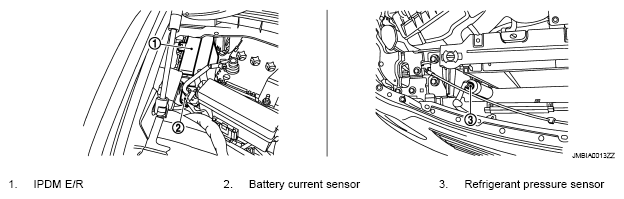

Fig 14: Identifying Intake Valve Timing Control System Component Location (14 Of 21)

G05733334

Courtesy of NISSAN MOTOR CO., U.S.A.

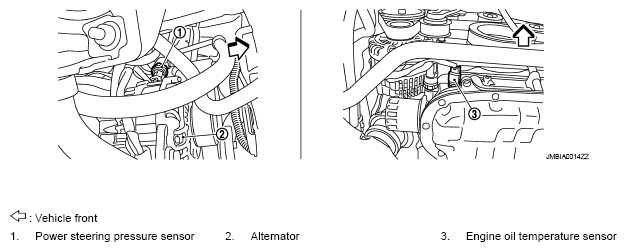

Fig 15: Identifying Intake Valve Timing Control System Component Location (15 Of 21)

G05733335

Courtesy of NISSAN MOTOR CO., U.S.A.

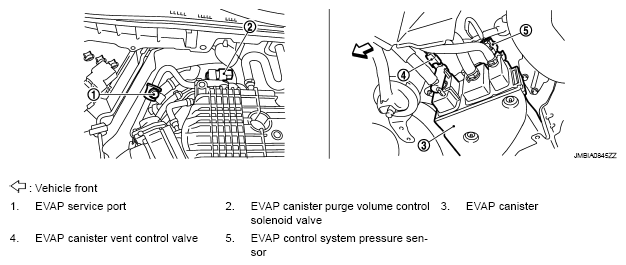

Fig 16: Identifying Intake Valve Timing Control System Component Location (16 Of 21)

G05733336

Courtesy of NISSAN MOTOR CO., U.S.A.

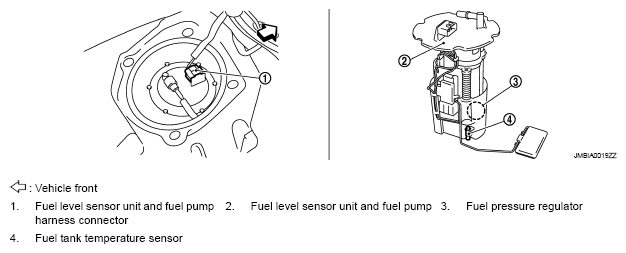

Fig 17: Identifying Intake Valve Timing Control System Component Location (17 Of 21)

G05733337

Courtesy of NISSAN MOTOR CO., U.S.A.

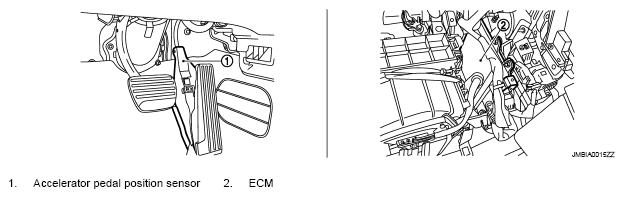

Fig 18: Identifying Intake Valve Timing Control System Component Location (18 Of 21)

G05733338

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control System Component Location (19 Of 21)

G05733339

Courtesy of NISSAN MOTOR CO., U.S.A.

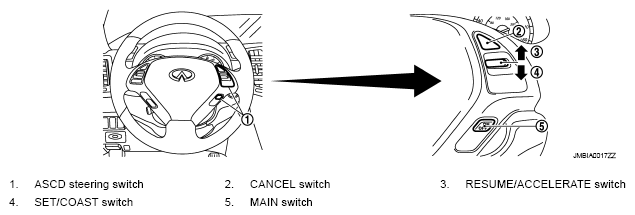

Fig 20: Identifying Intake Valve Timing Control System Component Location (20 Of 21)

G05733340

Courtesy of NISSAN MOTOR CO., U.S.A.

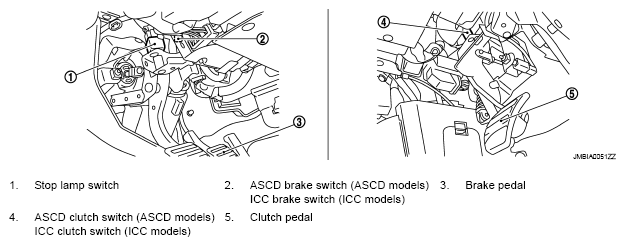

Fig 21: Identifying Intake Valve Timing Control System Component Location (21 Of 21)

G05733341

Courtesy of NISSAN MOTOR CO., U.S.A.
