Component Parts Location

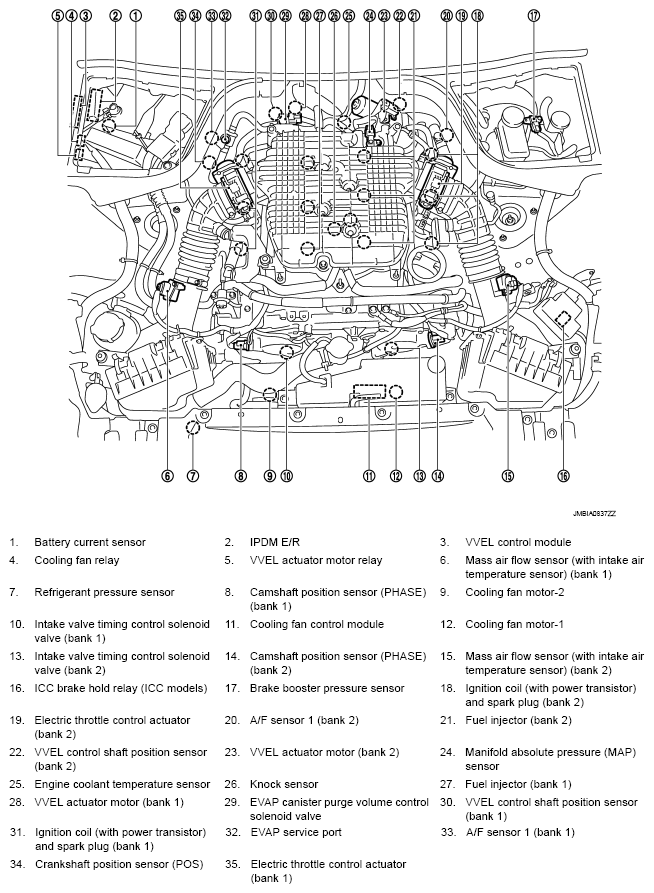

Fig 1: Identifying VVEL System Component Location (1 Of 21)

G05733343

Courtesy of NISSAN MOTOR CO., U.S.A.

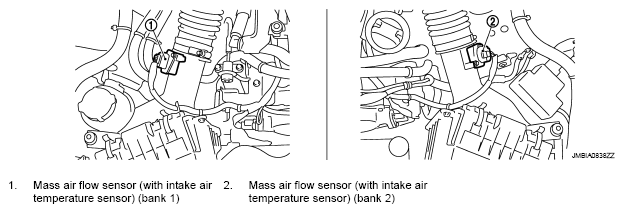

Fig 2: Identifying VVEL System Component Location (2 Of 21)

G05733344

Courtesy of NISSAN MOTOR CO., U.S.A.

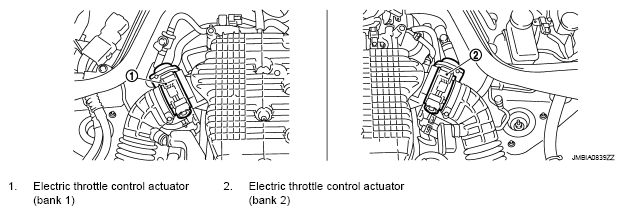

Fig 3: Identifying VVEL System Component Location (3 Of 21)

G05733345

Courtesy of NISSAN MOTOR CO., U.S.A.

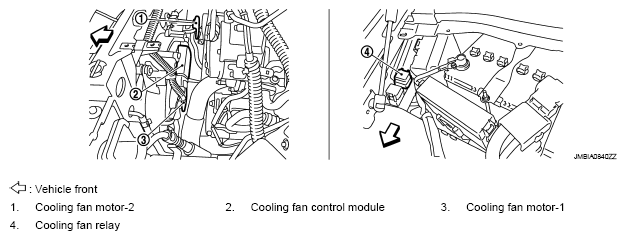

Fig 4: Identifying VVEL System Component Location (4 Of 21)

G05733346

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying VVEL System Component Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

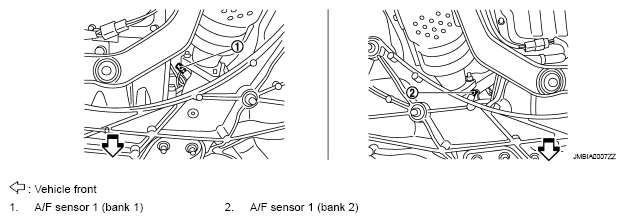

Fig 6: Identifying VVEL System Component Location (6 Of 21)

G05733348

Courtesy of NISSAN MOTOR CO., U.S.A.

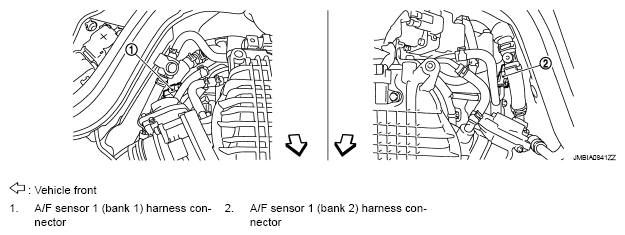

Fig 7: Identifying VVEL System Component Location (7 Of 21)

G05733349

Courtesy of NISSAN MOTOR CO., U.S.A.

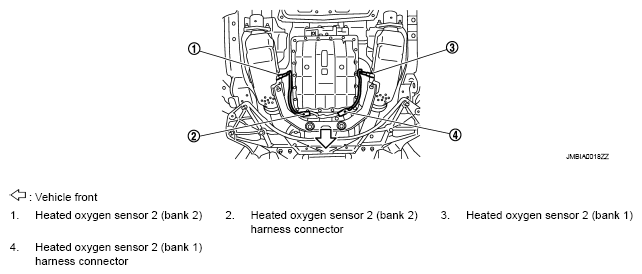

Fig 8: Identifying VVEL System Component Location (8 Of 21)

G05733350

Courtesy of NISSAN MOTOR CO., U.S.A.

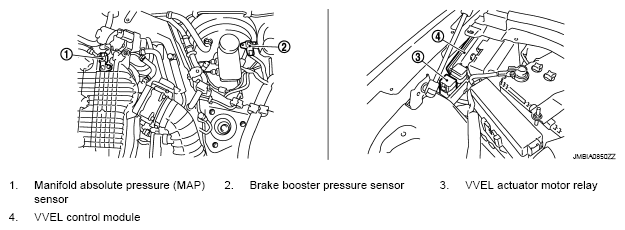

Fig 9: Identifying VVEL System Component Location (9 Of 21)

G05733351

Courtesy of NISSAN MOTOR CO., U.S.A.

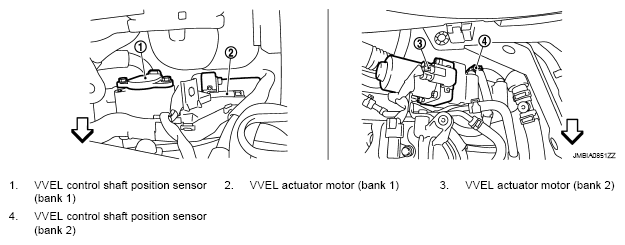

Fig 10: Identifying VVEL System Component Location (10 Of 21)

G05733352

Courtesy of NISSAN MOTOR CO., U.S.A.

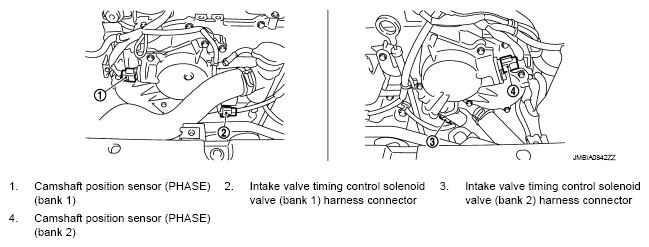

Fig 11: Identifying VVEL System Component Location (11 Of 21)

G05733353

Courtesy of NISSAN MOTOR CO., U.S.A.

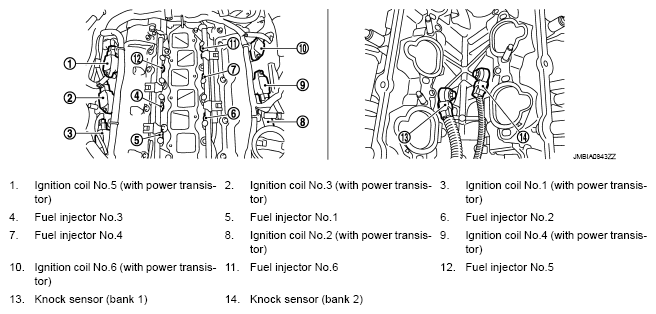

Fig 12: Identifying VVEL System Component Location (12 Of 21)

G05733354

Courtesy of NISSAN MOTOR CO., U.S.A.

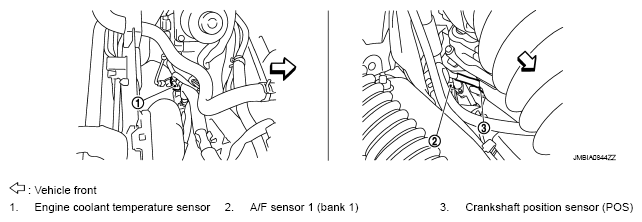

Fig 13: Identifying VVEL System Component Location (13 Of 21)

G05733355

Courtesy of NISSAN MOTOR CO., U.S.A.

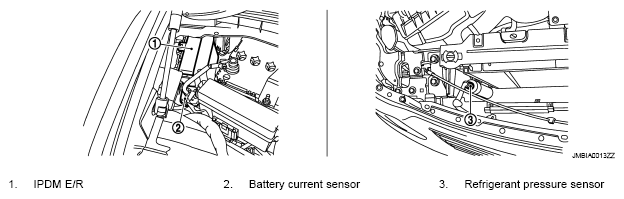

Fig 14: Identifying VVEL System Component Location (14 Of 21)

G05733356

Courtesy of NISSAN MOTOR CO., U.S.A.

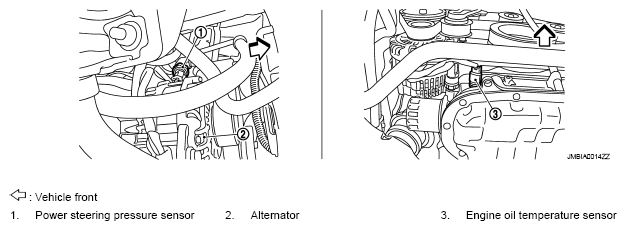

Fig 15: Identifying VVEL System Component Location (15 Of 21)

G05733357

Courtesy of NISSAN MOTOR CO., U.S.A.

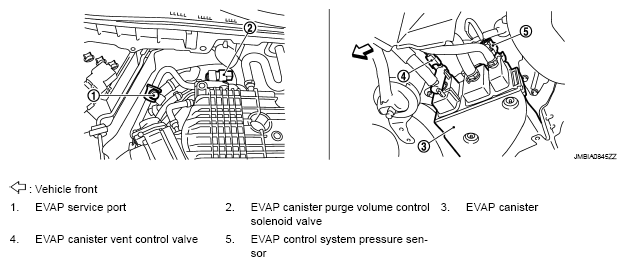

Fig 16: Identifying VVEL System Component Location (16 Of 21)

G05733358

Courtesy of NISSAN MOTOR CO., U.S.A.

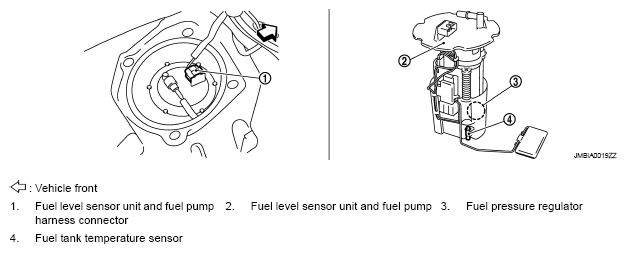

Fig 17: Identifying VVEL System Component Location (17 Of 21)

G05733359

Courtesy of NISSAN MOTOR CO., U.S.A.

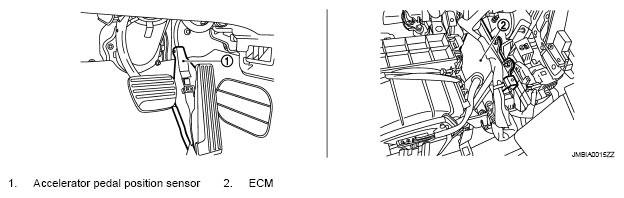

Fig 18: Identifying VVEL System Component Location (18 Of 21)

G05733360

Courtesy of NISSAN MOTOR CO., U.S.A.

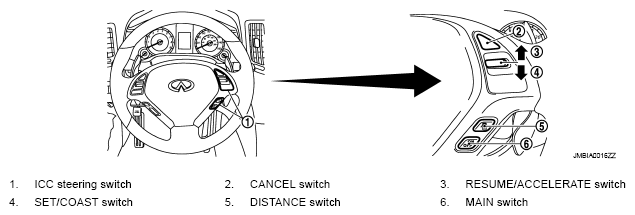

Fig 19: Identifying VVEL System Component Location (19 Of 21)

G05733361

Courtesy of NISSAN MOTOR CO., U.S.A.

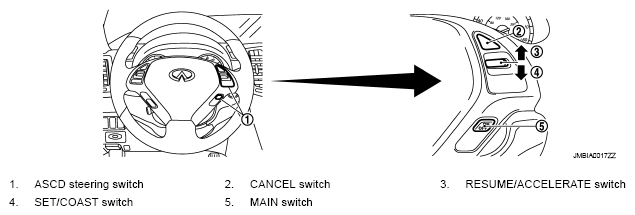

Fig 20: Identifying VVEL System Component Location (20 Of 21)

G05733362

Courtesy of NISSAN MOTOR CO., U.S.A.

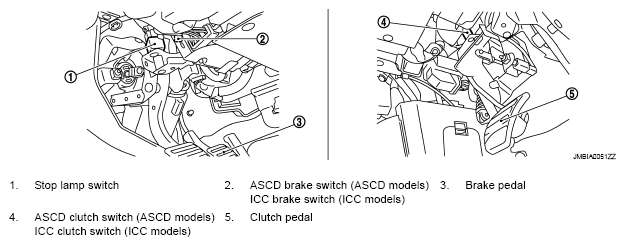

Fig 21: Identifying VVEL System Component Location (21 Of 21)

G05733363

Courtesy of NISSAN MOTOR CO., U.S.A.
