ASCD Indicator: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

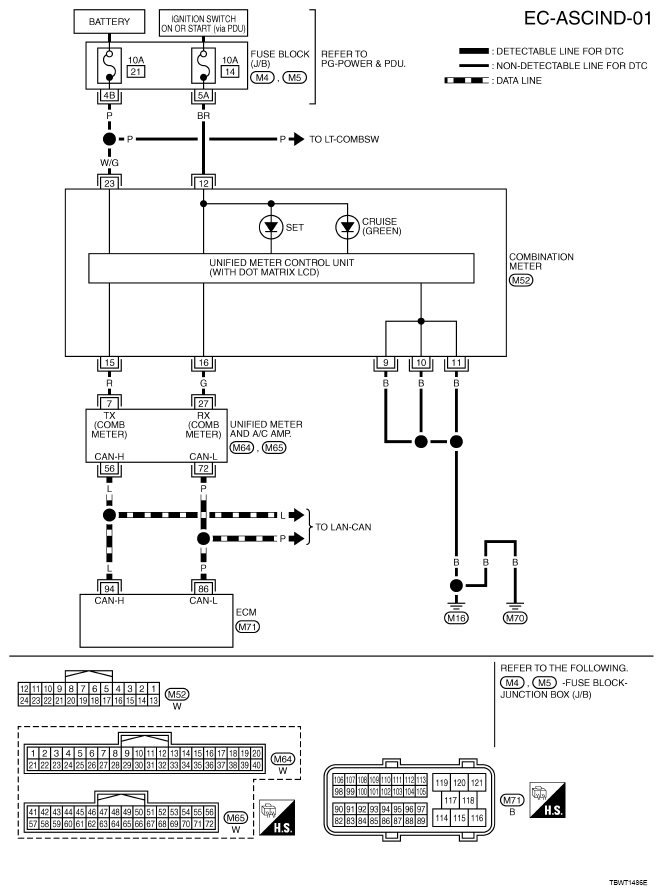

Fig 1: EC-ASCIND-01 - Wiring Diagram
G05210188Courtesy of NISSAN MOTOR CO., U.S.A.
