Method B

  1. Remove No. 1 ignition coil.
    Fig 1: Identifying Ignition Coil
    G05216223Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
    Fig 2: Identifying Ignition Coil, Spark Plug And High-Tension Wire
    G05216224Courtesy of NISSAN MOTOR CO., U.S.A.

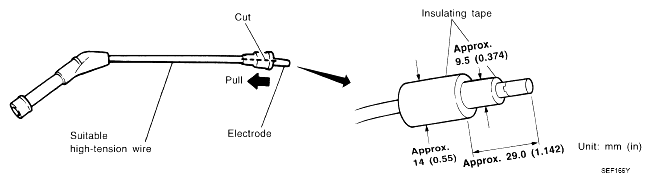

    Fig 3: Connecting Ignition Coil And Spark Plug With High-Tension Wire
    G04894500Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.
    Fig 4: Identifying Ignition Timing And Timing Indicator
    G05216217Courtesy of NISSAN MOTOR CO., U.S.A.
