Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS DESCRIPTION

Tool number
(Kent-Moore No.)
Tool name
Description

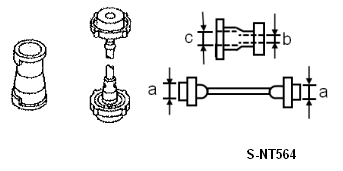

EG17650301
(J-33984-A)
Radiator cap tester adapter
G04874711Courtesy of NISSAN MOTOR CO., U.S.A.
Adapting radiator cap tester to radiator cap and radiator filler neck
  1. a: 28 (1.10) dia  .
  2. b: 31.4 (1.236) dia  .
  3. c: 41.3 (1.626) dia  .

Unit: mm (in)
(J-44321)
Fuel pressure gauge kit
G04874770Courtesy of NISSAN MOTOR CO., U.S.A.
Checking fuel pressure
KV109E0010
(J-46209)
Break-out box
G04905050Courtesy of NISSAN MOTOR CO., U.S.A.
Measuring the ECM signals with a circuit tester
KV109E0080
(J-45819)
Y-cable adapter
G04905051Courtesy of NISSAN MOTOR CO., U.S.A.
Measuring the ECM signals with a circuit tester
