Engine Control Component Parts Location

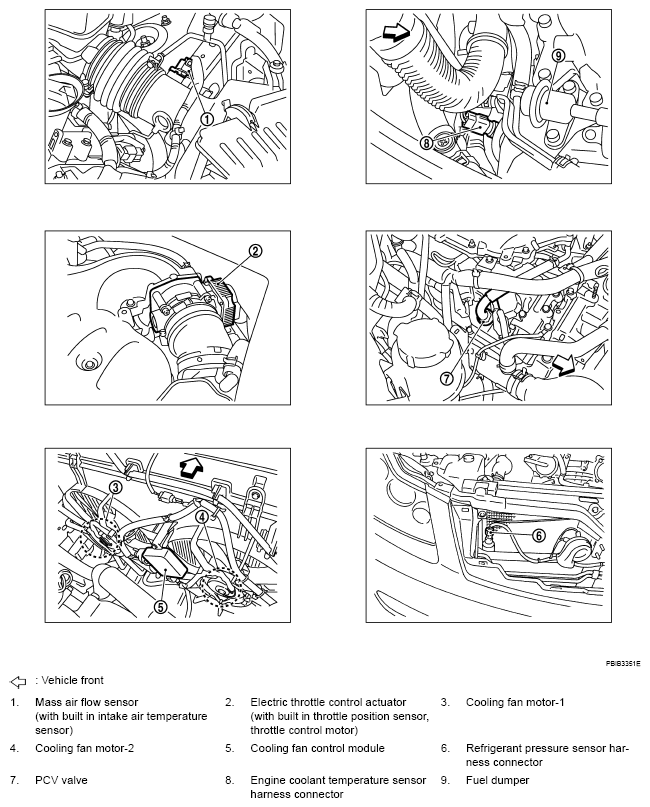

Fig 1: Identifying Engine Control System Components Location (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

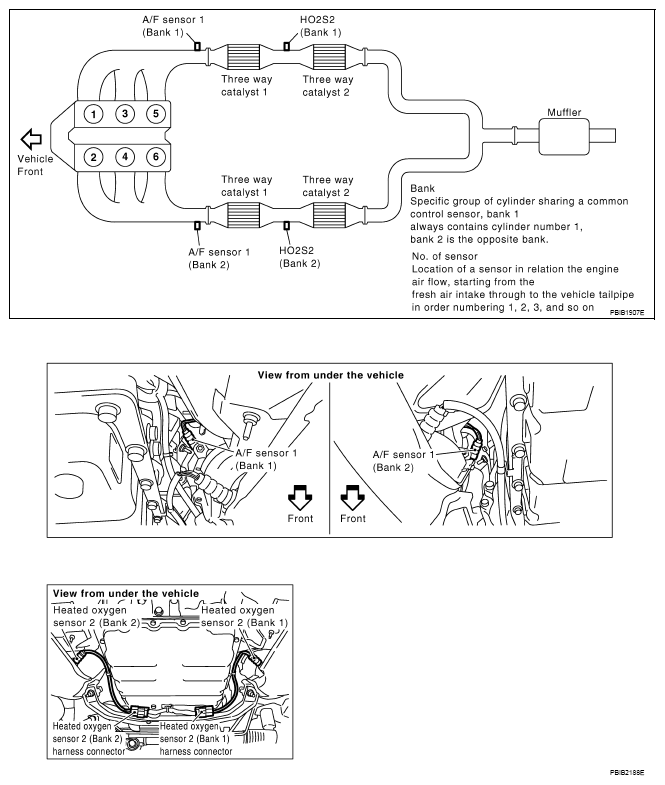

Fig 2: Identifying Engine Control System Components Location (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

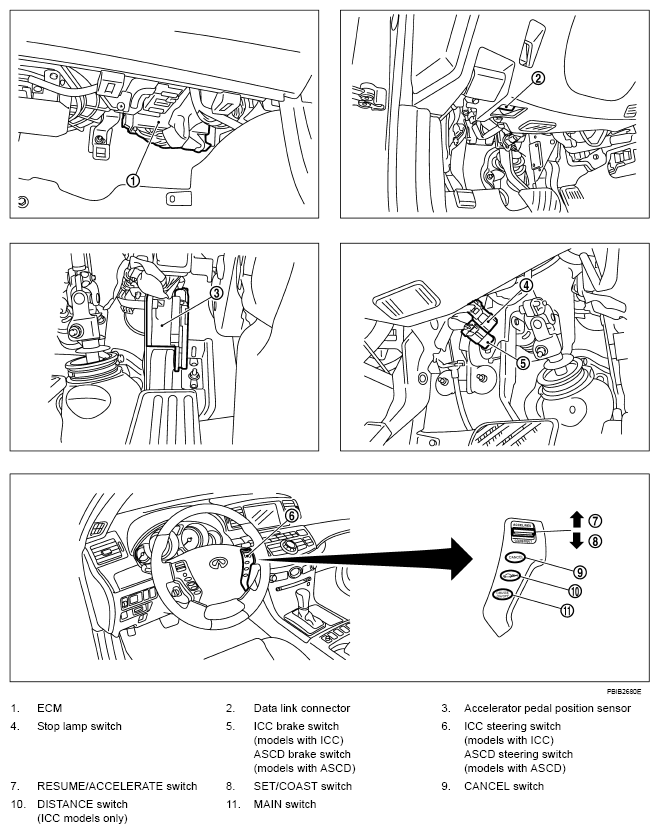

Fig 3: Identifying Engine Control System Components Location (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

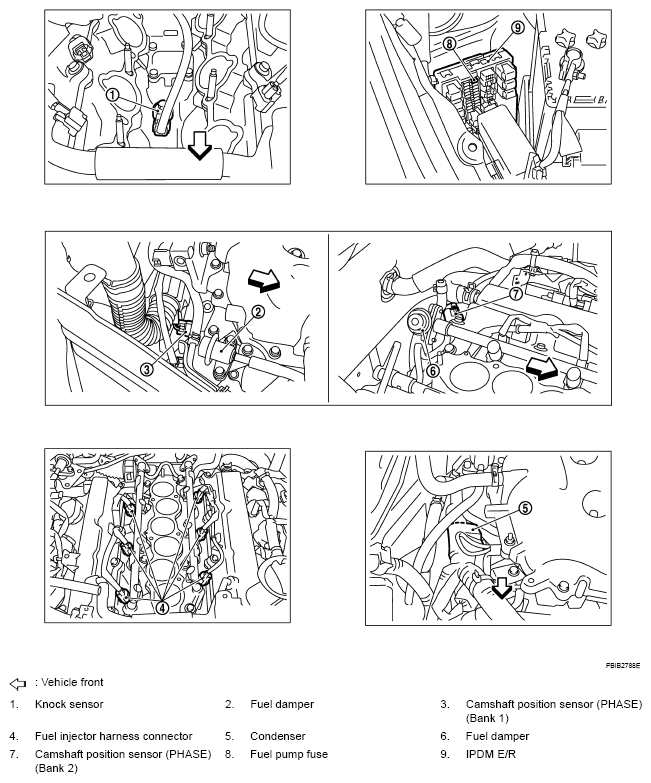

Fig 4: Identifying Engine Control System Components Location (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

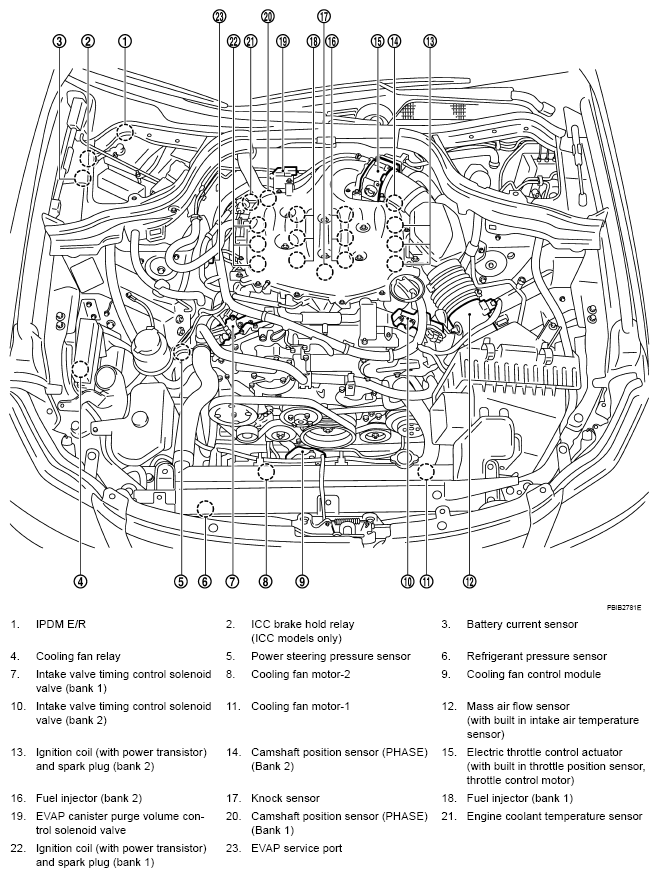

Fig 5: Identifying Engine Control System Components Location (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

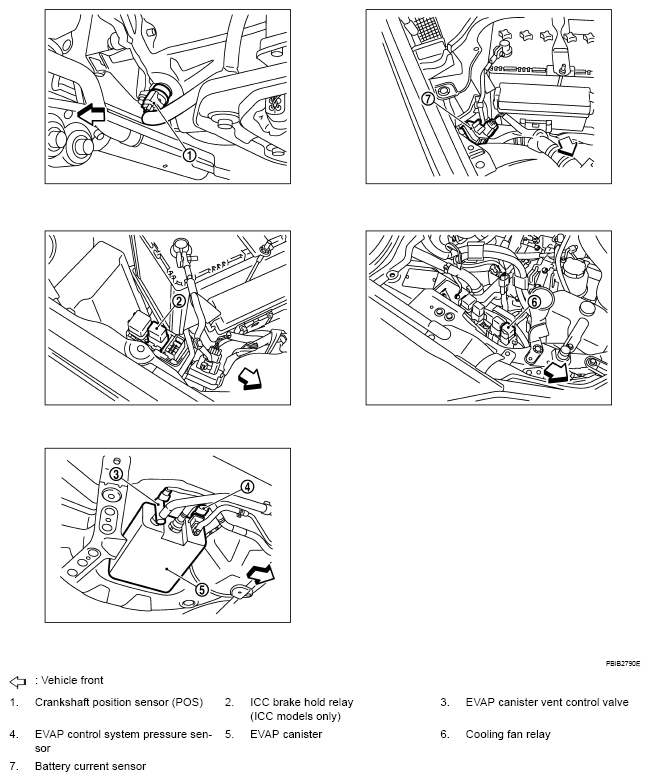

Fig 6: Identifying Engine Control System Components Location (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

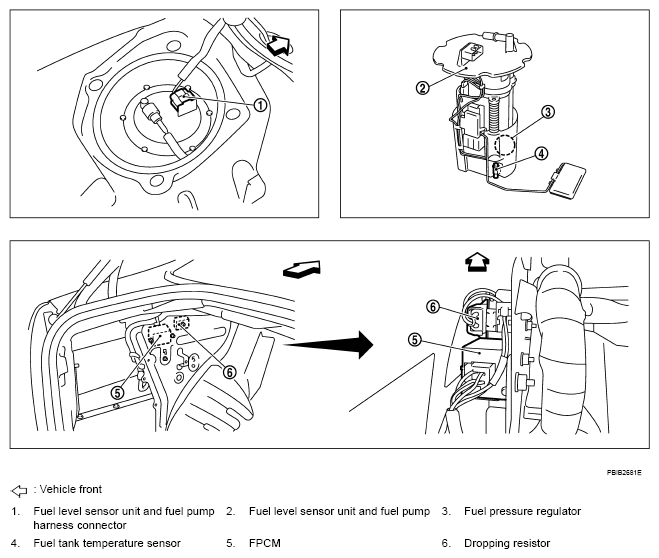

Fig 7: Identifying Engine Control System Components Location (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

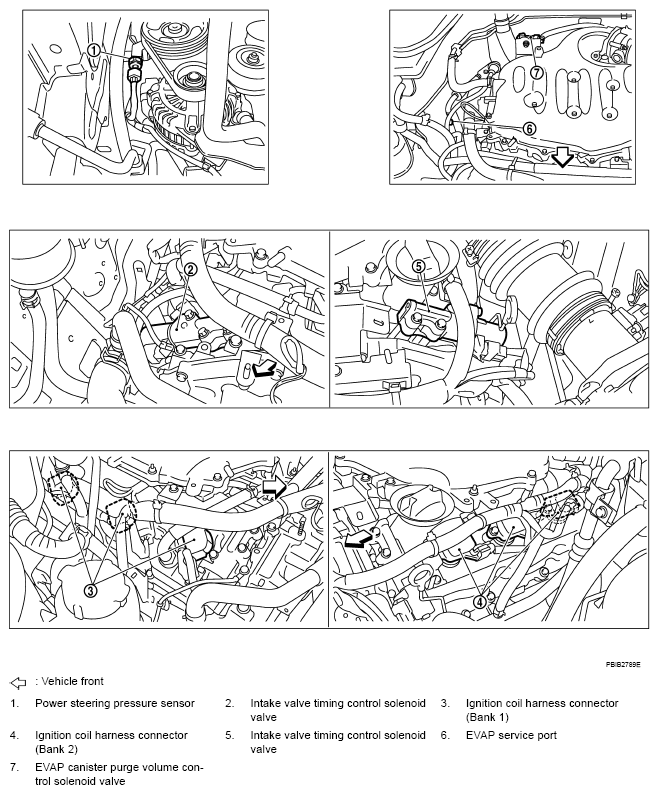

Fig 8: Identifying Engine Control System Components Location (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
