System Diagram

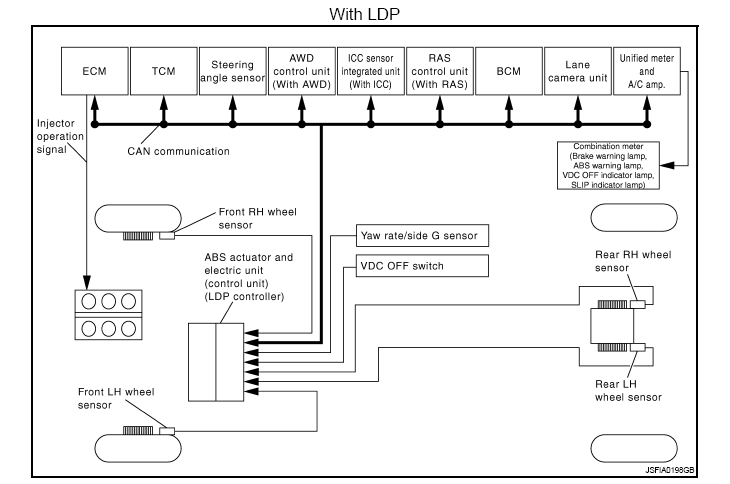

Fig 1: Brake Hydraulic Line - System Diagram (With LDP)
Courtesy of NISSAN MOTOR CO., U.S.A.

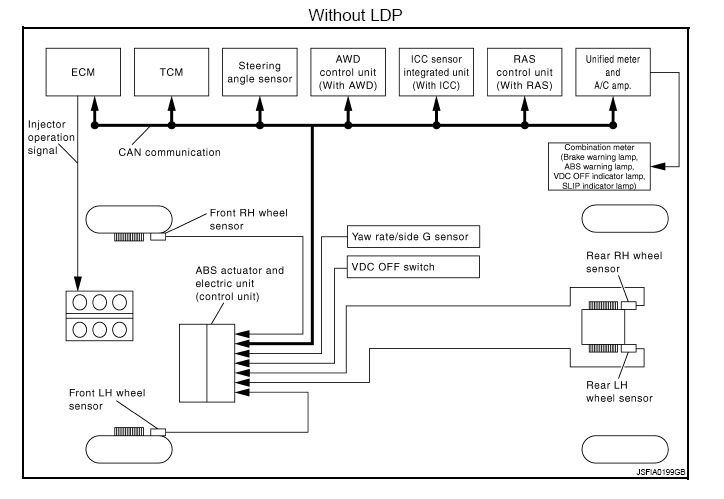

Fig 2: Brake Hydraulic Line - System Diagram (Without LDP)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
