Engine Control Component Parts Location

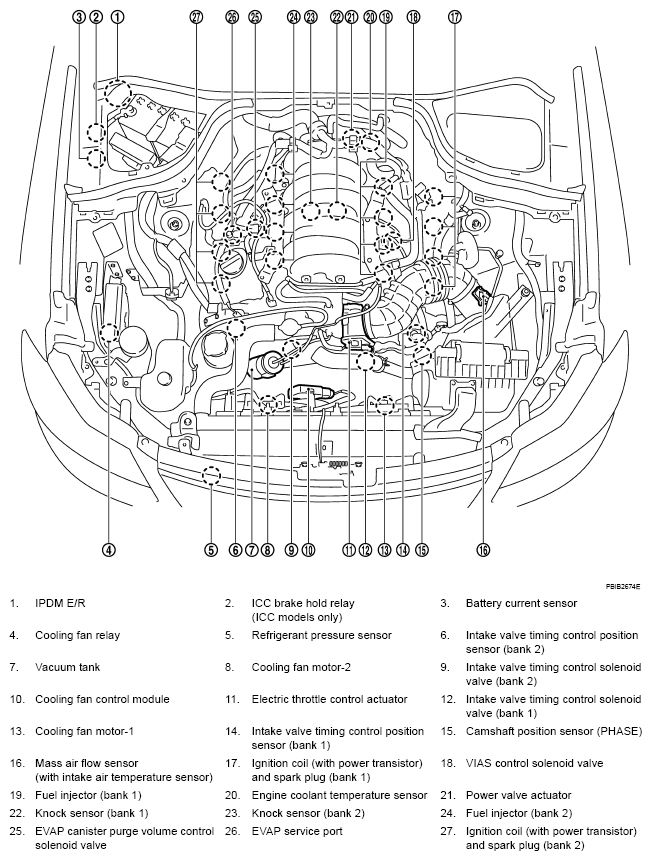

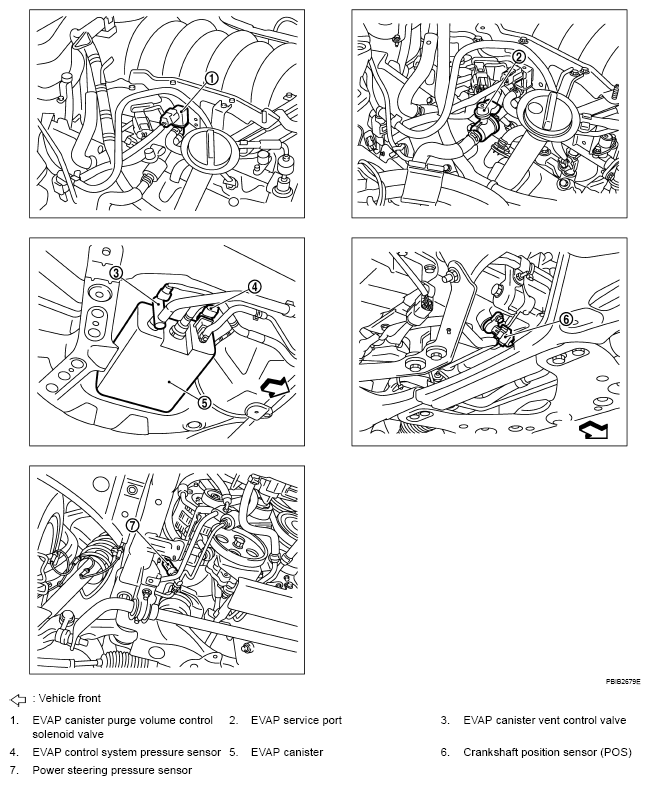

Fig 1: Identifying Engine Control Component Parts Location (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

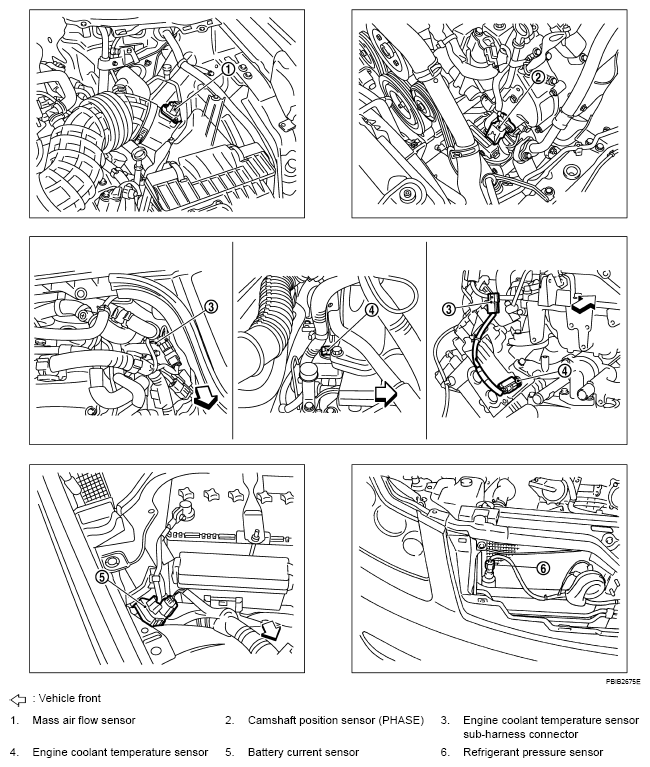

Fig 2: Identifying Engine Control Component Parts Location (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

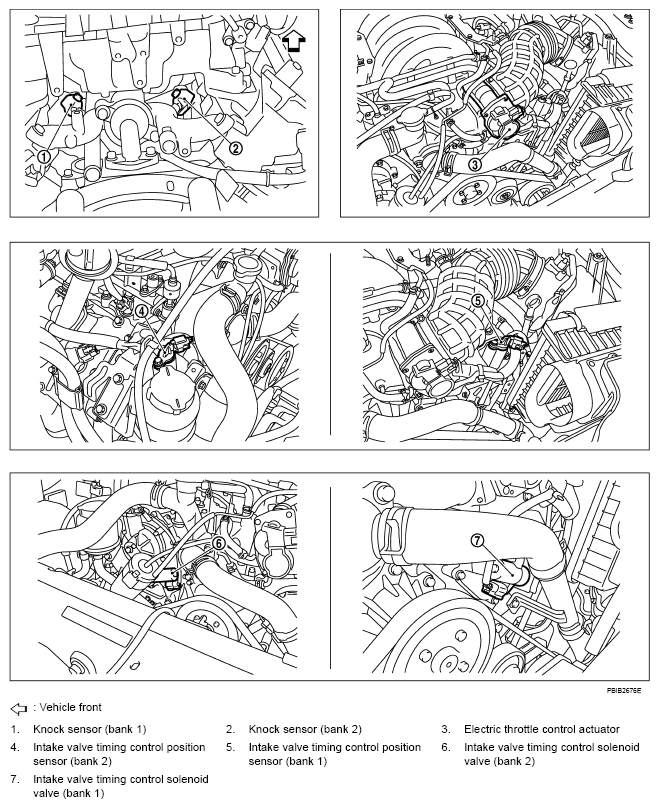

Fig 3: Identifying Engine Control Component Parts Location (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

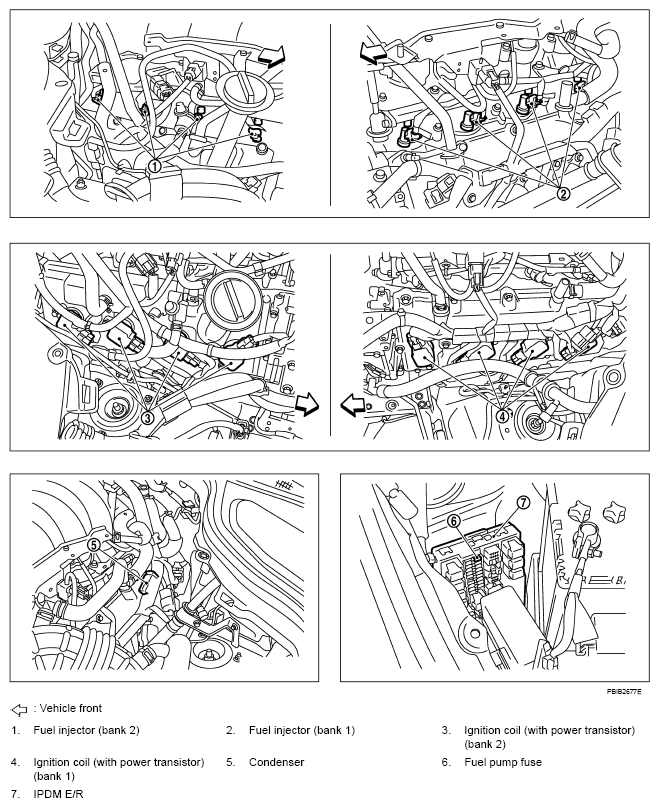

Fig 4: Identifying Engine Control Component Parts Location (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

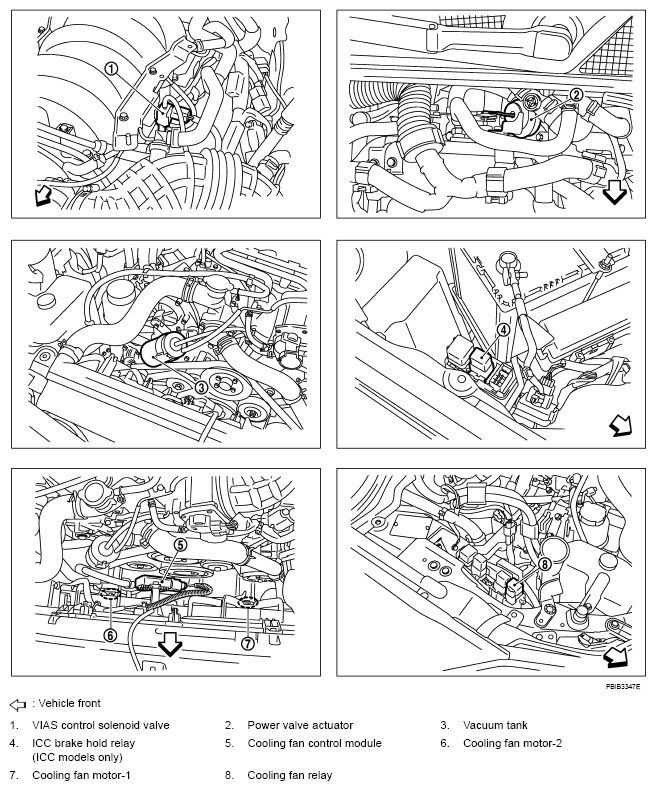

Fig 5: Identifying Engine Control Component Parts Location (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

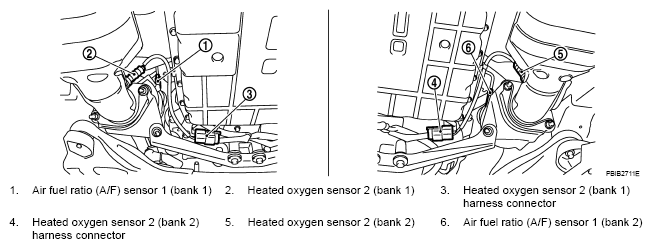

Fig 6: Identifying Engine Control Component Parts Location (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

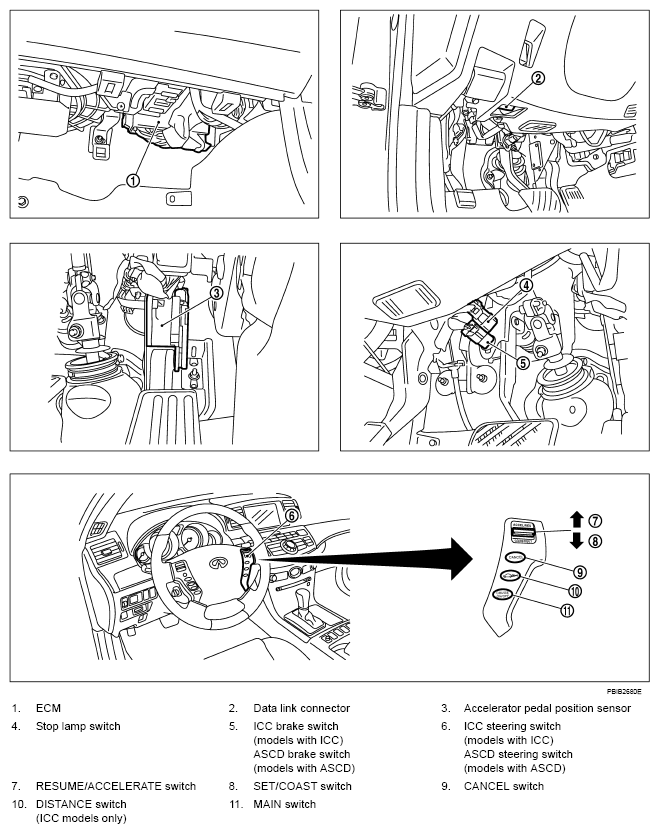

Fig 7: Identifying Engine Control Component Parts Location (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

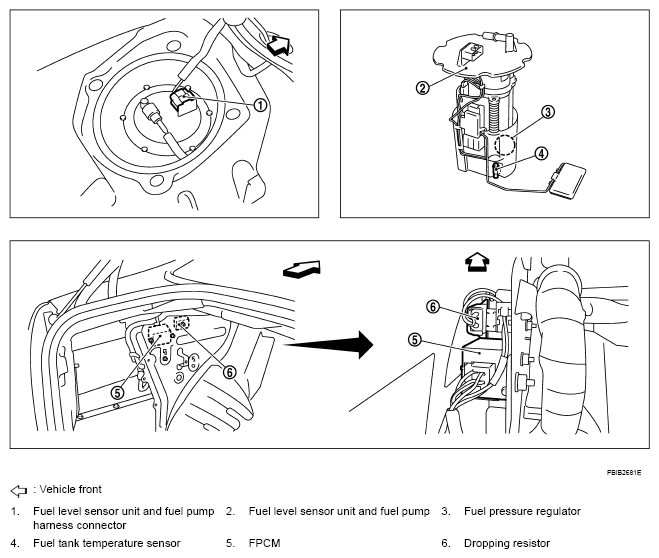

Fig 8: Identifying Engine Control Component Parts Location (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Control Component Parts Location (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control Component Parts Location (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
