AWD : Exploded View: Disassembly

Type: A003TJ1991

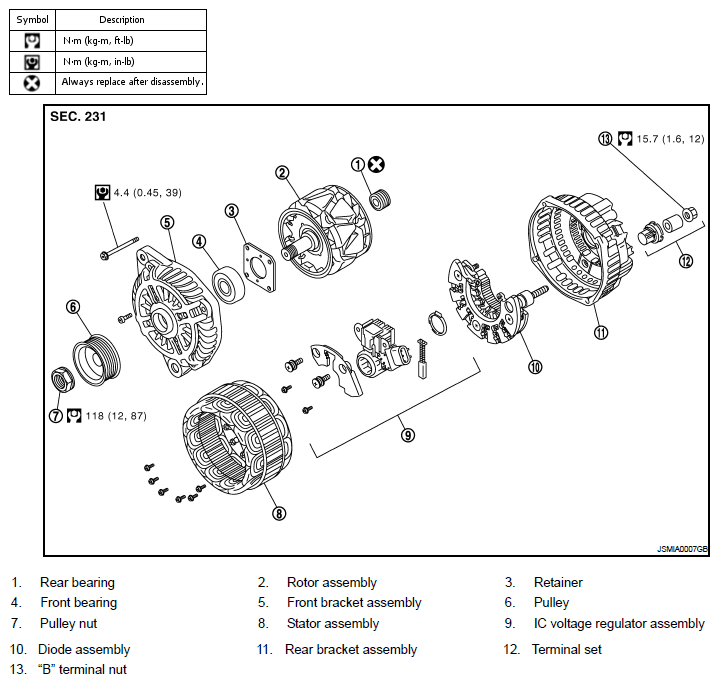

Fig 1: Exploded View Of Alternator With Torque Specifications
G06302466Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
