Exploded View: Removal

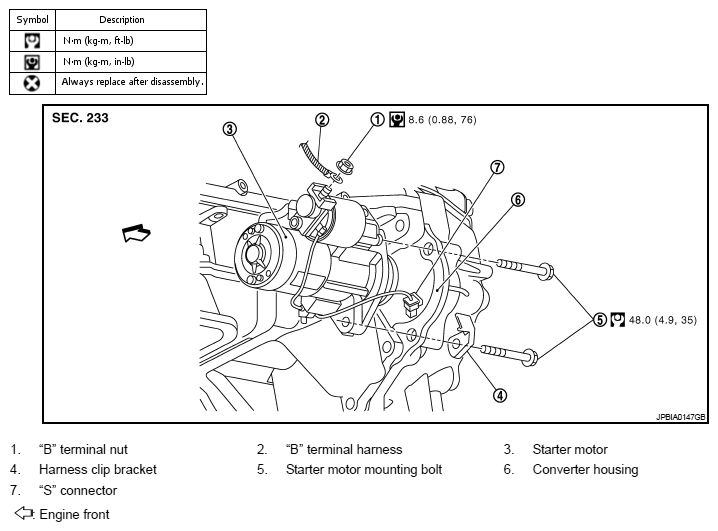

Fig 1: Starter Motor With Torque Specifications
G06301646Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
