Component Parts Location

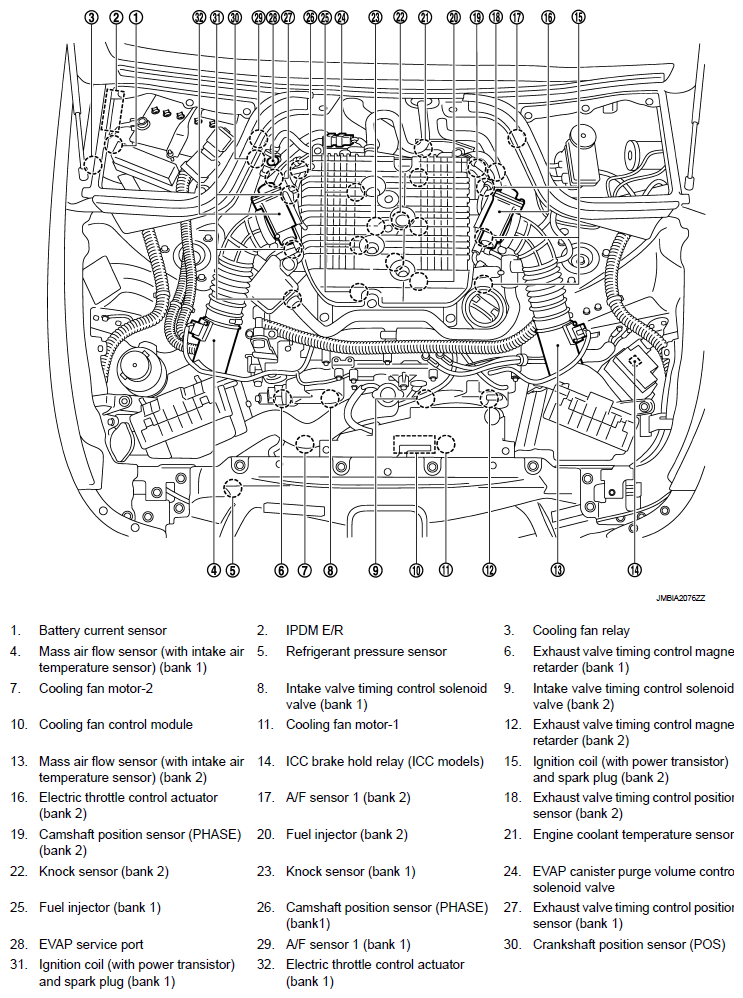

Fig 1: Identifying Cooling Fan Control System Component Parts Location (1 Of 20)

G06291575

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Cooling Fan Control System Component Parts Location (2 Of 20)

G06291576

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Cooling Fan Control System Component Parts Location (3 Of 20)

G06291577

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Cooling Fan Control System Component Parts Location (4 Of 20)

G06291578

Courtesy of NISSAN MOTOR CO., U.S.A.

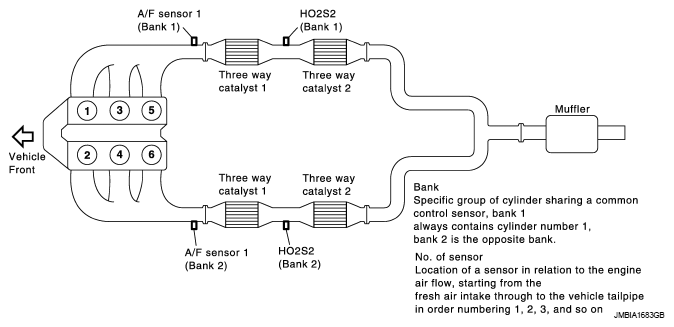

Fig 5: Identifying Cooling Fan Control System Component Parts Location (5 Of 20)

G06291579

Courtesy of NISSAN MOTOR CO., U.S.A.

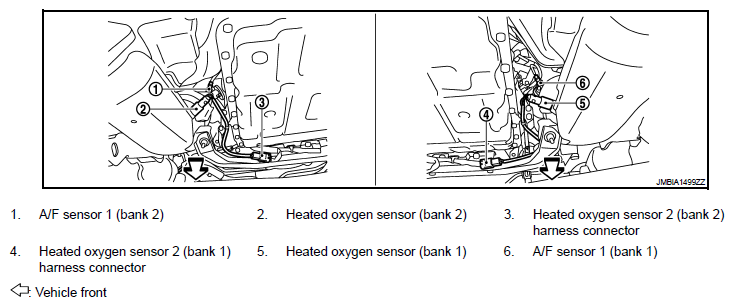

Fig 6: Identifying Cooling Fan Control System Component Parts Location (6 Of 20)

G06291580

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Cooling Fan Control System Component Parts Location (7 Of 20)

G06291581

Courtesy of NISSAN MOTOR CO., U.S.A.

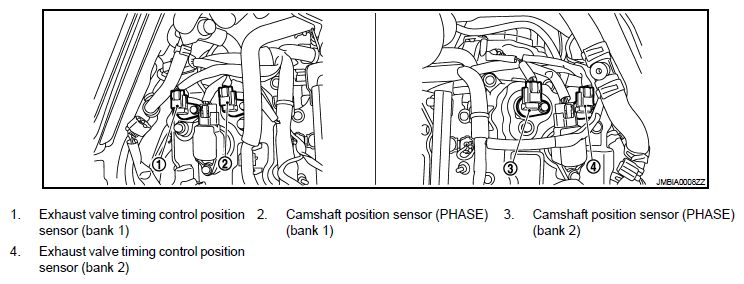

Fig 8: Identifying Cooling Fan Control System Component Parts Location (8 Of 20)

G06291582

Courtesy of NISSAN MOTOR CO., U.S.A.

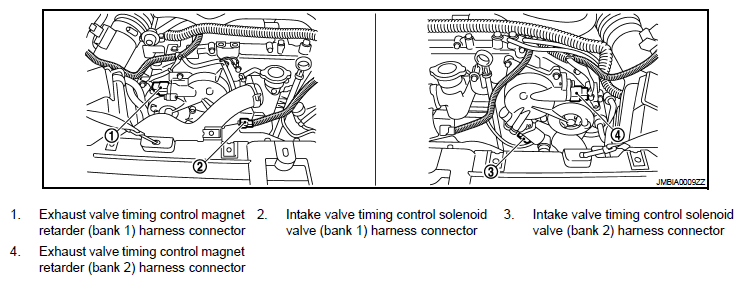

Fig 9: Identifying Cooling Fan Control System Component Parts Location (9 Of 20)

G06291583

Courtesy of NISSAN MOTOR CO., U.S.A.

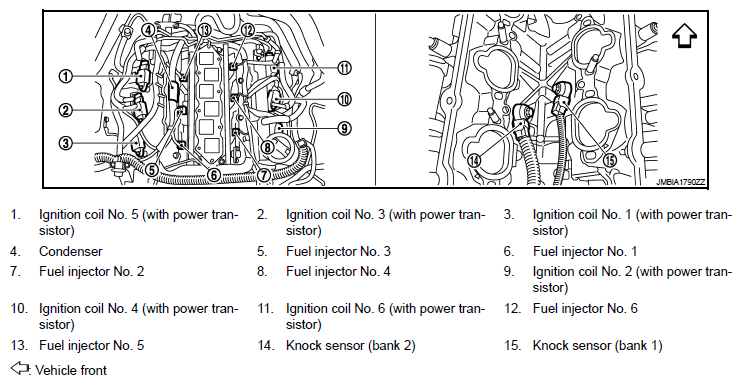

Fig 10: Identifying Cooling Fan Control System Component Parts Location (10 Of 20)

G06291584

Courtesy of NISSAN MOTOR CO., U.S.A.

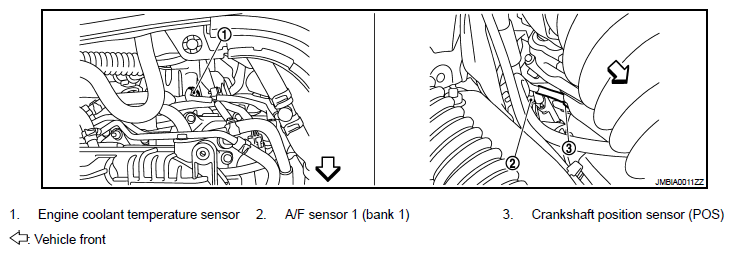

Fig 11: Identifying Cooling Fan Control System Component Parts Location (11 Of 20)

G06291585

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Cooling Fan Control System Component Parts Location (12 Of 20)

G06291586

Courtesy of NISSAN MOTOR CO., U.S.A.

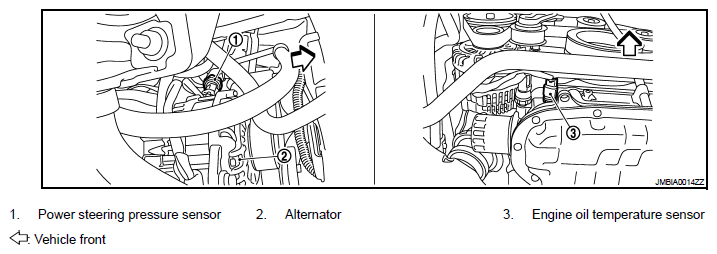

Fig 13: Identifying Cooling Fan Control System Component Parts Location (13 Of 20)

G06291587

Courtesy of NISSAN MOTOR CO., U.S.A.

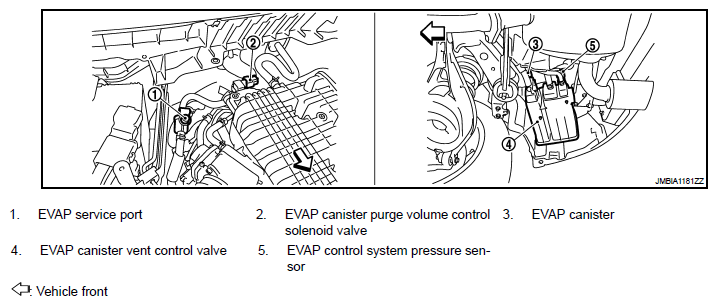

Fig 14: Identifying Cooling Fan Control System Component Parts Location (14 Of 20)

G06291588

Courtesy of NISSAN MOTOR CO., U.S.A.

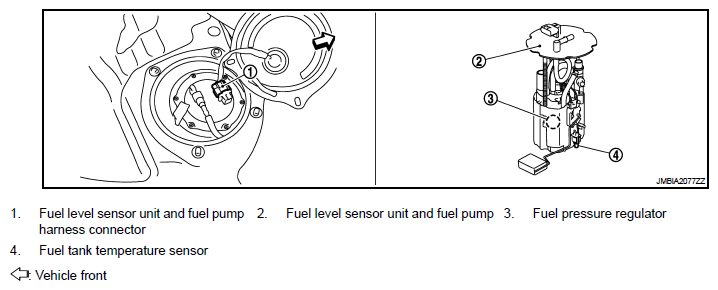

Fig 15: Identifying Cooling Fan Control System Component Parts Location (15 Of 20)

G06291589

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Cooling Fan Control System Component Parts Location (16 Of 20)

G06291590

Courtesy of NISSAN MOTOR CO., U.S.A.

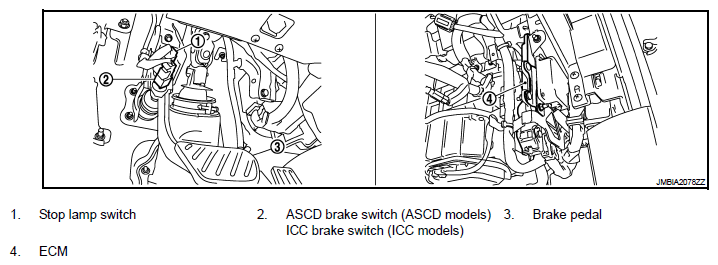

Fig 17: Identifying Cooling Fan Control System Component Parts Location (17 Of 20)

G06291591

Courtesy of NISSAN MOTOR CO., U.S.A.

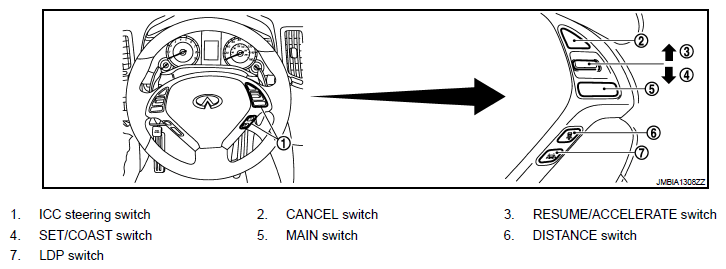

Fig 18: Identifying Cooling Fan Control System Component Parts Location (18 Of 20)

G06291592

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Cooling Fan Control System Component Parts Location (19 Of 20)

G06291593

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Cooling Fan Control System Component Parts Location (20 Of 20)

G06291594

Courtesy of NISSAN MOTOR CO., U.S.A.
