Component Parts Location

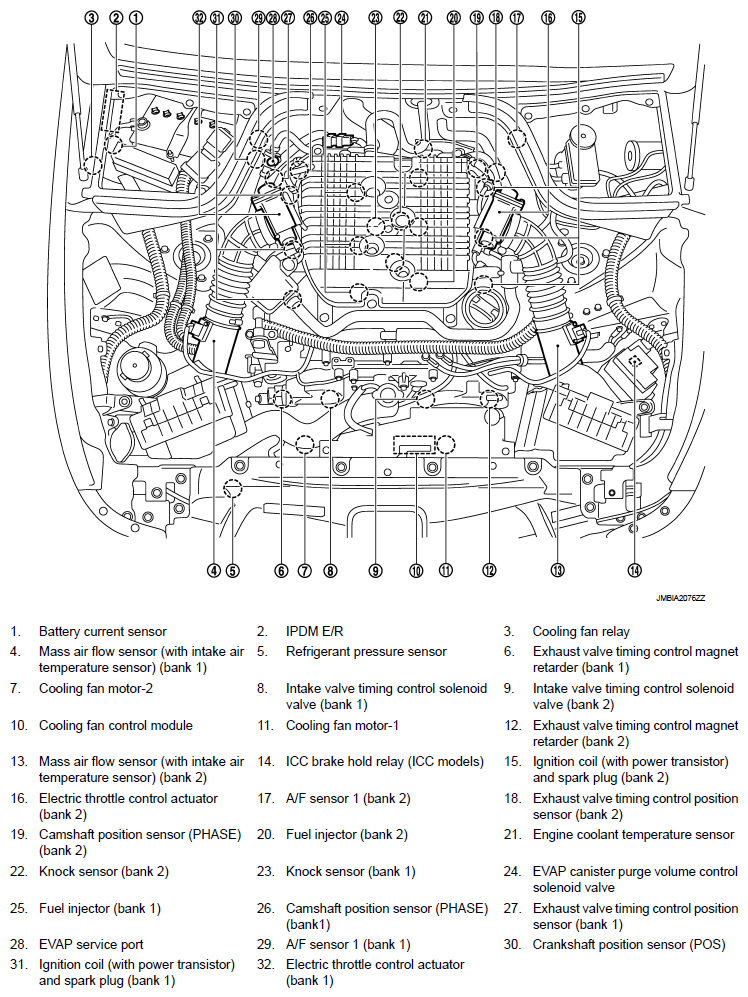

Fig 1: Identifying Electric Ignition System Component Parts Location (1 Of 20)

G06291512

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Electric Ignition System Component Parts Location (2 Of 20)

G06291513

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Electric Ignition System Component Parts Location (3 Of 20)

G06291514

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Electric Ignition System Component Parts Location (4 Of 20)

G06291515

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Electric Ignition System Component Parts Location (5 Of 20)

G06291516

Courtesy of NISSAN MOTOR CO., U.S.A.

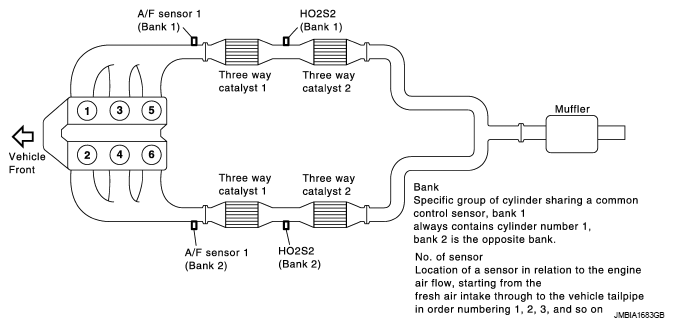

Fig 6: Identifying Electric Ignition System Component Parts Location (6 Of 20)

G06291517

Courtesy of NISSAN MOTOR CO., U.S.A.

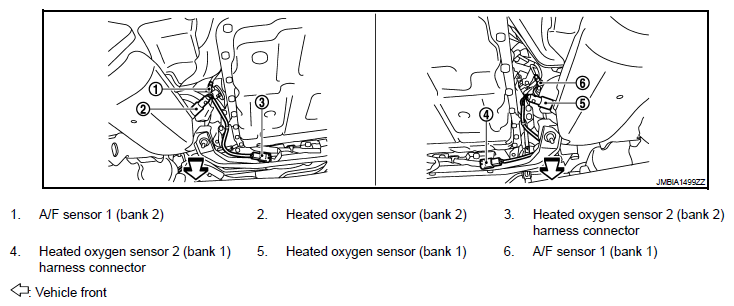

Fig 7: Identifying Electric Ignition System Component Parts Location (7 Of 20)

G06291518

Courtesy of NISSAN MOTOR CO., U.S.A.

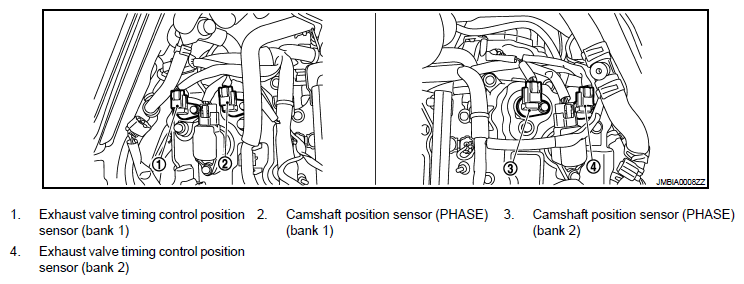

Fig 8: Identifying Electric Ignition System Component Parts Location (8 Of 20)

G06291519

Courtesy of NISSAN MOTOR CO., U.S.A.

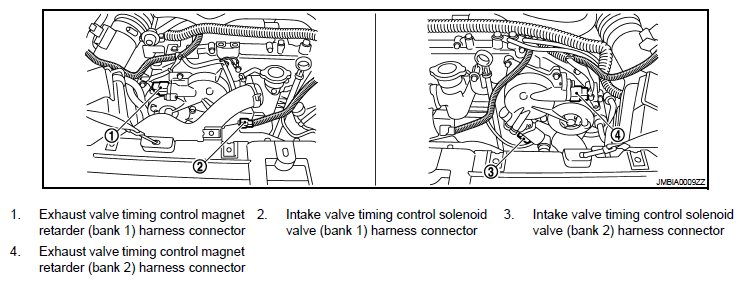

Fig 9: Identifying Electric Ignition System Component Parts Location (9 Of 20)

G06291520

Courtesy of NISSAN MOTOR CO., U.S.A.

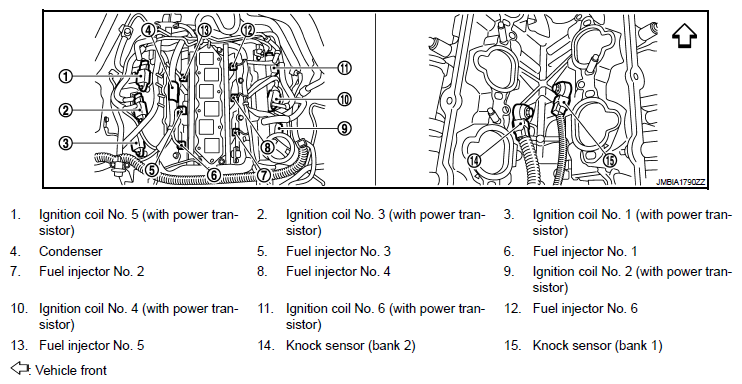

Fig 10: Identifying Electric Ignition System Component Parts Location (10 Of 20)

G06291521

Courtesy of NISSAN MOTOR CO., U.S.A.

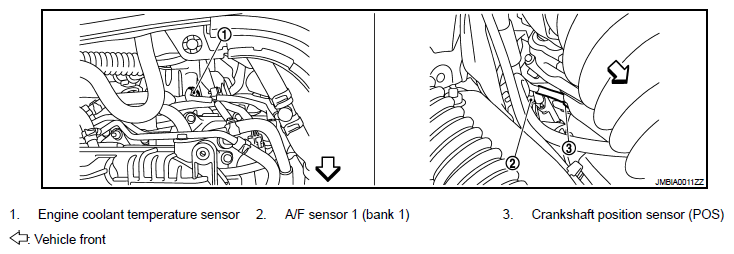

Fig 11: Identifying Electric Ignition System Component Parts Location (11 Of 20)

G06291522

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Electric Ignition System Component Parts Location (12 Of 20)

G06291523

Courtesy of NISSAN MOTOR CO., U.S.A.

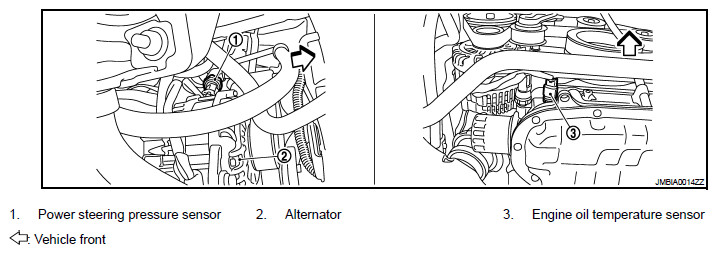

Fig 13: Identifying Electric Ignition System Component Parts Location (13 Of 20)

G06291524

Courtesy of NISSAN MOTOR CO., U.S.A.

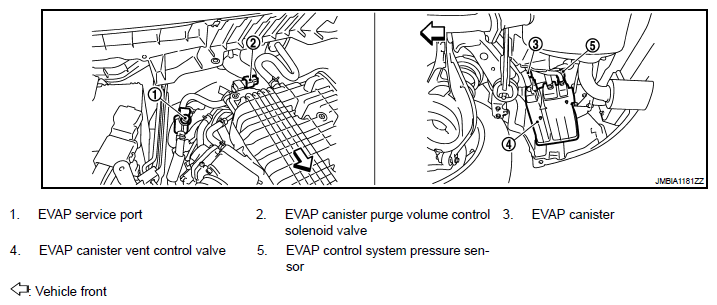

Fig 14: Identifying Electric Ignition System Component Parts Location (14 Of 20)

G06291525

Courtesy of NISSAN MOTOR CO., U.S.A.

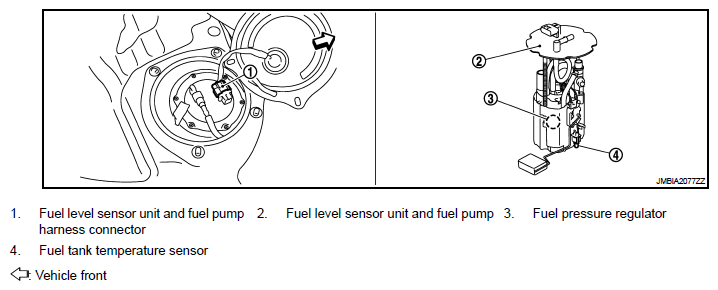

Fig 15: Identifying Electric Ignition System Component Parts Location (15 Of 20)

G06291526

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Electric Ignition System Component Parts Location (16 Of 20)

G06291527

Courtesy of NISSAN MOTOR CO., U.S.A.

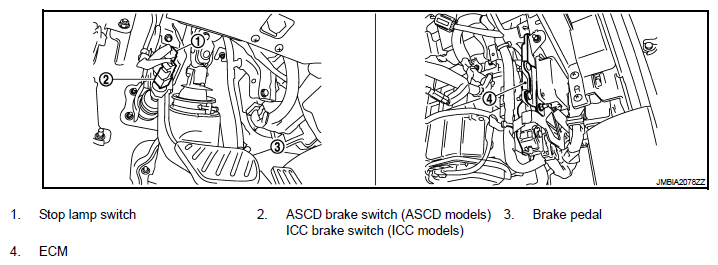

Fig 17: Identifying Electric Ignition System Component Parts Location (17 Of 20)

G06291528

Courtesy of NISSAN MOTOR CO., U.S.A.

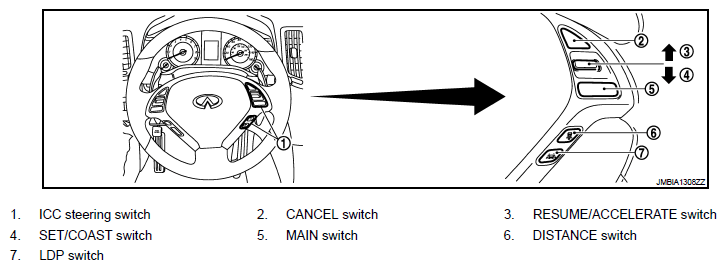

Fig 18: Identifying Electric Ignition System Component Parts Location (18 Of 20)

G06291529

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Electric Ignition System Component Parts Location (19 Of 20)

G06291530

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Electric Ignition System Component Parts Location (20 Of 20)

G06291531

Courtesy of NISSAN MOTOR CO., U.S.A.
