Component Parts Location

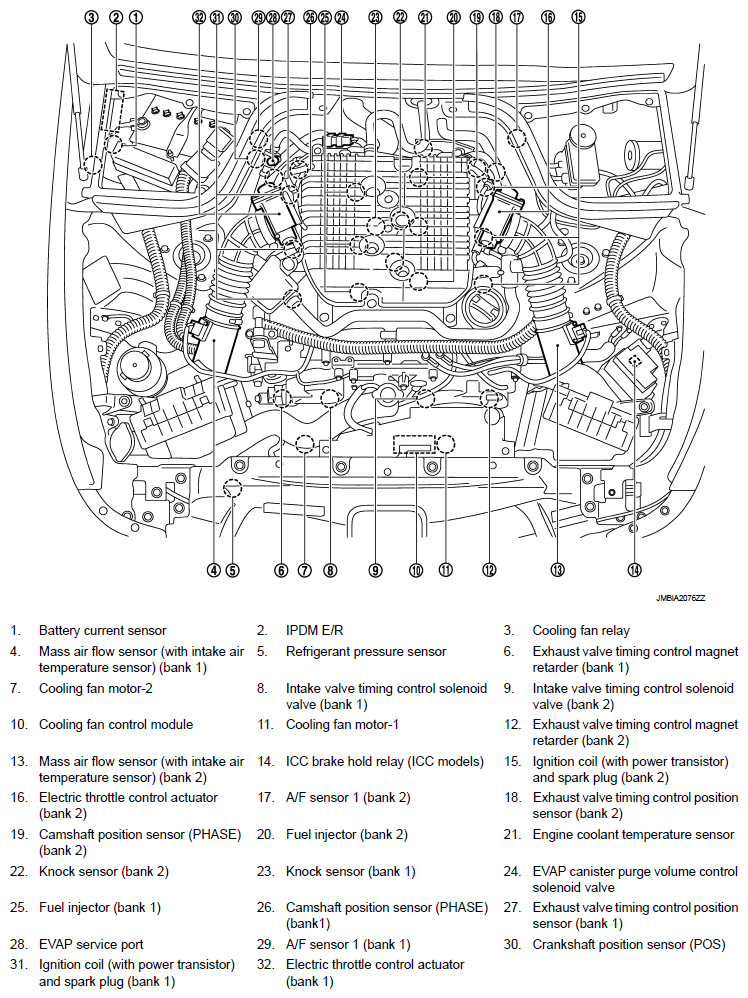

Fig 1: Identifying Exhaust Valve Timing Control Component Parts Location (1 Of 20)

G06291621

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Exhaust Valve Timing Control Component Parts Location (2 Of 20)

G06291622

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Exhaust Valve Timing Control Component Parts Location (3 Of 20)

G06291623

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Exhaust Valve Timing Control Component Parts Location (4 Of 20)

G06291624

Courtesy of NISSAN MOTOR CO., U.S.A.

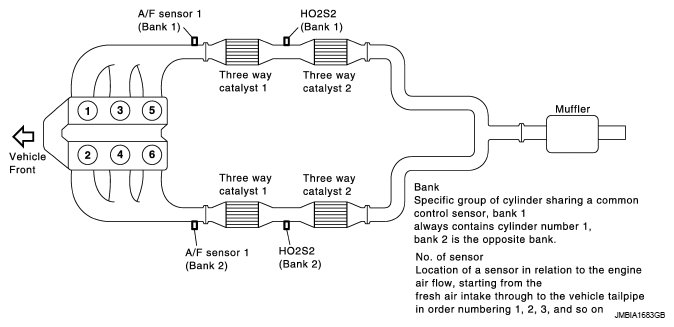

Fig 5: Identifying Exhaust Valve Timing Control Component Parts Location (5 Of 20)

G06291625

Courtesy of NISSAN MOTOR CO., U.S.A.

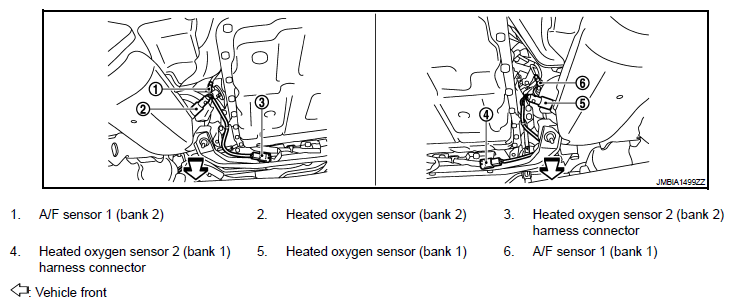

Fig 6: Identifying Exhaust Valve Timing Control Component Parts Location (6 Of 20)

G06291626

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Exhaust Valve Timing Control Component Parts Location (7 Of 20)

G06291627

Courtesy of NISSAN MOTOR CO., U.S.A.

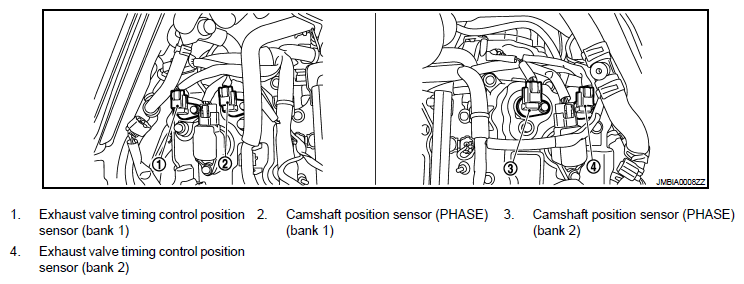

Fig 8: Identifying Exhaust Valve Timing Control Component Parts Location (8 Of 20)

G06291628

Courtesy of NISSAN MOTOR CO., U.S.A.

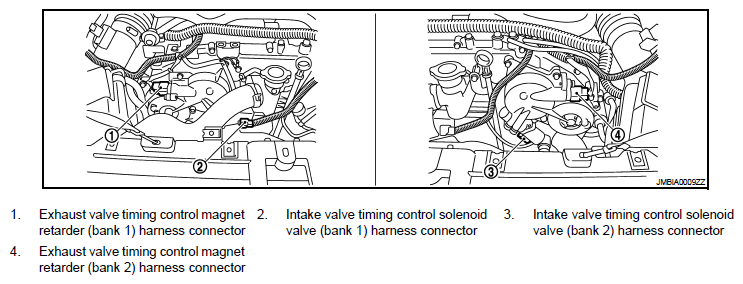

Fig 9: Identifying Exhaust Valve Timing Control Component Parts Location (9 Of 20)

G06291629

Courtesy of NISSAN MOTOR CO., U.S.A.

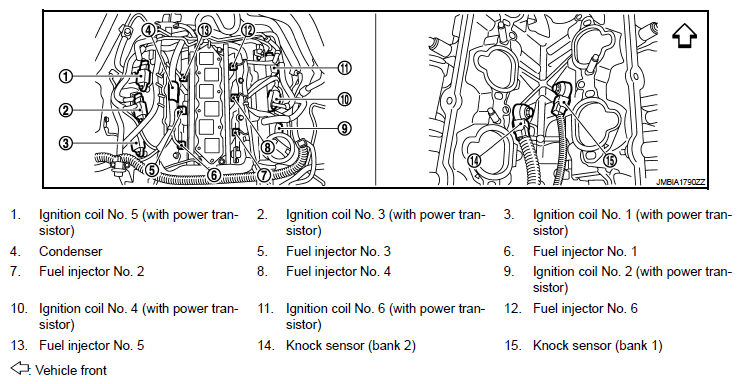

Fig 10: Identifying Exhaust Valve Timing Control Component Parts Location (10 Of 20)

G06291630

Courtesy of NISSAN MOTOR CO., U.S.A.

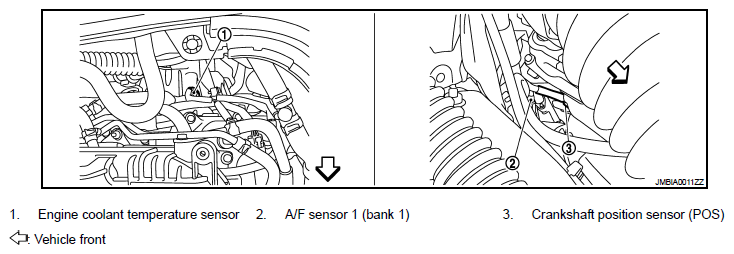

Fig 11: Identifying Exhaust Valve Timing Control Component Parts Location (11 Of 20)

G06291631

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Exhaust Valve Timing Control Component Parts Location (12 Of 20)

G06291632

Courtesy of NISSAN MOTOR CO., U.S.A.

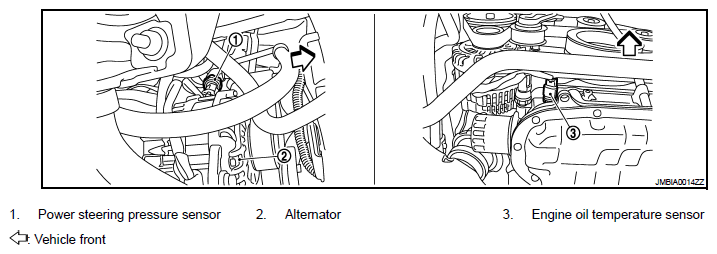

Fig 13: Identifying Exhaust Valve Timing Control Component Parts Location (13 Of 20)

G06291633

Courtesy of NISSAN MOTOR CO., U.S.A.

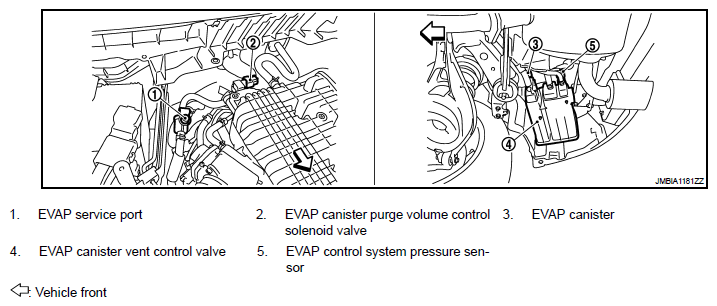

Fig 14: Identifying Exhaust Valve Timing Control Component Parts Location (14 Of 20)

G06291634

Courtesy of NISSAN MOTOR CO., U.S.A.

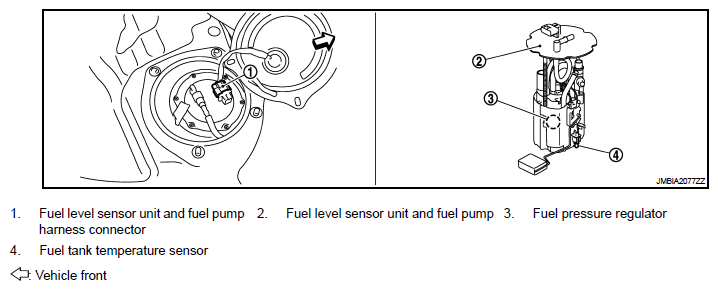

Fig 15: Identifying Exhaust Valve Timing Control Component Parts Location (15 Of 20)

G06291635

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Exhaust Valve Timing Control Component Parts Location (16 Of 20)

G06291636

Courtesy of NISSAN MOTOR CO., U.S.A.

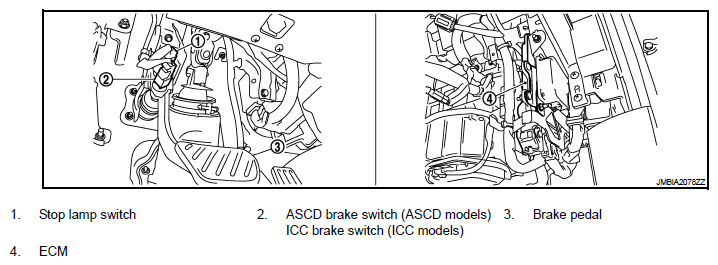

Fig 17: Identifying Exhaust Valve Timing Control Component Parts Location (17 Of 20)

G06291637

Courtesy of NISSAN MOTOR CO., U.S.A.

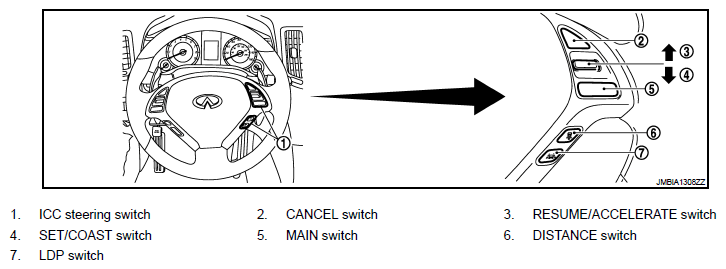

Fig 18: Identifying Exhaust Valve Timing Control Component Parts Location (18 Of 20)

G06291638

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Exhaust Valve Timing Control Component Parts Location (19 Of 20)

G06291639

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Exhaust Valve Timing Control Component Parts Location (20 Of 20)

G06291640

Courtesy of NISSAN MOTOR CO., U.S.A.
