Component Parts Location

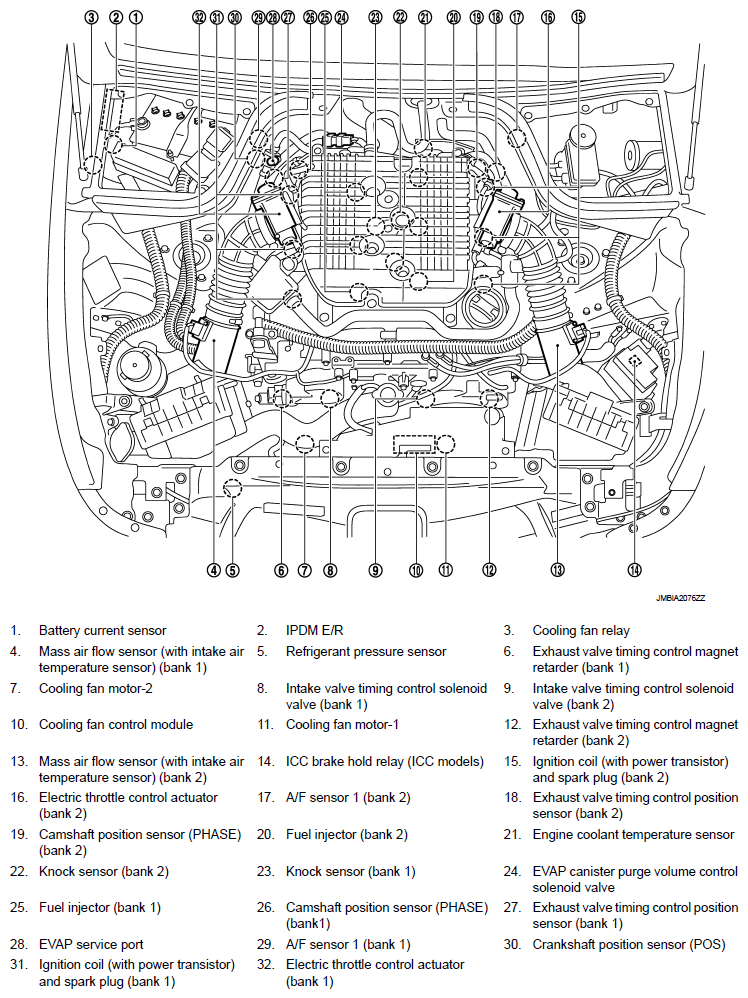

Fig 1: Identifying Intake Valve Timing Control System Component Parts Location (1 Of 20)

G06291643

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Intake Valve Timing Control System Component Parts Location (2 Of 20)

G06291644

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control System Component Parts Location (3 Of 20)

G06291645

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Intake Valve Timing Control System Component Parts Location (4 Of 20)

G06291646

Courtesy of NISSAN MOTOR CO., U.S.A.

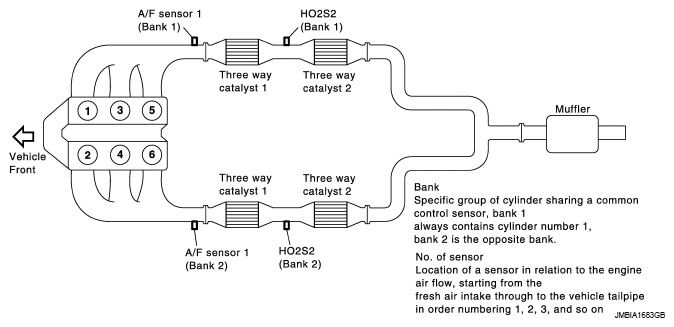

Fig 5: Identifying Intake Valve Timing Control System Component Parts Location (5 Of 20)

G06291647

Courtesy of NISSAN MOTOR CO., U.S.A.

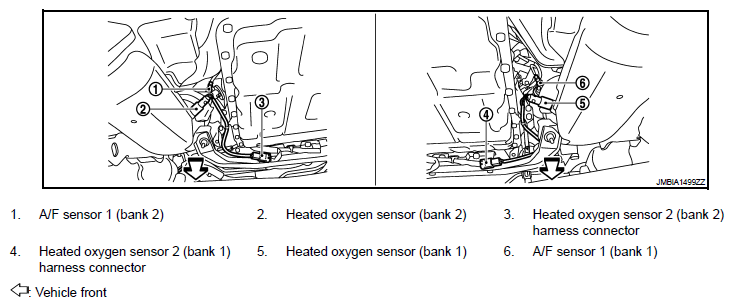

Fig 6: Identifying Intake Valve Timing Control System Component Parts Location (6 Of 20)

G06291648

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control System Component Parts Location (7 Of 20)

G06291649

Courtesy of NISSAN MOTOR CO., U.S.A.

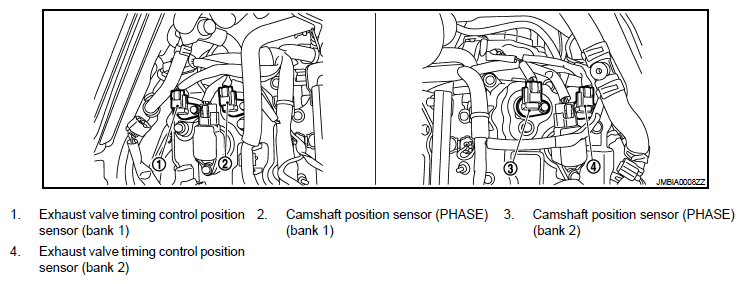

Fig 8: Identifying Intake Valve Timing Control System Component Parts Location (8 Of 20)

G06291650

Courtesy of NISSAN MOTOR CO., U.S.A.

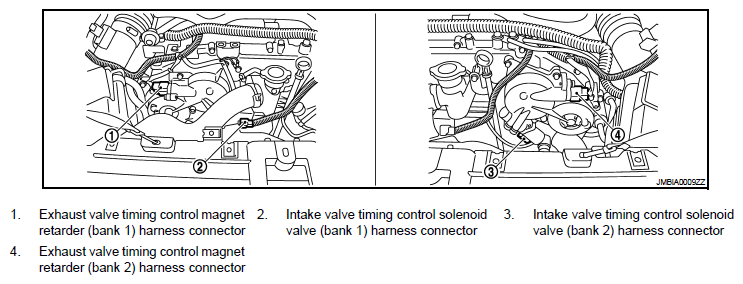

Fig 9: Identifying Intake Valve Timing Control System Component Parts Location (9 Of 20)

G06291651

Courtesy of NISSAN MOTOR CO., U.S.A.

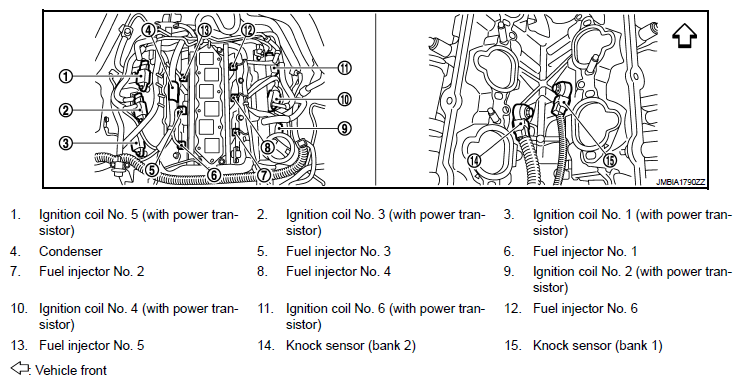

Fig 10: Identifying Intake Valve Timing Control System Component Parts Location (10 Of 20)

G06291652

Courtesy of NISSAN MOTOR CO., U.S.A.

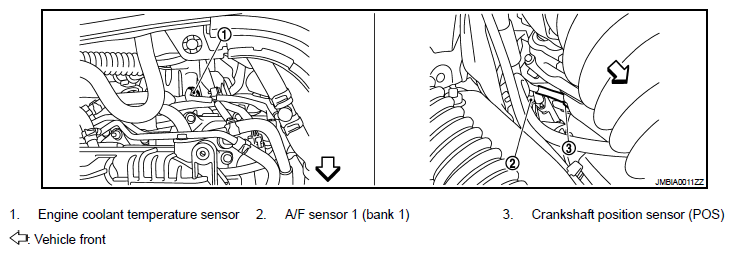

Fig 11: Identifying Intake Valve Timing Control System Component Parts Location (11 Of 20)

G06291653

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control System Component Parts Location (12 Of 20)

G06291654

Courtesy of NISSAN MOTOR CO., U.S.A.

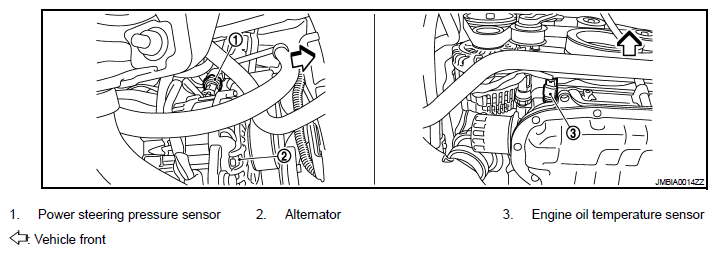

Fig 13: Identifying Intake Valve Timing Control System Component Parts Location (13 Of 20)

G06291655

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control System Component Parts Location (14 Of 20)

G06291656

Courtesy of NISSAN MOTOR CO., U.S.A.

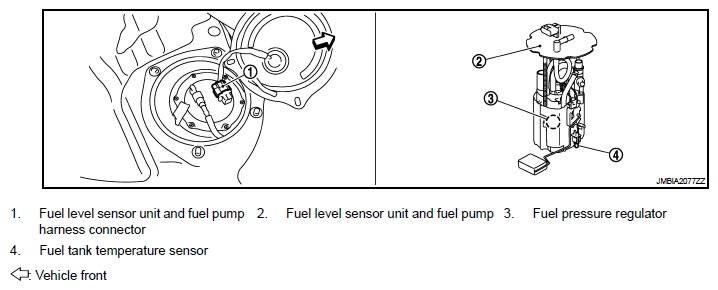

Fig 15: Identifying Intake Valve Timing Control System Component Parts Location (15 Of 20)

G06291657

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control System Component Parts Location (16 Of 20)

G06291658

Courtesy of NISSAN MOTOR CO., U.S.A.

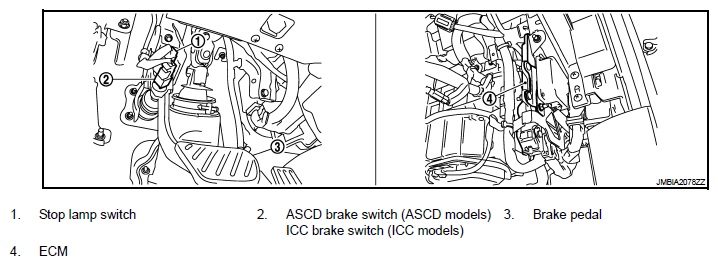

Fig 17: Identifying Intake Valve Timing Control System Component Parts Location (17 Of 20)

G06291659

Courtesy of NISSAN MOTOR CO., U.S.A.

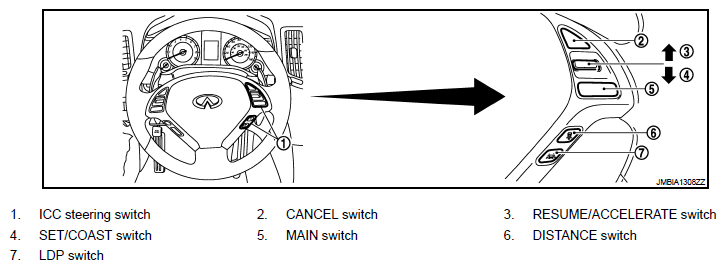

Fig 18: Identifying Intake Valve Timing Control System Component Parts Location (18 Of 20)

G06291660

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control System Component Parts Location (19 Of 20)

G06291661

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control System Component Parts Location (20 Of 20)

G06291662

Courtesy of NISSAN MOTOR CO., U.S.A.
