Component Parts Location

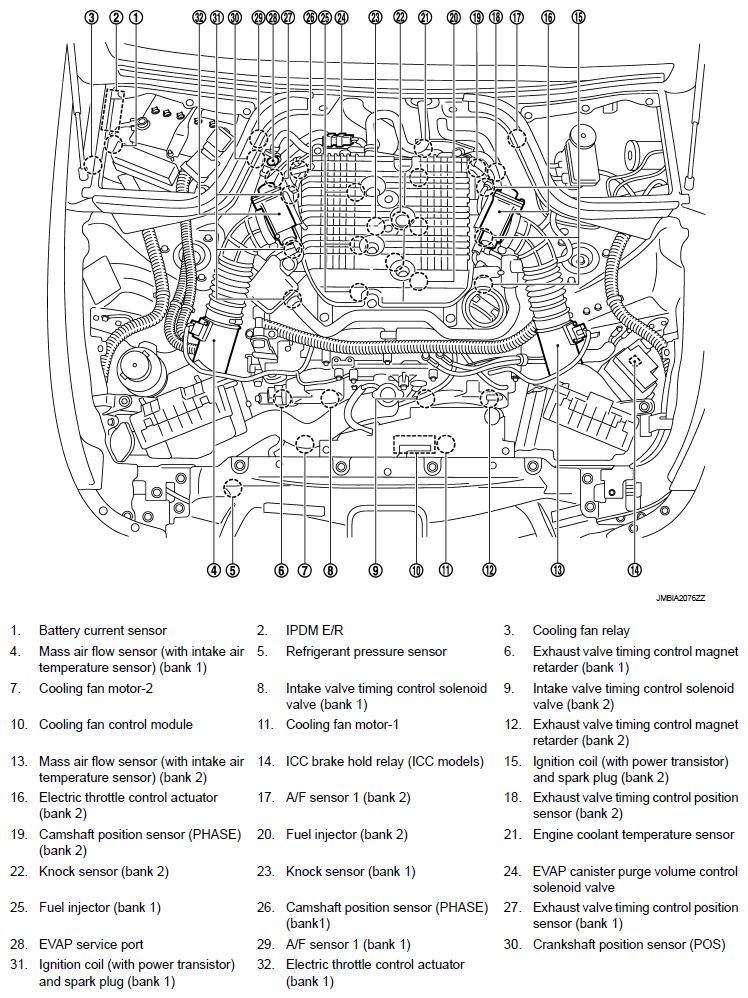

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 20)

G06291468

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 20)

G06291469

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 20)

G06291470

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 20)

G06291471

Courtesy of NISSAN MOTOR CO., U.S.A.

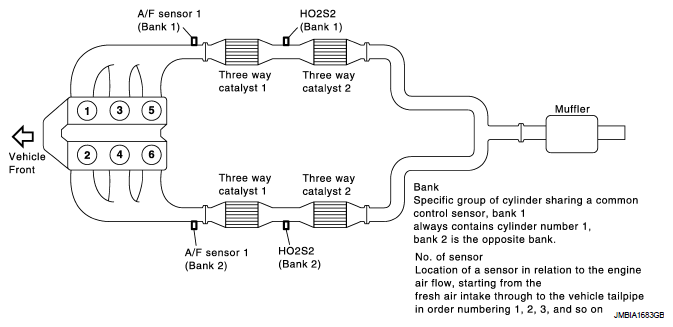

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 20)

G06291472

Courtesy of NISSAN MOTOR CO., U.S.A.

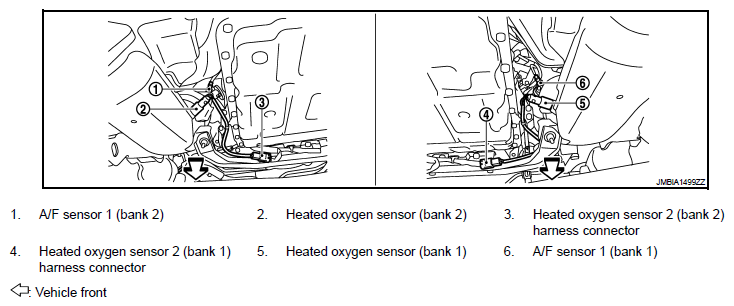

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 20)

G06291473

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 20)

G06291474

Courtesy of NISSAN MOTOR CO., U.S.A.

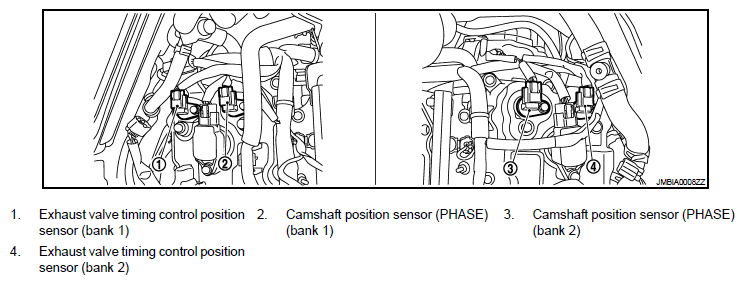

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 20)

G06291475

Courtesy of NISSAN MOTOR CO., U.S.A.

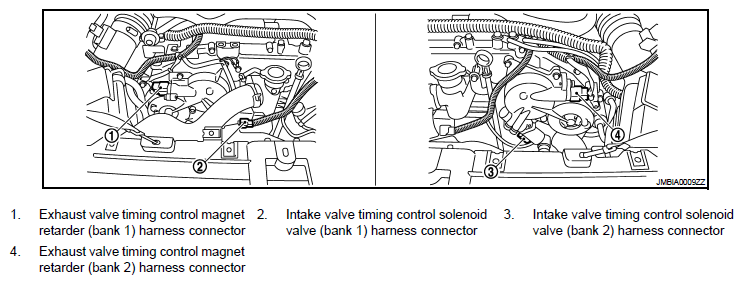

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 20)

G06291476

Courtesy of NISSAN MOTOR CO., U.S.A.

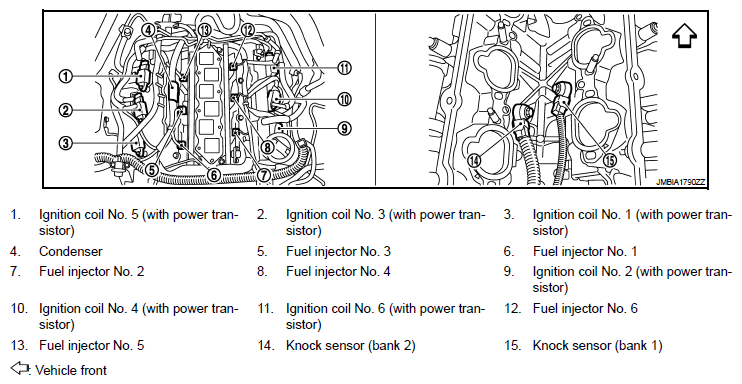

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 20)

G06291477

Courtesy of NISSAN MOTOR CO., U.S.A.

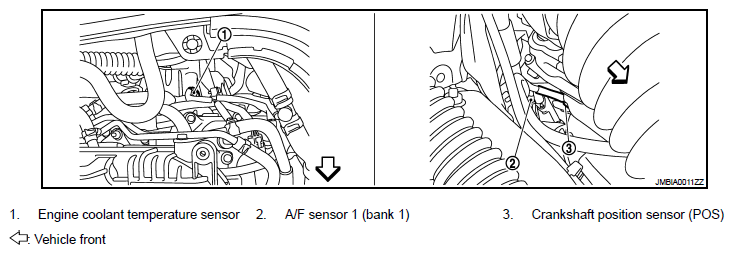

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 20)

G06291478

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 20)

G06291479

Courtesy of NISSAN MOTOR CO., U.S.A.

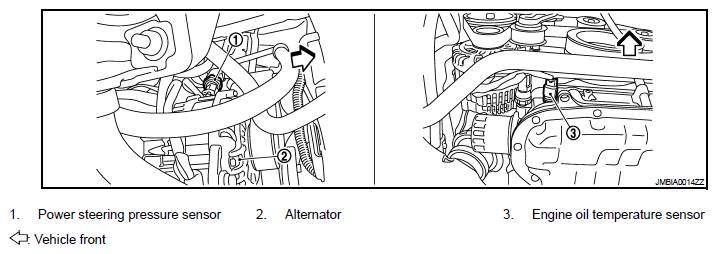

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 20)

G06291480

Courtesy of NISSAN MOTOR CO., U.S.A.

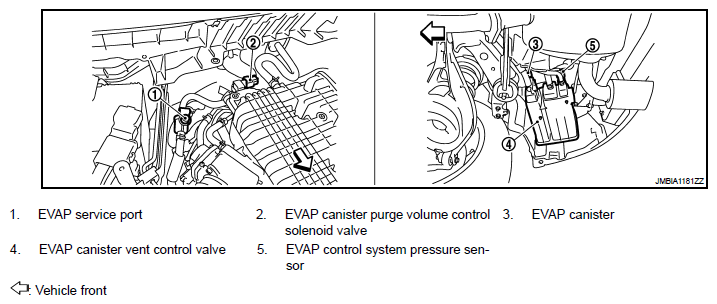

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 20)

G06291481

Courtesy of NISSAN MOTOR CO., U.S.A.

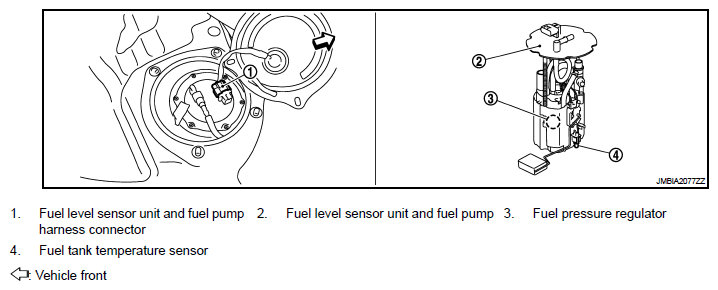

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 20)

G06291482

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 20)

G06291483

Courtesy of NISSAN MOTOR CO., U.S.A.

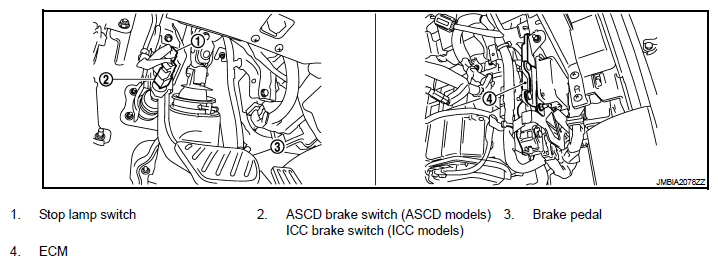

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 20)

G06291484

Courtesy of NISSAN MOTOR CO., U.S.A.

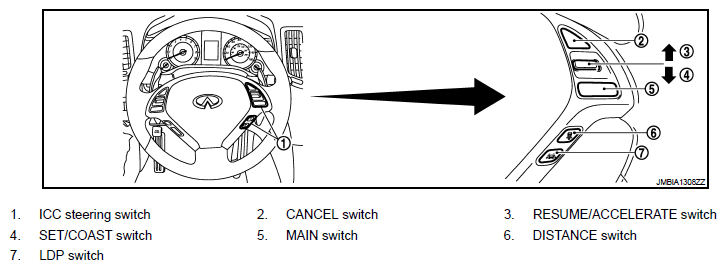

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 20)

G06291485

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 20)

G06291486

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 20)

G06291487

Courtesy of NISSAN MOTOR CO., U.S.A.
