Component Parts Location

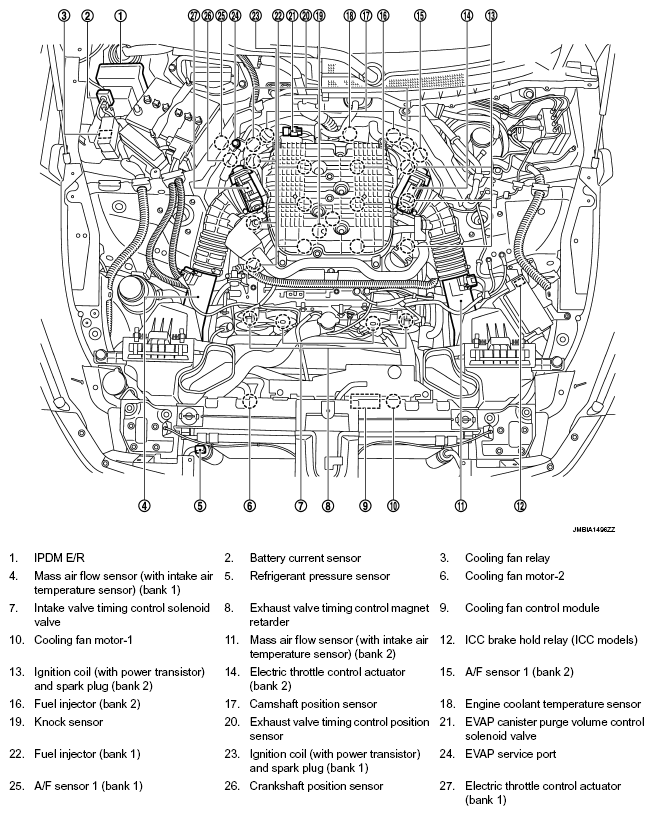

Fig 1: Identifying Engine Control System Parts Location

G05978203

Courtesy of NISSAN MOTOR CO., U.S.A.

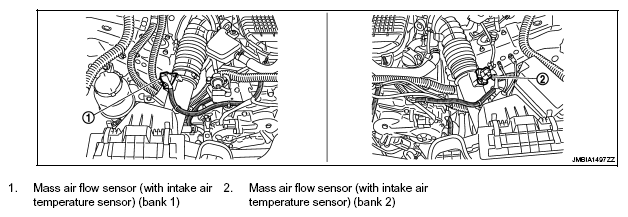

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

G05978204

Courtesy of NISSAN MOTOR CO., U.S.A.

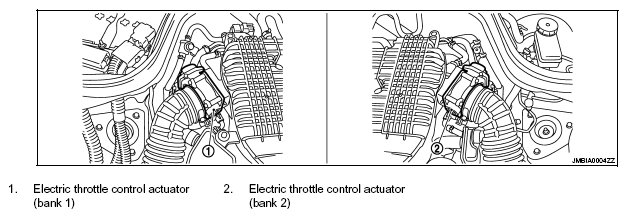

Fig 3: Identifying Electric Throttle Control Actuator

G05978205

Courtesy of NISSAN MOTOR CO., U.S.A.

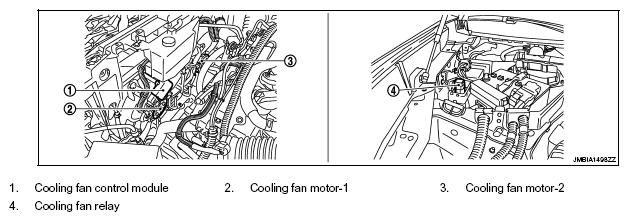

Fig 4: Identifying Cooling Fan Control Module, Cooling Fan Relay With Cooling Fan Motor

G05978206

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Three Way Catalyst Converter

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

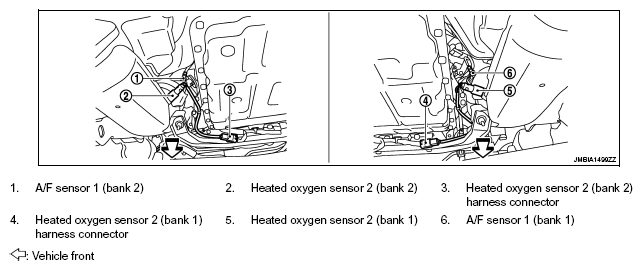

Fig 6: Identifying Heated Oxygen Sensor 2 And A/F Sensor 1

G05978208

Courtesy of NISSAN MOTOR CO., U.S.A.

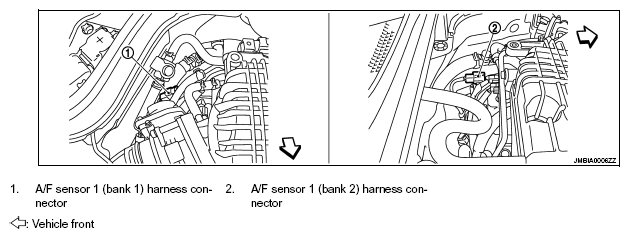

Fig 7: Identifying A/F Sensor 1 Harness Connector

G05978209

Courtesy of NISSAN MOTOR CO., U.S.A.

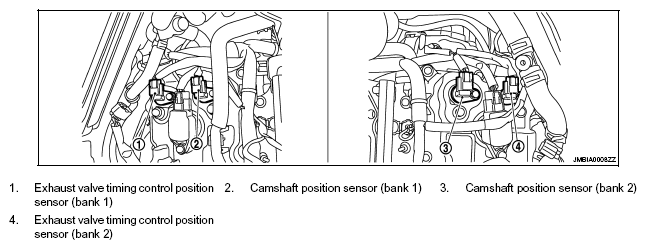

Fig 8: Identifying Exhaust Valve Timing Control Position Sensor And Camshaft Position Sensor

G05978210

Courtesy of NISSAN MOTOR CO., U.S.A.

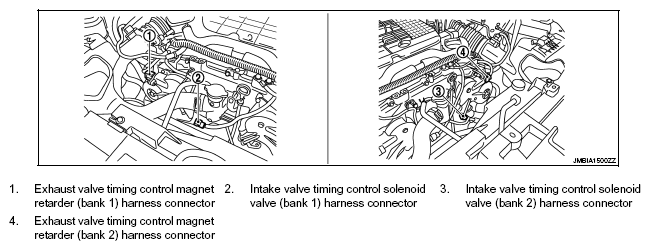

Fig 9: Identifying Exhaust Valve Timing Control Magnet Retarder And Intake Valve Timing Control Solenoid Valve Harness Connector

G05978211

Courtesy of NISSAN MOTOR CO., U.S.A.

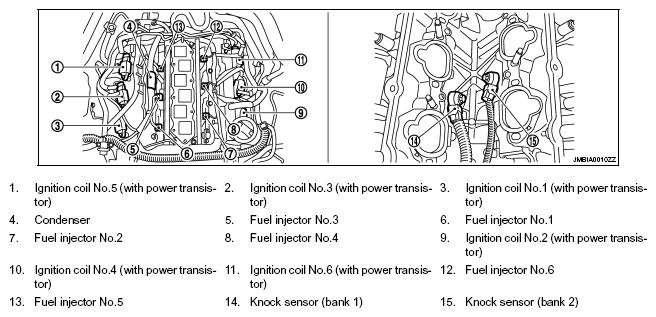

Fig 10: Identifying Ignition Coils, Fuel Injectors And Knock Sensor

G05978212

Courtesy of NISSAN MOTOR CO., U.S.A.

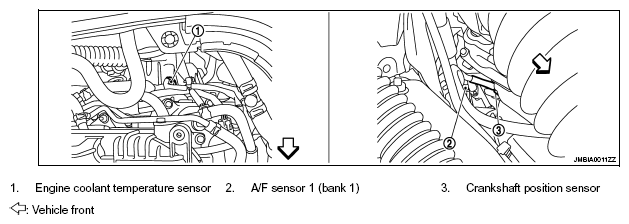

Fig 11: Identifying Engine Coolant Temperature Sensor, Crankshaft Position Sensor And A/F Sensor 1 (Bank 1)

G05978213

Courtesy of NISSAN MOTOR CO., U.S.A.

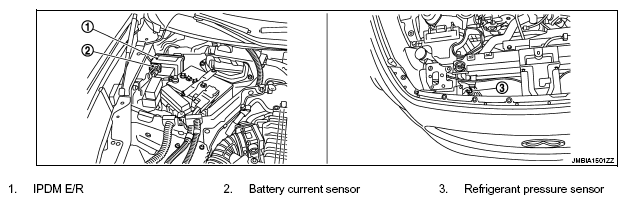

Fig 12: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G05978214

Courtesy of NISSAN MOTOR CO., U.S.A.

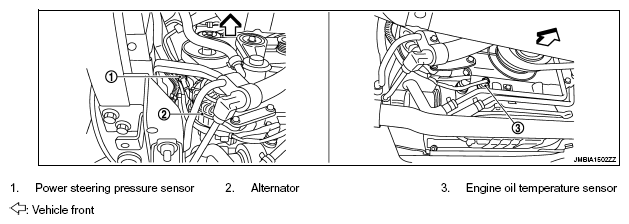

Fig 13: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G05978215

Courtesy of NISSAN MOTOR CO., U.S.A.

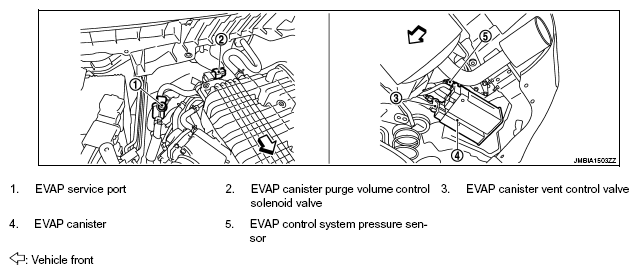

Fig 14: Identifying EVAP Canister Vent Control Valve, EVAP Canister Purge Volume Control Solenoid Valve And EVAP Service Port

G05978216

Courtesy of NISSAN MOTOR CO., U.S.A.

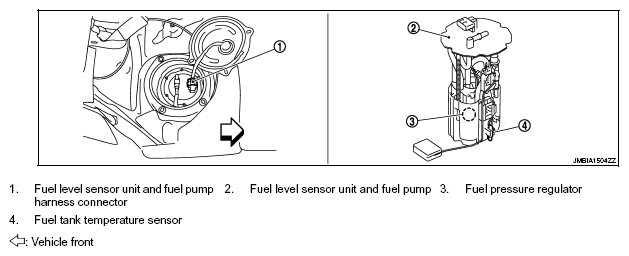

Fig 15: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector And Fuel Tank Temperature Sensor

G05978217

Courtesy of NISSAN MOTOR CO., U.S.A.

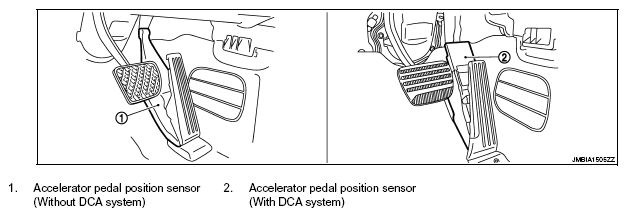

Fig 16: Identifying Accelerator Pedal Position Sensor

G05978218

Courtesy of NISSAN MOTOR CO., U.S.A.

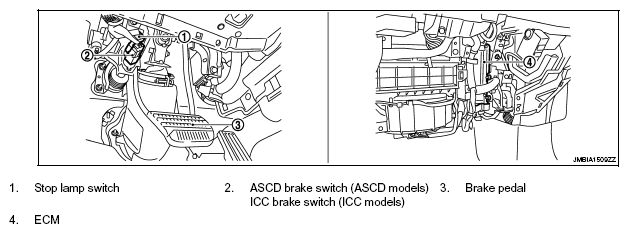

Fig 17: Identifying Stop Lamp Switch, ECM With ASCD And ICC Brake Switch

G05978219

Courtesy of NISSAN MOTOR CO., U.S.A.

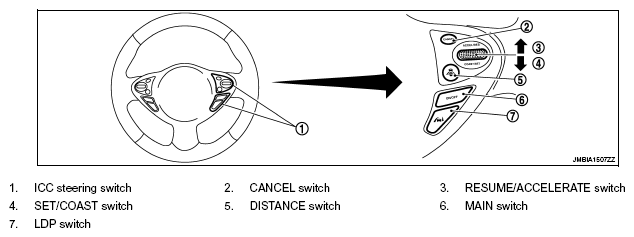

Fig 18: Identifying Steering Wheel Switches (1 Of 2)

G05978220

Courtesy of NISSAN MOTOR CO., U.S.A.

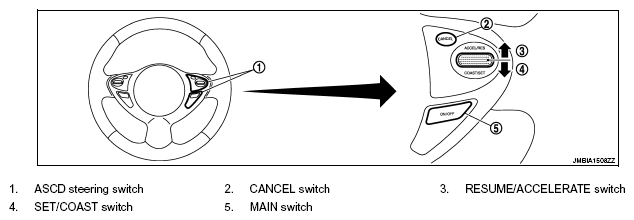

Fig 19: Identifying Steering Wheel Switches (2 Of 2)

G05978221

Courtesy of NISSAN MOTOR CO., U.S.A.

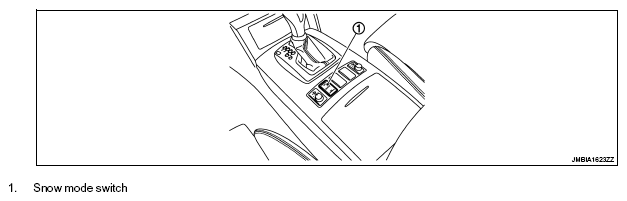

Fig 20: Identifying Snow Mode Switch

G05978222

Courtesy of NISSAN MOTOR CO., U.S.A.
