Oil Pump: Component

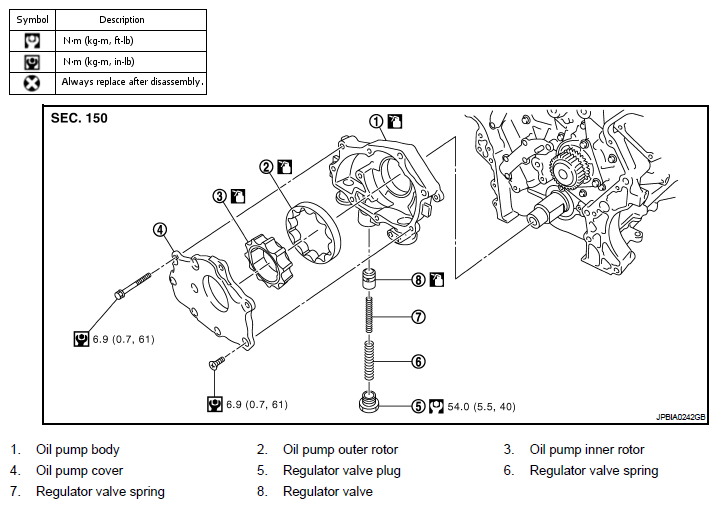

Fig 1: Oil Pump Replacement Components With Torque Specifications
G06305115Courtesy of NISSAN MOTOR CO., U.S.A.
