Fuel Pump Control Module: Wiring Diagram

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

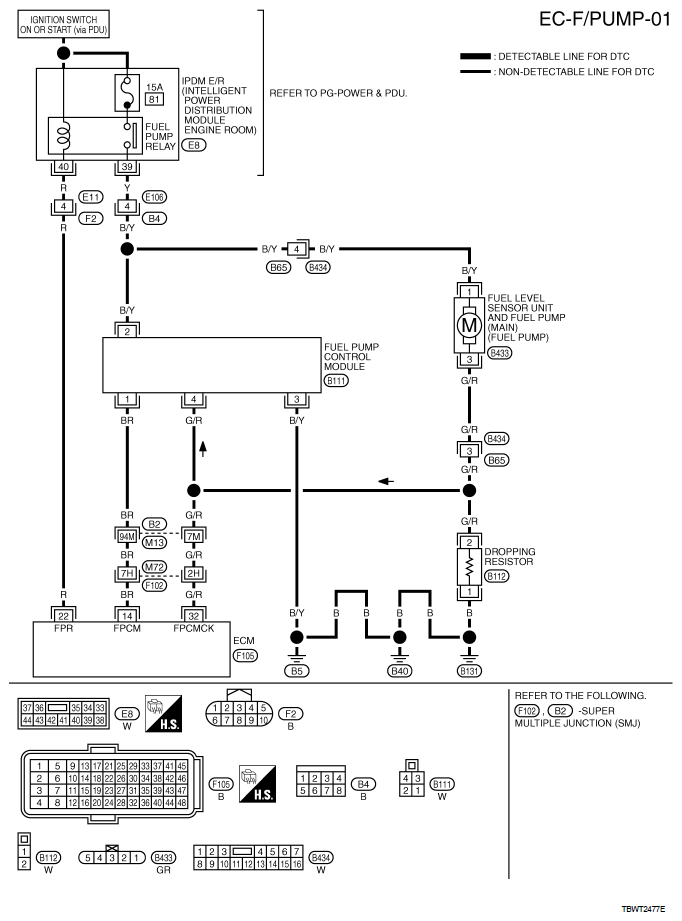

Fig 1: EC-F/PUMP-01 - Wiring Diagram
G06306803Courtesy of NISSAN MOTOR CO., U.S.A.
