Component Parts Location

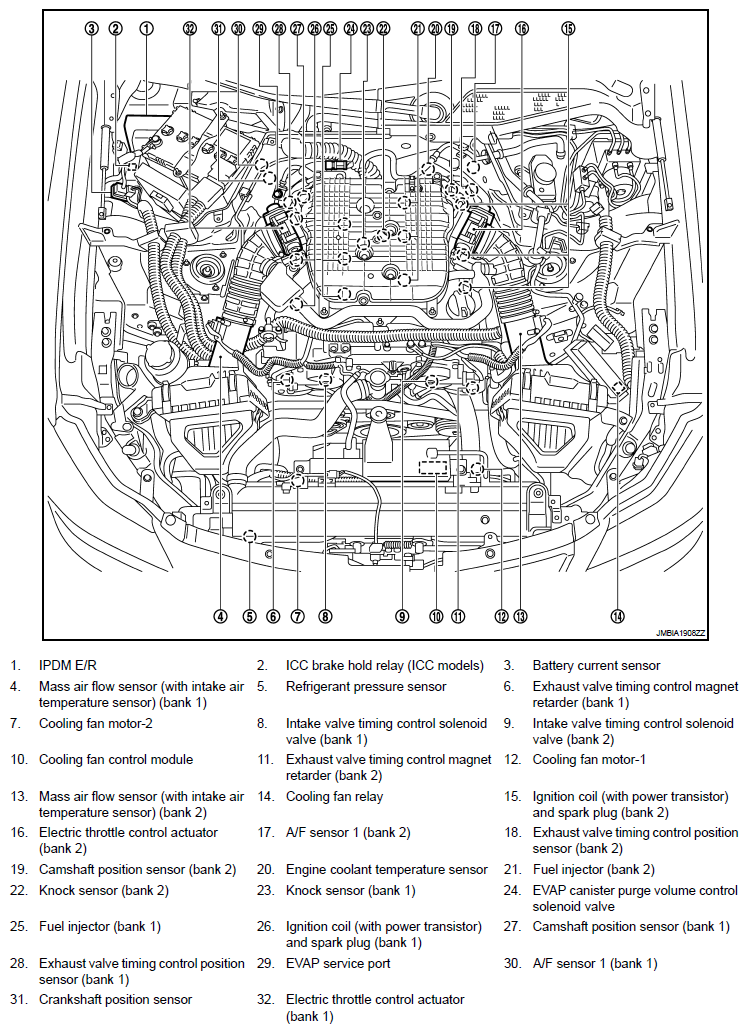

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 20)

G06306207

Courtesy of NISSAN MOTOR CO., U.S.A.

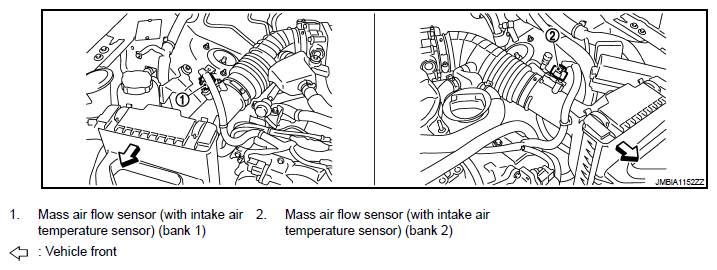

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 20)

G06306208

Courtesy of NISSAN MOTOR CO., U.S.A.

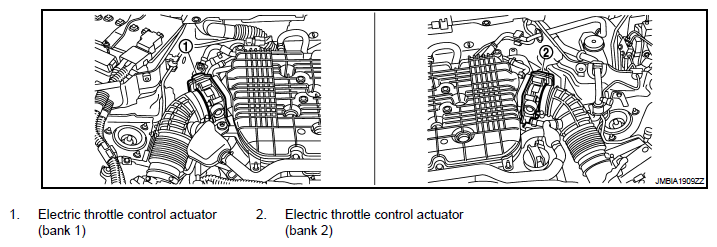

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 20)

G06306209

Courtesy of NISSAN MOTOR CO., U.S.A.

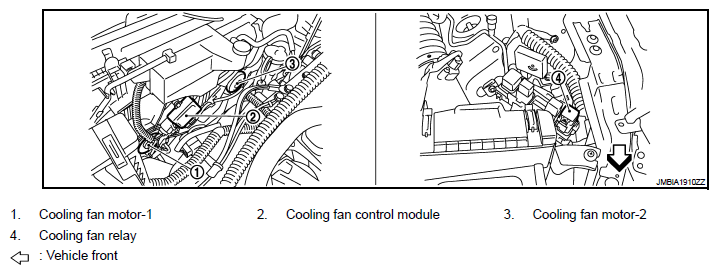

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 20)

G06306210

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 20)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

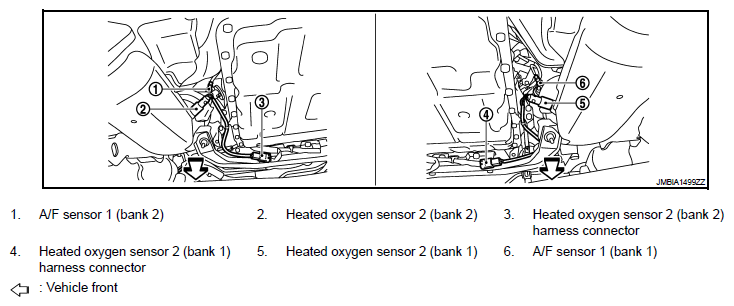

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 20)

G06306212

Courtesy of NISSAN MOTOR CO., U.S.A.

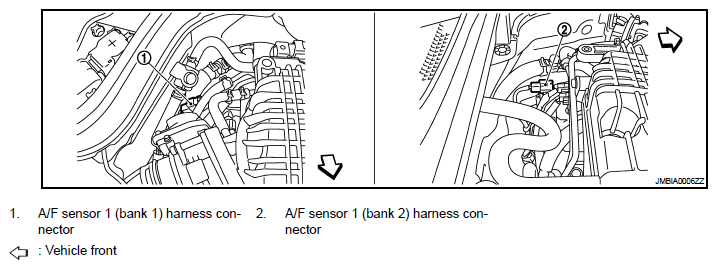

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 20)

G06306213

Courtesy of NISSAN MOTOR CO., U.S.A.

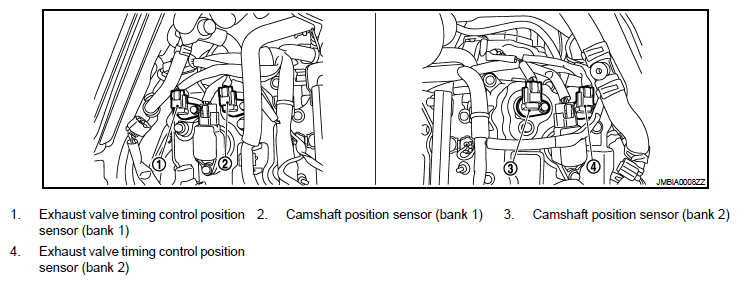

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 20)

G06306214

Courtesy of NISSAN MOTOR CO., U.S.A.

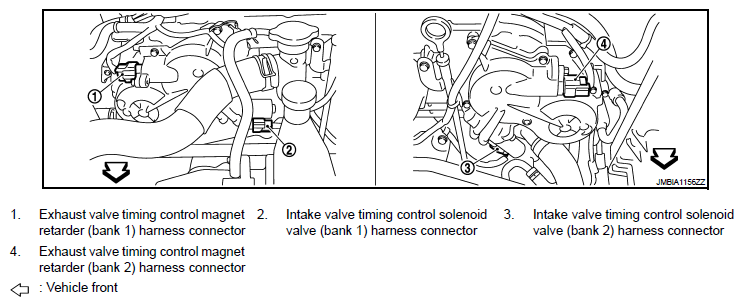

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 20)

G06306215

Courtesy of NISSAN MOTOR CO., U.S.A.

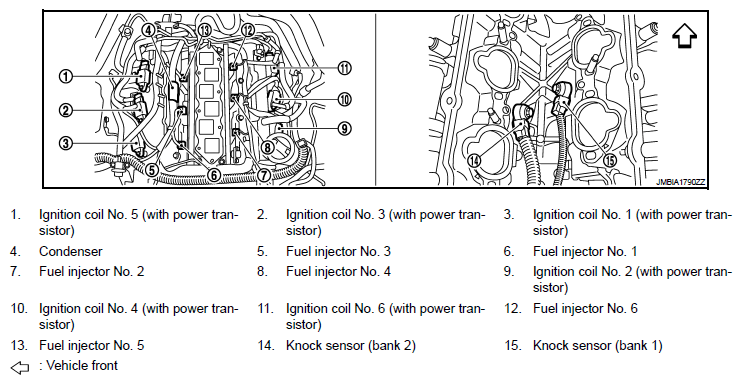

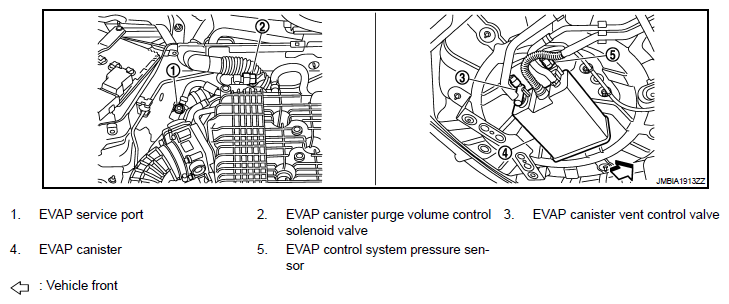

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 20)

G06306216

Courtesy of NISSAN MOTOR CO., U.S.A.

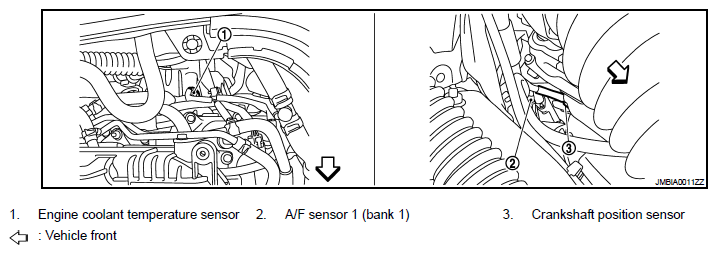

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 20)

G06306217

Courtesy of NISSAN MOTOR CO., U.S.A.

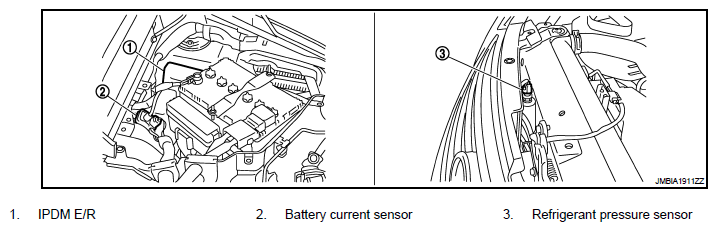

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 20)

G06306218

Courtesy of NISSAN MOTOR CO., U.S.A.

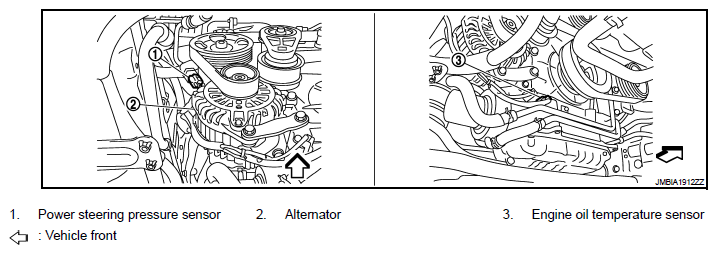

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 20)

G06306219

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 20)

G06306220

Courtesy of NISSAN MOTOR CO., U.S.A.

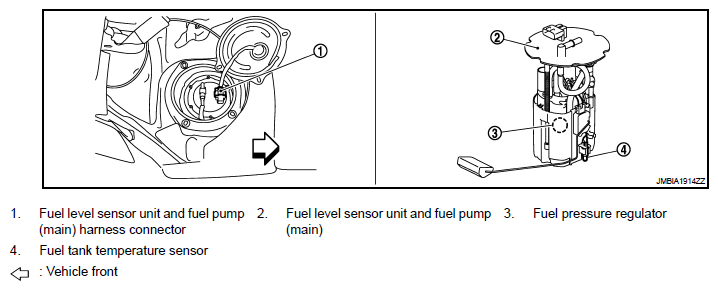

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 20)

G06306221

Courtesy of NISSAN MOTOR CO., U.S.A.

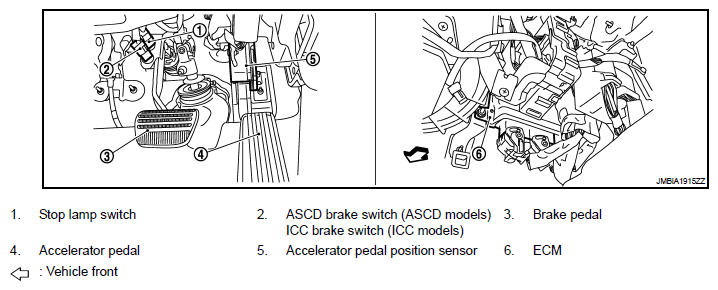

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 20)

G06306222

Courtesy of NISSAN MOTOR CO., U.S.A.

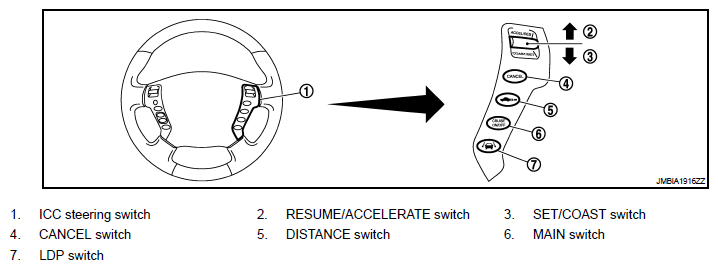

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 20)

G06306223

Courtesy of NISSAN MOTOR CO., U.S.A.

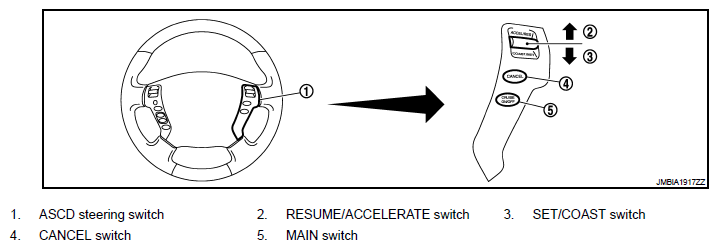

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 20)

G06306224

Courtesy of NISSAN MOTOR CO., U.S.A.

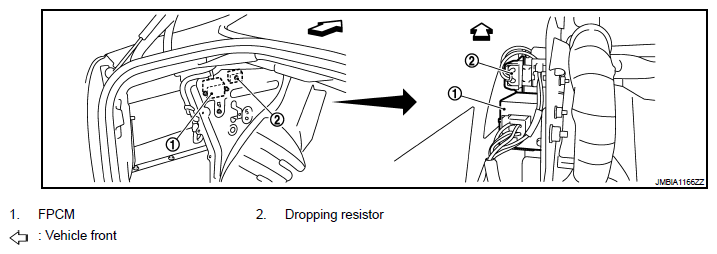

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 20)

G06306225

Courtesy of NISSAN MOTOR CO., U.S.A.

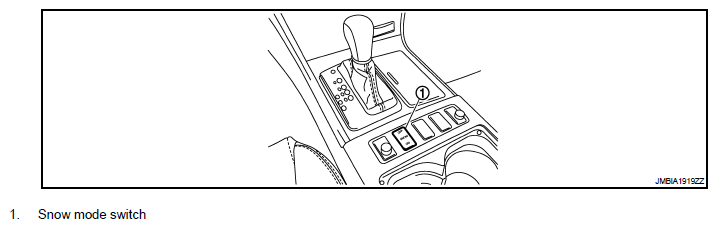

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 20)

G06306226

Courtesy of NISSAN MOTOR CO., U.S.A.
