Component Parts Location

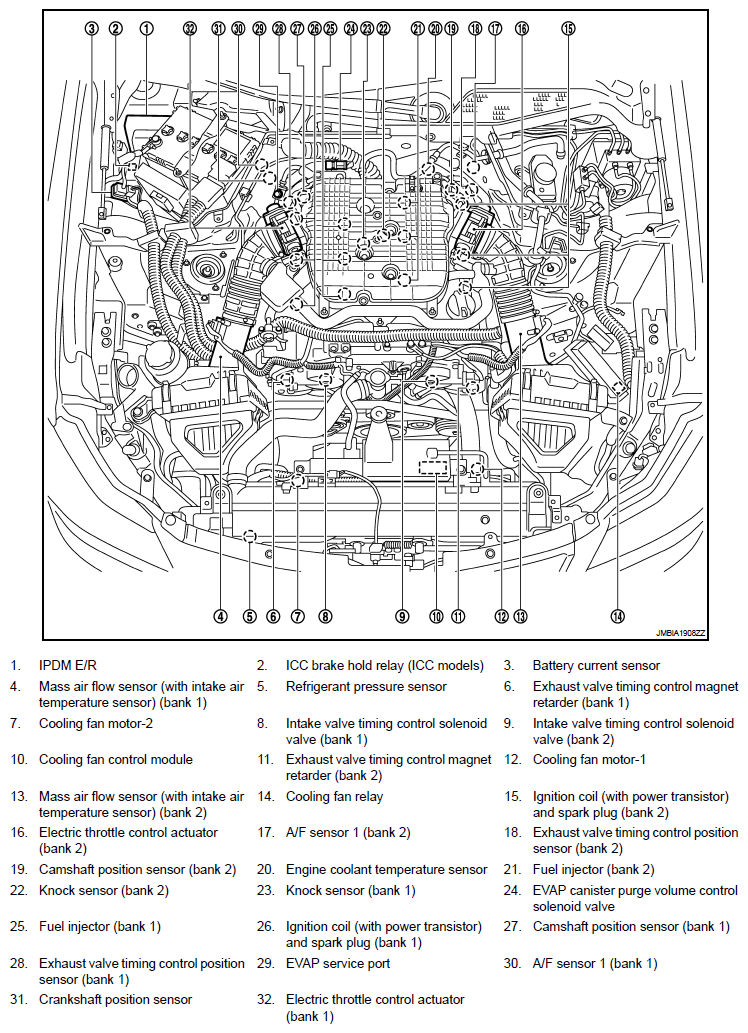

Fig 1: Identifying Fuel Pump Control Module Component Parts Location (1 Of 20)

G06306381

Courtesy of NISSAN MOTOR CO., U.S.A.

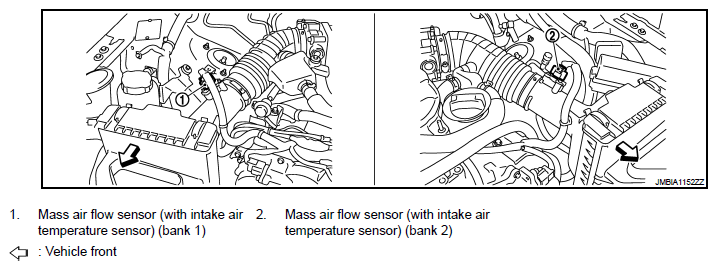

Fig 2: Identifying Fuel Pump Control Module Component Parts Location (2 Of 20)

G06306382

Courtesy of NISSAN MOTOR CO., U.S.A.

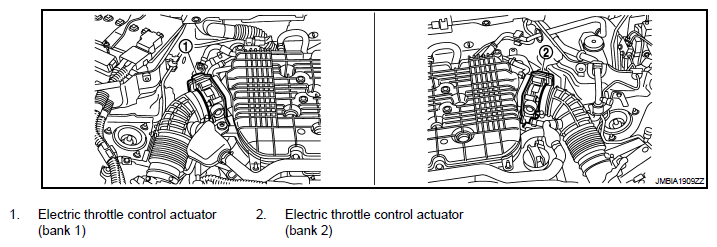

Fig 3: Identifying Fuel Pump Control Module Component Parts Location (3 Of 20)

G06306383

Courtesy of NISSAN MOTOR CO., U.S.A.

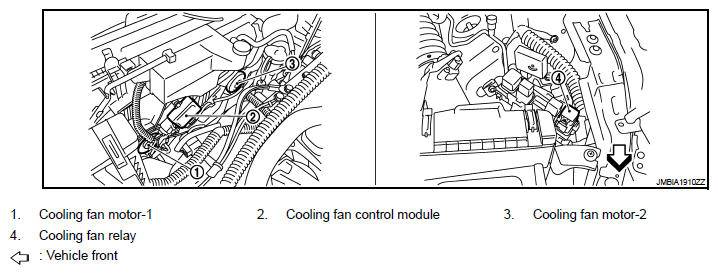

Fig 4: Identifying Fuel Pump Control Module Component Parts Location (4 Of 20)

G06306384

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Fuel Pump Control Module Component Parts Location (5 Of 20)

G06306364

Courtesy of NISSAN MOTOR CO., U.S.A.

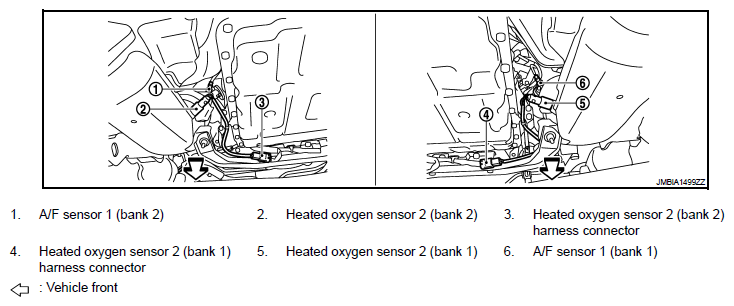

Fig 6: Identifying Fuel Pump Control Module Component Parts Location (6 Of 20)

G06306386

Courtesy of NISSAN MOTOR CO., U.S.A.

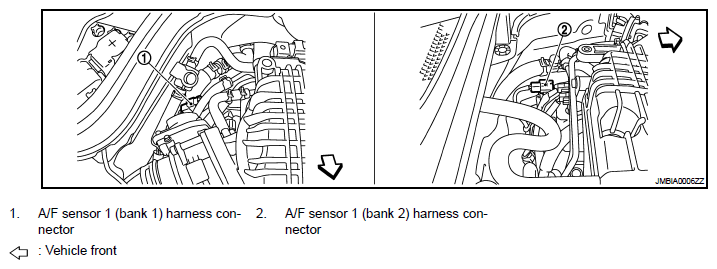

Fig 7: Identifying Fuel Pump Control Module Component Parts Location (7 Of 20)

G06306387

Courtesy of NISSAN MOTOR CO., U.S.A.

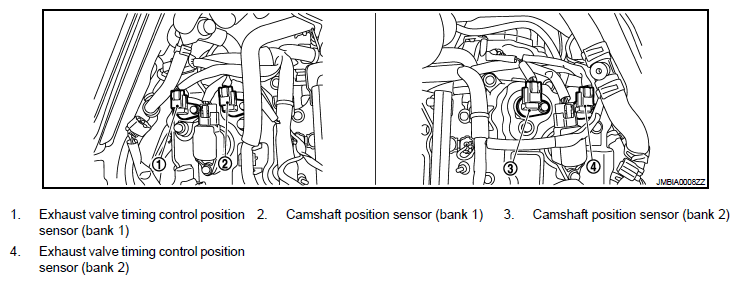

Fig 8: Identifying Fuel Pump Control Module Component Parts Location (8 Of 20)

G06306388

Courtesy of NISSAN MOTOR CO., U.S.A.

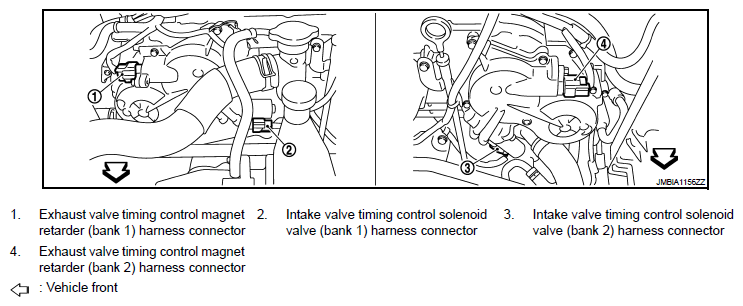

Fig 9: Identifying Fuel Pump Control Module Component Parts Location (9 Of 20)

G06306389

Courtesy of NISSAN MOTOR CO., U.S.A.

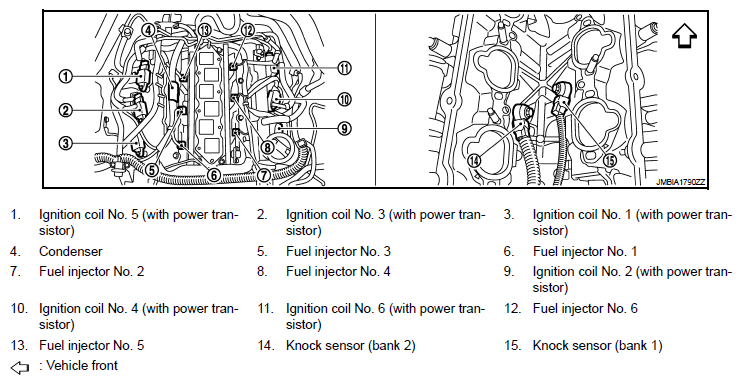

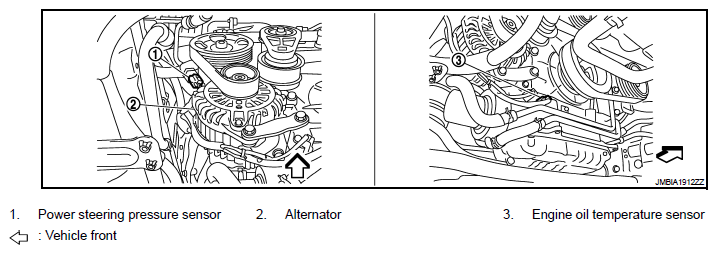

Fig 10: Identifying Fuel Pump Control Module Component Parts Location (10 Of 20)

G06306390

Courtesy of NISSAN MOTOR CO., U.S.A.

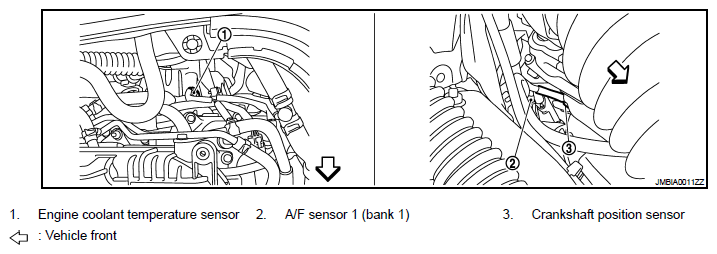

Fig 11: Identifying Fuel Pump Control Module Component Parts Location (11 Of 20)

G06306391

Courtesy of NISSAN MOTOR CO., U.S.A.

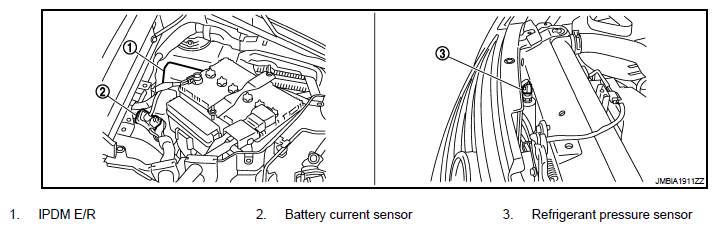

Fig 12: Identifying Fuel Pump Control Module Component Parts Location (12 Of 20)

G06306392

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Fuel Pump Control Module Component Parts Location (13 Of 20)

G06306393

Courtesy of NISSAN MOTOR CO., U.S.A.

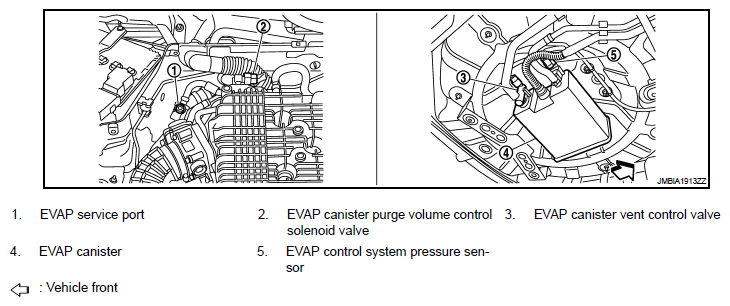

Fig 14: Identifying Fuel Pump Control Module Component Parts Location (14 Of 20)

G06306394

Courtesy of NISSAN MOTOR CO., U.S.A.

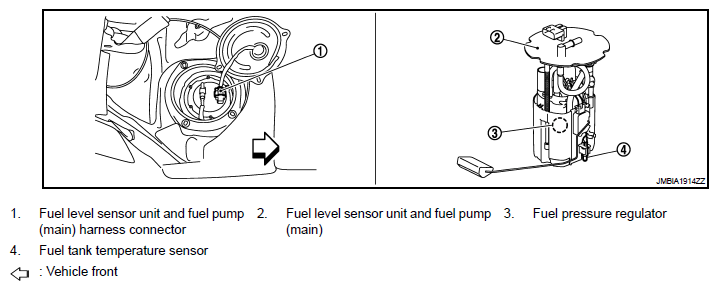

Fig 15: Identifying Fuel Pump Control Module Component Parts Location (15 Of 20)

G06306395

Courtesy of NISSAN MOTOR CO., U.S.A.

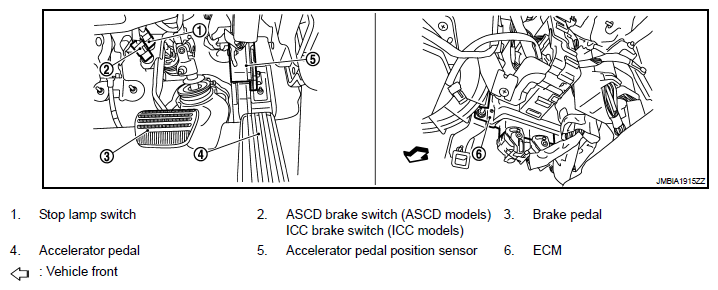

Fig 16: Identifying Fuel Pump Control Module Component Parts Location (16 Of 20)

G06306396

Courtesy of NISSAN MOTOR CO., U.S.A.

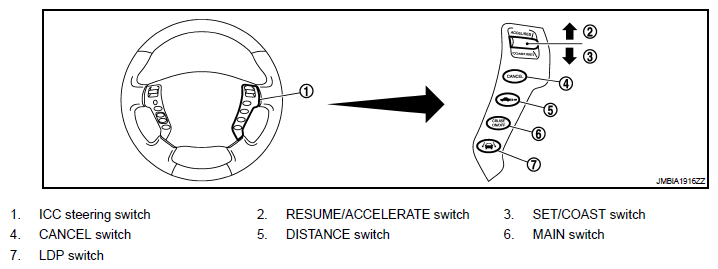

Fig 17: Identifying Fuel Pump Control Module Component Parts Location (17 Of 20)

G06306397

Courtesy of NISSAN MOTOR CO., U.S.A.

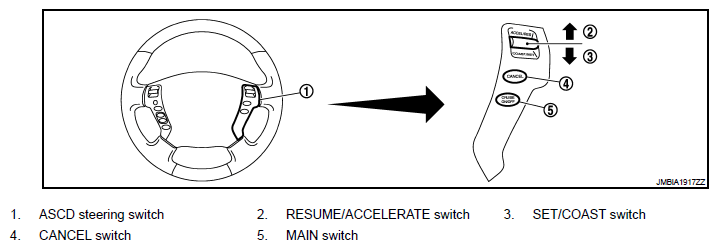

Fig 18: Identifying Fuel Pump Control Module Component Parts Location (18 Of 20)

G06306398

Courtesy of NISSAN MOTOR CO., U.S.A.

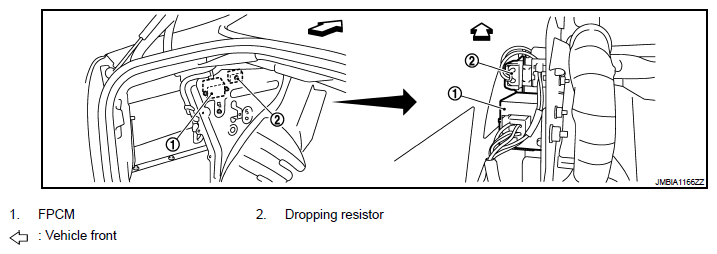

Fig 19: Identifying Fuel Pump Control Module Component Parts Location (19 Of 20)

G06306399

Courtesy of NISSAN MOTOR CO., U.S.A.

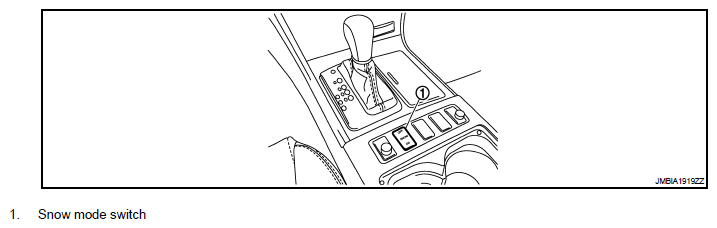

Fig 20: Identifying Fuel Pump Control Module Component Parts Location (20 Of 20)

G06306400

Courtesy of NISSAN MOTOR CO., U.S.A.
