System Description: Schematic

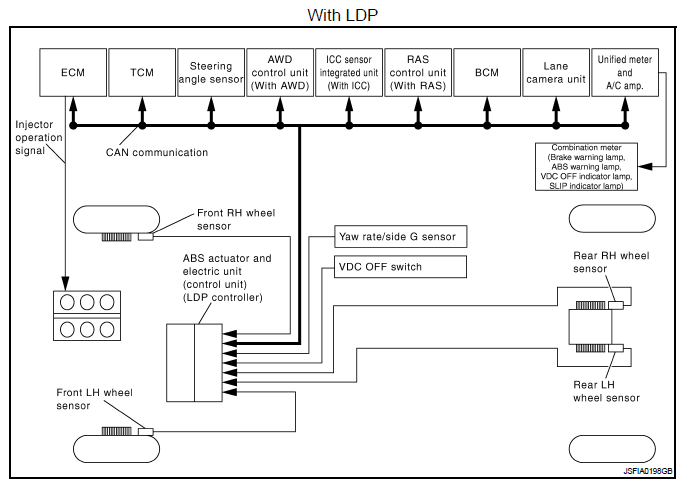

Fig 1: Brake Control System Schematic Diagram (With LDP)
Courtesy of NISSAN MOTOR CO., U.S.A.

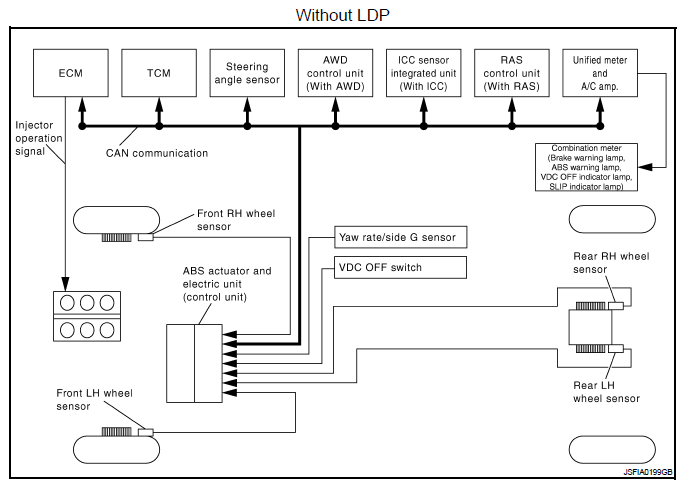

Fig 2: Brake Control System Schematic Diagram (Without LDP)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
