Disassembly and Assembly: Components

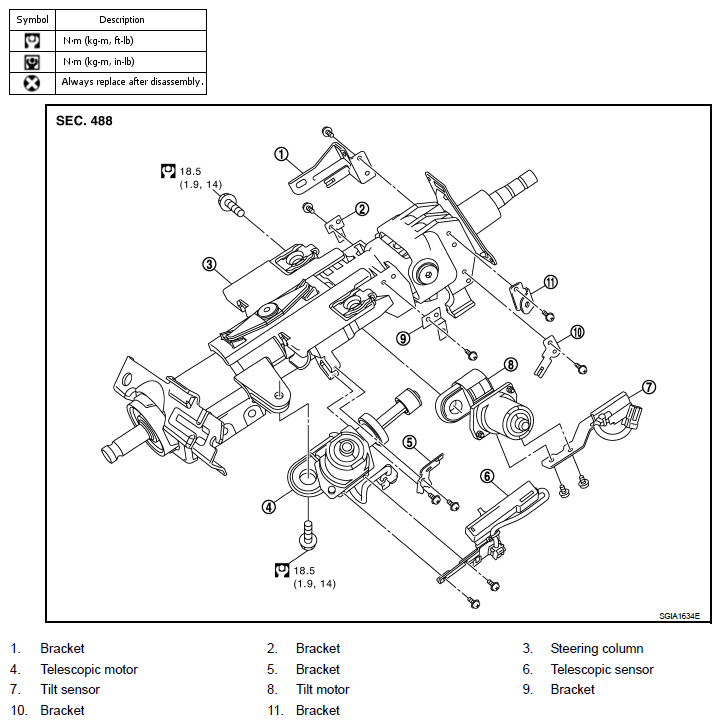

Fig 1: Steering Column Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT ", for the symbols in the figure.
