Camshaft Position Sensor (PHASE): Removal

  1. Remove engine room cover using power tool. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove air duct and resonator assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect camshaft position sensor connector.
  4. Remove camshaft position sensor (2) from Intake valve timing control solenoid valve cover (LH) (1).

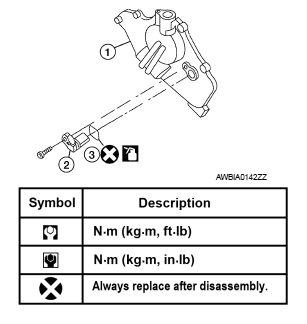

    Fig 1: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Cover (LH)
    G06315985Courtesy of NISSAN MOTOR CO., U.S.A.
