Intake Valve Timing Control Position Sensor (RH): Removal

  1. Remove engine room cover using power tool. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect intake valve timing control position sensor connector (RH).
  3. Remove intake valve timing control position sensor (RH) (1) from Intake valve timing control solenoid valve cover (RH) (3).

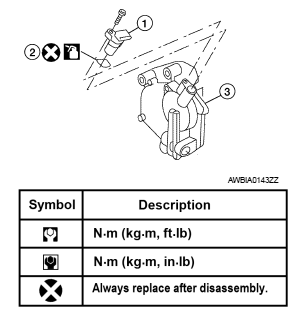

    Fig 1: Identifying Intake Valve Timing Control Position Sensor And Intake Valve Timing Control Solenoid Valve Cover (RH)
    G06315984Courtesy of NISSAN MOTOR CO., U.S.A.
