Engine Control Component Parts Location

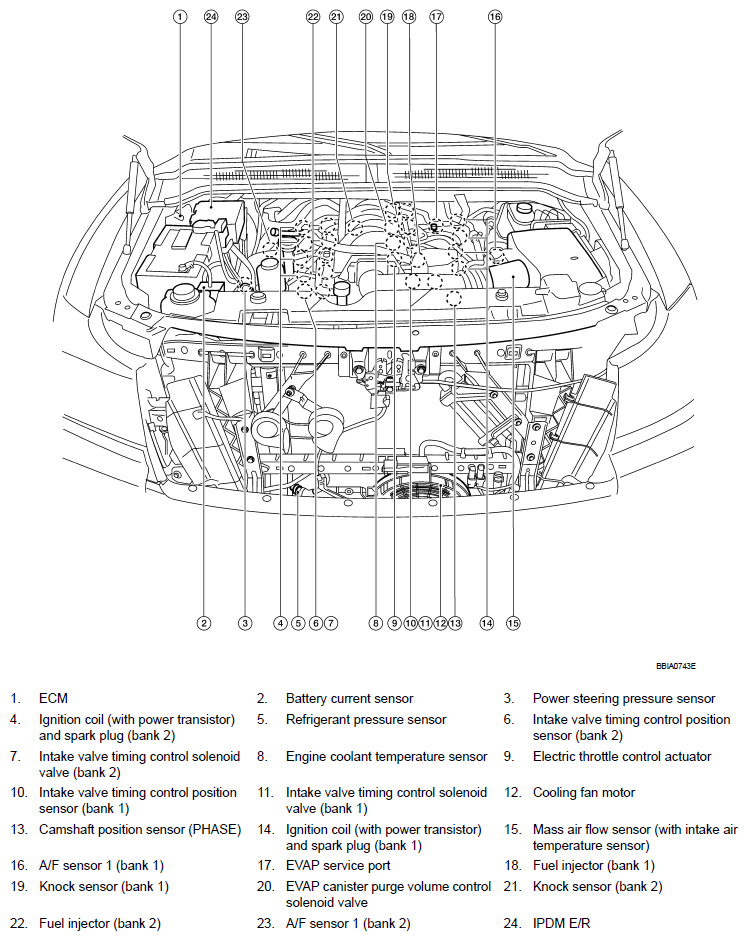

Fig 1: Engine Control System Parts Location (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

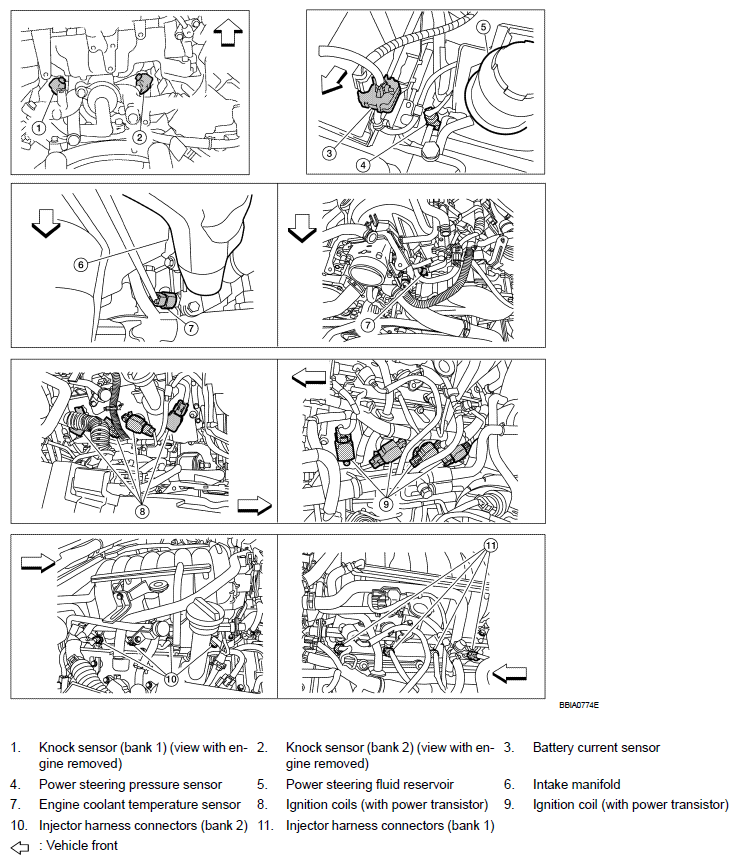

Fig 2: Engine Control System Parts Location (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Engine Control System Parts Location (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

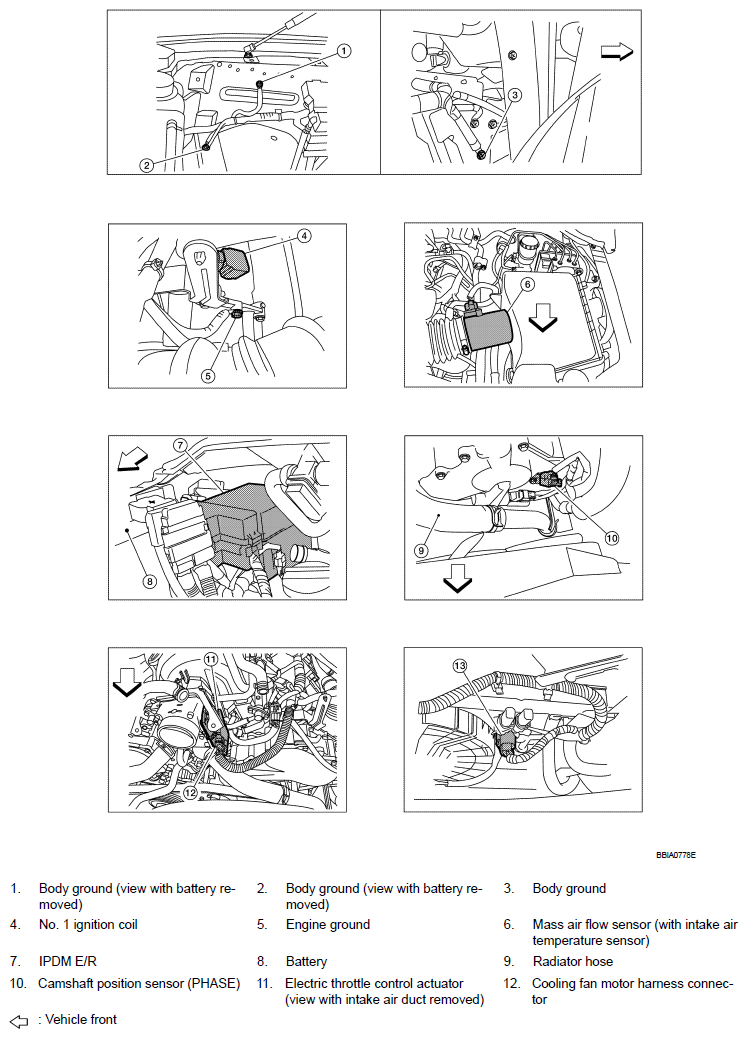

Fig 4: Engine Control System Parts Location (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

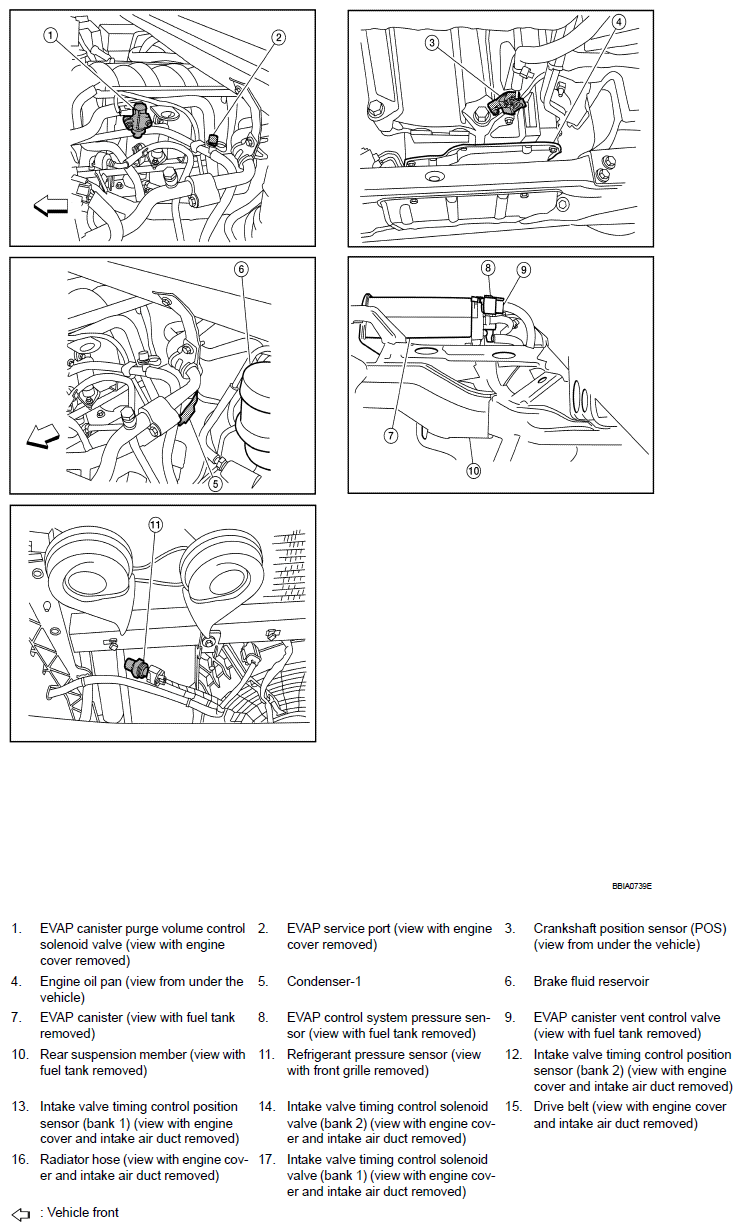

Fig 5: Engine Control System Parts Location (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

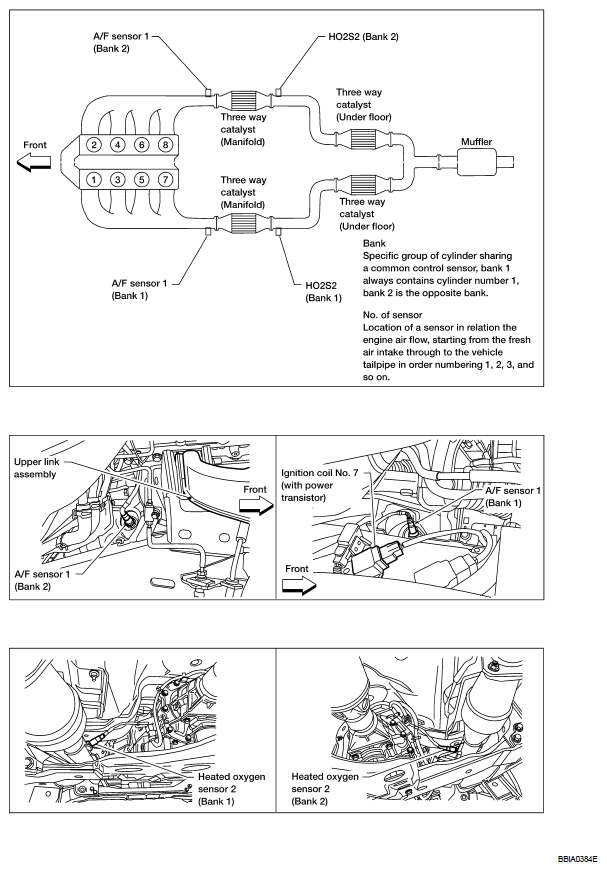

Fig 6: Engine Control System Parts Location (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
