Component Parts Location

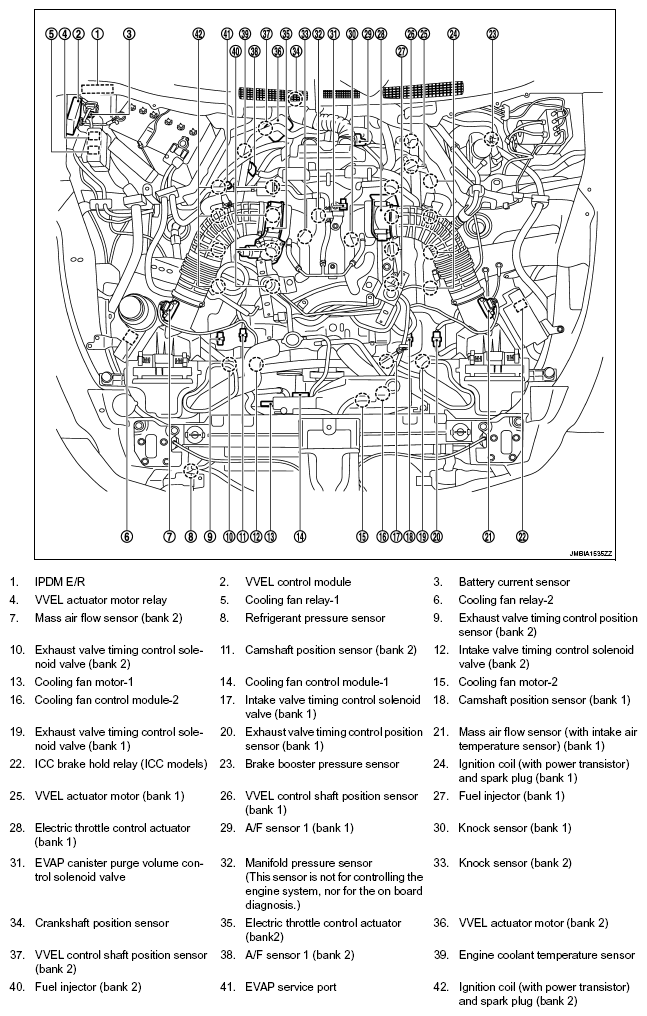

Fig 1: Identifying Cooling Fan Control Component Parts Location (1 Of 24)

G05978806

Courtesy of NISSAN MOTOR CO., U.S.A.

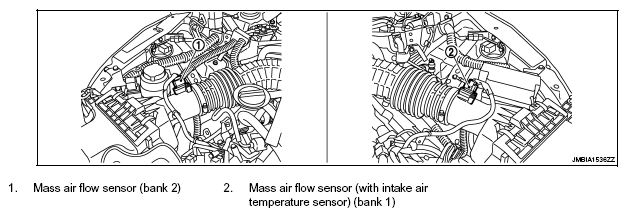

Fig 2: Identifying Cooling Fan Control Component Parts Location (2 Of 24)

G05978807

Courtesy of NISSAN MOTOR CO., U.S.A.

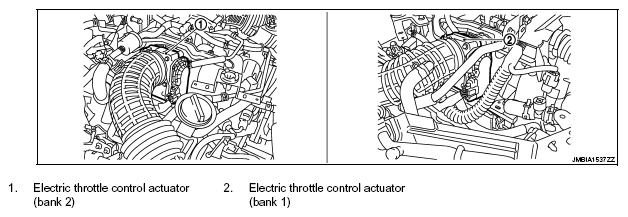

Fig 3: Identifying Cooling Fan Control Component Parts Location (3 Of 24)

G05978808

Courtesy of NISSAN MOTOR CO., U.S.A.

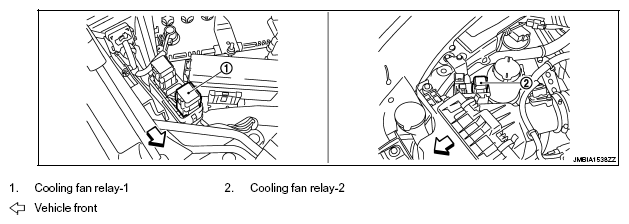

Fig 4: Identifying Cooling Fan Control Component Parts Location (4 Of 24)

G05978809

Courtesy of NISSAN MOTOR CO., U.S.A.

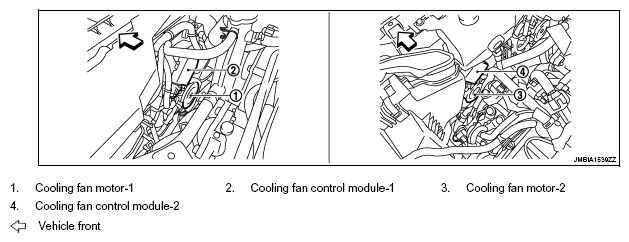

Fig 5: Identifying Cooling Fan Control Component Parts Location (5 Of 24)

G05978810

Courtesy of NISSAN MOTOR CO., U.S.A.

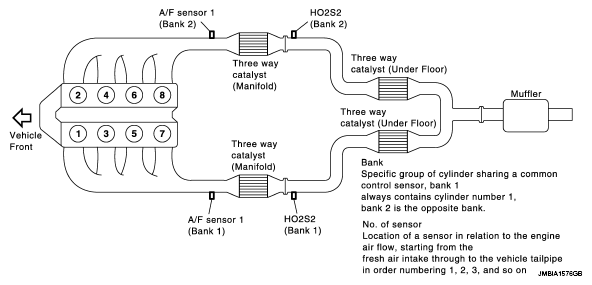

Fig 6: Identifying Cooling Fan Control Component Parts Location (6 Of 24)

G05978811

Courtesy of NISSAN MOTOR CO., U.S.A.

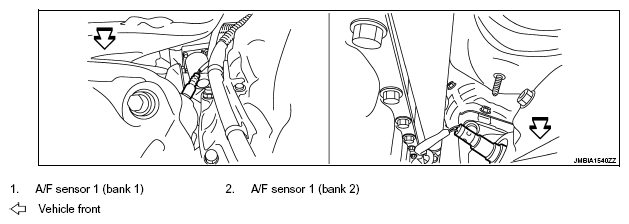

Fig 7: Identifying Cooling Fan Control Component Parts Location (7 Of 24)

G05978812

Courtesy of NISSAN MOTOR CO., U.S.A.

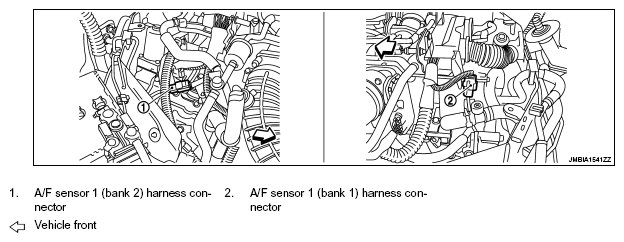

Fig 8: Identifying A/F Sensor 1 Harness Connector Location

G05978813

Courtesy of NISSAN MOTOR CO., U.S.A.

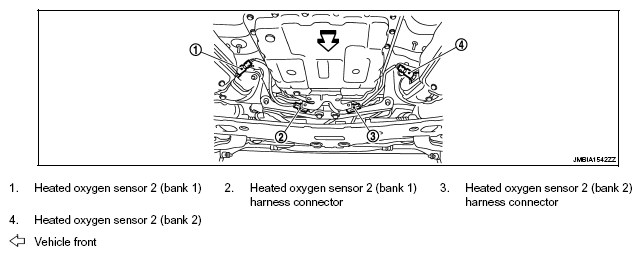

Fig 9: Identifying Cooling Fan Control Component Parts Location (8 Of 24)

G05978814

Courtesy of NISSAN MOTOR CO., U.S.A.

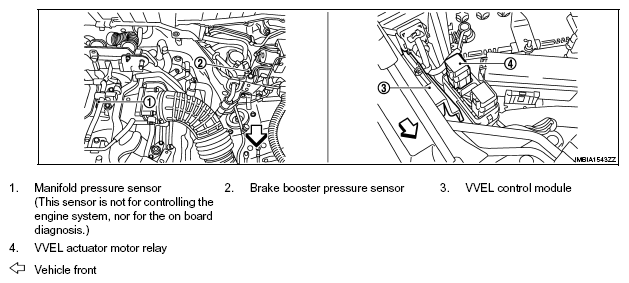

Fig 10: Identifying Cooling Fan Control Component Parts Location (9 Of 24)

G05978815

Courtesy of NISSAN MOTOR CO., U.S.A.

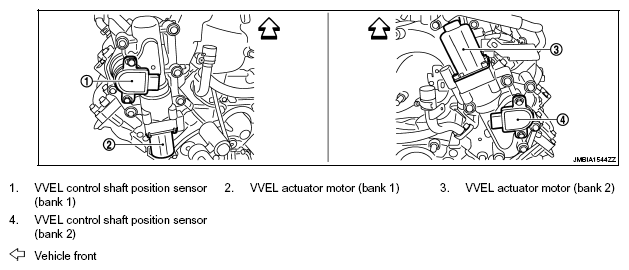

Fig 11: Identifying Cooling Fan Control Component Parts Location (10 Of 24)

G05978816

Courtesy of NISSAN MOTOR CO., U.S.A.

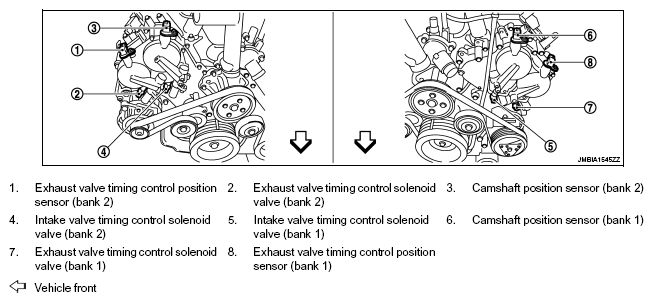

Fig 12: Identifying Cooling Fan Control Component Parts Location (11 Of 24)

G05978817

Courtesy of NISSAN MOTOR CO., U.S.A.

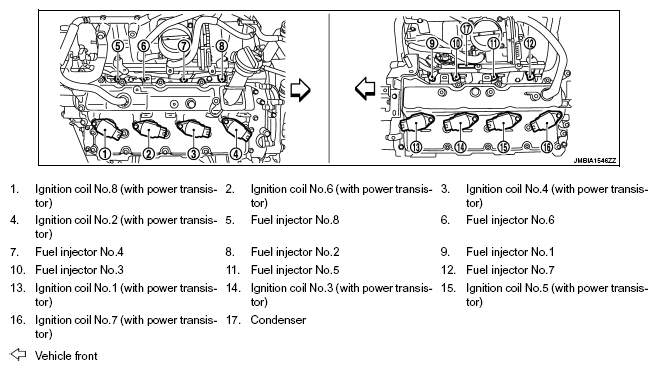

Fig 13: Identifying Cooling Fan Control Component Parts Location (12 Of 24)

G05978818

Courtesy of NISSAN MOTOR CO., U.S.A.

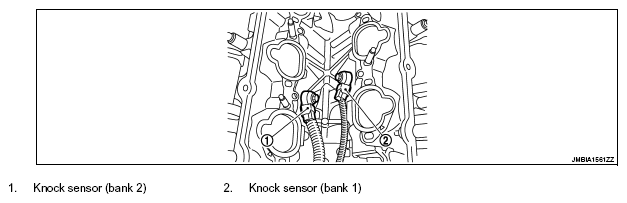

Fig 14: Identifying Cooling Fan Control Component Parts Location (13 Of 24)

G05978819

Courtesy of NISSAN MOTOR CO., U.S.A.

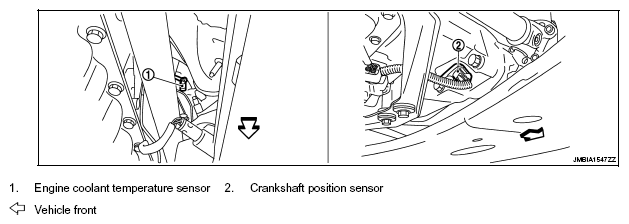

Fig 15: Identifying Cooling Fan Control Component Parts Location (14 Of 24)

G05978820

Courtesy of NISSAN MOTOR CO., U.S.A.

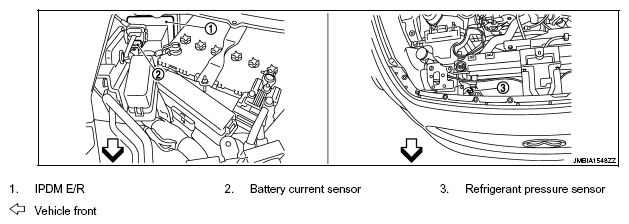

Fig 16: Identifying Cooling Fan Control Component Parts Location (15 Of 24)

G05978821

Courtesy of NISSAN MOTOR CO., U.S.A.

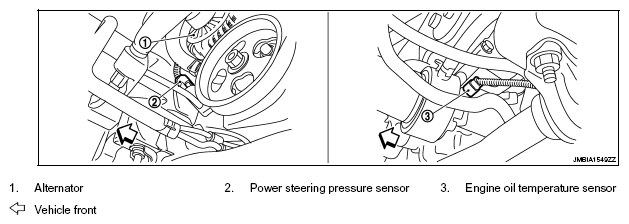

Fig 17: Identifying Cooling Fan Control Component Parts Location (16 Of 24)

G05978822

Courtesy of NISSAN MOTOR CO., U.S.A.

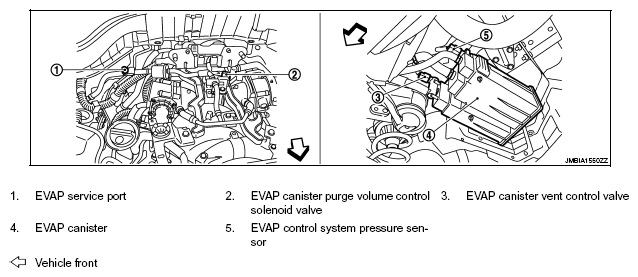

Fig 18: Identifying Cooling Fan Control Component Parts Location (17 Of 24)

G05978823

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Cooling Fan Control Component Parts Location (18 Of 24)

G05978824

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Cooling Fan Control Component Parts Location (19 Of 24)

G05978825

Courtesy of NISSAN MOTOR CO., U.S.A.

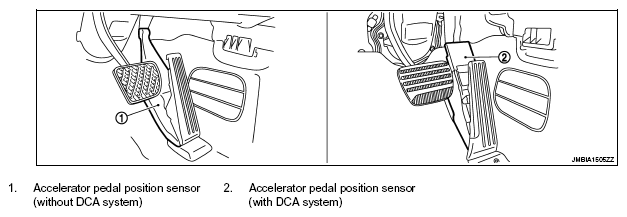

Fig 21: Identifying Cooling Fan Control Component Parts Location (20 Of 24)

G05978826

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Identifying Cooling Fan Control Component Parts Location (21 Of 24)

G05978827

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Identifying Cooling Fan Control Component Parts Location (22 Of 24)

G05978828

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 24: Identifying Cooling Fan Control Component Parts Location (23 Of 24)

G05978829

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 25: Identifying Cooling Fan Control Component Parts Location (24 Of 24)

G05978830

Courtesy of NISSAN MOTOR CO., U.S.A.
