Component Parts Location

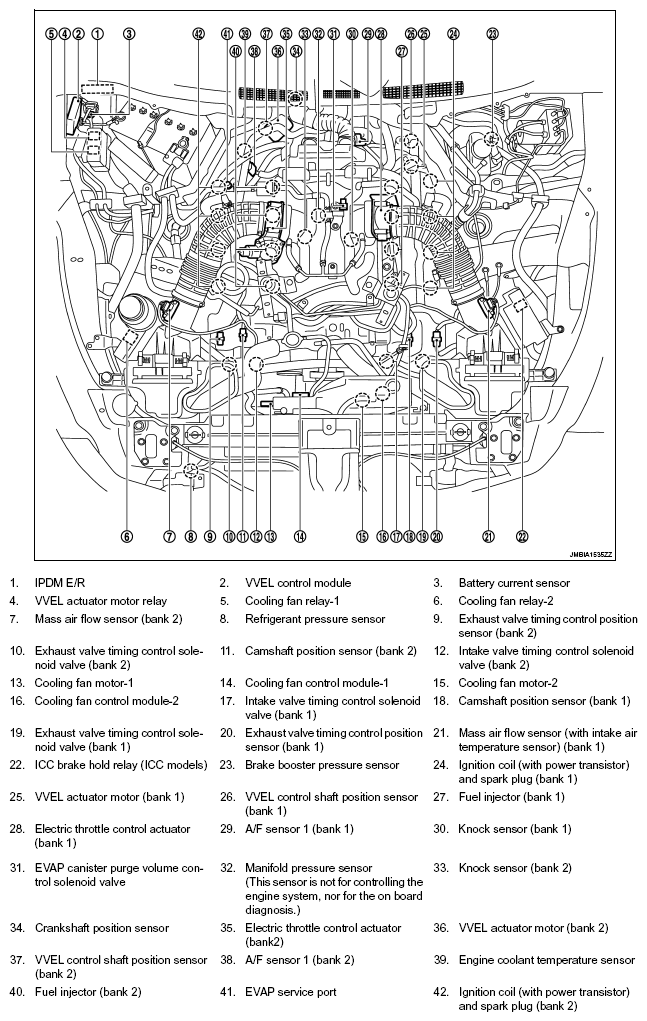

Fig 1: Identifying Electric Ignition System Component Parts Location (1 Of 24)

G05978728

Courtesy of NISSAN MOTOR CO., U.S.A.

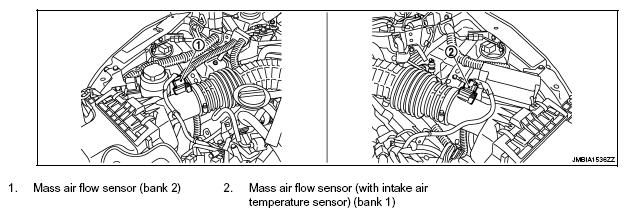

Fig 2: Identifying Electric Ignition System Component Parts Location (2 Of 24)

G05978729

Courtesy of NISSAN MOTOR CO., U.S.A.

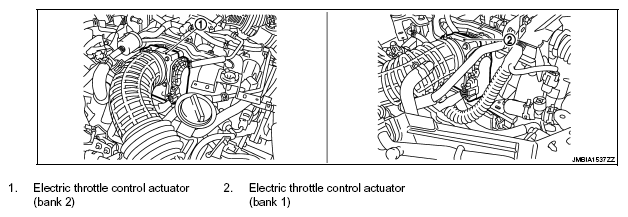

Fig 3: Identifying Electric Ignition System Component Parts Location (3 Of 24)

G05978730

Courtesy of NISSAN MOTOR CO., U.S.A.

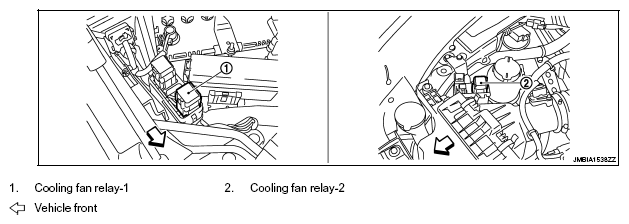

Fig 4: Identifying Electric Ignition System Component Parts Location (4 Of 24)

G05978731

Courtesy of NISSAN MOTOR CO., U.S.A.

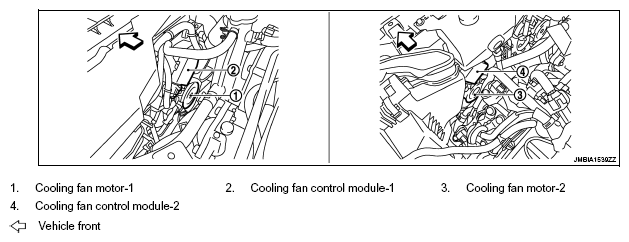

Fig 5: Identifying Electric Ignition System Component Parts Location (5 Of 24)

G05978732

Courtesy of NISSAN MOTOR CO., U.S.A.

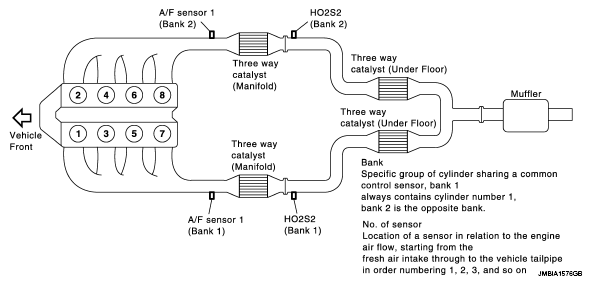

Fig 6: Identifying Electric Ignition System Component Parts Location (6 Of 24)

G05978733

Courtesy of NISSAN MOTOR CO., U.S.A.

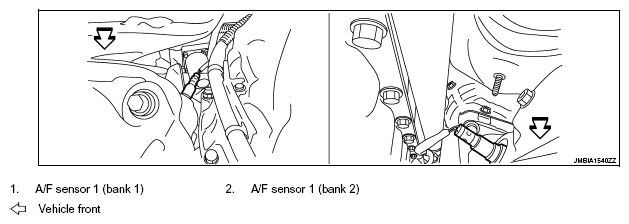

Fig 7: Identifying Electric Ignition System Component Parts Location (7 Of 24)

G05978734

Courtesy of NISSAN MOTOR CO., U.S.A.

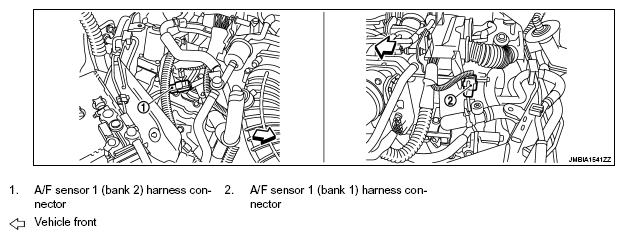

Fig 8: Identifying A/F Sensor 1 Harness Connector

G05978735

Courtesy of NISSAN MOTOR CO., U.S.A.

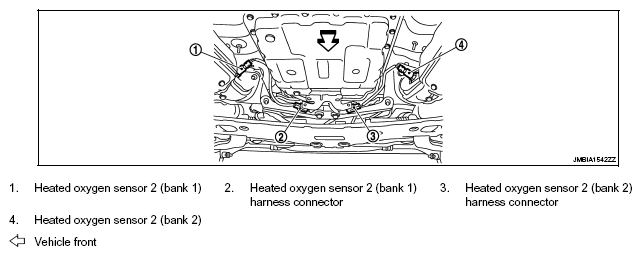

Fig 9: Identifying Electric Ignition System Component Parts Location (8 Of 24)

G05978736

Courtesy of NISSAN MOTOR CO., U.S.A.

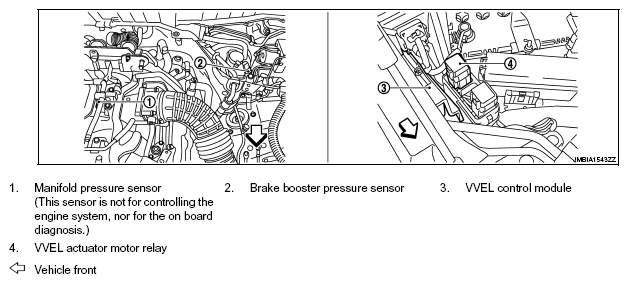

Fig 10: Identifying Electric Ignition System Component Parts Location (9 Of 24)

G05978737

Courtesy of NISSAN MOTOR CO., U.S.A.

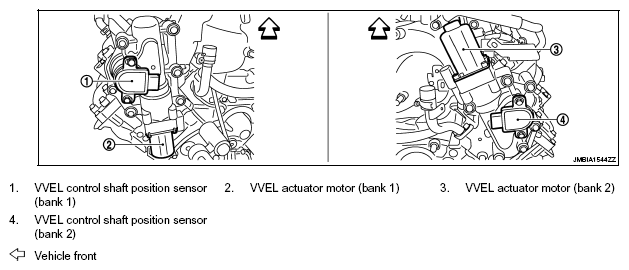

Fig 11: Identifying Electric Ignition System Component Parts Location (10 Of 24)

G05978738

Courtesy of NISSAN MOTOR CO., U.S.A.

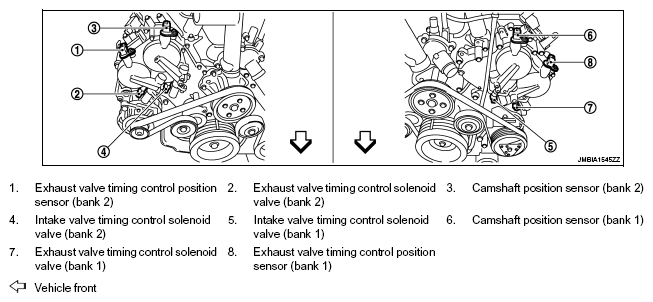

Fig 12: Identifying Electric Ignition System Component Parts Location (11 Of 24)

G05978739

Courtesy of NISSAN MOTOR CO., U.S.A.

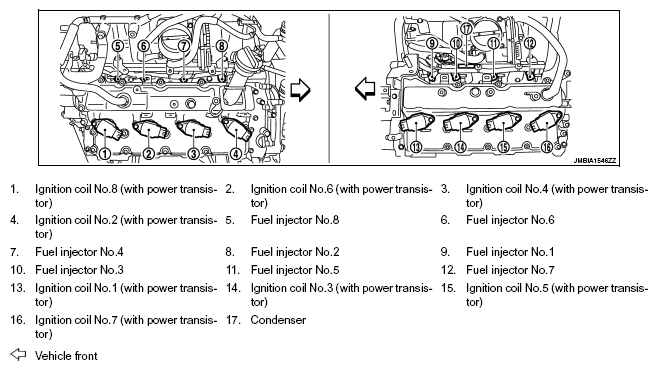

Fig 13: Identifying Electric Ignition System Component Parts Location (12 Of 24)

G05978740

Courtesy of NISSAN MOTOR CO., U.S.A.

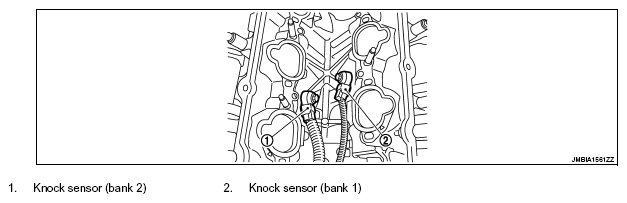

Fig 14: Identifying Electric Ignition System Component Parts Location (13 Of 24)

G05978741

Courtesy of NISSAN MOTOR CO., U.S.A.

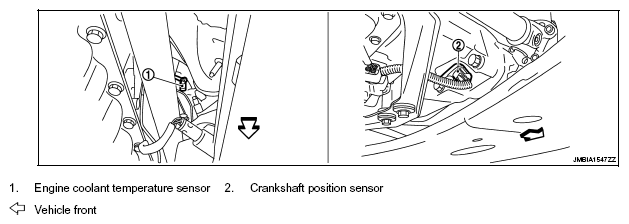

Fig 15: Identifying Electric Ignition System Component Parts Location (14 Of 24)

G05978742

Courtesy of NISSAN MOTOR CO., U.S.A.

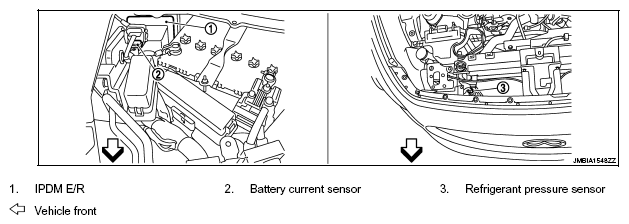

Fig 16: Identifying Electric Ignition System Component Parts Location (15 Of 24)

G05978743

Courtesy of NISSAN MOTOR CO., U.S.A.

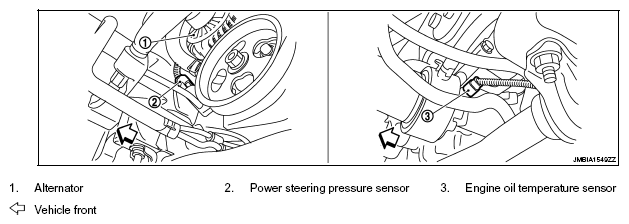

Fig 17: Identifying Electric Ignition System Component Parts Location (16 Of 24)

G05978744

Courtesy of NISSAN MOTOR CO., U.S.A.

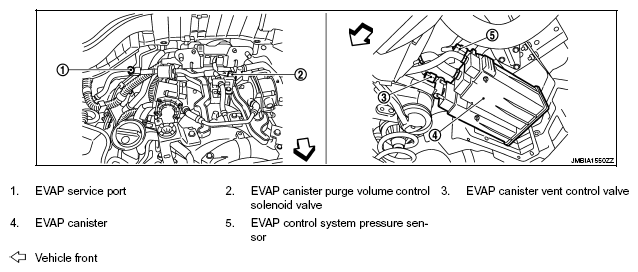

Fig 18: Identifying Electric Ignition System Component Parts Location (17 Of 24)

G05978745

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Electric Ignition System Component Parts Location (18 Of 24)

G05978746

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Electric Ignition System Component Parts Location (19 Of 24)

G05978747

Courtesy of NISSAN MOTOR CO., U.S.A.

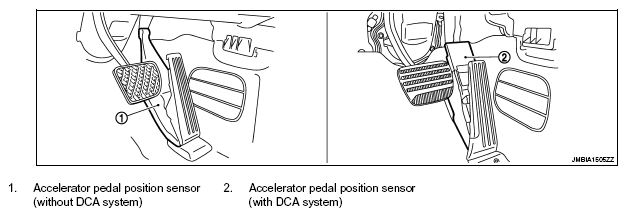

Fig 21: Identifying Electric Ignition System Component Parts Location (20 Of 24)

G05978748

Courtesy of NISSAN MOTOR CO., U.S.A.

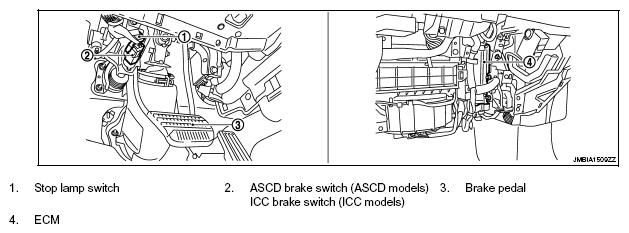

Fig 22: Identifying Electric Ignition System Component Parts Location (21 Of 24)

G05978749

Courtesy of NISSAN MOTOR CO., U.S.A.

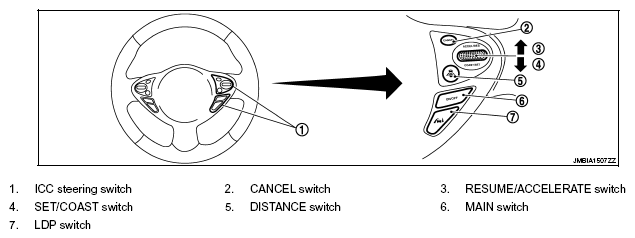

Fig 23: Identifying Electric Ignition System Component Parts Location (22 Of 24)

G05978750

Courtesy of NISSAN MOTOR CO., U.S.A.

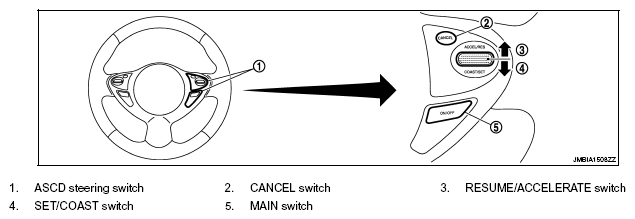

Fig 24: Identifying Electric Ignition System Component Parts Location (23 Of 24)

G05978751

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 25: Identifying Electric Ignition System Component Parts Location (24 Of 24)

G05978752

Courtesy of NISSAN MOTOR CO., U.S.A.
