Component Parts Location

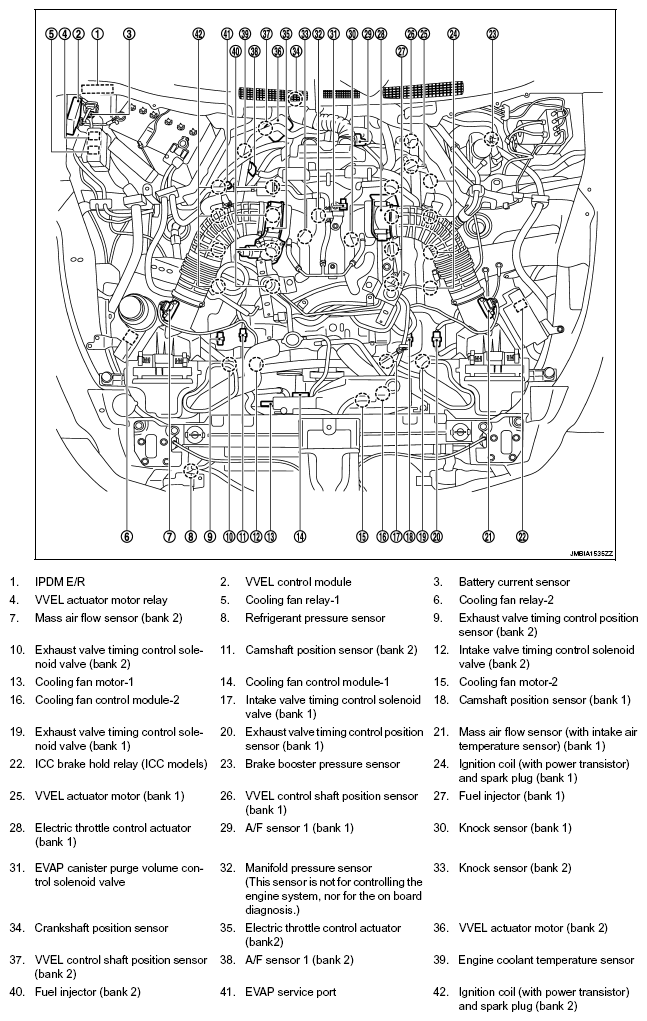

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 25)

G05978674

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 25)

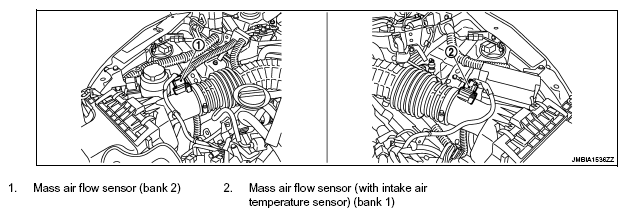

G05978675

Courtesy of NISSAN MOTOR CO., U.S.A.

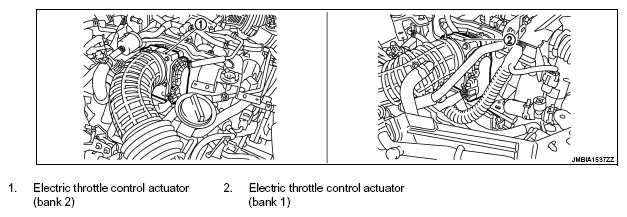

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 25)

G05978676

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 25)

G05978677

Courtesy of NISSAN MOTOR CO., U.S.A.

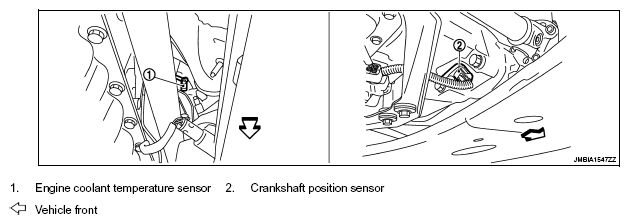

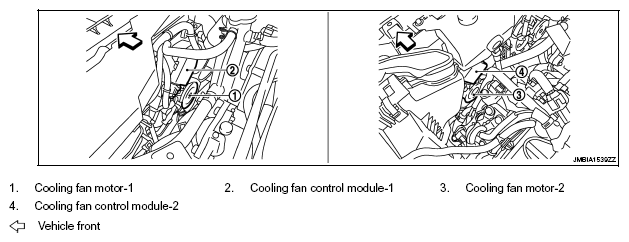

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 25)

G05978678

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 25)

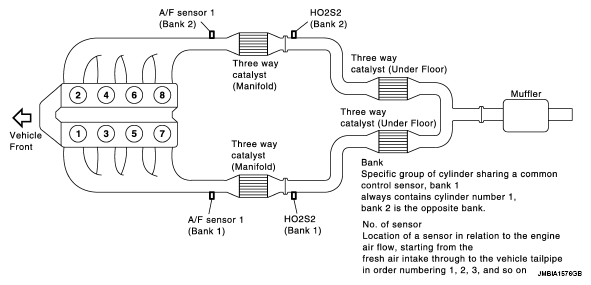

G05978679

Courtesy of NISSAN MOTOR CO., U.S.A.

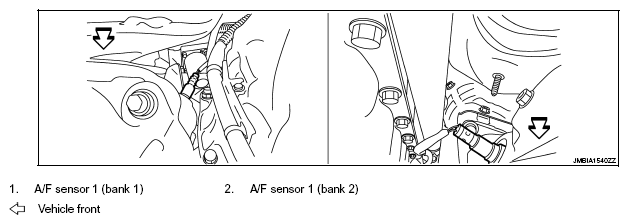

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 25)

G05978680

Courtesy of NISSAN MOTOR CO., U.S.A.

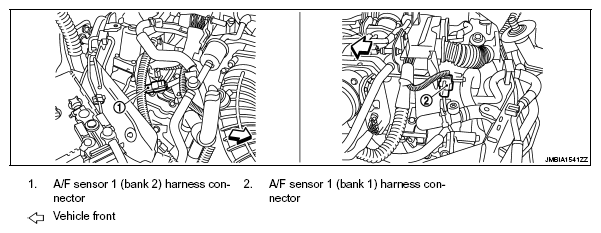

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 25)

G05978681

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 25)

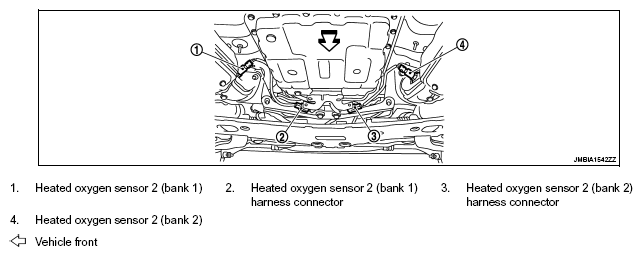

G05978682

Courtesy of NISSAN MOTOR CO., U.S.A.

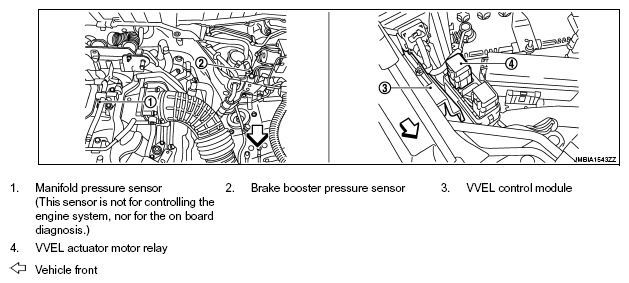

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 25)

G05978683

Courtesy of NISSAN MOTOR CO., U.S.A.

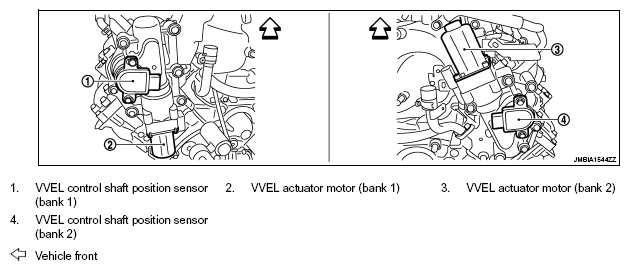

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 25)

G05978684

Courtesy of NISSAN MOTOR CO., U.S.A.

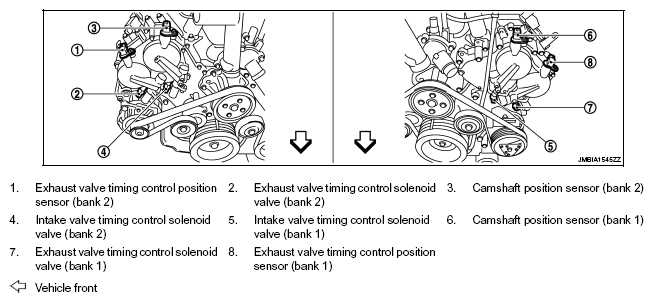

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 25)

G05978685

Courtesy of NISSAN MOTOR CO., U.S.A.

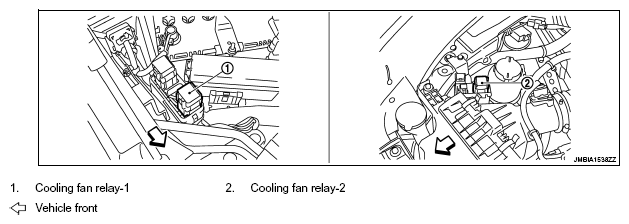

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 25)

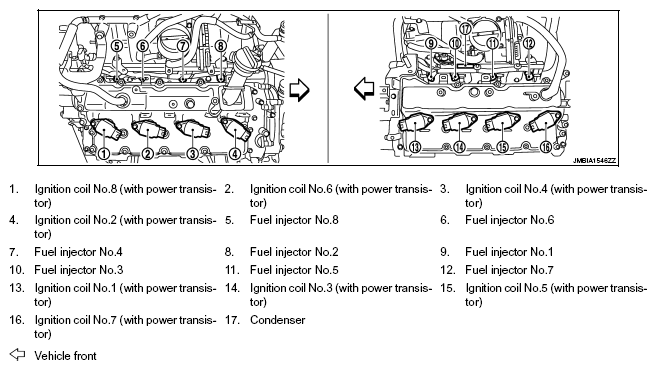

G05978686

Courtesy of NISSAN MOTOR CO., U.S.A.

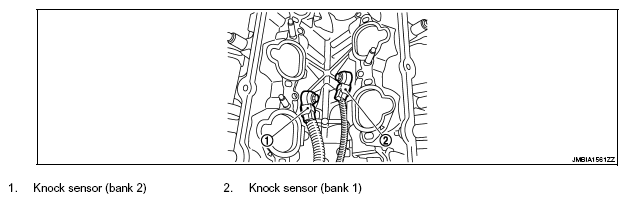

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 25)

G05978687

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 25)

G05978688

Courtesy of NISSAN MOTOR CO., U.S.A.

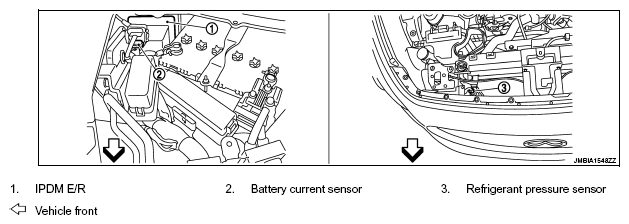

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 25)

G05978689

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 25)

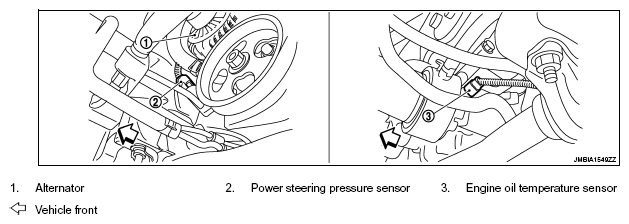

G05978690

Courtesy of NISSAN MOTOR CO., U.S.A.

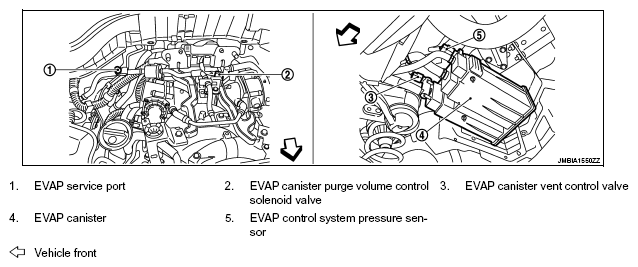

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 25)

G05978691

Courtesy of NISSAN MOTOR CO., U.S.A.

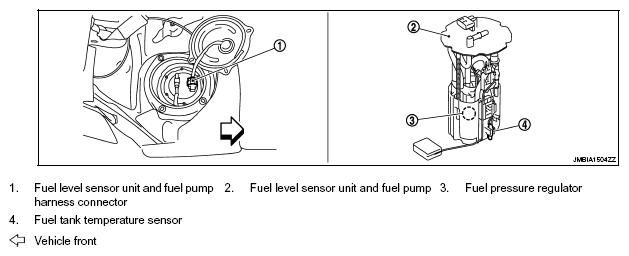

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 25)

G05978692

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 25)

G05978693

Courtesy of NISSAN MOTOR CO., U.S.A.

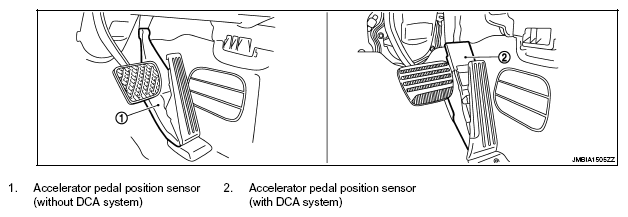

Fig 21: Identifying Engine Control System Component Parts Location (21 Of 25)

G05978694

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Identifying Engine Control System Component Parts Location (22 Of 25)

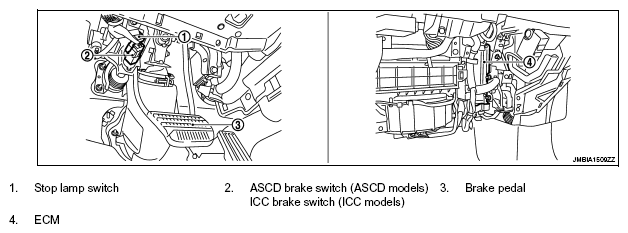

G05978695

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Identifying Engine Control System Component Parts Location (23 Of 25)

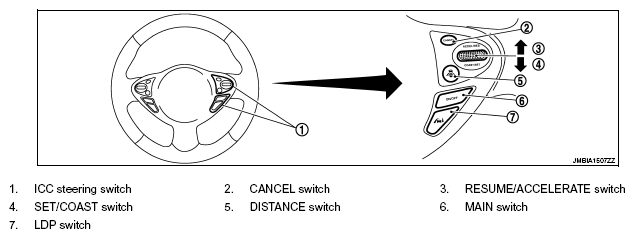

G05978696

Courtesy of NISSAN MOTOR CO., U.S.A.

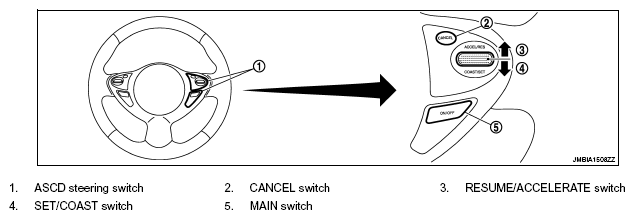

Fig 24: Identifying Engine Control System Component Parts Location (24 Of 25)

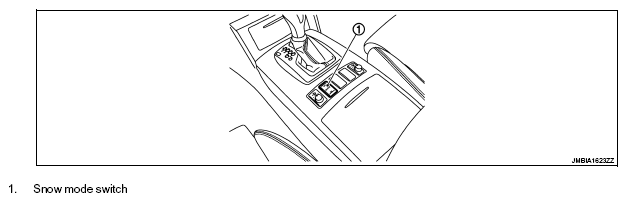

G05978697

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 25: Identifying Engine Control System Component Parts Location (25 Of 25)

G05978698

Courtesy of NISSAN MOTOR CO., U.S.A.
