Component Parts Location

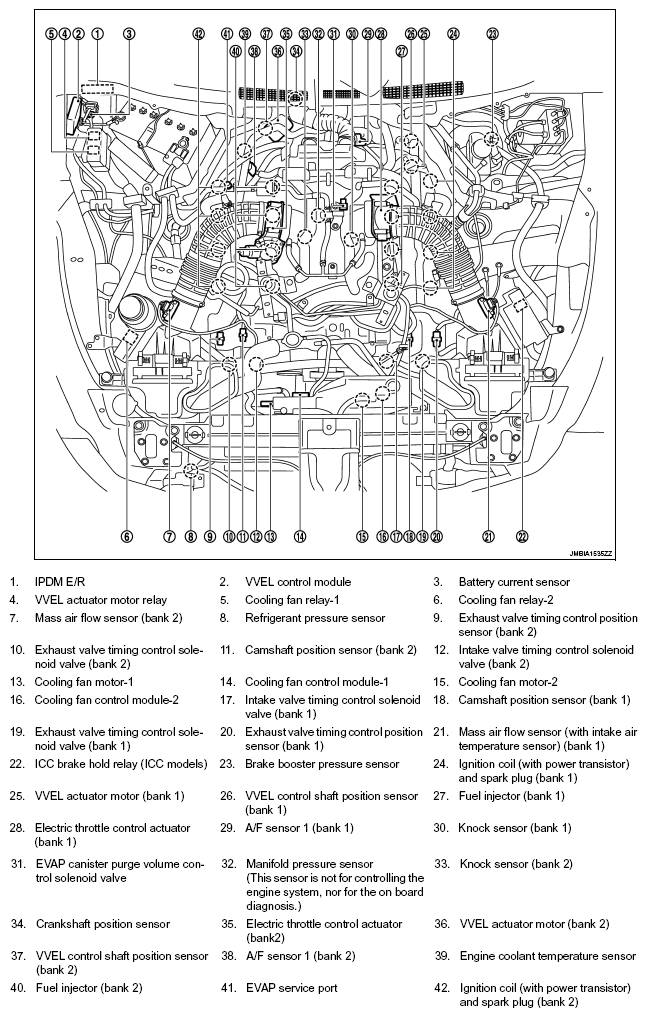

Fig 1: Identifying Exhaust Valve Timing Control Component Parts Location (1 Of 24)

G05978862

Courtesy of NISSAN MOTOR CO., U.S.A.

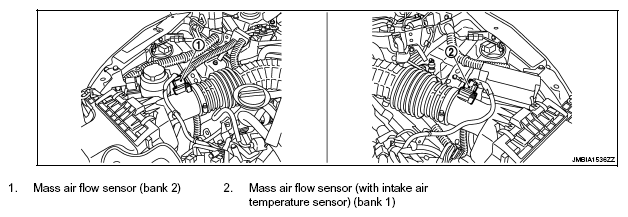

Fig 2: Identifying Exhaust Valve Timing Control Component Parts Location (2 Of 24)

G05978863

Courtesy of NISSAN MOTOR CO., U.S.A.

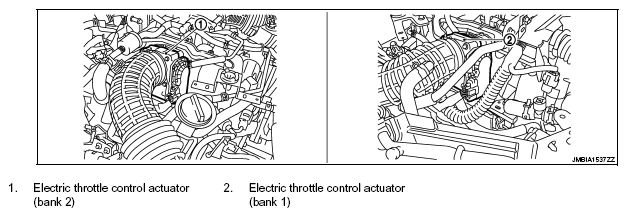

Fig 3: Identifying Exhaust Valve Timing Control Component Parts Location (3 Of 24)

G05978864

Courtesy of NISSAN MOTOR CO., U.S.A.

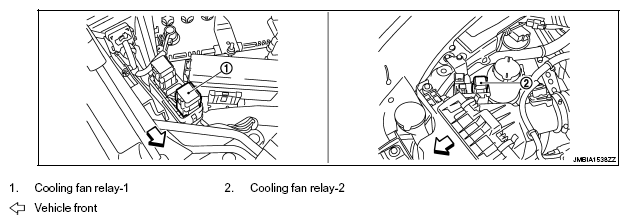

Fig 4: Identifying Exhaust Valve Timing Control Component Parts Location (4 Of 24)

G05978865

Courtesy of NISSAN MOTOR CO., U.S.A.

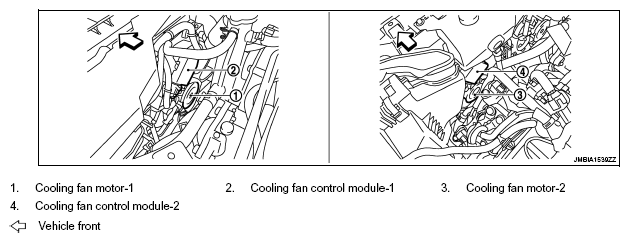

Fig 5: Identifying Exhaust Valve Timing Control Component Parts Location (5 Of 24)

G05978866

Courtesy of NISSAN MOTOR CO., U.S.A.

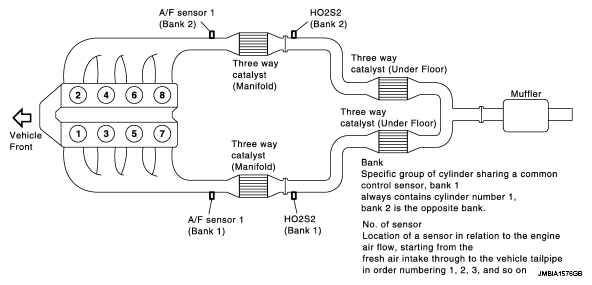

Fig 6: Identifying Exhaust Valve Timing Control Component Parts Location (6 Of 24)

G05978867

Courtesy of NISSAN MOTOR CO., U.S.A.

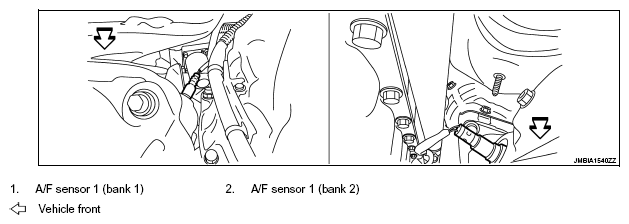

Fig 7: Identifying Exhaust Valve Timing Control Component Parts Location (7 Of 24)

G05978868

Courtesy of NISSAN MOTOR CO., U.S.A.

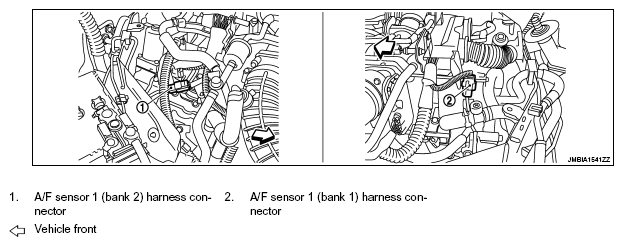

Fig 8: Identifying A/F Sensor 1 Harness Connector Location

G05978869

Courtesy of NISSAN MOTOR CO., U.S.A.

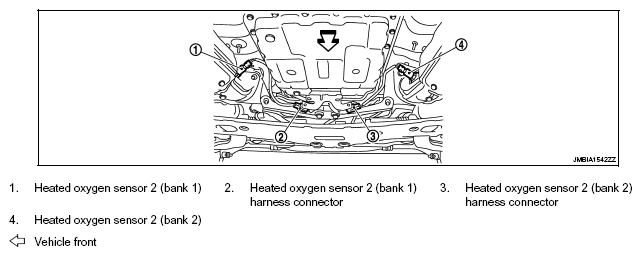

Fig 9: Identifying Exhaust Valve Timing Control Component Parts Location (8 Of 24)

G05978870

Courtesy of NISSAN MOTOR CO., U.S.A.

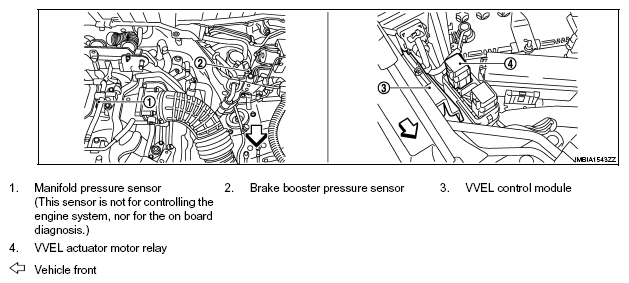

Fig 10: Identifying Exhaust Valve Timing Control Component Parts Location (9 Of 24)

G05978871

Courtesy of NISSAN MOTOR CO., U.S.A.

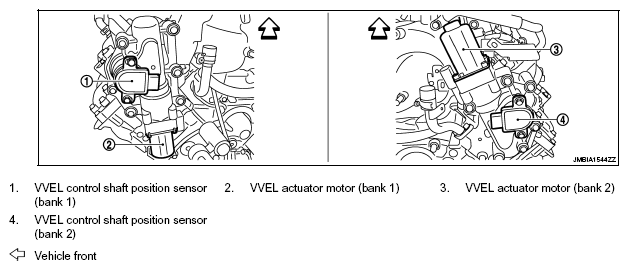

Fig 11: Identifying Exhaust Valve Timing Control Component Parts Location (10 Of 24)

G05978872

Courtesy of NISSAN MOTOR CO., U.S.A.

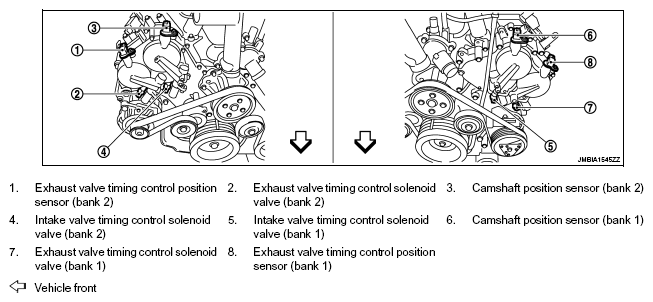

Fig 12: Identifying Exhaust Valve Timing Control Component Parts Location (11 Of 24)

G05978873

Courtesy of NISSAN MOTOR CO., U.S.A.

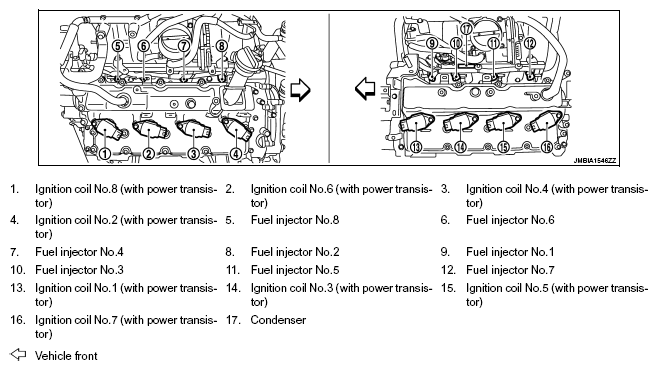

Fig 13: Identifying Exhaust Valve Timing Control Component Parts Location (12 Of 24)

G05978874

Courtesy of NISSAN MOTOR CO., U.S.A.

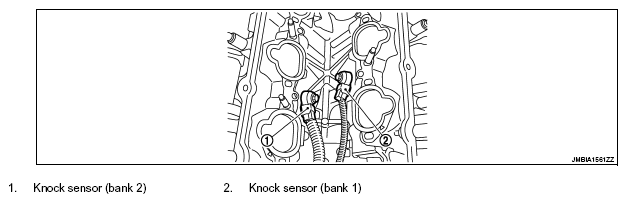

Fig 14: Identifying Exhaust Valve Timing Control Component Parts Location (13 Of 24)

G05978875

Courtesy of NISSAN MOTOR CO., U.S.A.

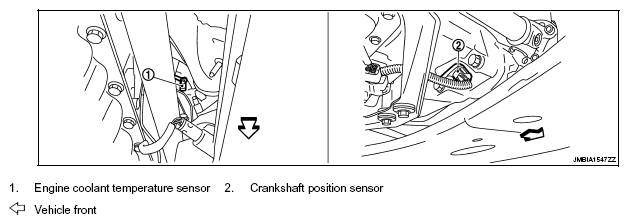

Fig 15: Identifying Exhaust Valve Timing Control Component Parts Location (14 Of 24)

G05978876

Courtesy of NISSAN MOTOR CO., U.S.A.

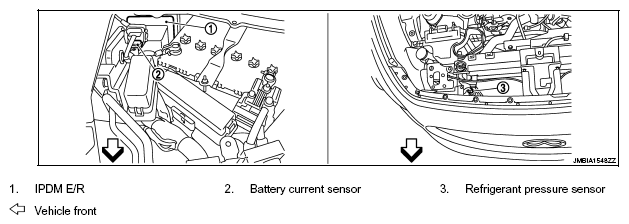

Fig 16: Identifying Exhaust Valve Timing Control Component Parts Location (15 Of 24)

G05978877

Courtesy of NISSAN MOTOR CO., U.S.A.

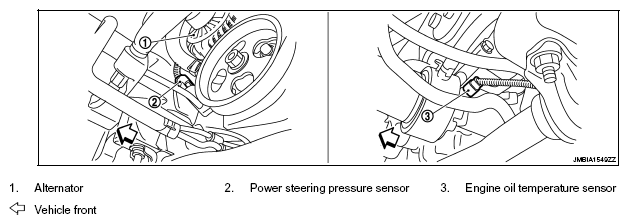

Fig 17: Identifying Exhaust Valve Timing Control Component Parts Location (16 Of 24)

G05978878

Courtesy of NISSAN MOTOR CO., U.S.A.

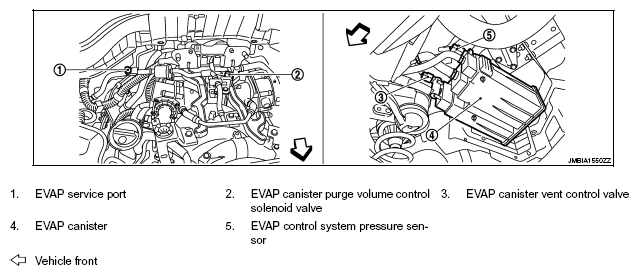

Fig 18: Identifying Exhaust Valve Timing Control Component Parts Location (17 Of 24)

G05978879

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Exhaust Valve Timing Control Component Parts Location (18 Of 24)

G05978880

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Exhaust Valve Timing Control Component Parts Location (19 Of 24)

G05978881

Courtesy of NISSAN MOTOR CO., U.S.A.

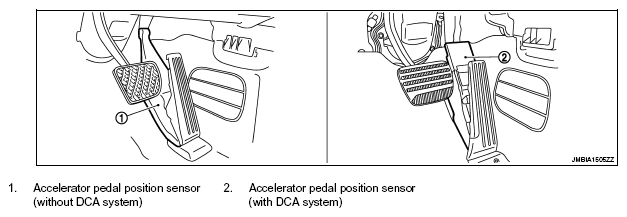

Fig 21: Identifying Exhaust Valve Timing Control Component Parts Location (20 Of 24)

G05978882

Courtesy of NISSAN MOTOR CO., U.S.A.

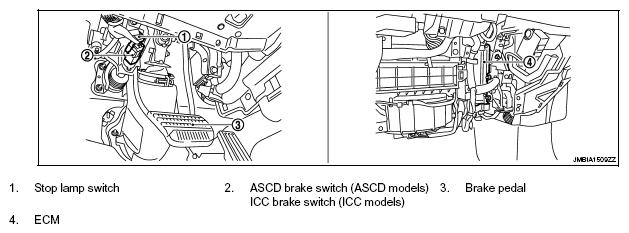

Fig 22: Identifying Exhaust Valve Timing Control Component Parts Location (21 Of 24)

G05978883

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Identifying Exhaust Valve Timing Control Component Parts Location (22 Of 24)

G05978884

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 24: Identifying Exhaust Valve Timing Control Component Parts Location (23 Of 24)

G05978885

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 25: Identifying Exhaust Valve Timing Control Component Parts Location (24 Of 24)

G05978886

Courtesy of NISSAN MOTOR CO., U.S.A.
