Component Parts Location

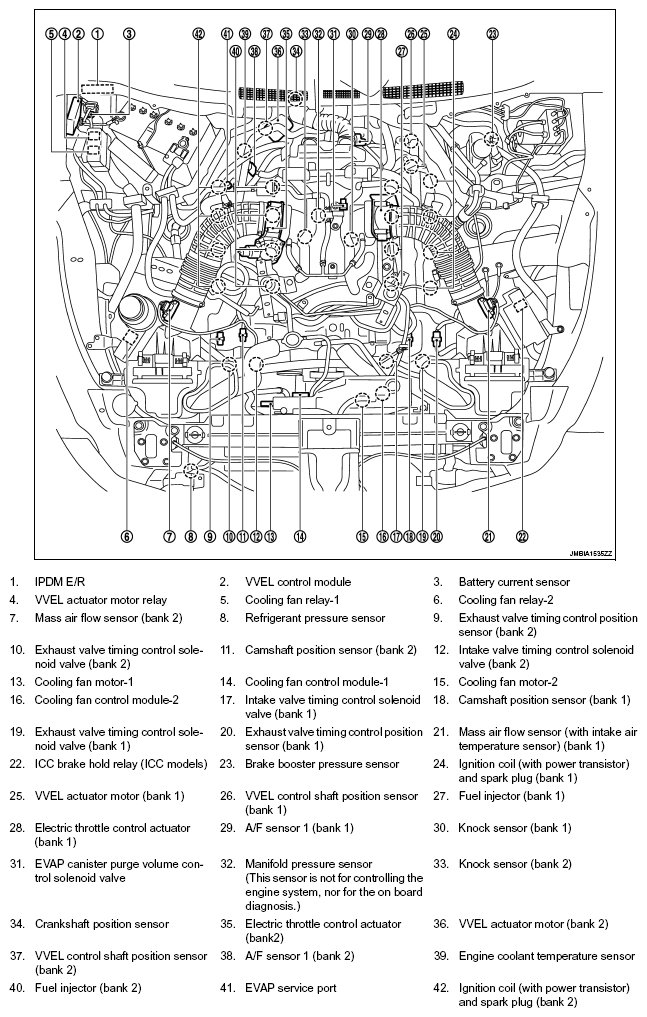

Fig 1: Identifying Fuel Pump Control Module Component Parts Location (1 Of 24)

G05978888

Courtesy of NISSAN MOTOR CO., U.S.A.

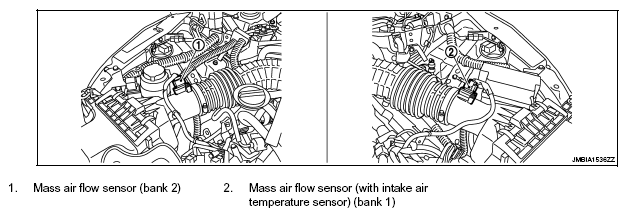

Fig 2: Identifying Fuel Pump Control Module Component Parts Location (2 Of 24)

G05978889

Courtesy of NISSAN MOTOR CO., U.S.A.

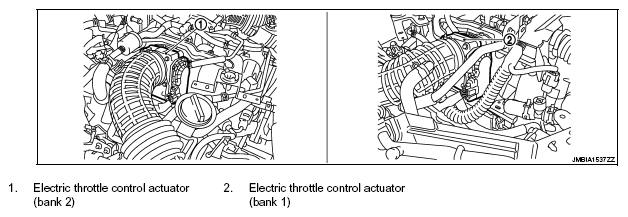

Fig 3: Identifying Fuel Pump Control Module Component Parts Location (3 Of 24)

G05978890

Courtesy of NISSAN MOTOR CO., U.S.A.

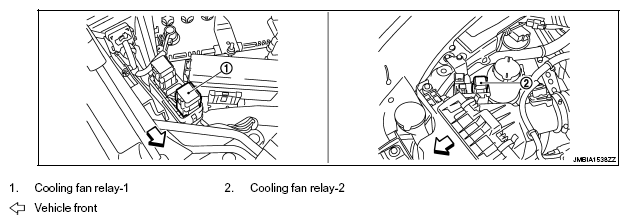

Fig 4: Identifying Fuel Pump Control Module Component Parts Location (4 Of 24)

G05978891

Courtesy of NISSAN MOTOR CO., U.S.A.

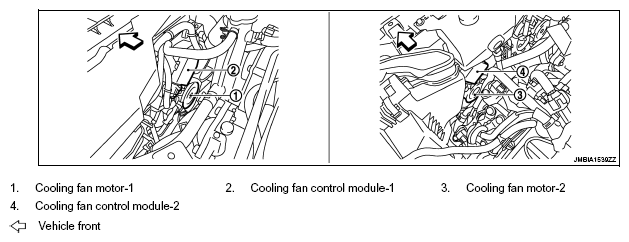

Fig 5: Identifying Fuel Pump Control Module Component Parts Location (5 Of 24)

G05978892

Courtesy of NISSAN MOTOR CO., U.S.A.

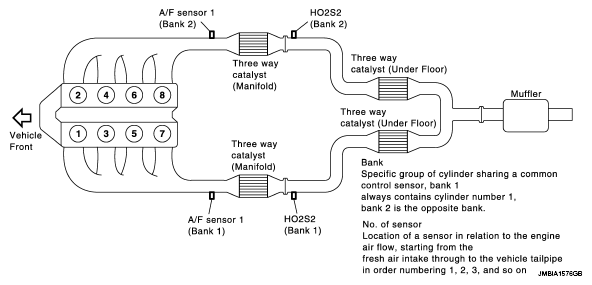

Fig 6: Identifying Fuel Pump Control Module Component Parts Location (6 Of 24)

G05978893

Courtesy of NISSAN MOTOR CO., U.S.A.

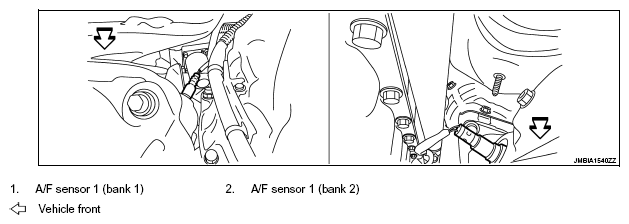

Fig 7: Identifying Fuel Pump Control Module Component Parts Location (7 Of 24)

G05978894

Courtesy of NISSAN MOTOR CO., U.S.A.

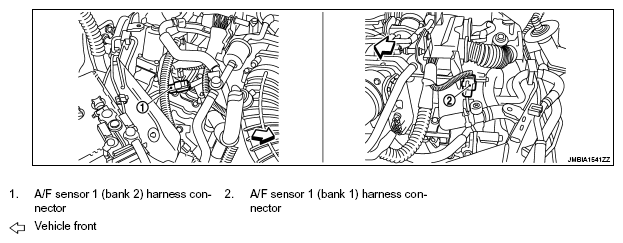

Fig 8: Identifying A/F Sensor 1 Harness Connector Location

G05978895

Courtesy of NISSAN MOTOR CO., U.S.A.

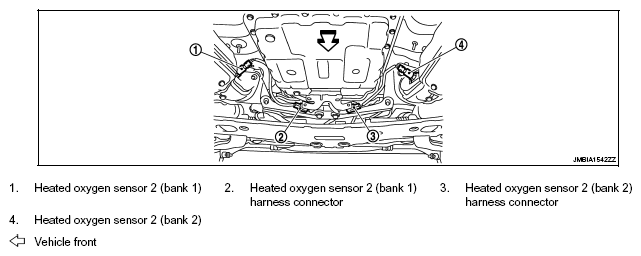

Fig 9: Identifying Fuel Pump Control Module Component Parts Location (8 Of 24)

G05978896

Courtesy of NISSAN MOTOR CO., U.S.A.

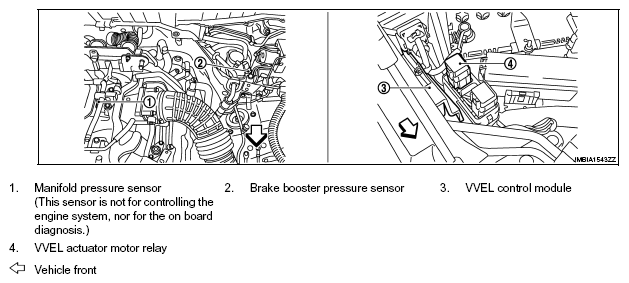

Fig 10: Identifying Fuel Pump Control Module Component Parts Location (9 Of 24)

G05978897

Courtesy of NISSAN MOTOR CO., U.S.A.

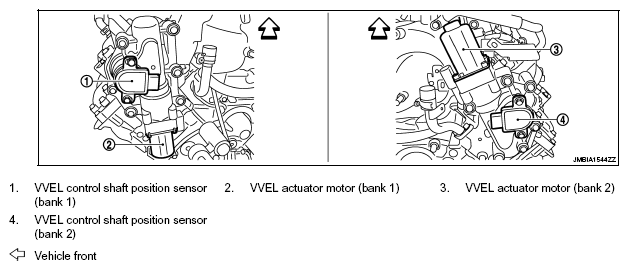

Fig 11: Identifying Fuel Pump Control Module Component Parts Location (10 Of 24)

G05978898

Courtesy of NISSAN MOTOR CO., U.S.A.

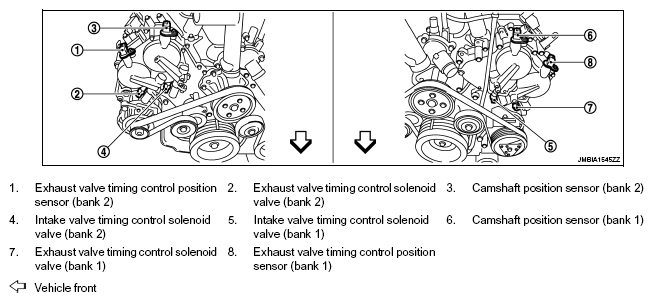

Fig 12: Identifying Fuel Pump Control Module Component Parts Location (11 Of 24)

G05978899

Courtesy of NISSAN MOTOR CO., U.S.A.

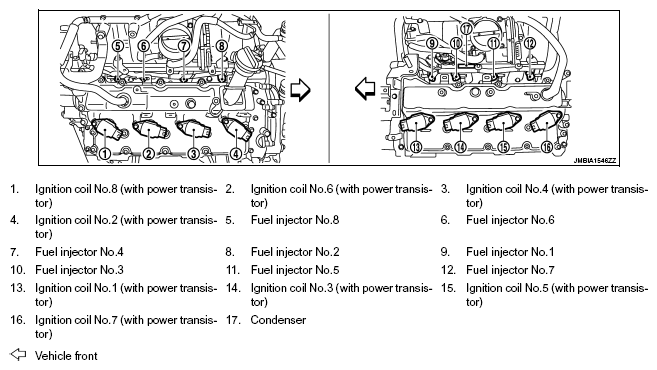

Fig 13: Identifying Fuel Pump Control Module Component Parts Location (12 Of 24)

G05978900

Courtesy of NISSAN MOTOR CO., U.S.A.

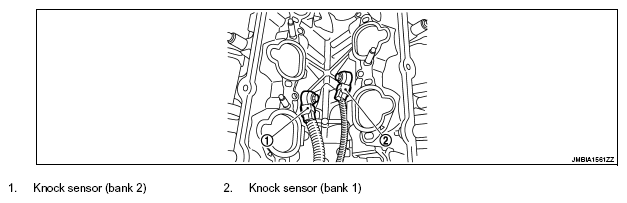

Fig 14: Identifying Fuel Pump Control Module Component Parts Location (13 Of 24)

G05978901

Courtesy of NISSAN MOTOR CO., U.S.A.

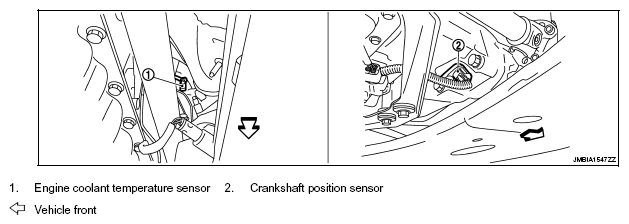

Fig 15: Identifying Fuel Pump Control Module Component Parts Location (14 Of 24)

G05978902

Courtesy of NISSAN MOTOR CO., U.S.A.

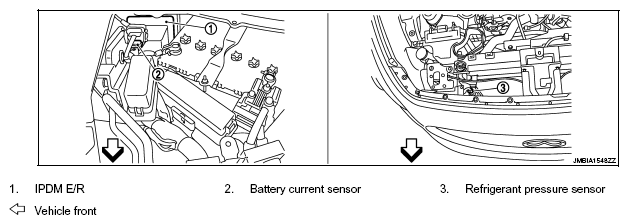

Fig 16: Identifying Fuel Pump Control Module Component Parts Location (15 Of 24)

G05978903

Courtesy of NISSAN MOTOR CO., U.S.A.

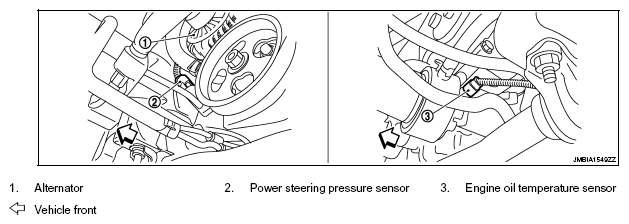

Fig 17: Identifying Fuel Pump Control Module Component Parts Location (16 Of 24)

G05978904

Courtesy of NISSAN MOTOR CO., U.S.A.

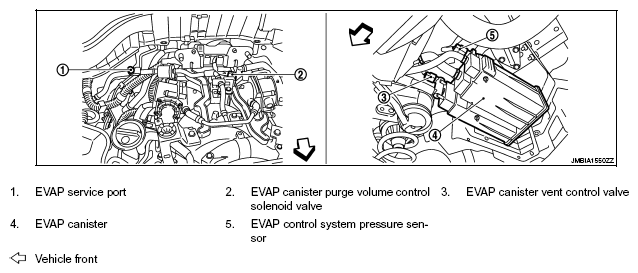

Fig 18: Identifying Fuel Pump Control Module Component Parts Location (17 Of 24)

G05978905

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Fuel Pump Control Module Component Parts Location (18 Of 24)

G05978906

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Fuel Pump Control Module Component Parts Location (19 Of 24)

G05978907

Courtesy of NISSAN MOTOR CO., U.S.A.

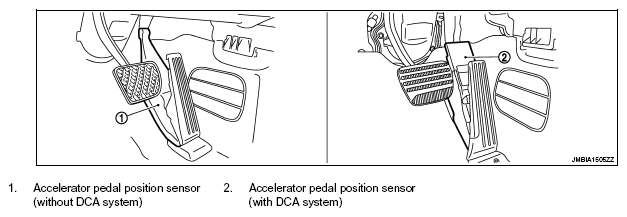

Fig 21: Identifying Fuel Pump Control Module Component Parts Location (20 Of 24)

G05978908

Courtesy of NISSAN MOTOR CO., U.S.A.

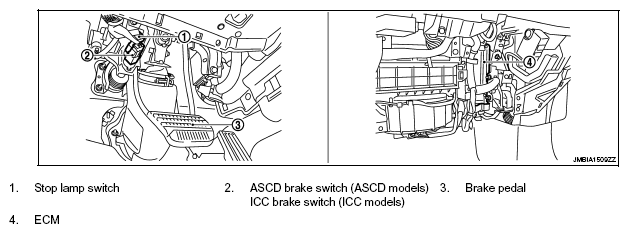

Fig 22: Identifying Fuel Pump Control Module Component Parts Location (21 Of 24)

G05978909

Courtesy of NISSAN MOTOR CO., U.S.A.

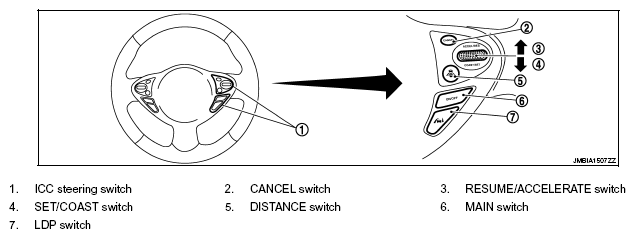

Fig 23: Identifying Fuel Pump Control Module Component Parts Location (22 Of 24)

G05978910

Courtesy of NISSAN MOTOR CO., U.S.A.

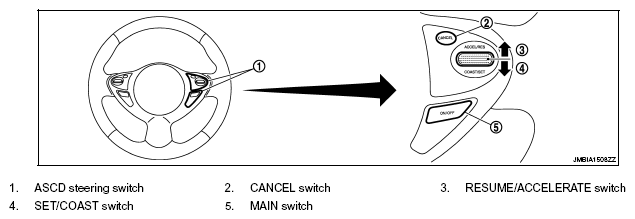

Fig 24: Identifying Fuel Pump Control Module Component Parts Location (23 Of 24)

G05978911

Courtesy of NISSAN MOTOR CO., U.S.A.

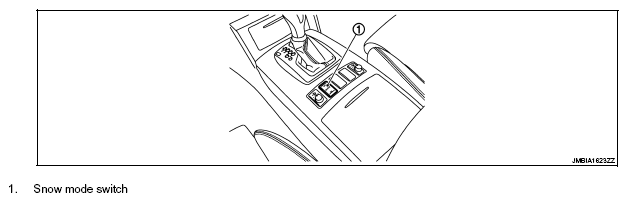

Fig 25: Identifying Fuel Pump Control Module Component Parts Location (24 Of 24)

G05978912

Courtesy of NISSAN MOTOR CO., U.S.A.
