Component Parts Location

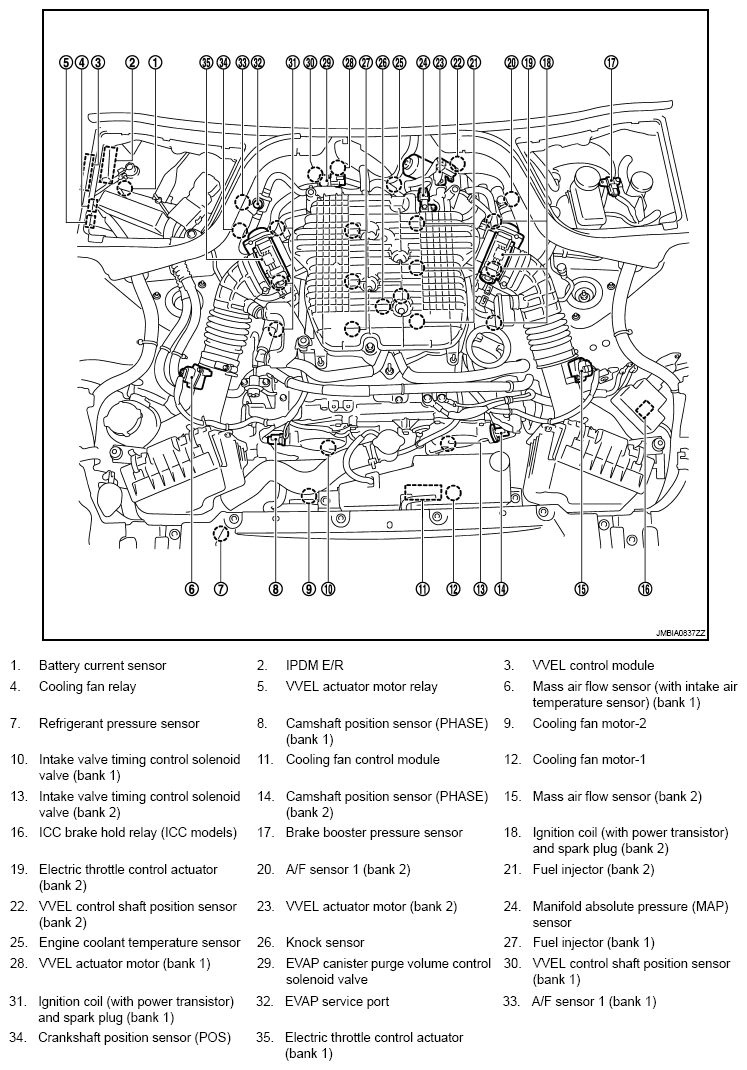

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 21)

G06614228

Courtesy of NISSAN NORTH AMERICA, INC.

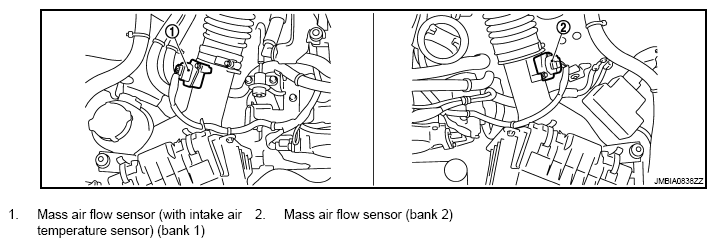

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 21)

G06614229

Courtesy of NISSAN NORTH AMERICA, INC.

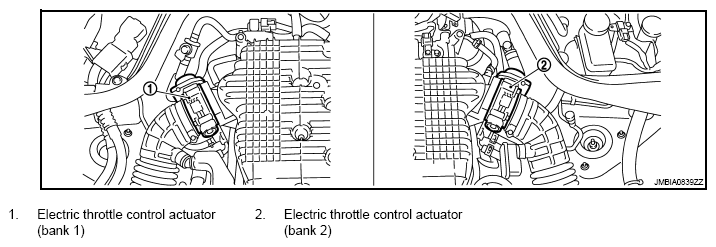

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 21)

G06614230

Courtesy of NISSAN NORTH AMERICA, INC.

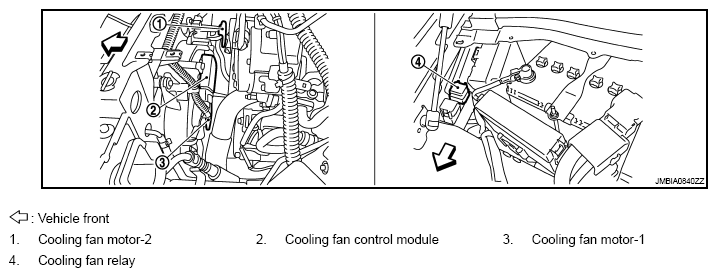

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 21)

G06614231

Courtesy of NISSAN NORTH AMERICA, INC.

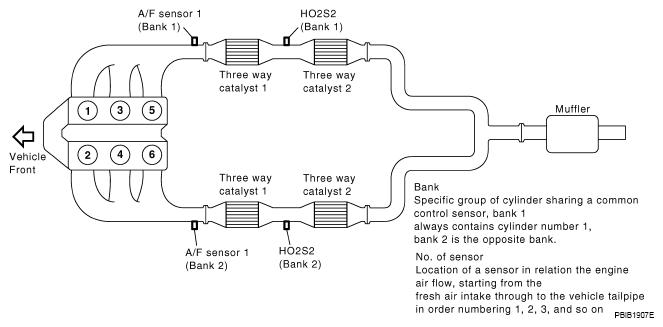

Fig 5: Identifying Automatic Speed Control Device Component Parts Location (5 Of 21)

G06614232

Courtesy of NISSAN NORTH AMERICA, INC.

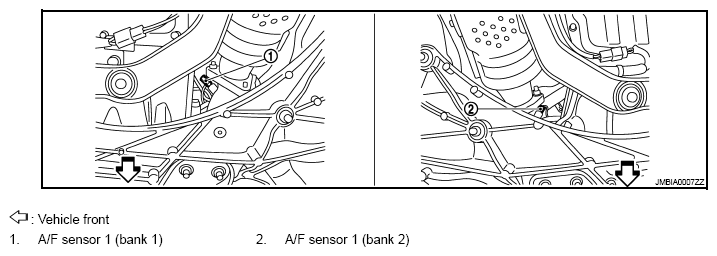

Fig 6: Identifying Automatic Speed Control Device Component Parts Location (6 Of 21)

G06614233

Courtesy of NISSAN NORTH AMERICA, INC.

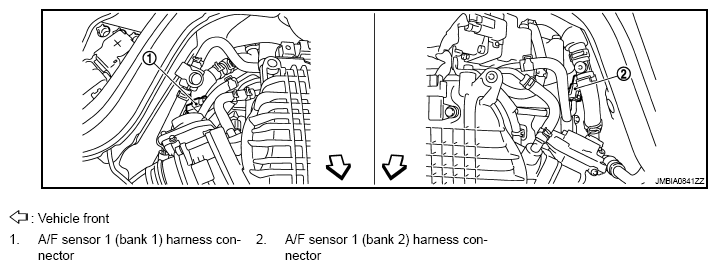

Fig 7: Identifying Automatic Speed Control Device Component Parts Location (7 Of 21)

G06614234

Courtesy of NISSAN NORTH AMERICA, INC.

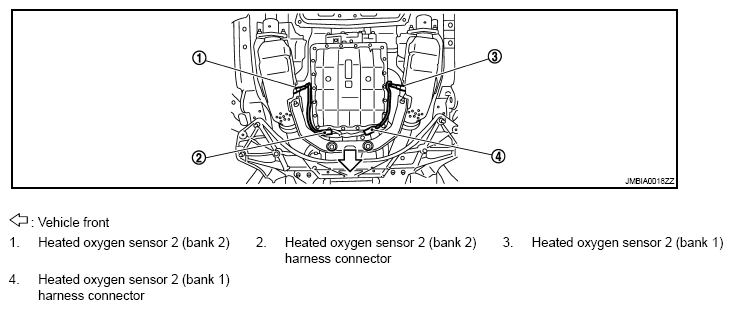

Fig 8: Identifying Automatic Speed Control Device Component Parts Location (8 Of 21)

G06614235

Courtesy of NISSAN NORTH AMERICA, INC.

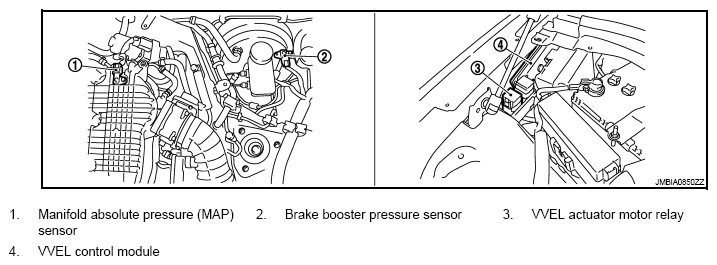

Fig 9: Identifying Automatic Speed Control Device Component Parts Location (9 Of 21)

G06614236

Courtesy of NISSAN NORTH AMERICA, INC.

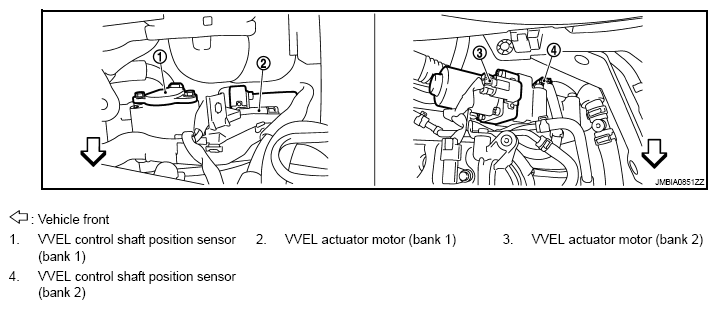

Fig 10: Identifying Automatic Speed Control Device Component Parts Location (10 Of 21)

G06614237

Courtesy of NISSAN NORTH AMERICA, INC.

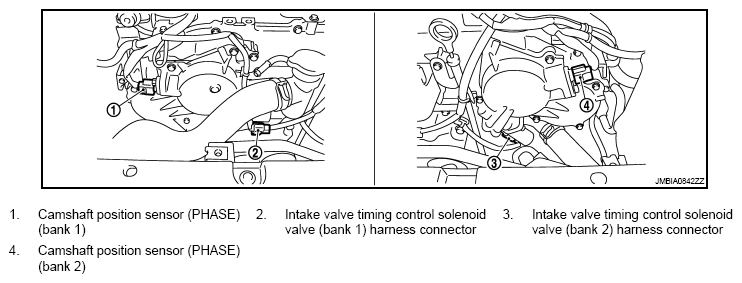

Fig 11: Identifying Automatic Speed Control Device Component Parts Location (11 Of 21)

G06614238

Courtesy of NISSAN NORTH AMERICA, INC.

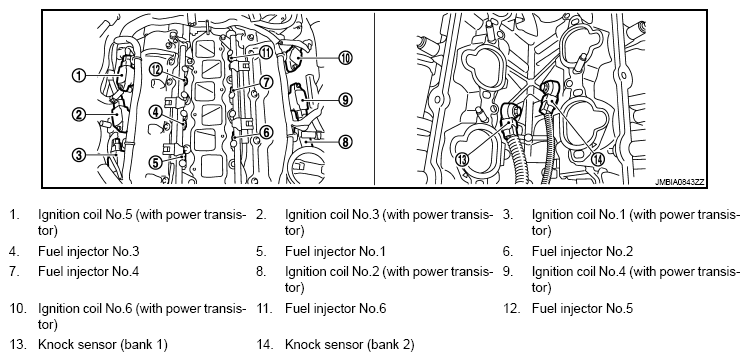

Fig 12: Identifying Automatic Speed Control Device Component Parts Location (12 Of 21)

G06614239

Courtesy of NISSAN NORTH AMERICA, INC.

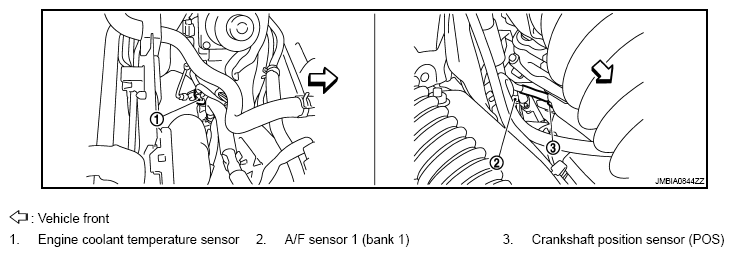

Fig 13: Identifying Automatic Speed Control Device Component Parts Location (13 Of 21)

G06614240

Courtesy of NISSAN NORTH AMERICA, INC.

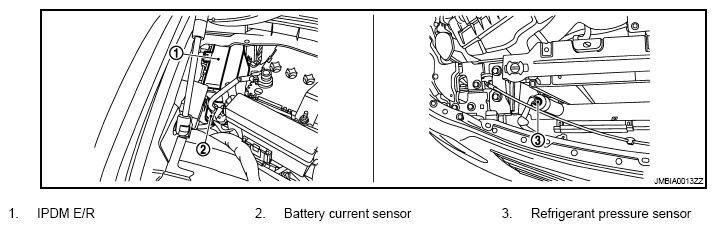

Fig 14: Identifying Automatic Speed Control Device Component Parts Location (14 Of 21)

G06614241

Courtesy of NISSAN NORTH AMERICA, INC.

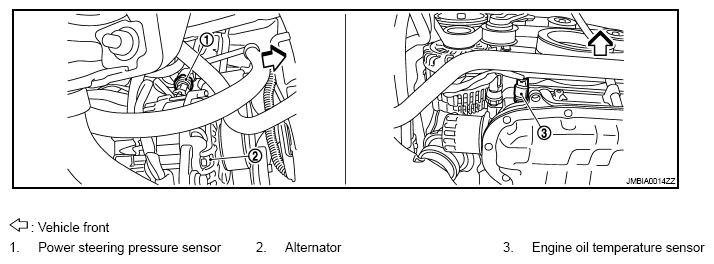

Fig 15: Identifying Automatic Speed Control Device Component Parts Location (15 Of 21)

G06614242

Courtesy of NISSAN NORTH AMERICA, INC.

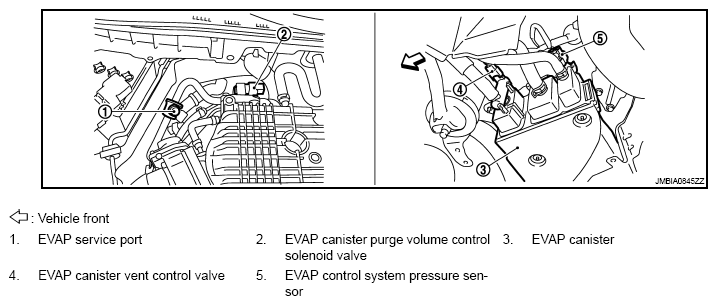

Fig 16: Identifying Automatic Speed Control Device Component Parts Location (16 Of 21)

G06614243

Courtesy of NISSAN NORTH AMERICA, INC.

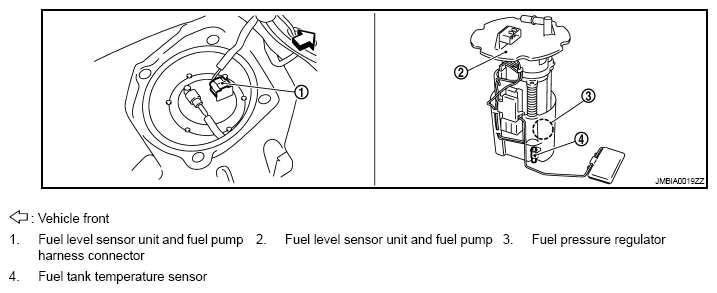

Fig 17: Identifying Automatic Speed Control Device Component Parts Location (17 Of 21)

G06614244

Courtesy of NISSAN NORTH AMERICA, INC.

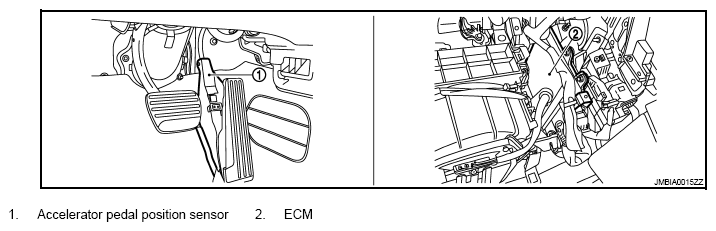

Fig 18: Identifying Automatic Speed Control Device Component Parts Location (18 Of 21)

G06614245

Courtesy of NISSAN NORTH AMERICA, INC.

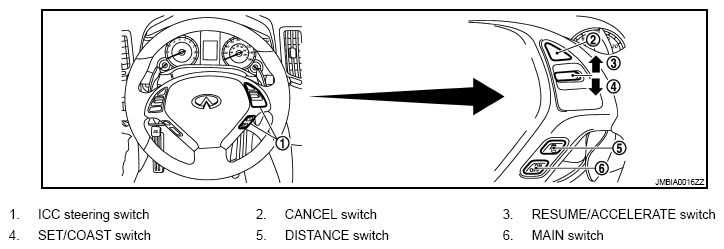

Fig 19: Identifying Automatic Speed Control Device Component Parts Location (19 Of 21)

G06614246

Courtesy of NISSAN NORTH AMERICA, INC.

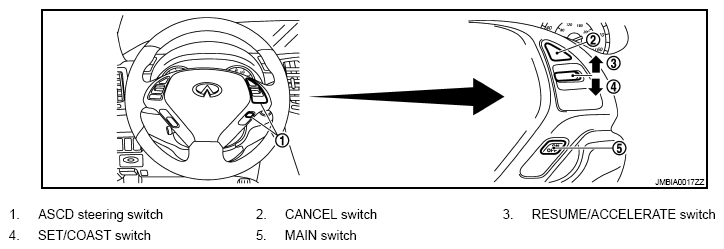

Fig 20: Identifying Automatic Speed Control Device Component Parts Location (20 Of 21)

G06614247

Courtesy of NISSAN NORTH AMERICA, INC.

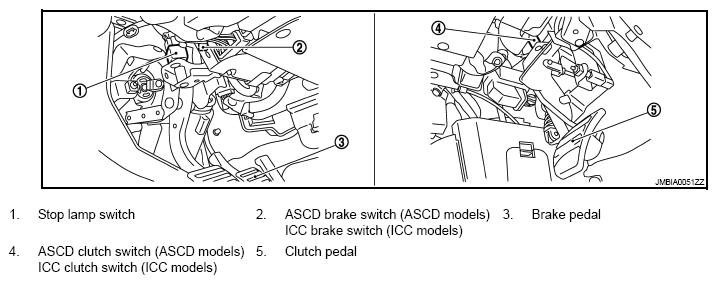

Fig 21: Identifying Automatic Speed Control Device Component Parts Location (21 Of 21)

G06614248

Courtesy of NISSAN NORTH AMERICA, INC.
