Component Parts Location

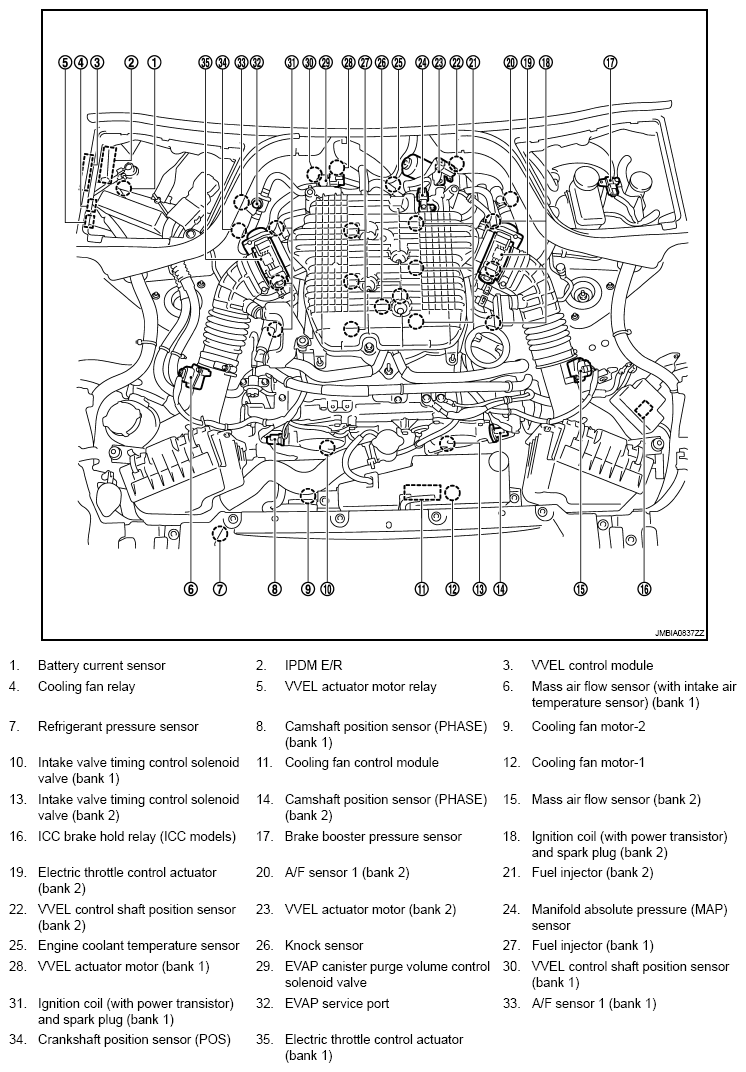

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 21)

G06614138

Courtesy of NISSAN NORTH AMERICA, INC.

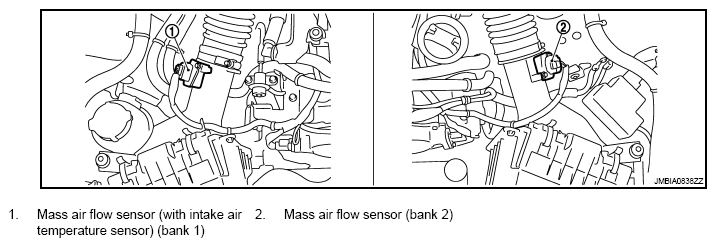

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 21)

G06614139

Courtesy of NISSAN NORTH AMERICA, INC.

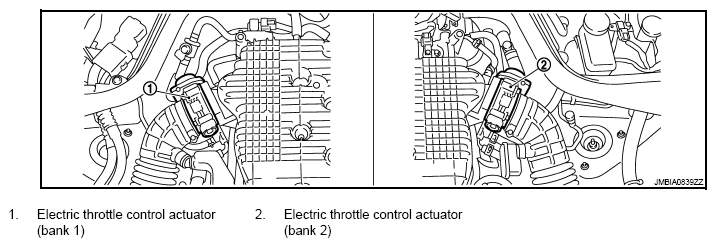

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 21)

G06614140

Courtesy of NISSAN NORTH AMERICA, INC.

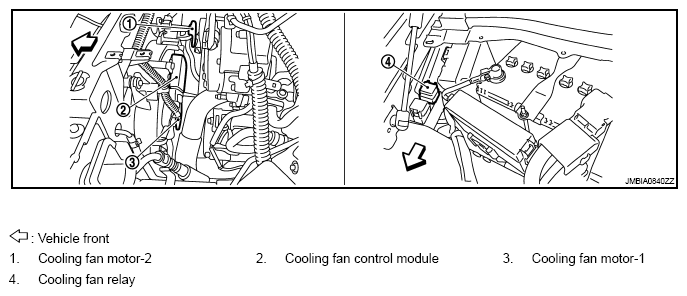

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 21)

G06614141

Courtesy of NISSAN NORTH AMERICA, INC.

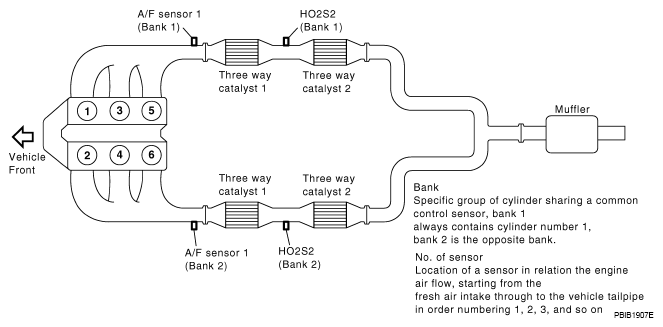

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 21)

G06614142

Courtesy of NISSAN NORTH AMERICA, INC.

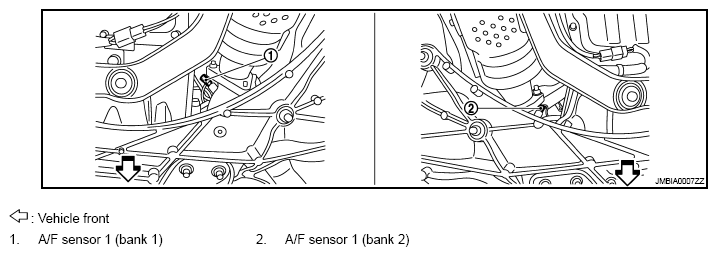

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 21)

G06614143

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 21)

G06614144

Courtesy of NISSAN NORTH AMERICA, INC.

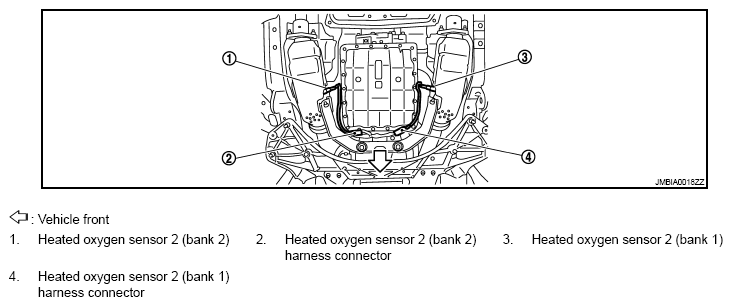

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 21)

G06614145

Courtesy of NISSAN NORTH AMERICA, INC.

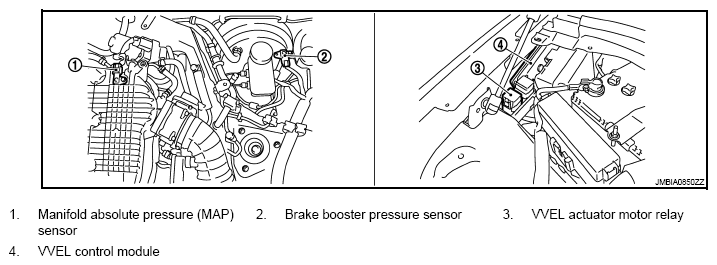

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 21)

G06614146

Courtesy of NISSAN NORTH AMERICA, INC.

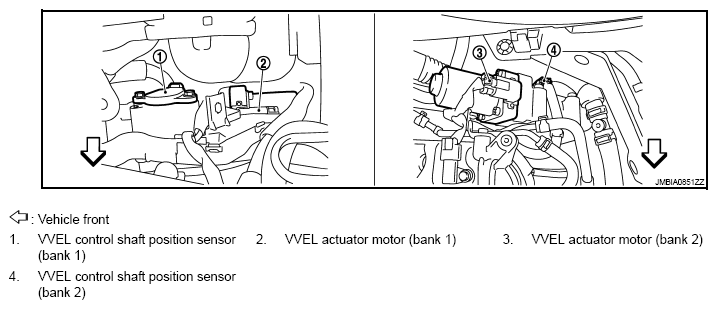

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 21)

G06614147

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 21)

G06614148

Courtesy of NISSAN NORTH AMERICA, INC.

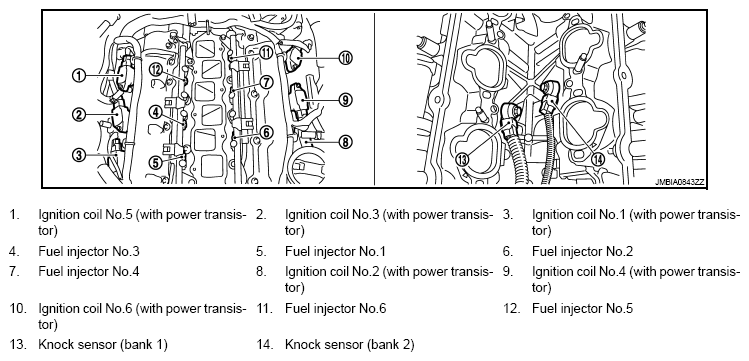

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 21)

G06614149

Courtesy of NISSAN NORTH AMERICA, INC.

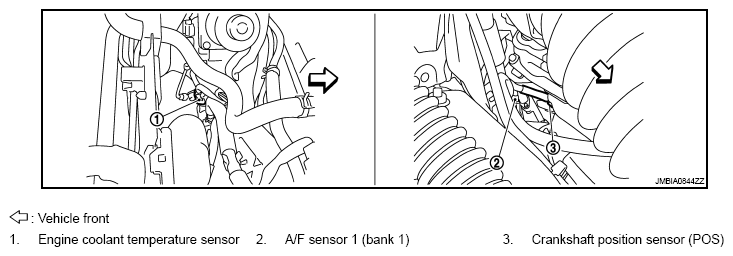

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 21)

G06614150

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 21)

G06614151

Courtesy of NISSAN NORTH AMERICA, INC.

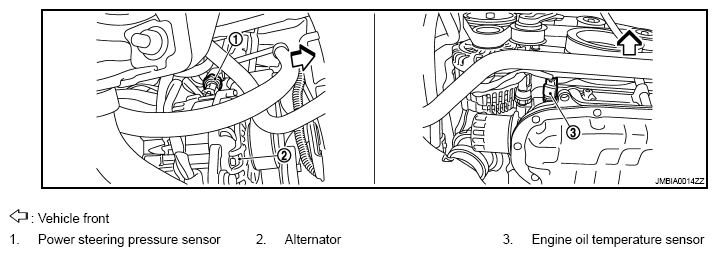

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 21)

G06614152

Courtesy of NISSAN NORTH AMERICA, INC.

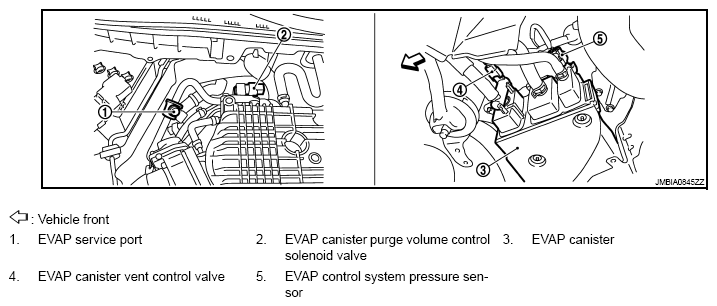

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 21)

G06614153

Courtesy of NISSAN NORTH AMERICA, INC.

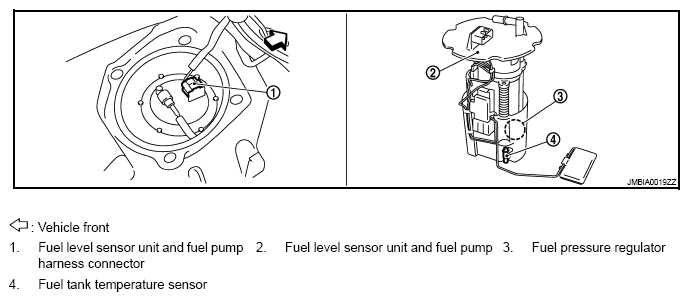

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 21)

G06614154

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 21)

G06614155

Courtesy of NISSAN NORTH AMERICA, INC.

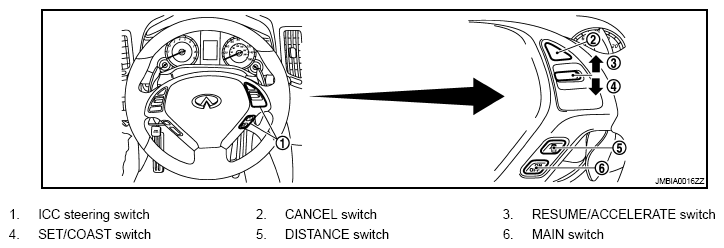

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 21)

G06614156

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 21)

G06614157

Courtesy of NISSAN NORTH AMERICA, INC.

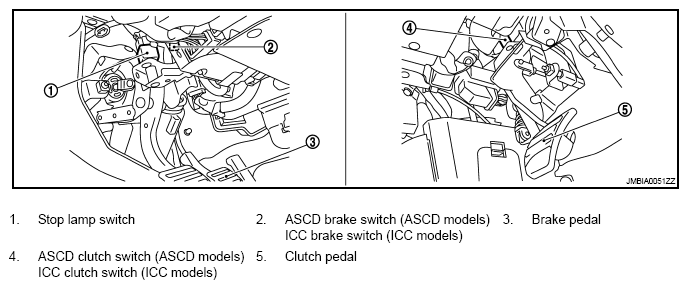

Fig 21: Identifying Engine Control System Component Parts Location (21 Of 21)

G06614158

Courtesy of NISSAN NORTH AMERICA, INC.
