Component Parts Location

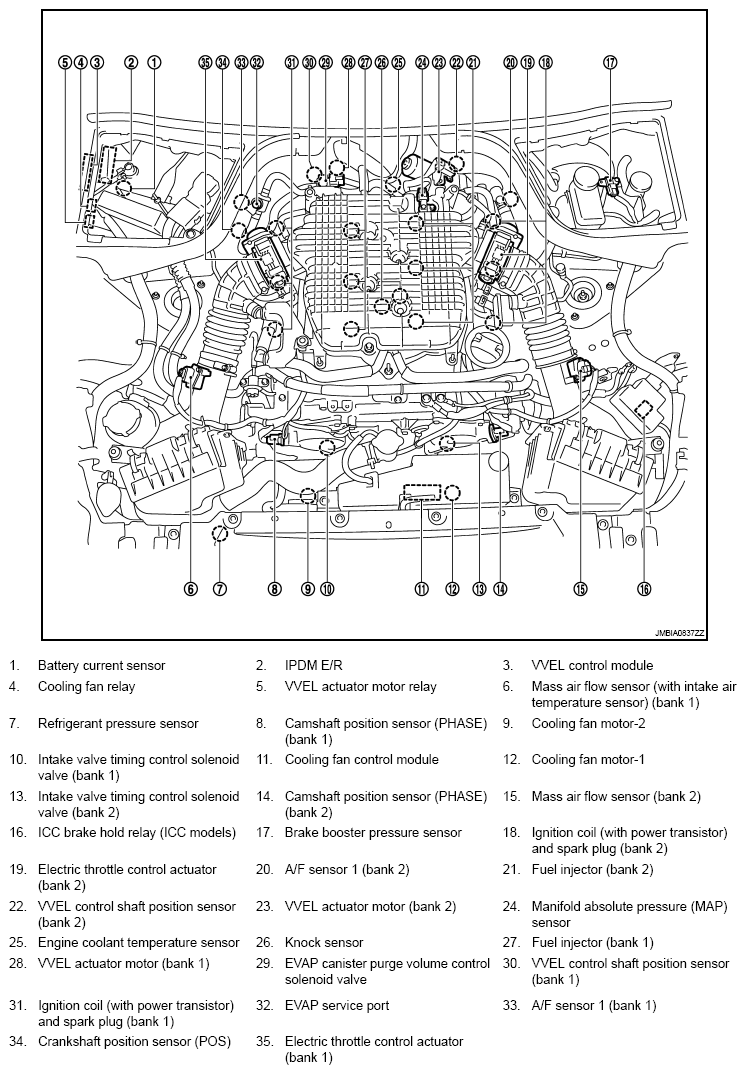

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 21)

G06614298

Courtesy of NISSAN NORTH AMERICA, INC.

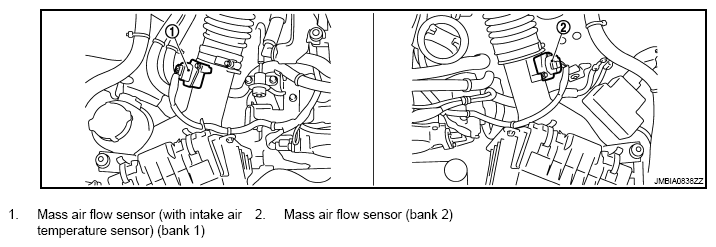

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 21)

G06614299

Courtesy of NISSAN NORTH AMERICA, INC.

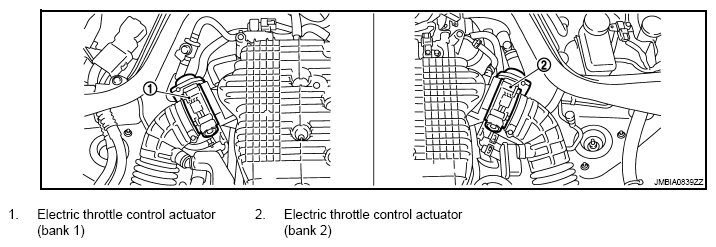

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 21)

G06614300

Courtesy of NISSAN NORTH AMERICA, INC.

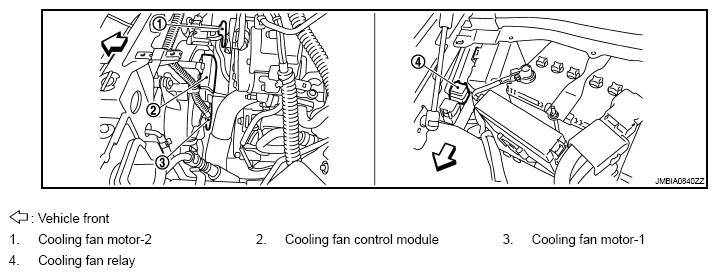

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 21)

G06614301

Courtesy of NISSAN NORTH AMERICA, INC.

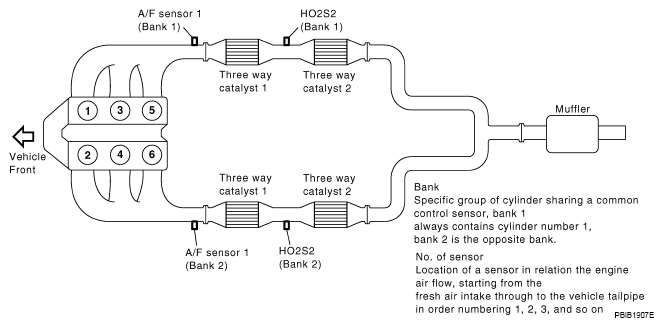

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 21)

G06614302

Courtesy of NISSAN NORTH AMERICA, INC.

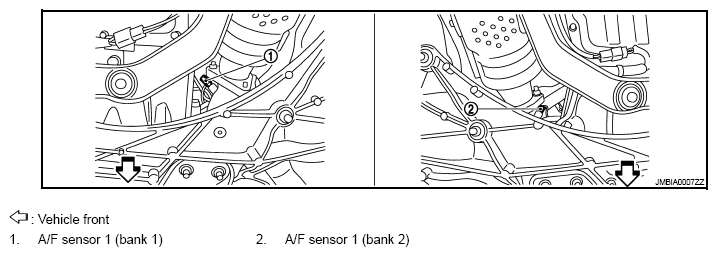

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 21)

G06614303

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 21)

G06614304

Courtesy of NISSAN NORTH AMERICA, INC.

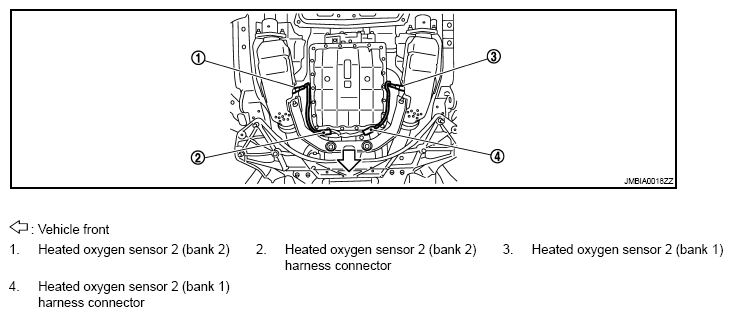

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 21)

G06614305

Courtesy of NISSAN NORTH AMERICA, INC.

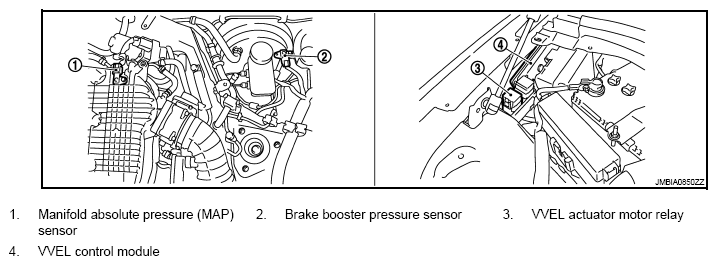

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 21)

G06614306

Courtesy of NISSAN NORTH AMERICA, INC.

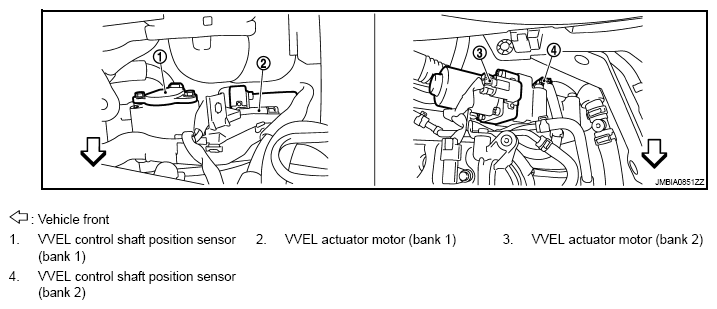

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 21)

G06614307

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 21)

G06614308

Courtesy of NISSAN NORTH AMERICA, INC.

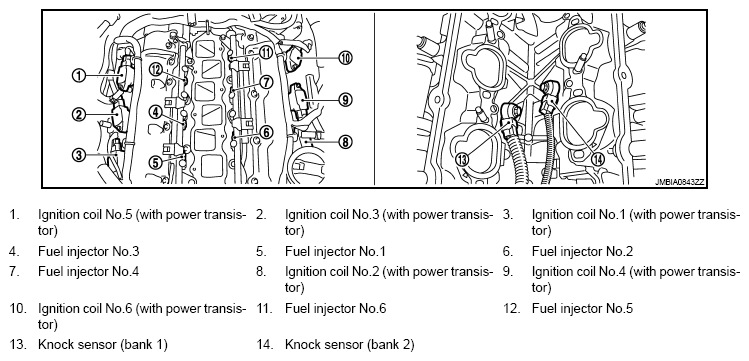

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 21)

G06614309

Courtesy of NISSAN NORTH AMERICA, INC.

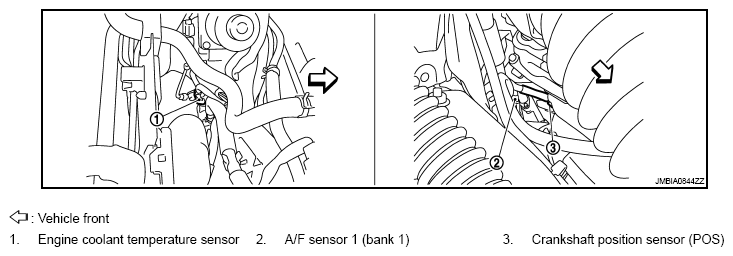

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 21)

G06614310

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 21)

G06614311

Courtesy of NISSAN NORTH AMERICA, INC.

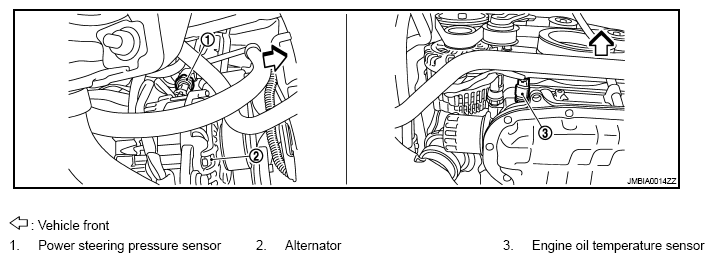

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 21)

G06614312

Courtesy of NISSAN NORTH AMERICA, INC.

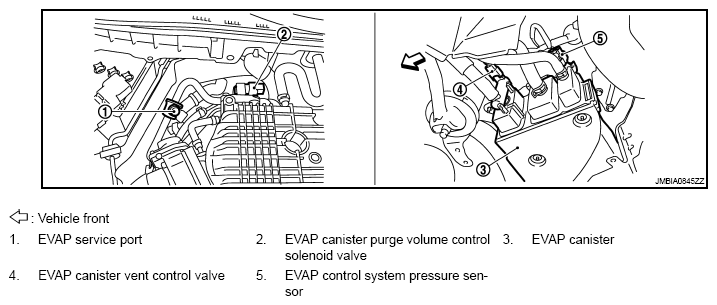

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 21)

G06614313

Courtesy of NISSAN NORTH AMERICA, INC.

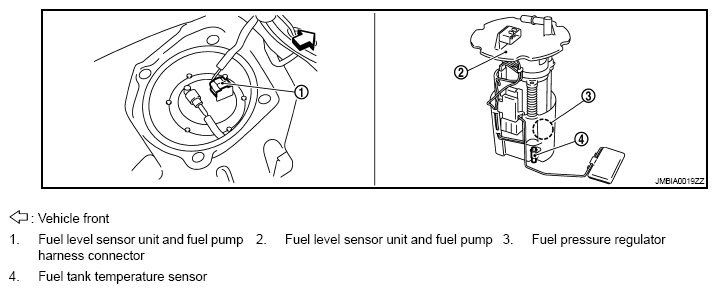

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 21)

G06614314

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 21)

G06614315

Courtesy of NISSAN NORTH AMERICA, INC.

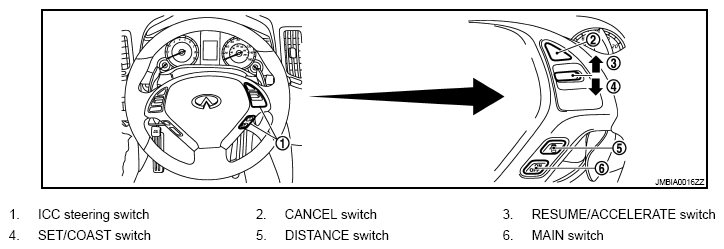

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 21)

G06614316

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 21)

G06614317

Courtesy of NISSAN NORTH AMERICA, INC.

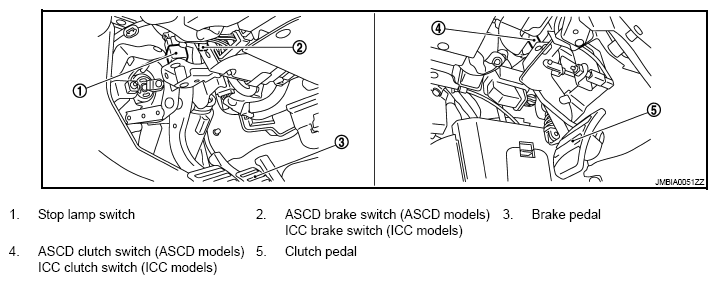

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 21)

G06614318

Courtesy of NISSAN NORTH AMERICA, INC.
