Component Parts Location

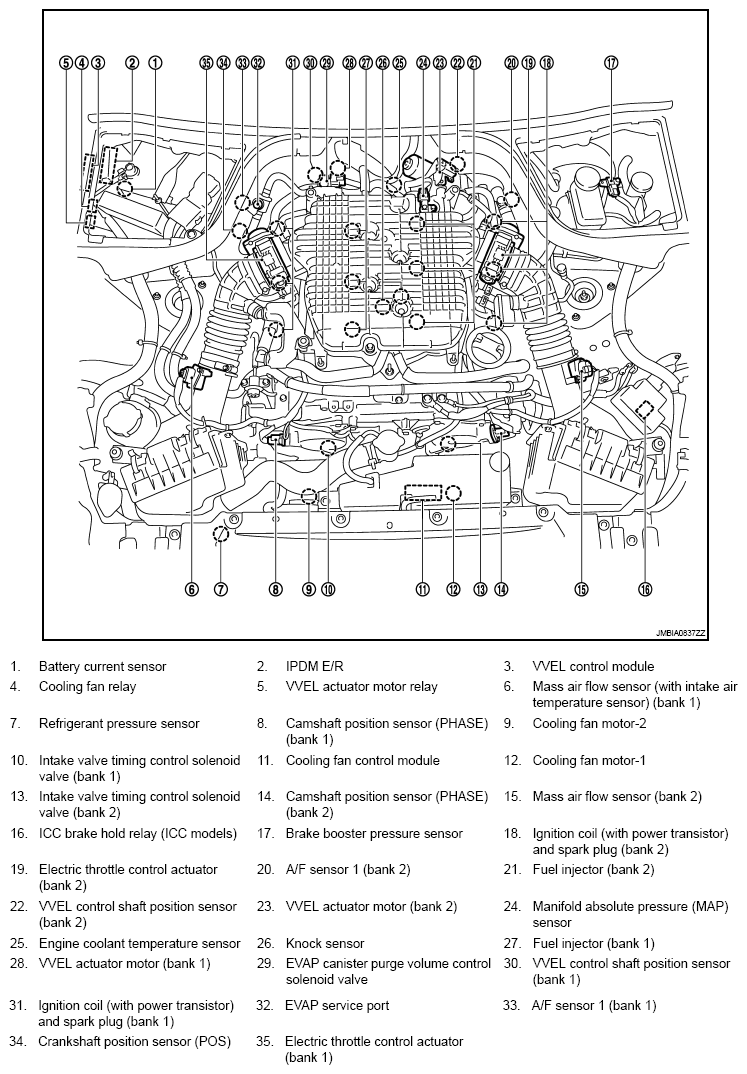

Fig 1: Identifying VVEL System Component Parts Location (1 Of 21)

G06614321

Courtesy of NISSAN NORTH AMERICA, INC.

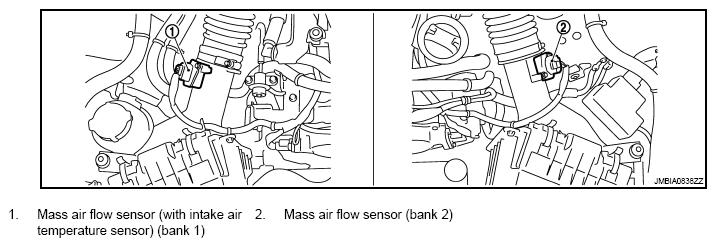

Fig 2: Identifying VVEL System Component Parts Location (2 Of 21)

G06614322

Courtesy of NISSAN NORTH AMERICA, INC.

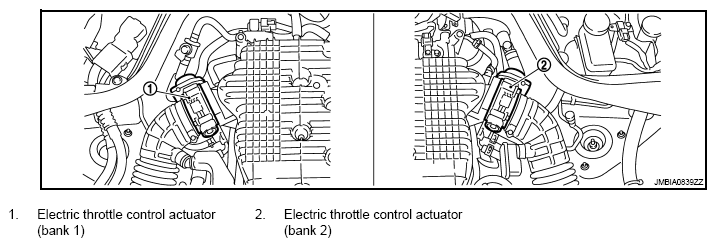

Fig 3: Identifying VVEL System Component Parts Location (3 Of 21)

G06614323

Courtesy of NISSAN NORTH AMERICA, INC.

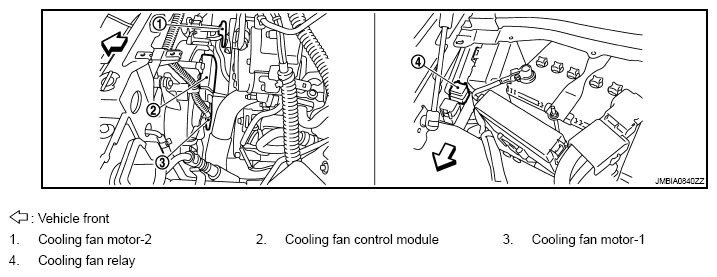

Fig 4: Identifying VVEL System Component Parts Location (4 Of 21)

G06614324

Courtesy of NISSAN NORTH AMERICA, INC.

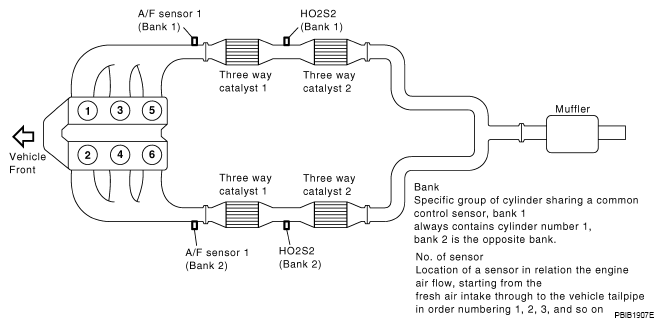

Fig 5: Identifying VVEL System Component Parts Location (5 Of 21)

G06614325

Courtesy of NISSAN NORTH AMERICA, INC.

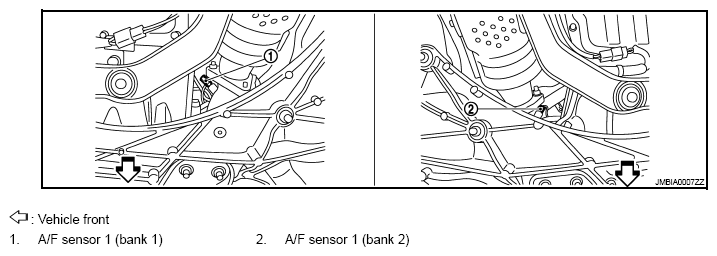

Fig 6: Identifying VVEL System Component Parts Location (6 Of 21)

G06614326

Courtesy of NISSAN NORTH AMERICA, INC.

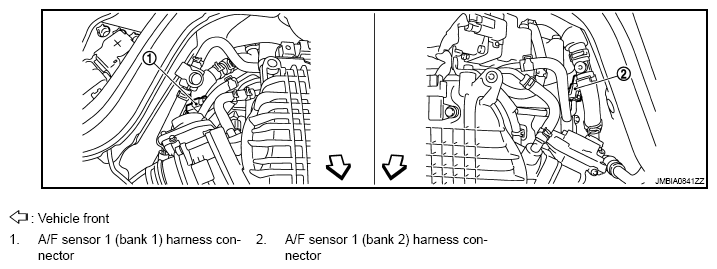

Fig 7: Identifying VVEL System Component Parts Location (7 Of 21)

G06614327

Courtesy of NISSAN NORTH AMERICA, INC.

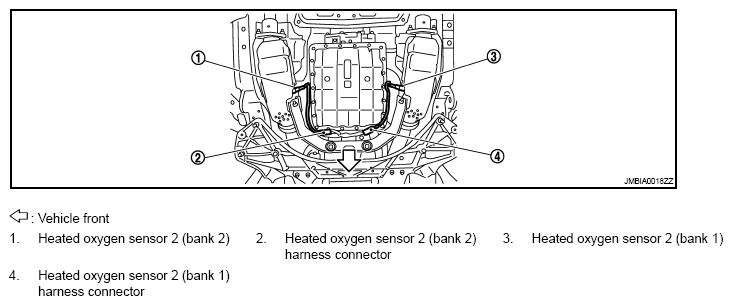

Fig 8: Identifying VVEL System Component Parts Location (8 Of 21)

G06614328

Courtesy of NISSAN NORTH AMERICA, INC.

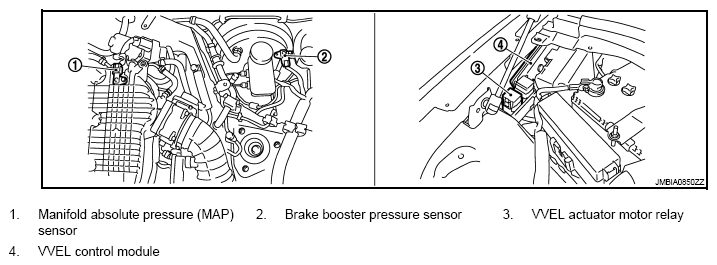

Fig 9: Identifying VVEL System Component Parts Location (9 Of 21)

G06614329

Courtesy of NISSAN NORTH AMERICA, INC.

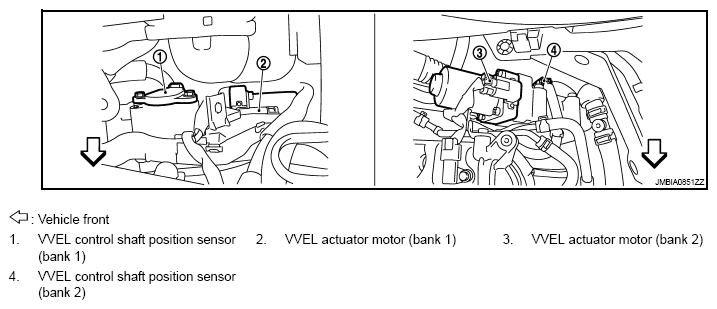

Fig 10: Identifying VVEL System Component Parts Location (10 Of 21)

G06614330

Courtesy of NISSAN NORTH AMERICA, INC.

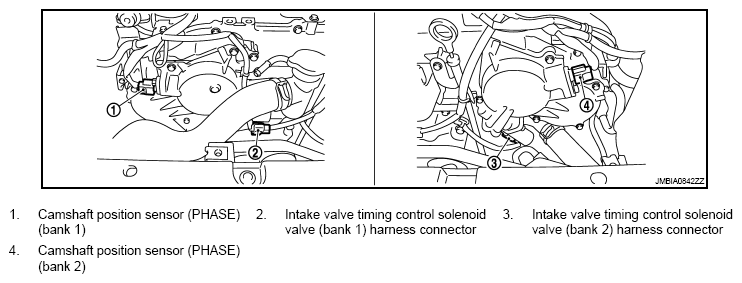

Fig 11: Identifying VVEL System Component Parts Location (11 Of 21)

G06614331

Courtesy of NISSAN NORTH AMERICA, INC.

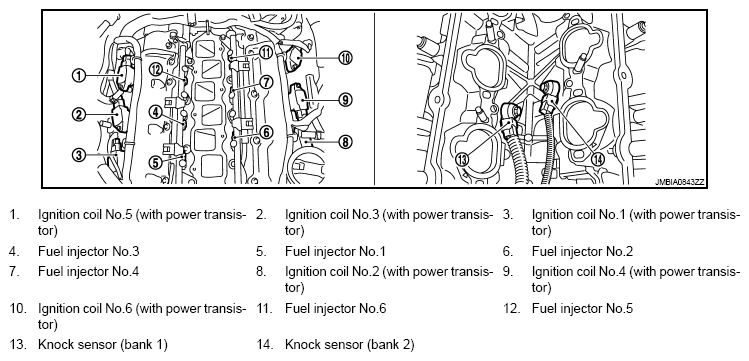

Fig 12: Identifying VVEL System Component Parts Location (12 Of 21)

G06614332

Courtesy of NISSAN NORTH AMERICA, INC.

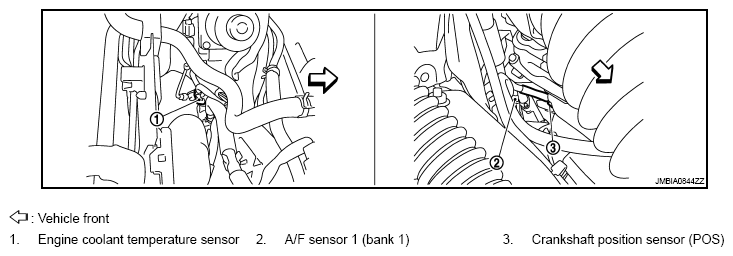

Fig 13: Identifying VVEL System Component Parts Location (13 Of 21)

G06614333

Courtesy of NISSAN NORTH AMERICA, INC.

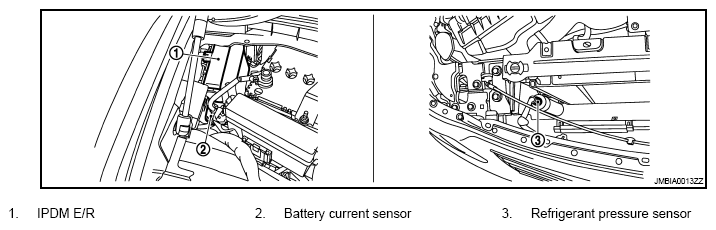

Fig 14: Identifying VVEL System Component Parts Location (14 Of 21)

G06614334

Courtesy of NISSAN NORTH AMERICA, INC.

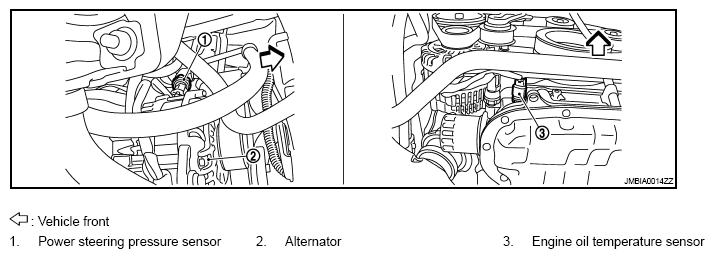

Fig 15: Identifying VVEL System Component Parts Location (15 Of 21)

G06614335

Courtesy of NISSAN NORTH AMERICA, INC.

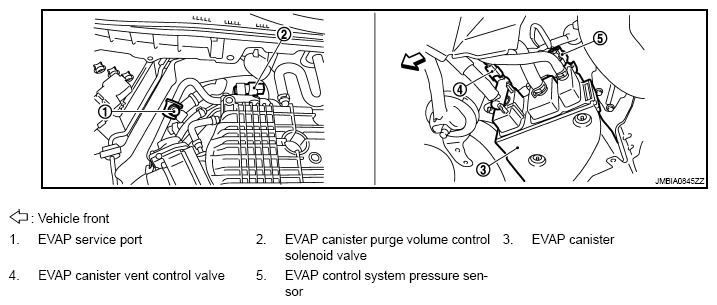

Fig 16: Identifying VVEL System Component Parts Location (16 Of 21)

G06614336

Courtesy of NISSAN NORTH AMERICA, INC.

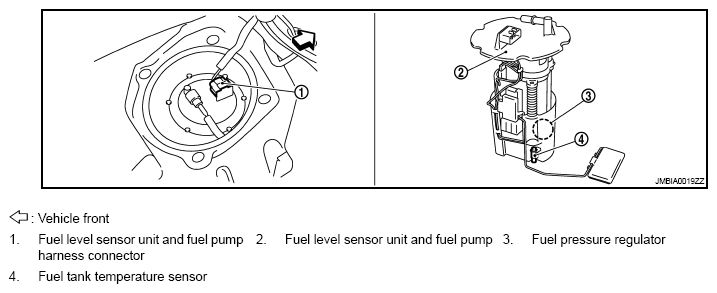

Fig 17: Identifying VVEL System Component Parts Location (17 Of 21)

G06614337

Courtesy of NISSAN NORTH AMERICA, INC.

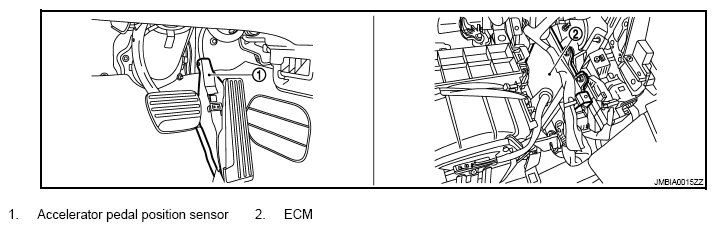

Fig 18: Identifying VVEL System Component Parts Location (18 Of 21)

G06614338

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying VVEL System Component Parts Location (19 Of 21)

G06614339

Courtesy of NISSAN NORTH AMERICA, INC.

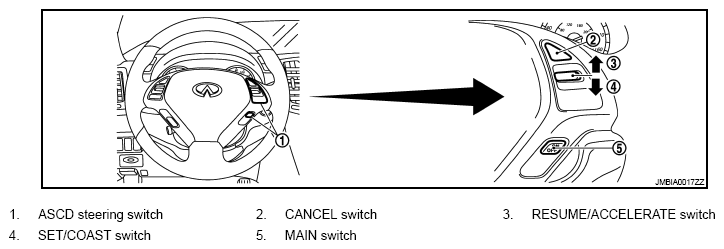

Fig 20: Identifying VVEL System Component Parts Location (20 Of 21)

G06614340

Courtesy of NISSAN NORTH AMERICA, INC.

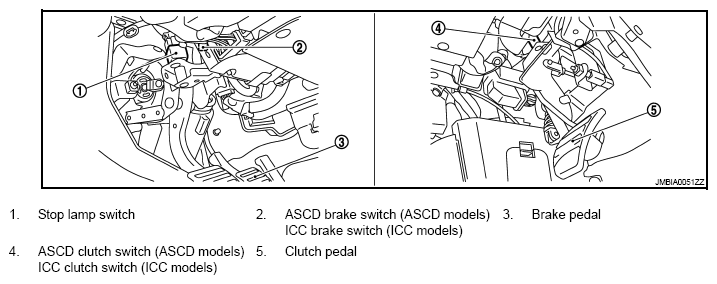

Fig 21: Identifying VVEL System Component Parts Location (21 Of 21)

G06614341

Courtesy of NISSAN NORTH AMERICA, INC.
