DTC P2127, P2128: App Sensor: Wiring Diagram

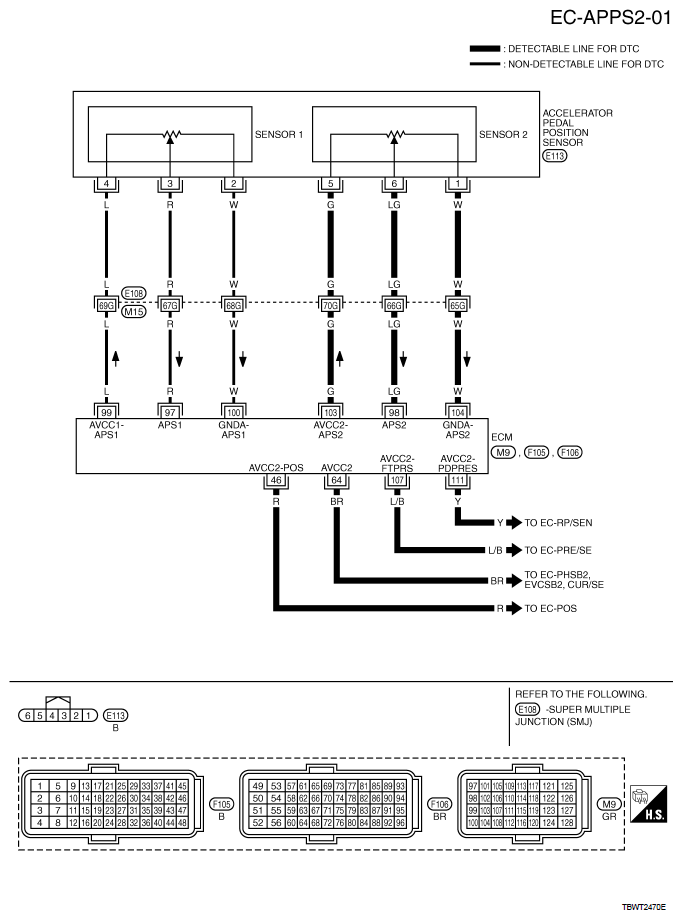

Fig 1: EC-APPS2-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
