Component Parts Location

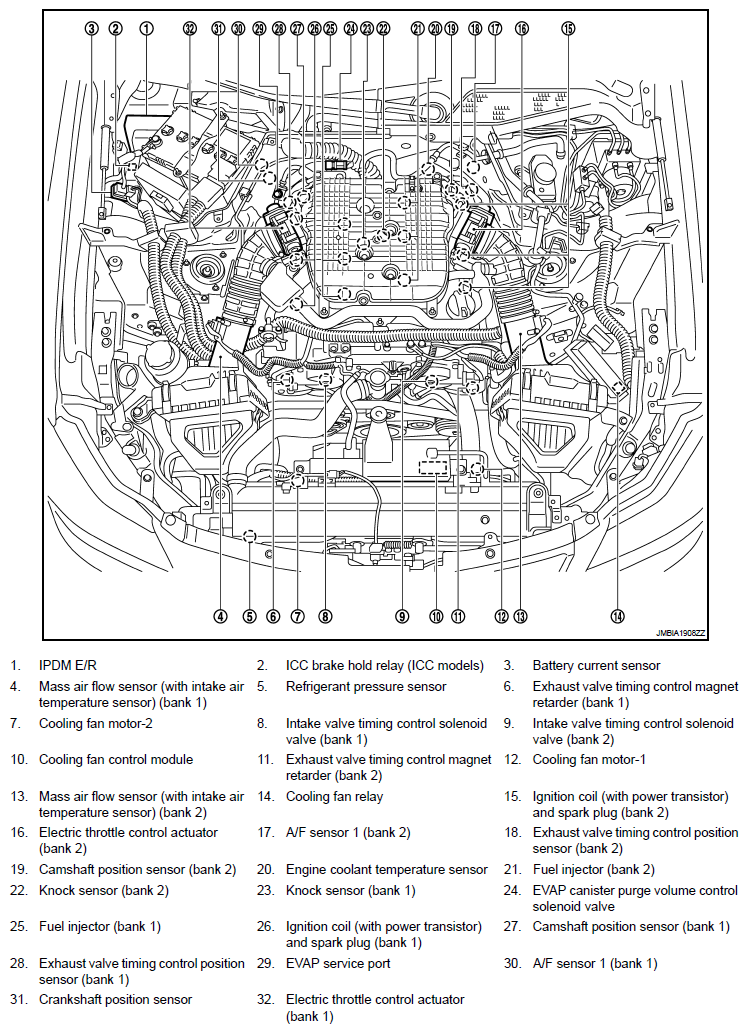

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 20)

G06306272

Courtesy of NISSAN MOTOR CO., U.S.A.

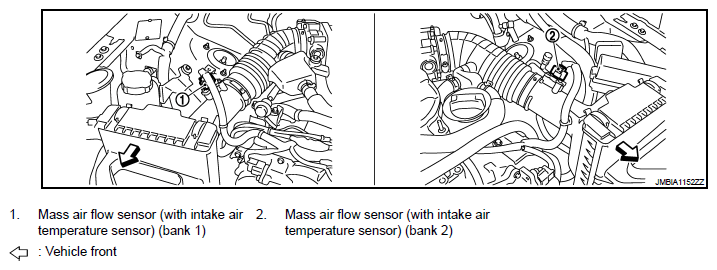

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 20)

G06306273

Courtesy of NISSAN MOTOR CO., U.S.A.

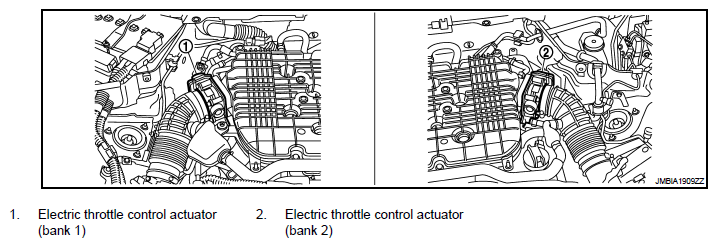

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 20)

G06306274

Courtesy of NISSAN MOTOR CO., U.S.A.

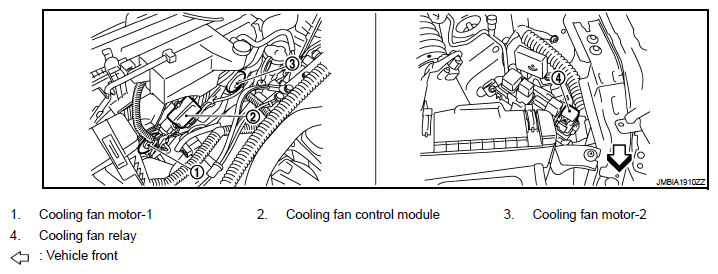

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 20)

G06306275

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 20)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

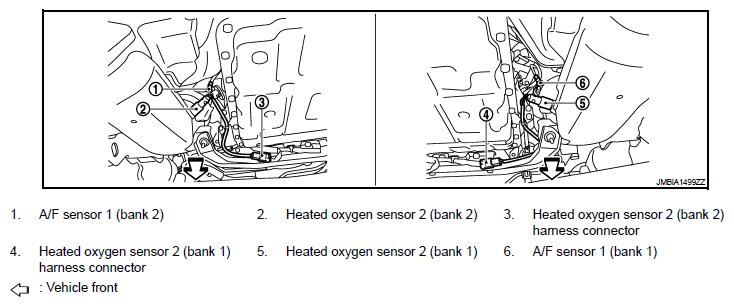

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 20)

G06306277

Courtesy of NISSAN MOTOR CO., U.S.A.

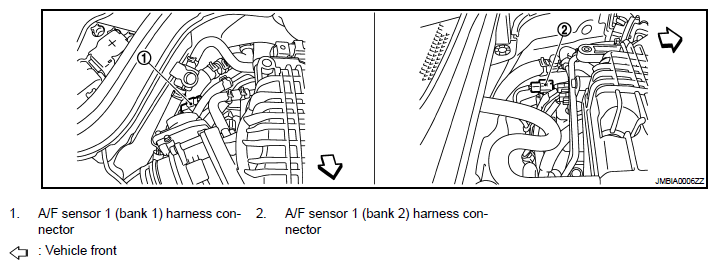

Fig 7: Identifying Air Conditioning Cut Control Component Parts Location (7 Of 20)

G06306278

Courtesy of NISSAN MOTOR CO., U.S.A.

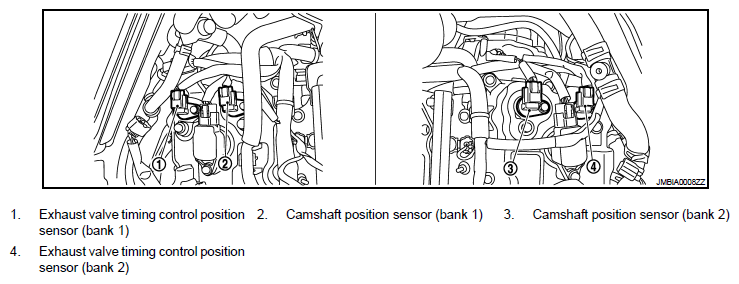

Fig 8: Identifying Air Conditioning Cut Control Component Parts Location (8 Of 20)

G06306279

Courtesy of NISSAN MOTOR CO., U.S.A.

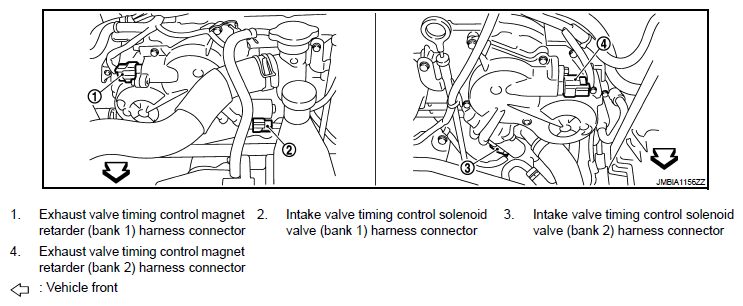

Fig 9: Identifying Air Conditioning Cut Control Component Parts Location (9 Of 20)

G06306280

Courtesy of NISSAN MOTOR CO., U.S.A.

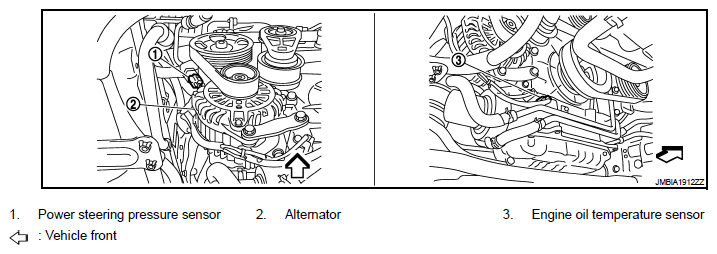

Fig 10: Identifying Air Conditioning Cut Control Component Parts Location (10 Of 20)

G06306281

Courtesy of NISSAN MOTOR CO., U.S.A.

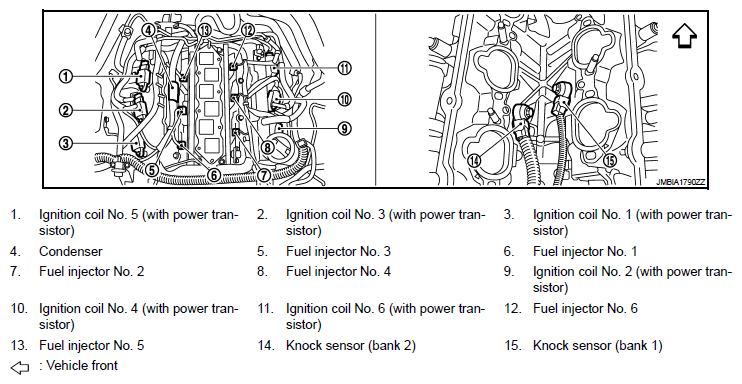

Fig 11: Identifying Air Conditioning Cut Control Component Parts Location (11 Of 20)

G06306282

Courtesy of NISSAN MOTOR CO., U.S.A.

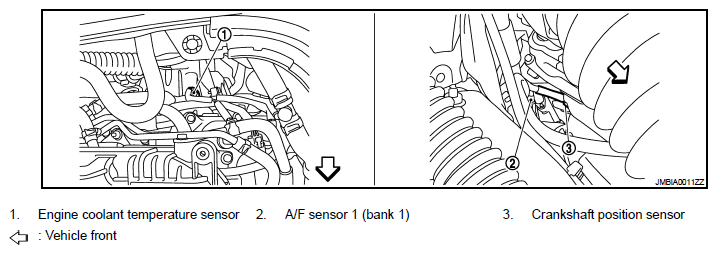

Fig 12: Identifying Air Conditioning Cut Control Component Parts Location (12 Of 20)

G06306283

Courtesy of NISSAN MOTOR CO., U.S.A.

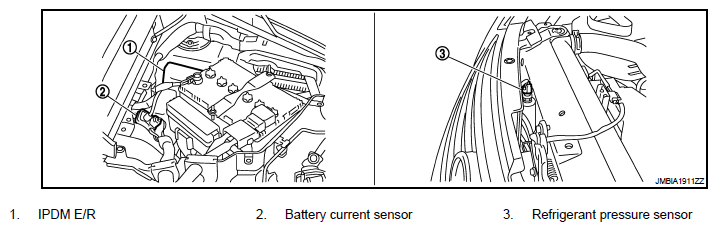

Fig 13: Identifying Air Conditioning Cut Control Component Parts Location (13 Of 20)

G06306284

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Air Conditioning Cut Control Component Parts Location (14 Of 20)

G06306285

Courtesy of NISSAN MOTOR CO., U.S.A.

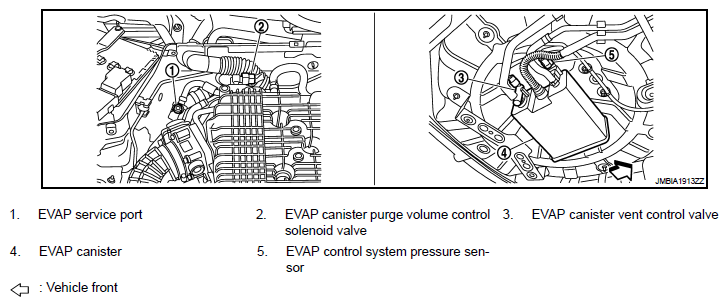

Fig 15: Identifying Air Conditioning Cut Control Component Parts Location (15 Of 20)

G06306286

Courtesy of NISSAN MOTOR CO., U.S.A.

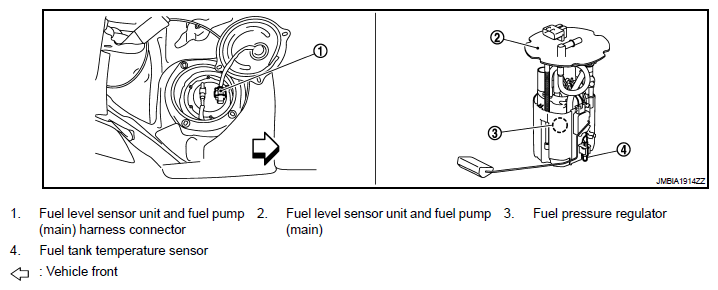

Fig 16: Identifying Air Conditioning Cut Control Component Parts Location (16 Of 20)

G06306287

Courtesy of NISSAN MOTOR CO., U.S.A.

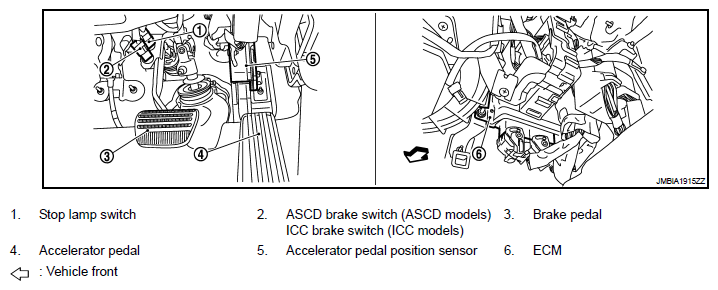

Fig 17: Identifying Air Conditioning Cut Control Component Parts Location (17 Of 20)

G06306288

Courtesy of NISSAN MOTOR CO., U.S.A.

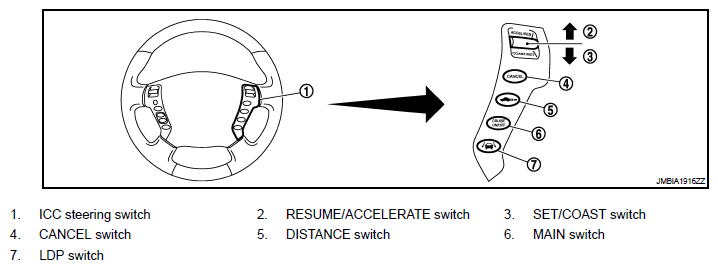

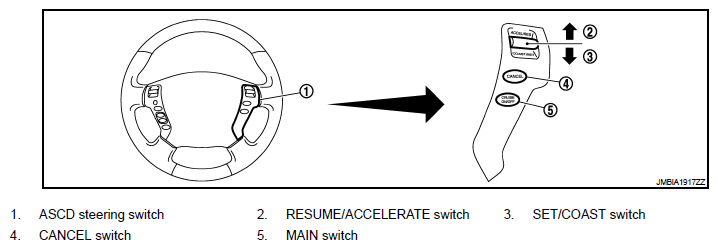

Fig 18: Identifying Air Conditioning Cut Control Component Parts Location (18 Of 20)

G06306289

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Air Conditioning Cut Control Component Parts Location (19 Of 20)

G06306290

Courtesy of NISSAN MOTOR CO., U.S.A.

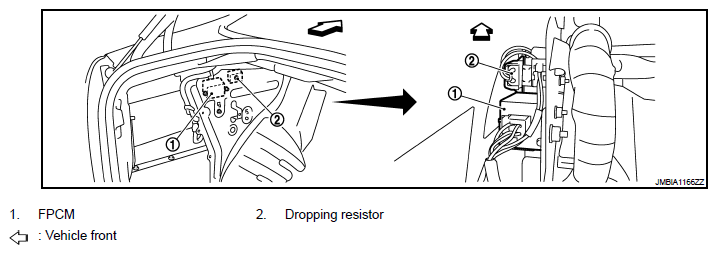

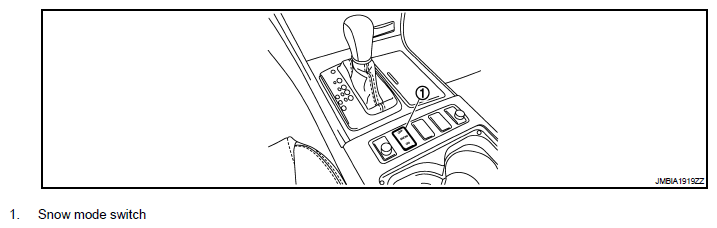

Fig 20: Identifying Air Conditioning Cut Control Component Parts Location (20 Of 20)

G06306291

Courtesy of NISSAN MOTOR CO., U.S.A.
