Component Parts Location

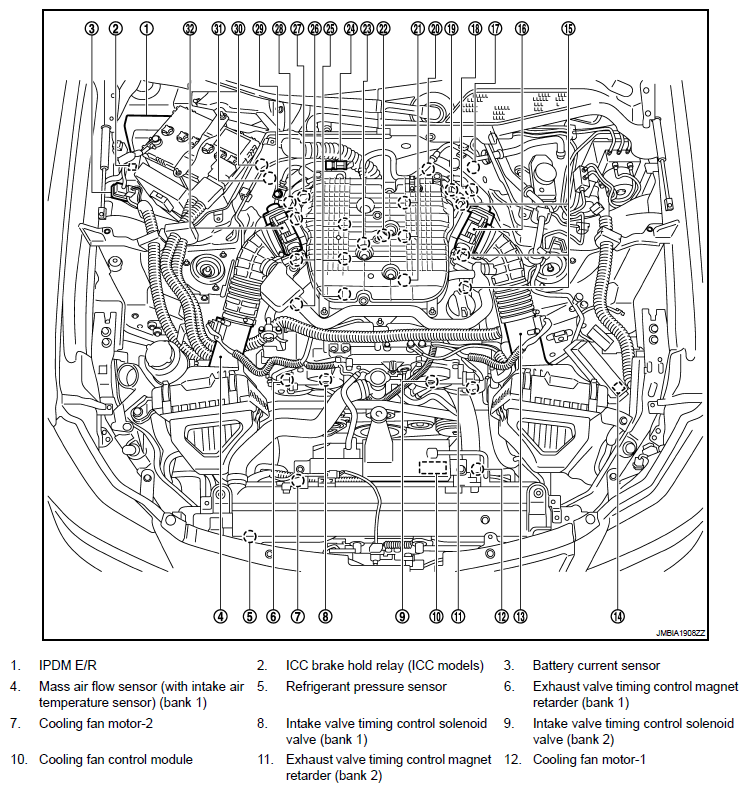

Fig 1: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (1 Of 20)

G06306293

Courtesy of NISSAN MOTOR CO., U.S.A.

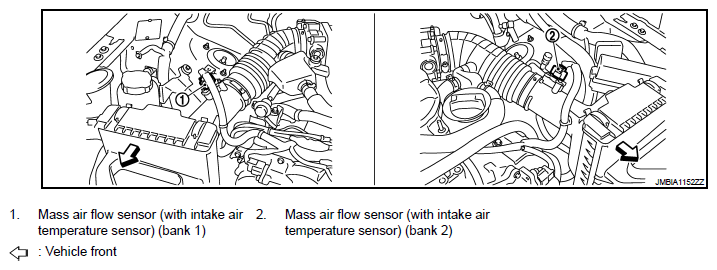

Fig 2: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (2 Of 20)

G06306294

Courtesy of NISSAN MOTOR CO., U.S.A.

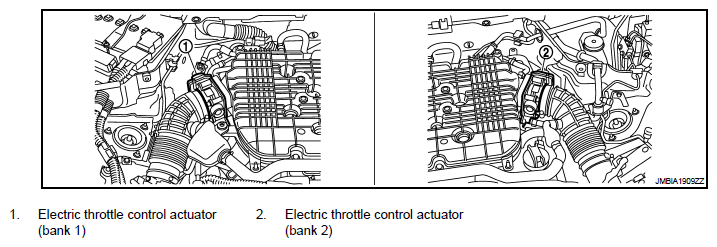

Fig 3: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (3 Of 20)

G06306295

Courtesy of NISSAN MOTOR CO., U.S.A.

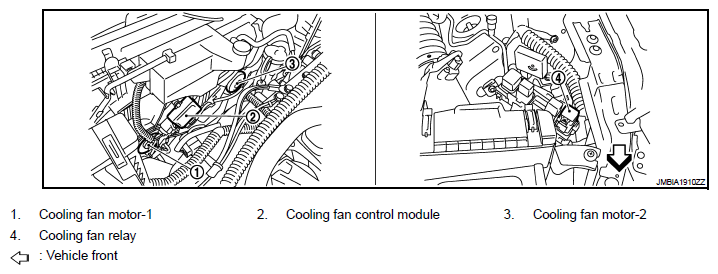

Fig 4: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (4 Of 20)

G06306296

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (5 Of 20)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

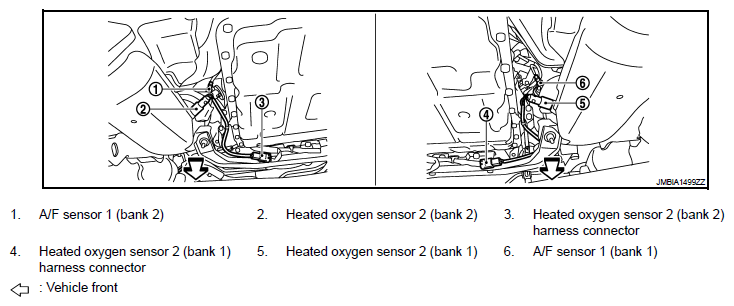

Fig 6: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (6 Of 20)

G06306298

Courtesy of NISSAN MOTOR CO., U.S.A.

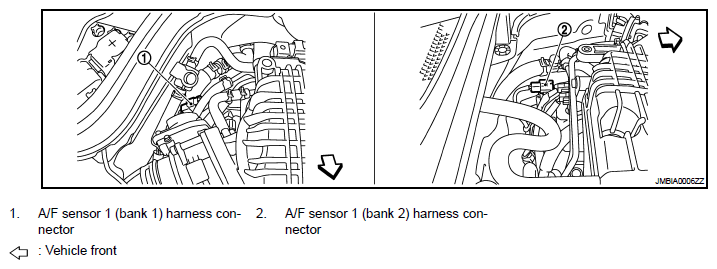

Fig 7: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (7 Of 20)

G06306299

Courtesy of NISSAN MOTOR CO., U.S.A.

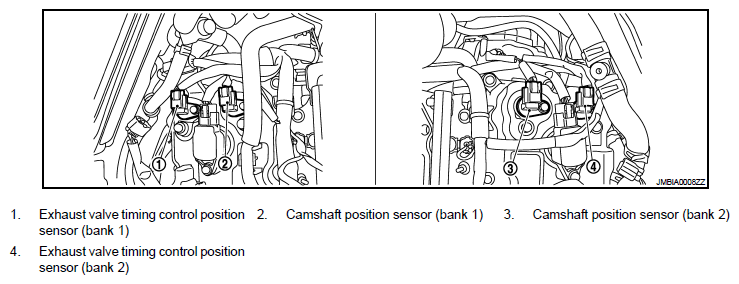

Fig 8: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (8 Of 20)

G06306300

Courtesy of NISSAN MOTOR CO., U.S.A.

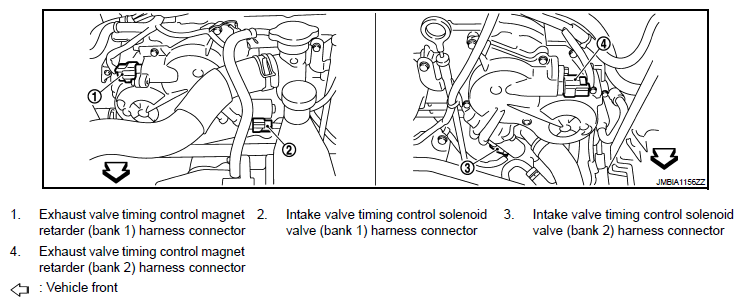

Fig 9: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (9 Of 20)

G06306301

Courtesy of NISSAN MOTOR CO., U.S.A.

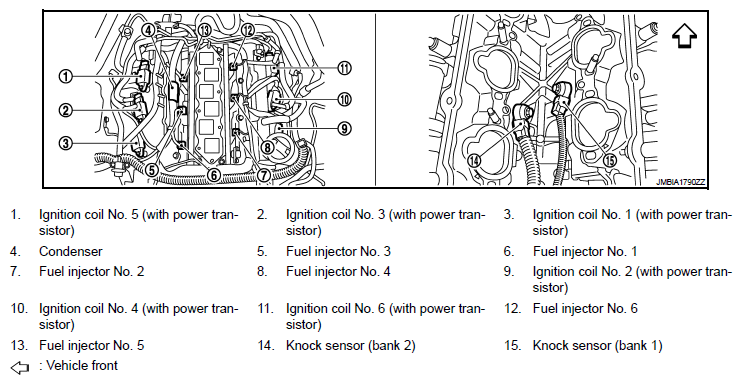

Fig 10: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (10 Of 20)

G06306302

Courtesy of NISSAN MOTOR CO., U.S.A.

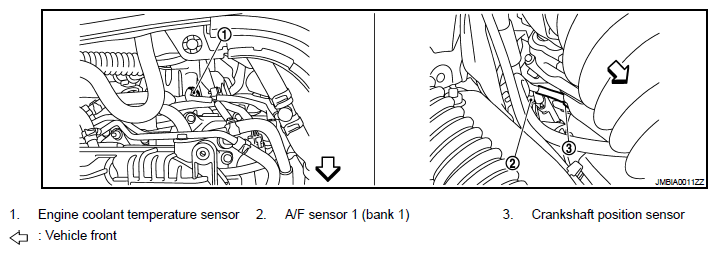

Fig 11: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (11 Of 20)

G06306303

Courtesy of NISSAN MOTOR CO., U.S.A.

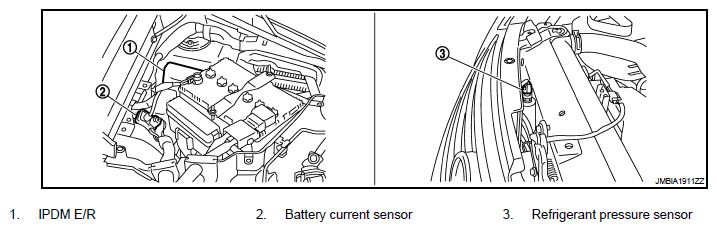

Fig 12: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (12 Of 20)

G06306304

Courtesy of NISSAN MOTOR CO., U.S.A.

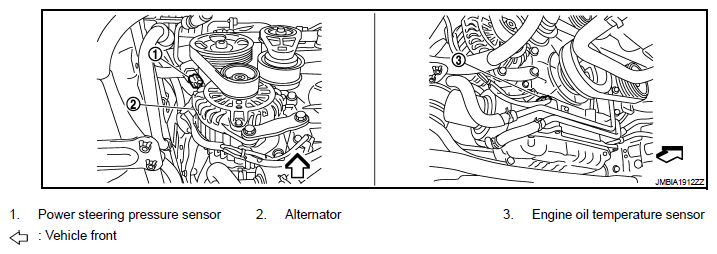

Fig 13: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (13 Of 20)

G06306305

Courtesy of NISSAN MOTOR CO., U.S.A.

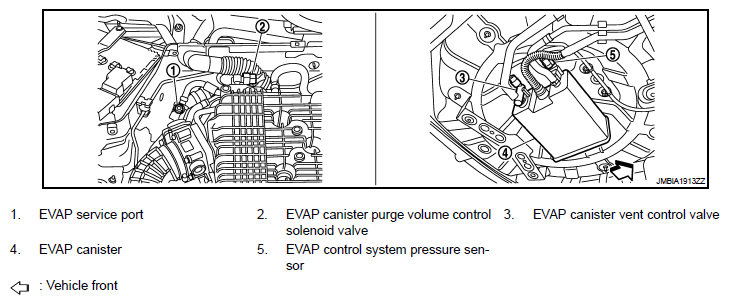

Fig 14: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (14 Of 20)

G06306306

Courtesy of NISSAN MOTOR CO., U.S.A.

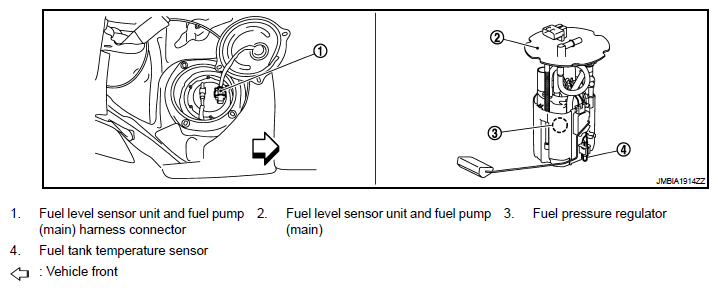

Fig 15: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (15 Of 20)

G06306307

Courtesy of NISSAN MOTOR CO., U.S.A.

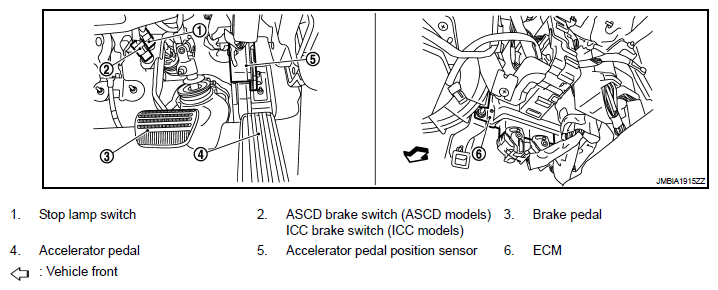

Fig 16: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (16 Of 20)

G06306308

Courtesy of NISSAN MOTOR CO., U.S.A.

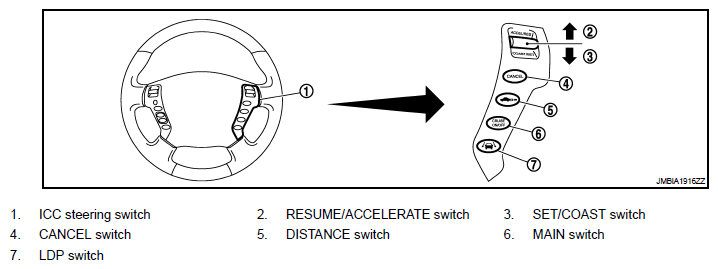

Fig 17: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (17 Of 20)

G06306309

Courtesy of NISSAN MOTOR CO., U.S.A.

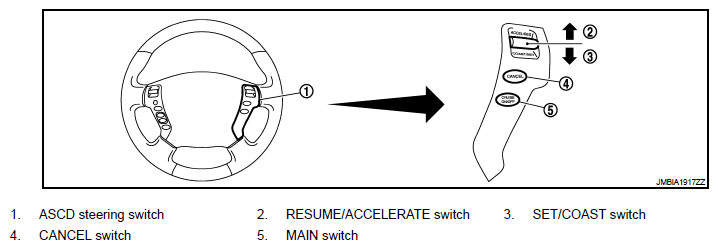

Fig 18: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (18 Of 20)

G06306310

Courtesy of NISSAN MOTOR CO., U.S.A.

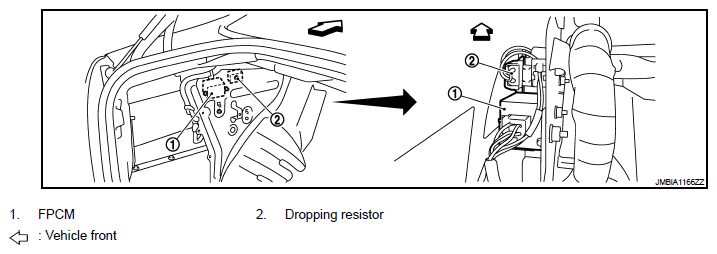

Fig 19: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (19 Of 20)

G06306311

Courtesy of NISSAN MOTOR CO., U.S.A.

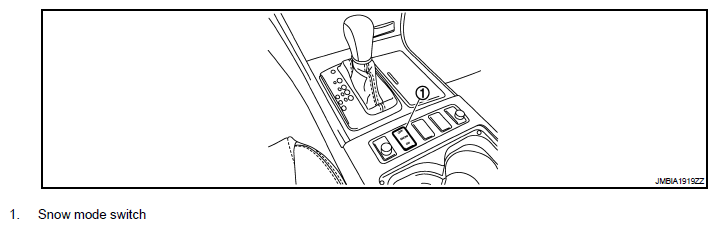

Fig 20: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (20 Of 20)

G06306312

Courtesy of NISSAN MOTOR CO., U.S.A.
