Component Parts Location

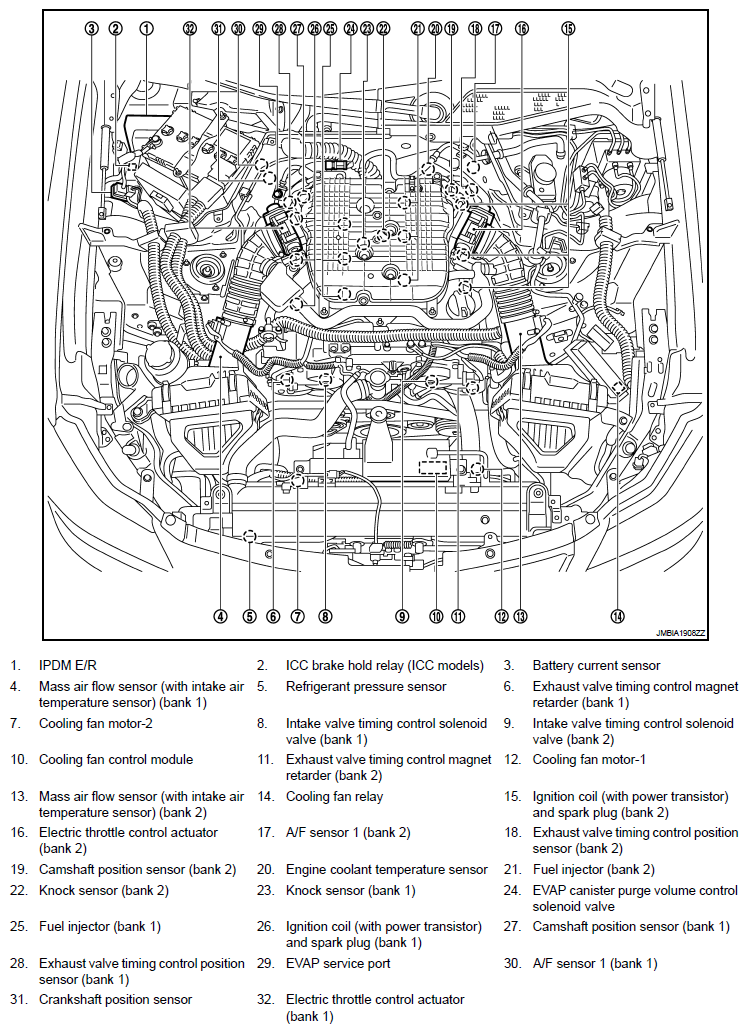

Fig 1: Identifying Cooling Fan Control Component Parts Location (1 Of 20)

G06306314

Courtesy of NISSAN MOTOR CO., U.S.A.

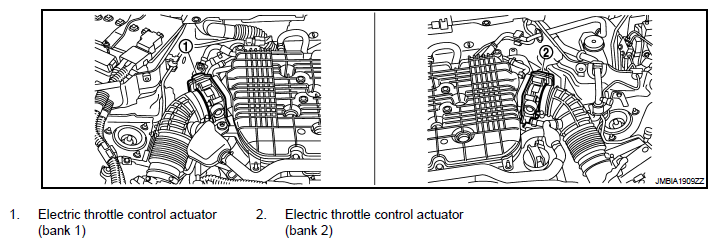

Fig 2: Identifying Cooling Fan Control Component Parts Location (2 Of 20)

G06306315

Courtesy of NISSAN MOTOR CO., U.S.A.

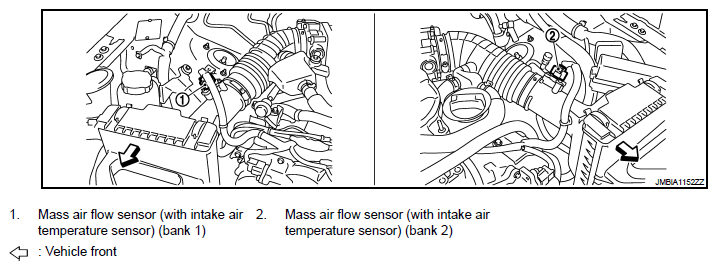

Fig 3: Identifying Cooling Fan Control Component Parts Location (3 Of 20)

G06306316

Courtesy of NISSAN MOTOR CO., U.S.A.

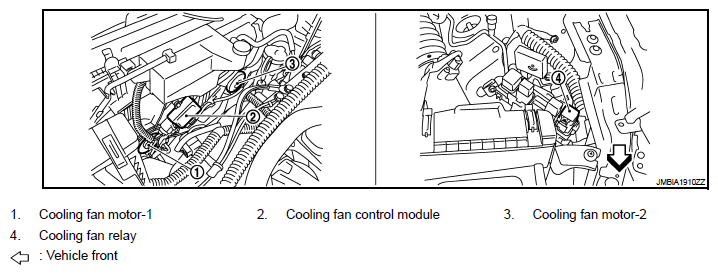

Fig 4: Identifying Cooling Fan Control Component Parts Location (4 Of 20)

G06306317

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Cooling Fan Control Component Parts Location (5 Of 20)

G05978207

Courtesy of NISSAN MOTOR CO., U.S.A.

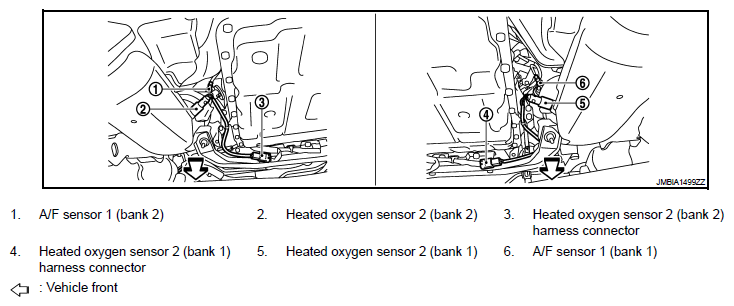

Fig 6: Identifying Cooling Fan Control Component Parts Location (6 Of 20)

G06306319

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Cooling Fan Control Component Parts Location (7 Of 20)

G06306320

Courtesy of NISSAN MOTOR CO., U.S.A.

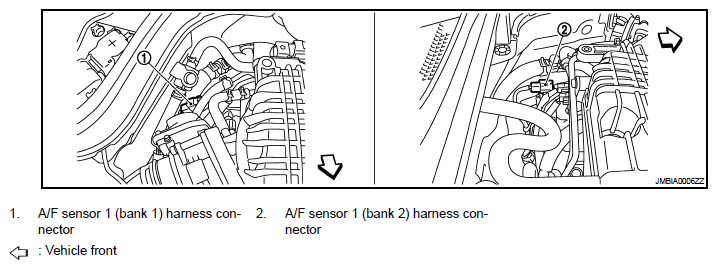

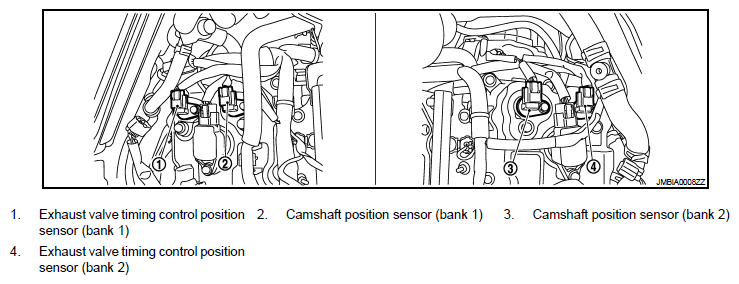

Fig 8: Identifying Cooling Fan Control Component Parts Location (8 Of 20)

G06306321

Courtesy of NISSAN MOTOR CO., U.S.A.

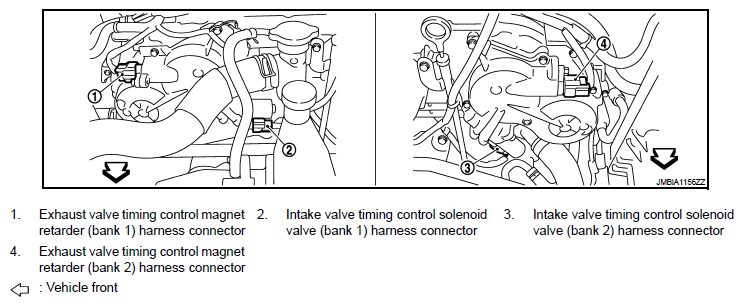

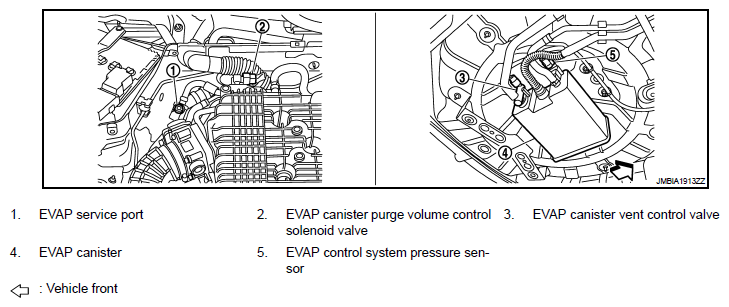

Fig 9: Identifying Cooling Fan Control Component Parts Location (9 Of 20)

G06306322

Courtesy of NISSAN MOTOR CO., U.S.A.

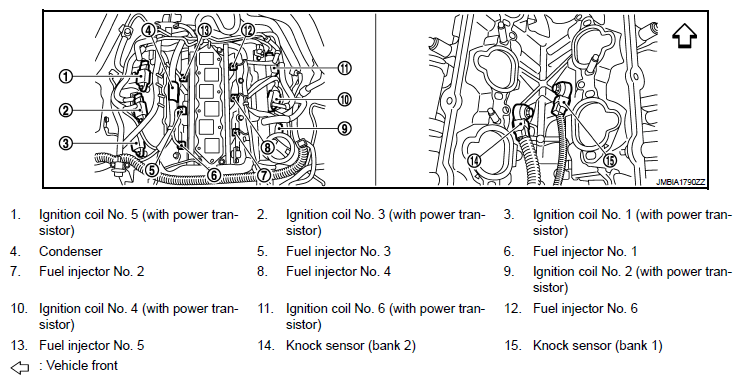

Fig 10: Identifying Cooling Fan Control Component Parts Location (10 Of 20)

G06306323

Courtesy of NISSAN MOTOR CO., U.S.A.

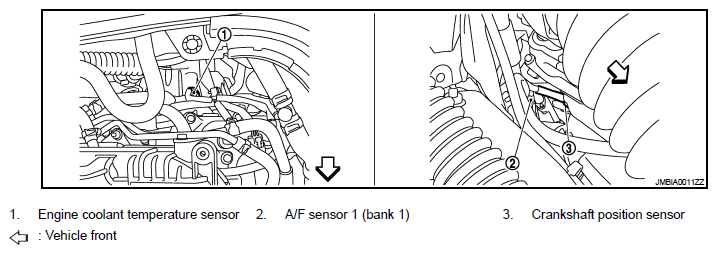

Fig 11: Identifying Cooling Fan Control Component Parts Location (11 Of 20)

G06306324

Courtesy of NISSAN MOTOR CO., U.S.A.

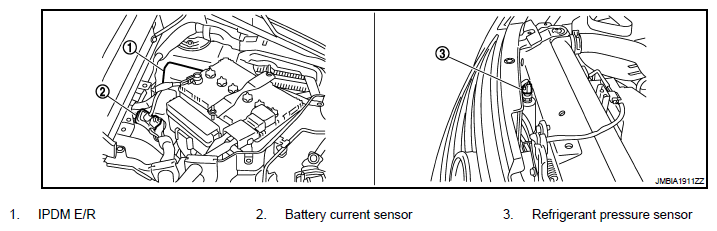

Fig 12: Identifying Cooling Fan Control Component Parts Location (12 Of 20)

G06306325

Courtesy of NISSAN MOTOR CO., U.S.A.

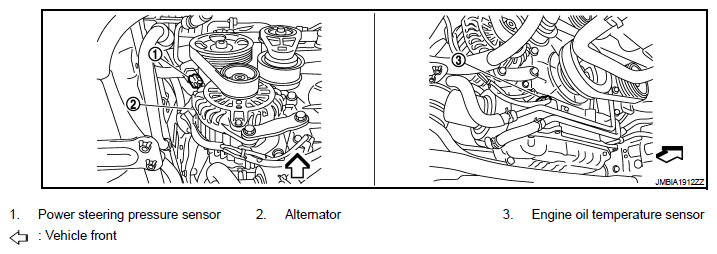

Fig 13: Identifying Cooling Fan Control Component Parts Location (13 Of 20)

G06306326

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Cooling Fan Control Component Parts Location (14 Of 20)

G06306327

Courtesy of NISSAN MOTOR CO., U.S.A.

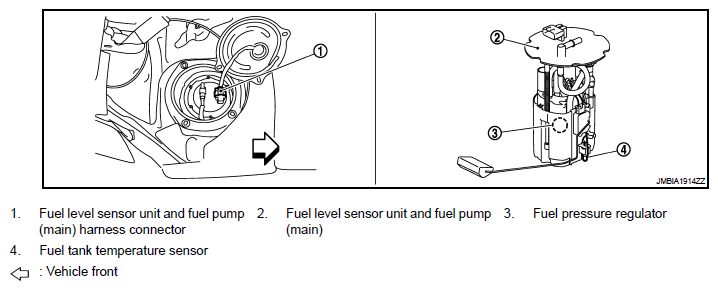

Fig 15: Identifying Cooling Fan Control Component Parts Location (15 Of 20)

G06306328

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Cooling Fan Control Component Parts Location (16 Of 20)

G06306329

Courtesy of NISSAN MOTOR CO., U.S.A.

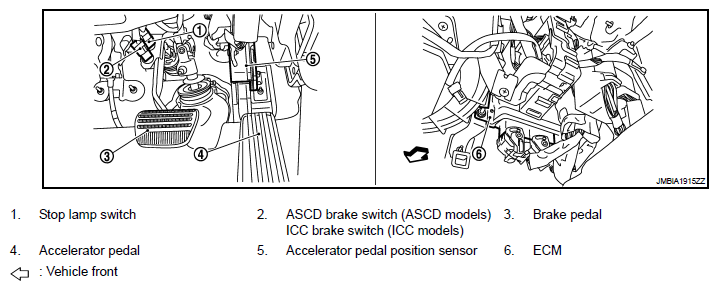

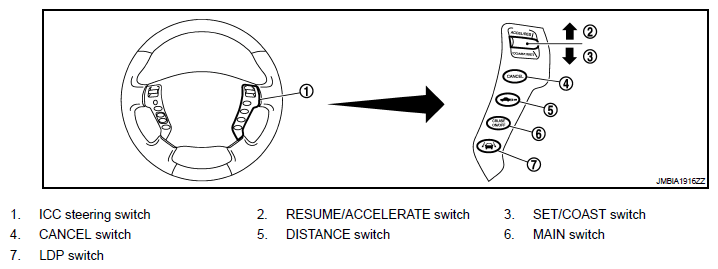

Fig 17: Identifying Cooling Fan Control Component Parts Location (17 Of 20)

G06306330

Courtesy of NISSAN MOTOR CO., U.S.A.

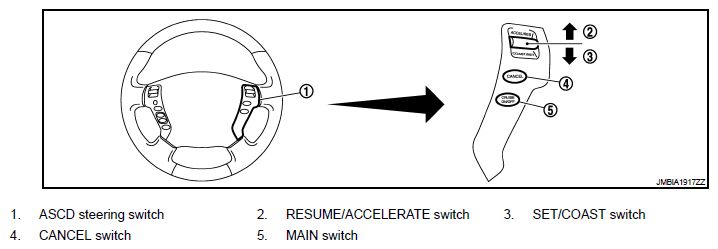

Fig 18: Identifying Cooling Fan Control Component Parts Location (18 Of 20)

G06306331

Courtesy of NISSAN MOTOR CO., U.S.A.

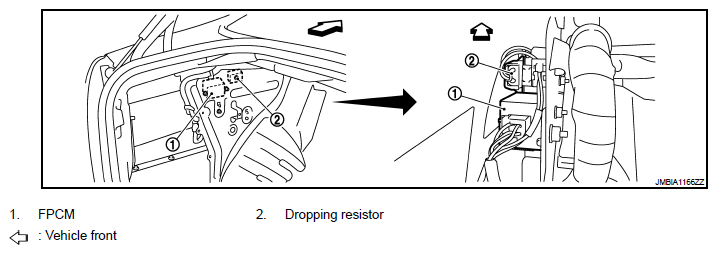

Fig 19: Identifying Cooling Fan Control Component Parts Location (19 Of 20)

G06306332

Courtesy of NISSAN MOTOR CO., U.S.A.

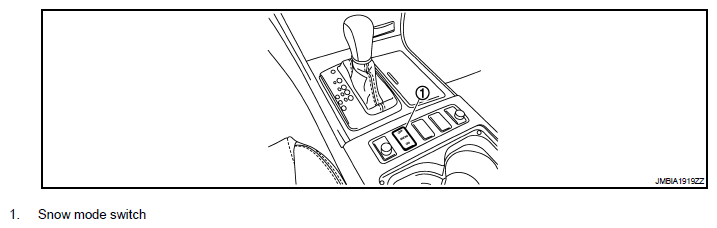

Fig 20: Identifying Cooling Fan Control Component Parts Location (20 Of 20)

G06306333

Courtesy of NISSAN MOTOR CO., U.S.A.
