Component Parts Location

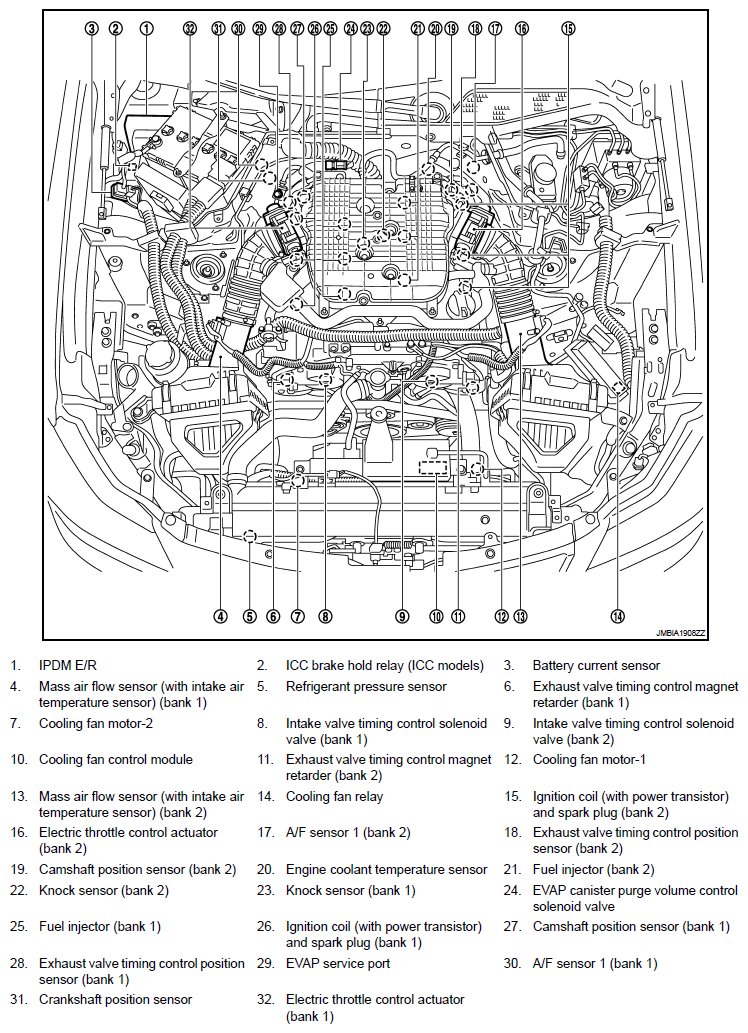

Fig 1: Identifying Exhaust Valve Timing Control Component Parts Location (1 Of 20)

G06306360

Courtesy of NISSAN MOTOR CO., U.S.A.

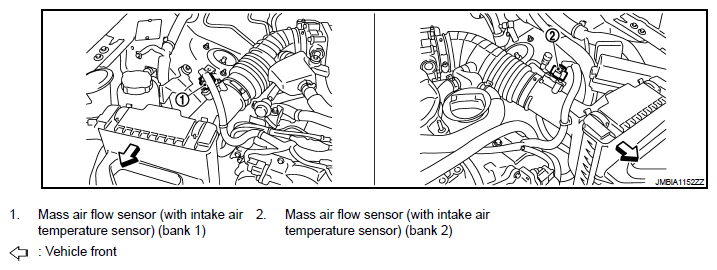

Fig 2: Identifying Exhaust Valve Timing Control Component Parts Location (2 Of 20)

G06306361

Courtesy of NISSAN MOTOR CO., U.S.A.

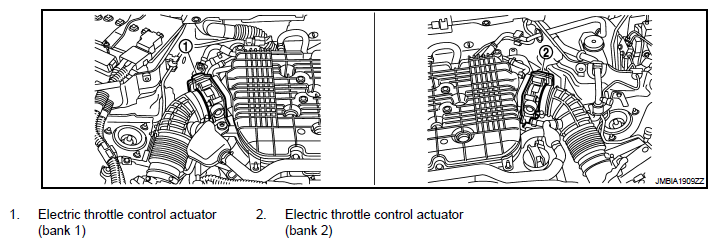

Fig 3: Identifying Exhaust Valve Timing Control Component Parts Location (3 Of 20)

G06306362

Courtesy of NISSAN MOTOR CO., U.S.A.

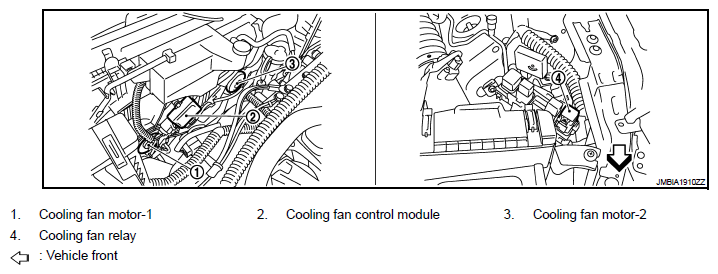

Fig 4: Identifying Exhaust Valve Timing Control Component Parts Location (4 Of 20)

G06306363

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Exhaust Valve Timing Control Component Parts Location (5 Of 20)

G06306364

Courtesy of NISSAN MOTOR CO., U.S.A.

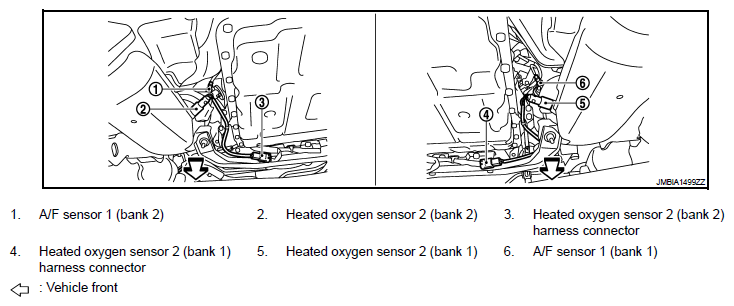

Fig 6: Identifying Exhaust Valve Timing Control Component Parts Location (6 Of 20)

G06306365

Courtesy of NISSAN MOTOR CO., U.S.A.

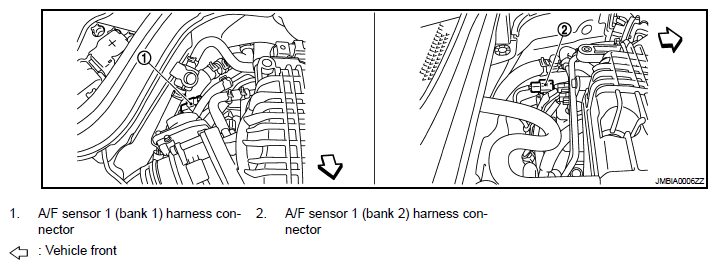

Fig 7: Identifying Exhaust Valve Timing Control Component Parts Location (7 Of 20)

G06306366

Courtesy of NISSAN MOTOR CO., U.S.A.

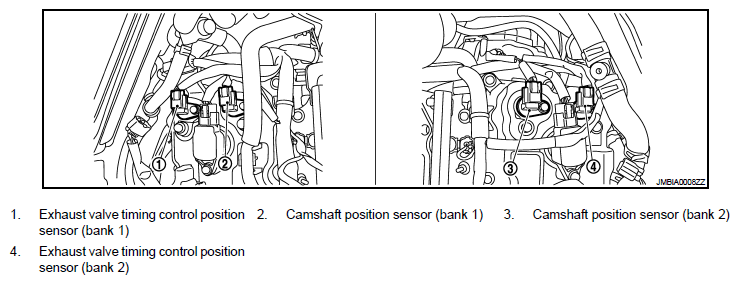

Fig 8: Identifying Exhaust Valve Timing Control Component Parts Location (8 Of 20)

G06306367

Courtesy of NISSAN MOTOR CO., U.S.A.

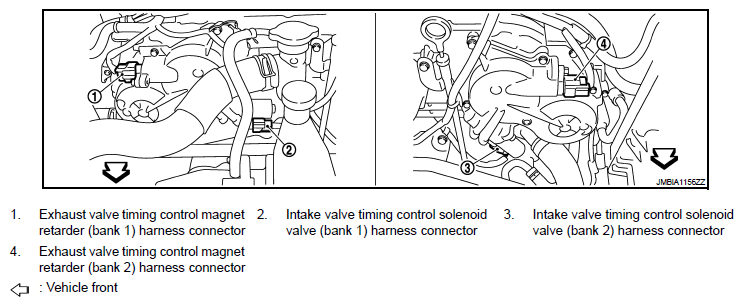

Fig 9: Identifying Exhaust Valve Timing Control Component Parts Location (9 Of 20)

G06306368

Courtesy of NISSAN MOTOR CO., U.S.A.

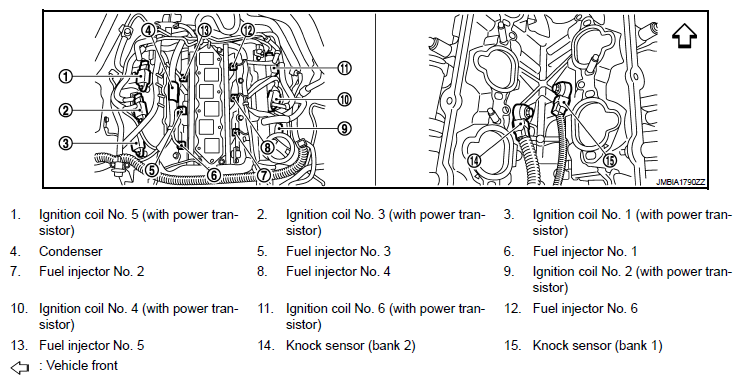

Fig 10: Identifying Exhaust Valve Timing Control Component Parts Location (10 Of 20)

G06306369

Courtesy of NISSAN MOTOR CO., U.S.A.

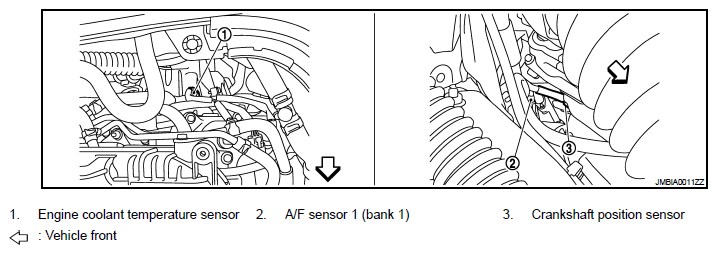

Fig 11: Identifying Exhaust Valve Timing Control Component Parts Location (11 Of 20)

G06306370

Courtesy of NISSAN MOTOR CO., U.S.A.

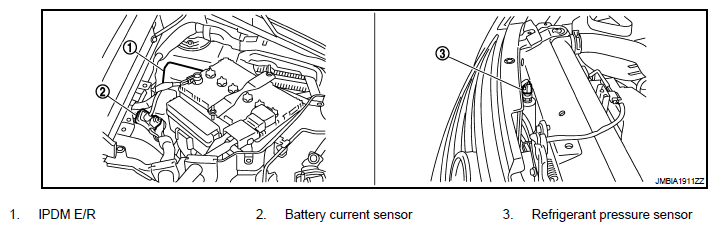

Fig 12: Identifying Exhaust Valve Timing Control Component Parts Location (12 Of 20)

G06306371

Courtesy of NISSAN MOTOR CO., U.S.A.

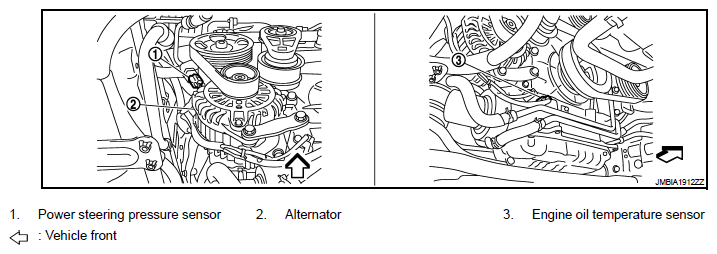

Fig 13: Identifying Exhaust Valve Timing Control Component Parts Location (13 Of 20)

G06306372

Courtesy of NISSAN MOTOR CO., U.S.A.

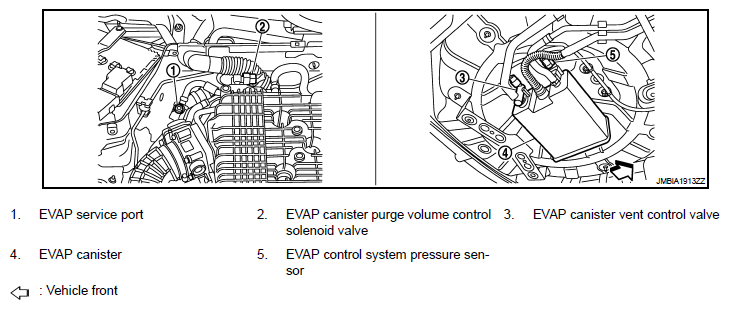

Fig 14: Identifying Exhaust Valve Timing Control Component Parts Location (14 Of 20)

G06306373

Courtesy of NISSAN MOTOR CO., U.S.A.

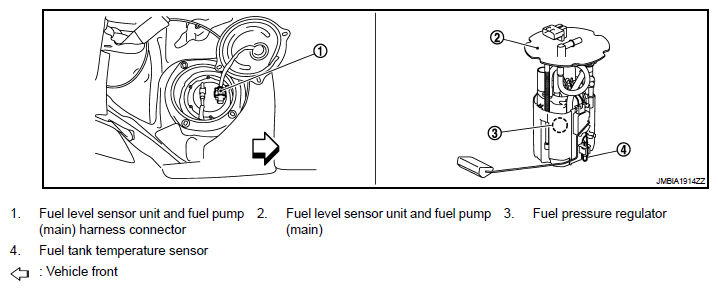

Fig 15: Identifying Exhaust Valve Timing Control Component Parts Location (15 Of 20)

G06306374

Courtesy of NISSAN MOTOR CO., U.S.A.

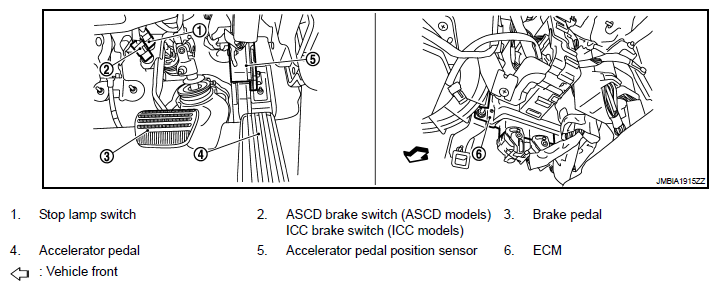

Fig 16: Identifying Exhaust Valve Timing Control Component Parts Location (16 Of 20)

G06306375

Courtesy of NISSAN MOTOR CO., U.S.A.

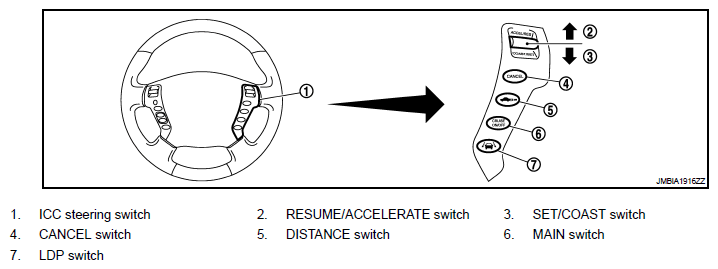

Fig 17: Identifying Exhaust Valve Timing Control Component Parts Location (17 Of 20)

G06306376

Courtesy of NISSAN MOTOR CO., U.S.A.

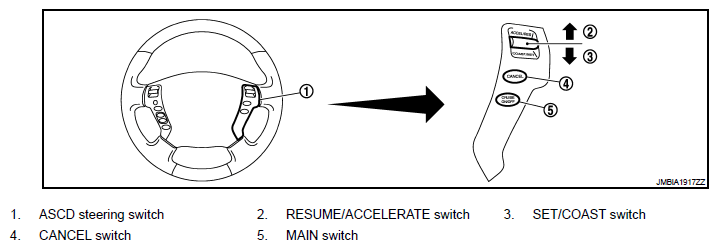

Fig 18: Identifying Exhaust Valve Timing Control Component Parts Location (18 Of 20)

G06306377

Courtesy of NISSAN MOTOR CO., U.S.A.

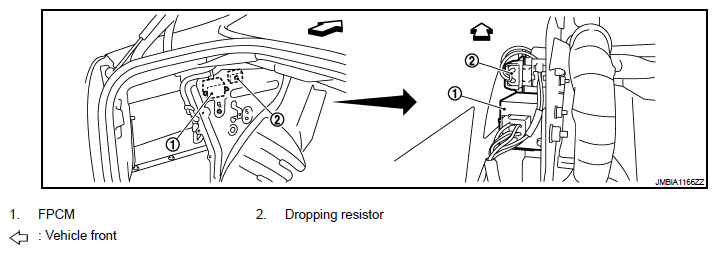

Fig 19: Identifying Exhaust Valve Timing Control Component Parts Location (19 Of 20)

G06306378

Courtesy of NISSAN MOTOR CO., U.S.A.

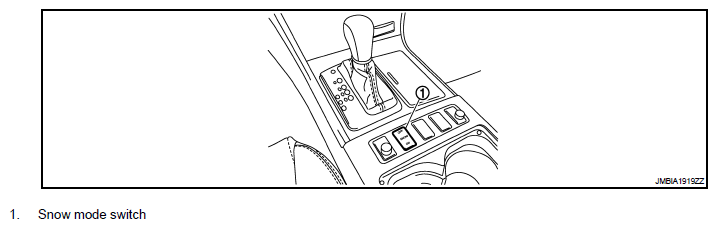

Fig 20: Identifying Exhaust Valve Timing Control Component Parts Location (20 Of 20)

G06306379

Courtesy of NISSAN MOTOR CO., U.S.A.
