Component Parts Location

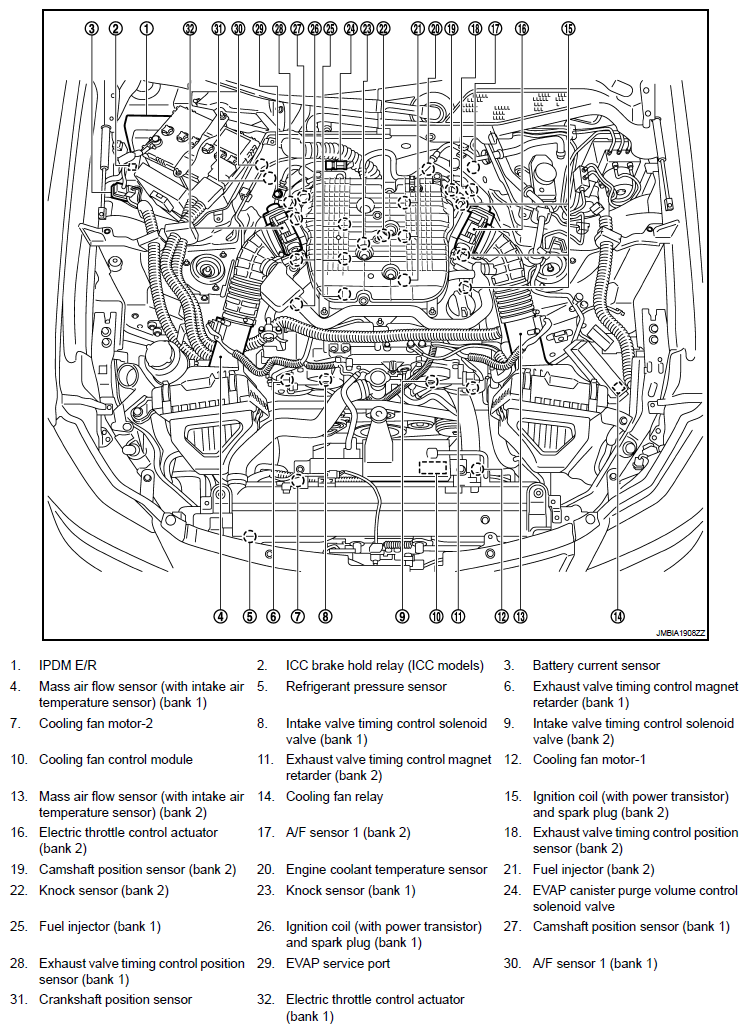

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 20)

G06306403

Courtesy of NISSAN MOTOR CO., U.S.A.

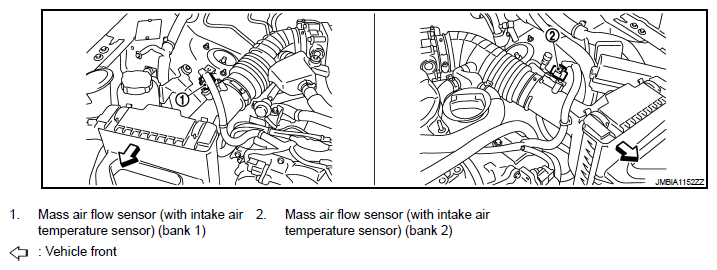

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 20)

G06306404

Courtesy of NISSAN MOTOR CO., U.S.A.

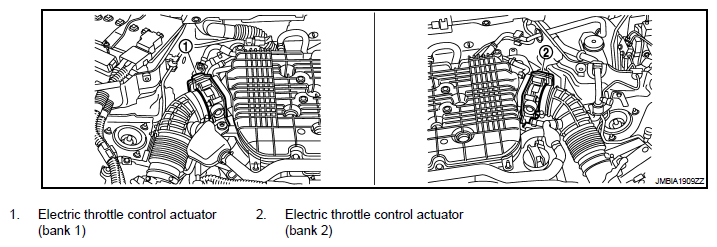

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 20)

G06306405

Courtesy of NISSAN MOTOR CO., U.S.A.

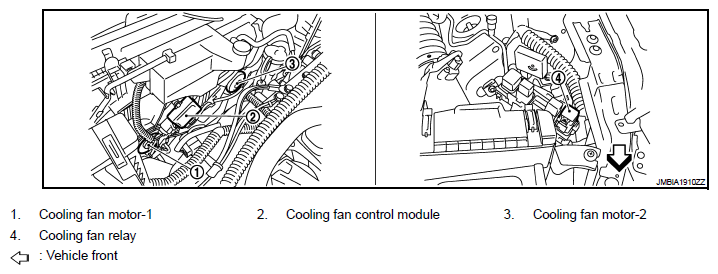

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 20)

G06306406

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 20)

G06306364

Courtesy of NISSAN MOTOR CO., U.S.A.

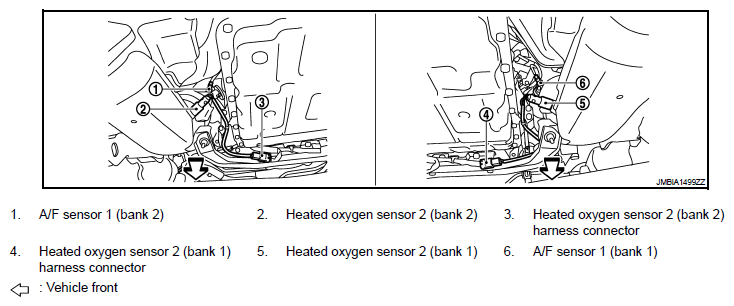

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 20)

G06306408

Courtesy of NISSAN MOTOR CO., U.S.A.

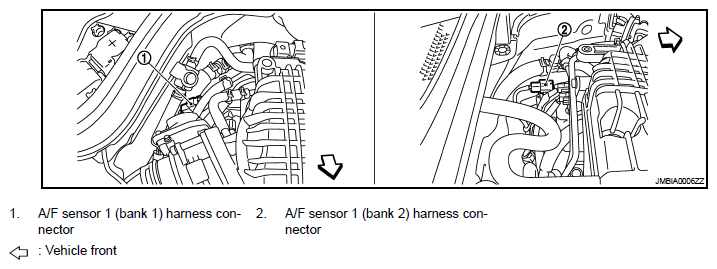

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 20)

G06306409

Courtesy of NISSAN MOTOR CO., U.S.A.

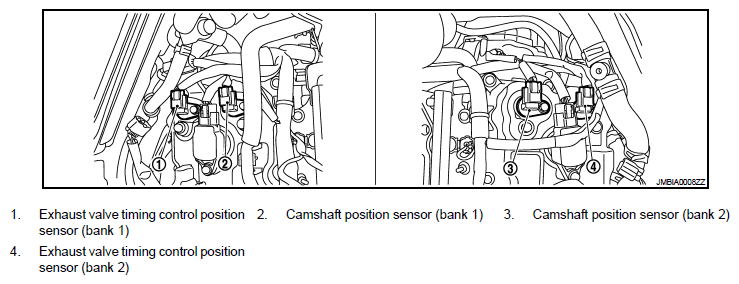

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 20)

G06306410

Courtesy of NISSAN MOTOR CO., U.S.A.

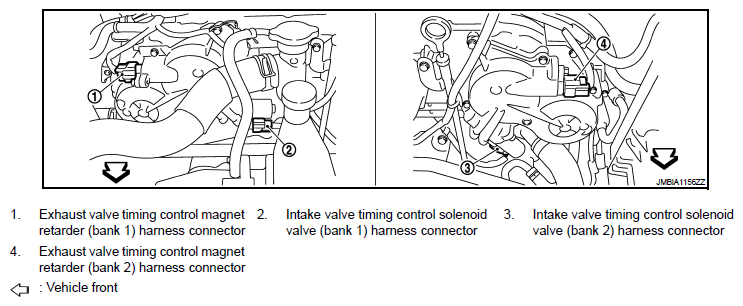

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 20)

G06306411

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 20)

G06306412

Courtesy of NISSAN MOTOR CO., U.S.A.

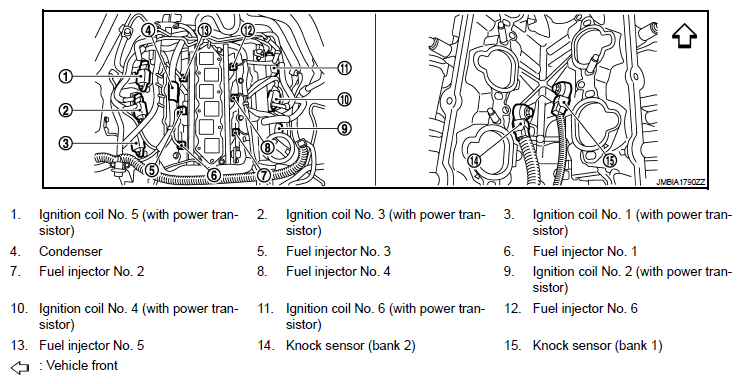

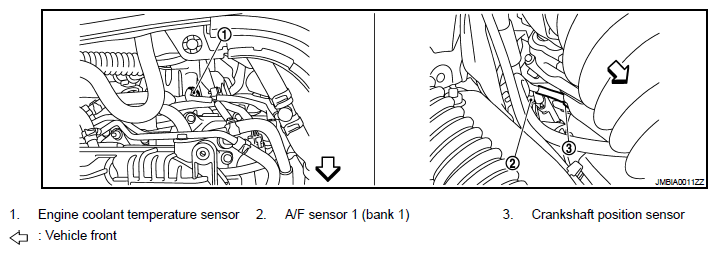

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 20)

G06306413

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 20)

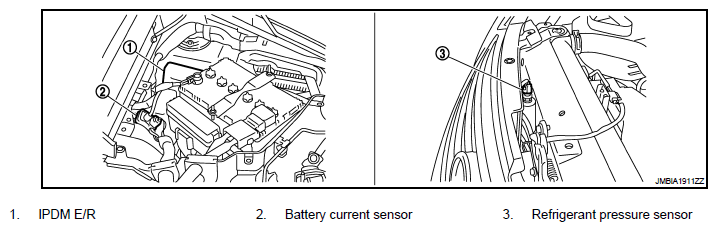

G06306414

Courtesy of NISSAN MOTOR CO., U.S.A.

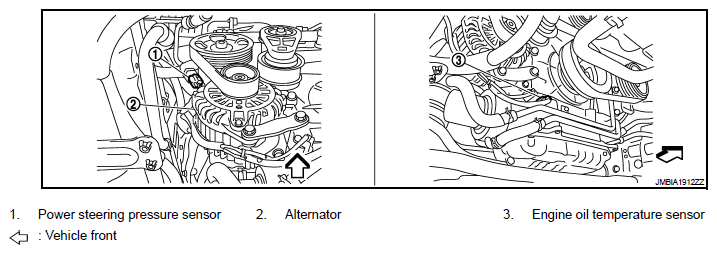

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 20)

G06306415

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 20)

G06306416

Courtesy of NISSAN MOTOR CO., U.S.A.

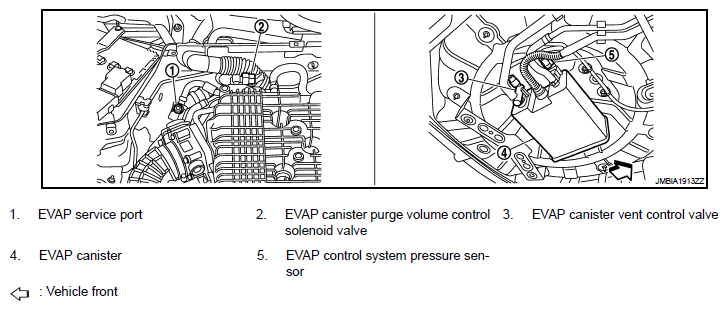

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 20)

G06306417

Courtesy of NISSAN MOTOR CO., U.S.A.

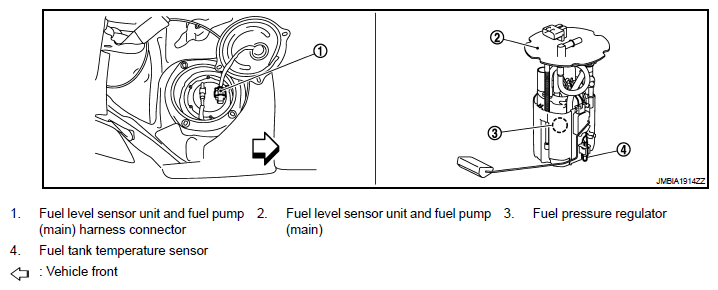

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 20)

G06306418

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 20)

G06306419

Courtesy of NISSAN MOTOR CO., U.S.A.

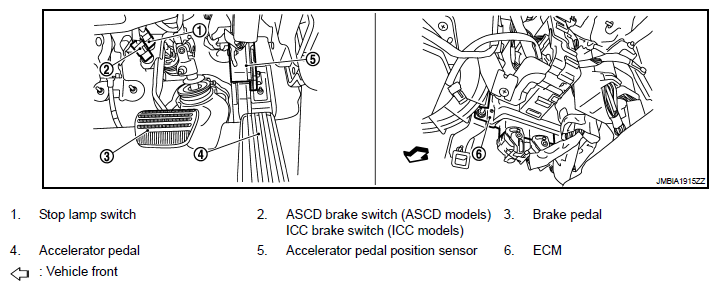

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 20)

G06306420

Courtesy of NISSAN MOTOR CO., U.S.A.

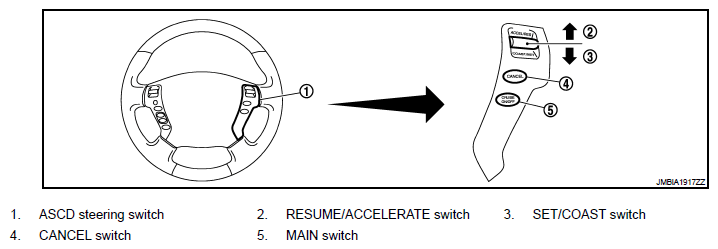

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 20)

G06306421

Courtesy of NISSAN MOTOR CO., U.S.A.

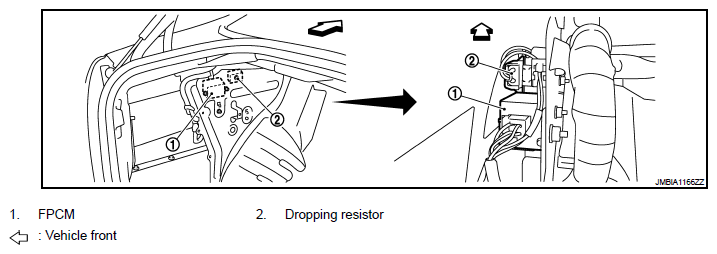

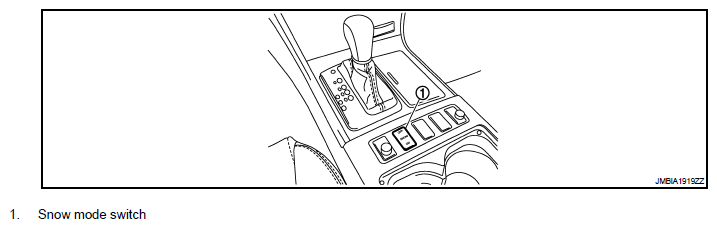

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 20)

G06306422

Courtesy of NISSAN MOTOR CO., U.S.A.
