Removal and Installation: Disassembly

  1. Turn EVAP canister vent control valve counterclockwise.

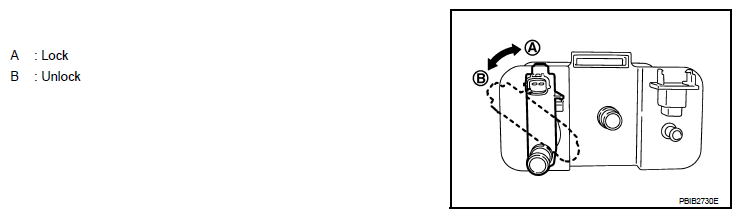

    Fig 1: Turning EVAP Canister Vent Control Valve Counterclockwise
    G06306913Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the EVAP canister vent control valve.
