VIAS Control Solenoid Valve

With CONSULT-III

Reconnect harness connectors disconnected.
Turn ignition switch ON.
Perform "VIAS S/V-1" in "ACTIVE TEST" mode.
Check air passage continuity and operation delay time under the following conditions.

CONTINUITY REFERENCE CHART

Condition VIAS S/V-1	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
ON	Yes	No
OFF	No	Yes

Operation takes less than 1 second .

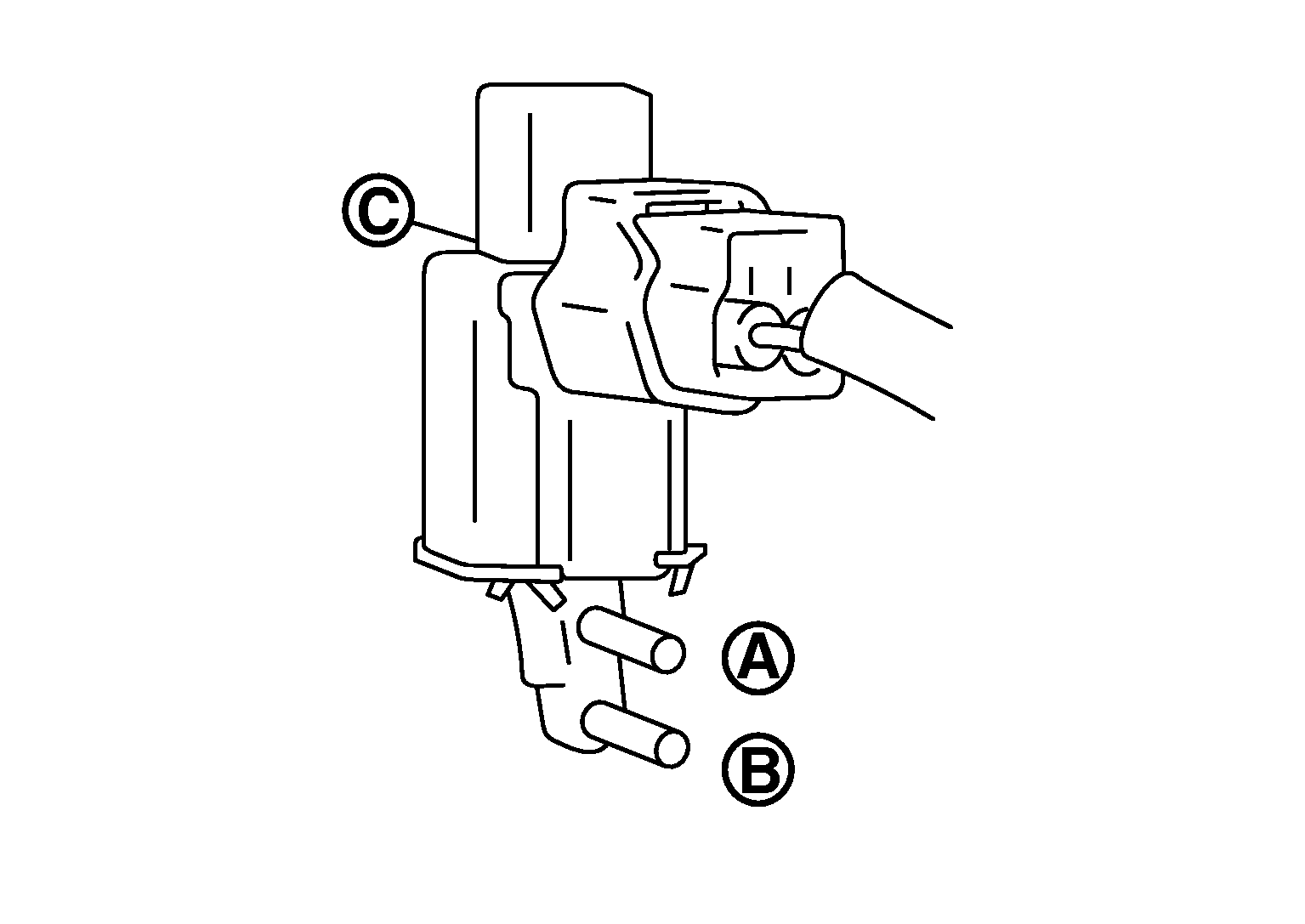

Fig 1: Identifying Air Passage

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-III

Check air passage continuity and operation delay time under the following conditions.

CONTINUITY REFERENCE CHART

Condition	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
12V direct current supply between terminals 1 and 2	Yes	No
No supply	No	Yes

Operation takes less than 1 second .

Fig 2: Checking Air Passage Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.
