Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.

Refer to "GROUND INSPECTION ".

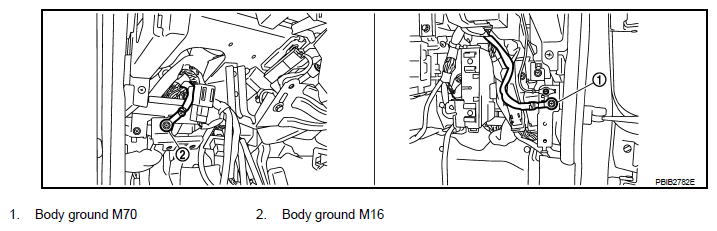

Fig 1: Identifying Body Ground (M70 And M16)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

1. Disconnect mass air flow sensor (intake air temperature sensor is built-into) (1) harness connector.
2. Turn ignition switch ON.
   Fig 2: Identifying Mass Air Flow (MAF) Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between mass air flow sensor terminal 5 and ground with CONSULT-III or tester.

Voltage: Approximately 5 V

OK or NG

OK: GO TO 3.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

Fig 3: Checking Voltage Between Mass Air Flow Sensor Terminal 5 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between mass air flow sensor terminal 6 and ECM terminal 67.

   Refer to SYSTEM WIRING DIAGRAMS article.

   Continuity should exist  .

4. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO 4.

NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 5.

NG: Replace mass air flow sensor (with intake air temperature sensor).

Refer to "DIAGNOSIS PROCEDURE ".

INSPECTION END
