Diagnosis Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.

Refer to "GROUND INSPECTION ".

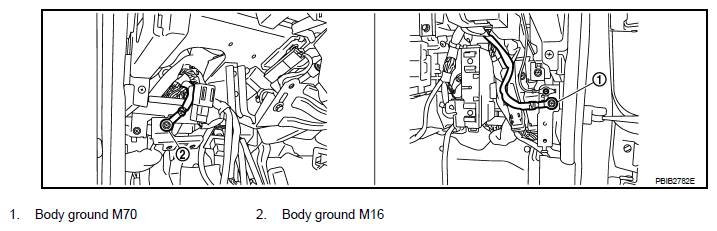

Fig 1: Identifying Body Ground (M70 And M16)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 3.

NG: Replace engine coolant temperature sensor.

Refer to "DIAGNOSIS PROCEDURE ".

INSPECTION END
