Inspection Procedure

1. Turn ignition switch OFF.
2. Connect GST to data link connector (1), which is located under

   LH dash panel near the hood opener handle.

   Fig 1: Connecting GST To Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Enter the program according to instructions on the screen or in the operation instructions.

   (*: Regarding GST screens in this information, sample screens are shown.)

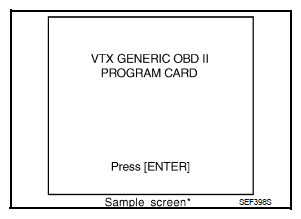

   Fig 2: Display - GST Sample Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Perform each diagnostic service according to each service procedure.

For further information, see the GST Operation Instructions of the tool maker  .

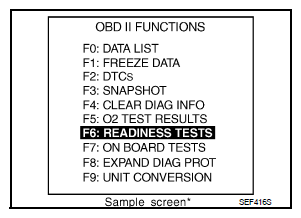

Fig 3: Generic Scan Tool Display - READINESS TESTS

Courtesy of NISSAN MOTOR CO., U.S.A.
