Exploded View

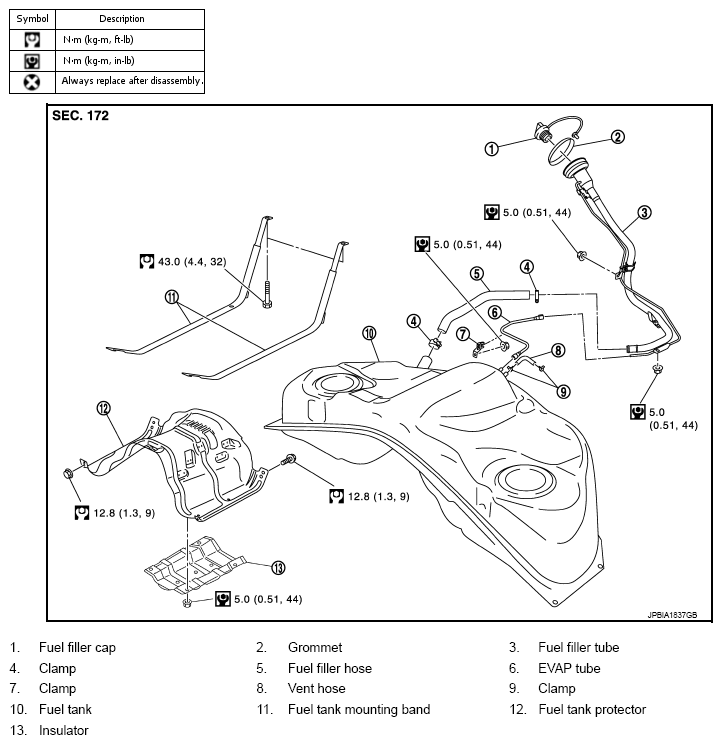

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
G07164109Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
