How To Erase Permanent DTC: Description: Outline

When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.

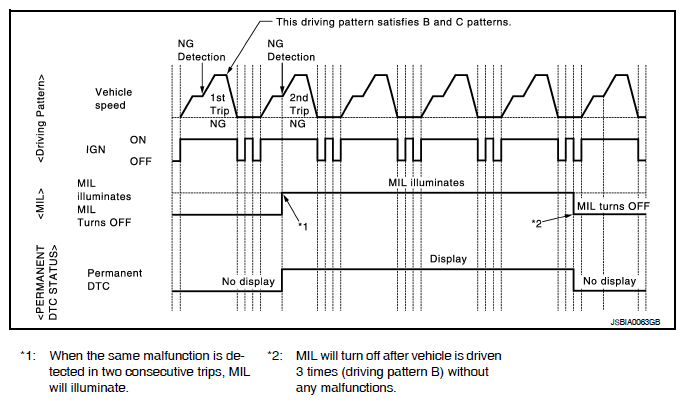

Fig 1: Outline - Timing Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

When a DTC is not stored in ECM

The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.

NOTE: If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the permanent DTC is not erased, perform the procedure of Group A.

DRIVING PATTERN REFERENCE

x: Applicable --: Not applicable

Group⁽¹⁾

Perform "DTC CONFIRMATION PROCEDURE" for applicable DTCs.

Driving pattern

⁽¹⁾	For group, refer to "DTC INDEX ".
