Component Parts Location

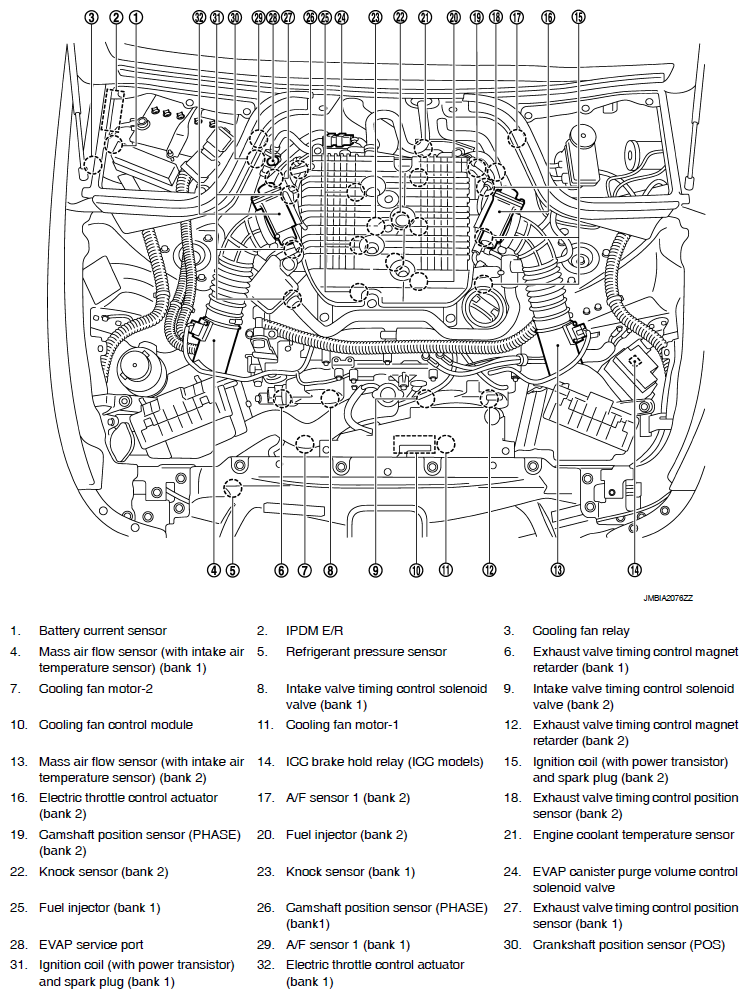

Fig 1: Identifying Air Conditioning Cut Control Components Location (1 Of 20)

G07164822

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Air Conditioning Cut Control Components Location (2 Of 20)

G07164823

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Air Conditioning Cut Control Components Location (3 Of 20)

G07164824

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Air Conditioning Cut Control Components Location (4 Of 20)

G07164825

Courtesy of NISSAN MOTOR CO., U.S.A.

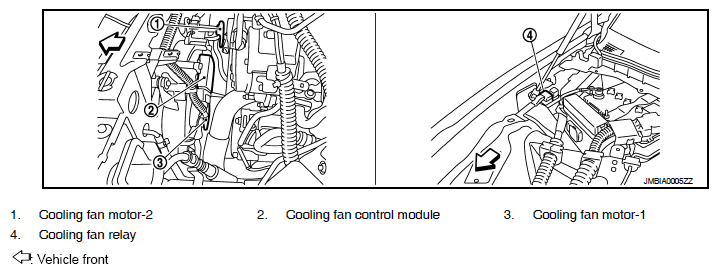

Fig 5: Identifying Air Conditioning Cut Control Components Location (5 Of 20)

G07164826

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Air Conditioning Cut Control Components Location (6 Of 20)

G07164827

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Air Conditioning Cut Control Components Location (7 Of 20)

G07164828

Courtesy of NISSAN MOTOR CO., U.S.A.

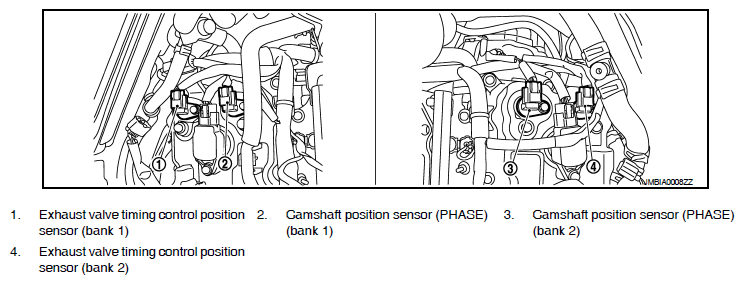

Fig 8: Identifying Air Conditioning Cut Control Components Location (8 Of 20)

G07164829

Courtesy of NISSAN MOTOR CO., U.S.A.

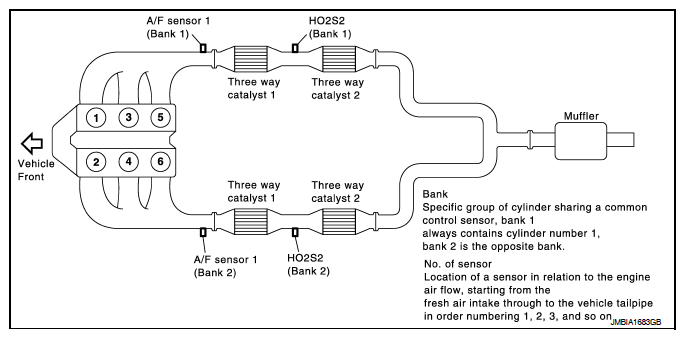

Fig 9: Identifying Air Conditioning Cut Control Components Location (9 Of 20)

G07164830

Courtesy of NISSAN MOTOR CO., U.S.A.

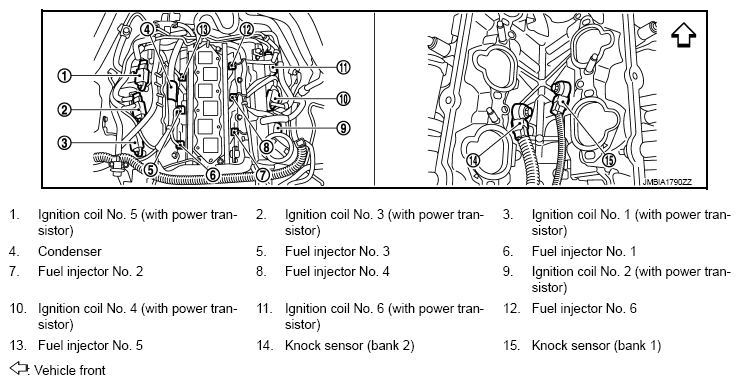

Fig 10: Identifying Air Conditioning Cut Control Components Location (10 Of 20)

G07164831

Courtesy of NISSAN MOTOR CO., U.S.A.

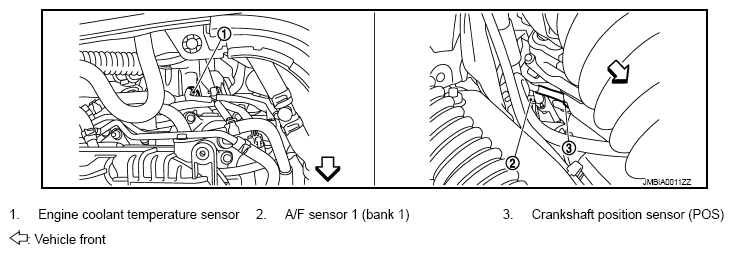

Fig 11: Identifying Air Conditioning Cut Control Components Location (11 Of 20)

G07164832

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Air Conditioning Cut Control Components Location (12 Of 20)

G07164833

Courtesy of NISSAN MOTOR CO., U.S.A.

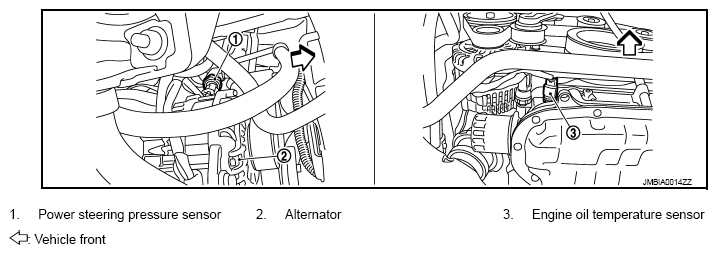

Fig 13: Identifying Air Conditioning Cut Control Components Location (13 Of 20)

G07164834

Courtesy of NISSAN MOTOR CO., U.S.A.

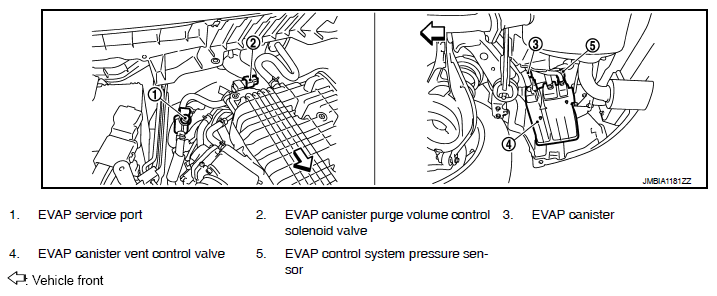

Fig 14: Identifying Air Conditioning Cut Control Components Location (14 Of 20)

G07164835

Courtesy of NISSAN MOTOR CO., U.S.A.

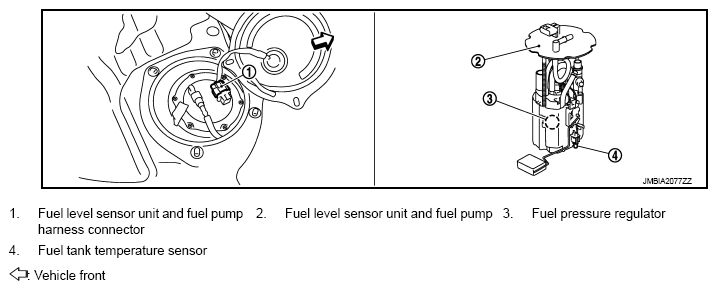

Fig 15: Identifying Air Conditioning Cut Control Components Location (15 Of 20)

G07164836

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Air Conditioning Cut Control Components Location (16 Of 20)

G07164837

Courtesy of NISSAN MOTOR CO., U.S.A.

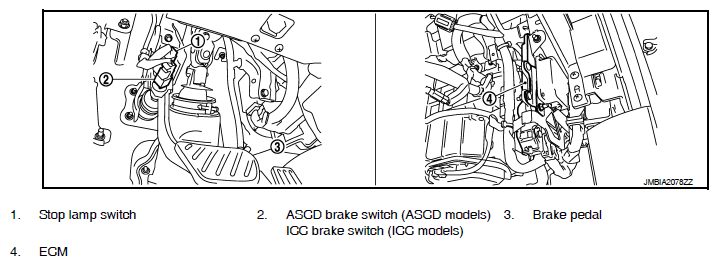

Fig 17: Identifying Air Conditioning Cut Control Components Location (17 Of 20)

G07164838

Courtesy of NISSAN MOTOR CO., U.S.A.

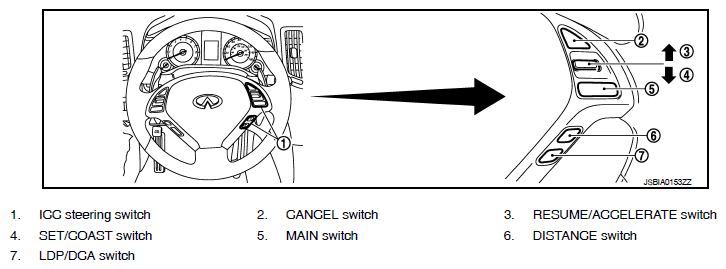

Fig 18: Identifying Air Conditioning Cut Control Components Location (18 Of 20)

G07164839

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Air Conditioning Cut Control Components Location (19 Of 20)

G07164840

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Air Conditioning Cut Control Components Location (20 Of 20)

G07164841

Courtesy of NISSAN MOTOR CO., U.S.A.
